/Blowers/A146 Fasco 1/100HP Blower Electric Motor, 3000RPM
Click Image to Expand

Product ID: A146

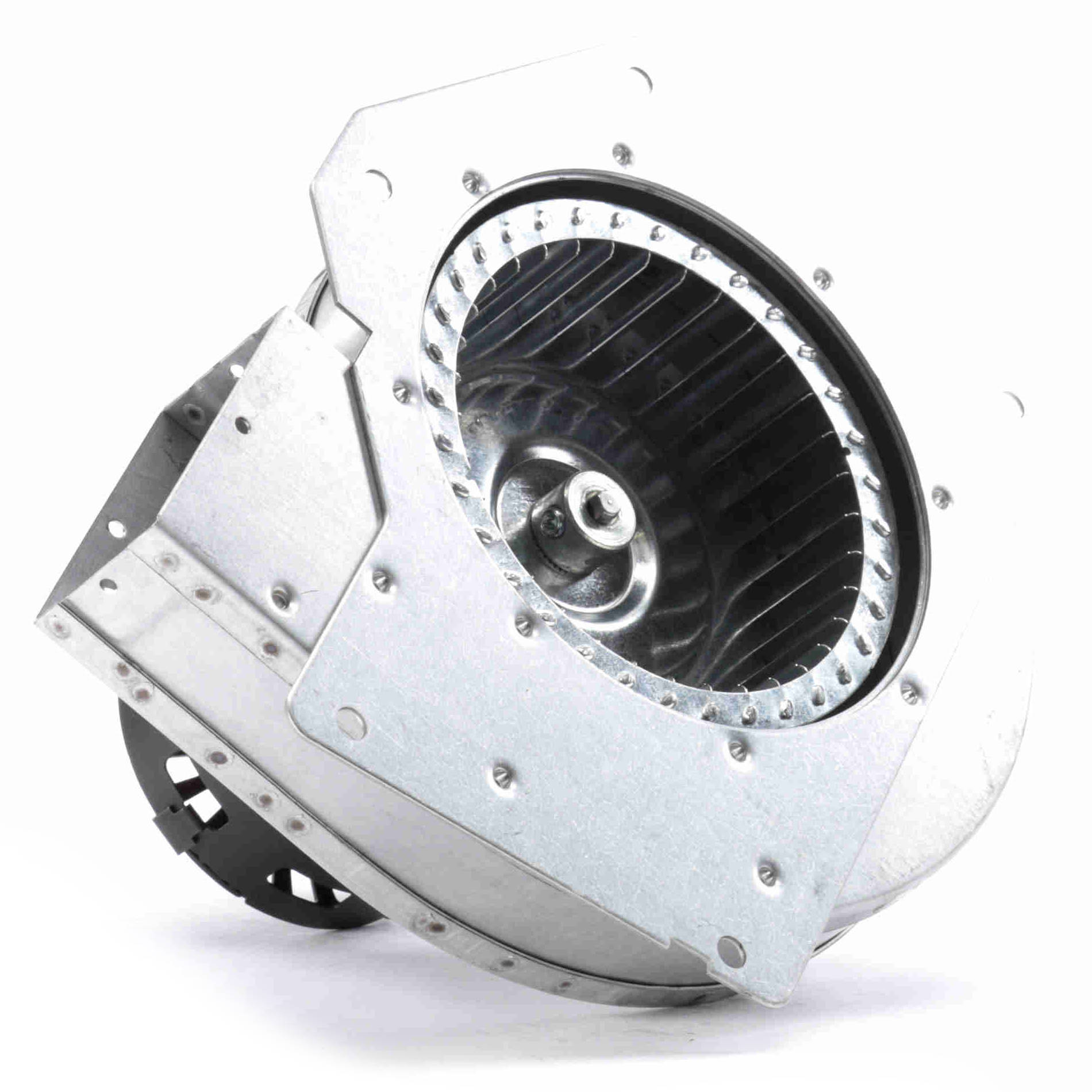

A146 Fasco 1/100HP Blower Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A146

Selected accessories will also be added to cart
$281.97 / Each
Quantity:
2-Speed, Open, 115VAC Single Phase 60Hz, CW, Sleeve Bearings, Shaded Pole

Features

Features
  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 6" Leads with Pin Housing Terminal
  • 70 CFM

General Specifications

General Specifications
Model : Catalog No : A146
Part Description : 70219416.BLOWER...2 SPD. Category : Draft Inducer
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Voltage : 115 V Motor Type : Shaded Pole
Overload Protector : Thermally Speed : 3000/2300 RPM
Current : 1.0/.35 A Number of Speeds : 2
Frequency : 60 Hz Phase : 1
Ambient Temperature : 40 °C UL : Yes
Insulation Class : B CSA : Yes

Technical Specifications

Technical Specifications
Blower Outlet Shape : Rectangle Motor Enclosure : Open
Blower Outlet Flange : No Bearing Type : Sleeve
UPC : 815585026501 Weight : 6.00 LB

Speed & Load Characteristics
