/Blowers/A143 Fasco Rectangular Outlet Draft Inducer Blower Electric Motor, 3000RPM
Click Image to Expand

Product ID: A143

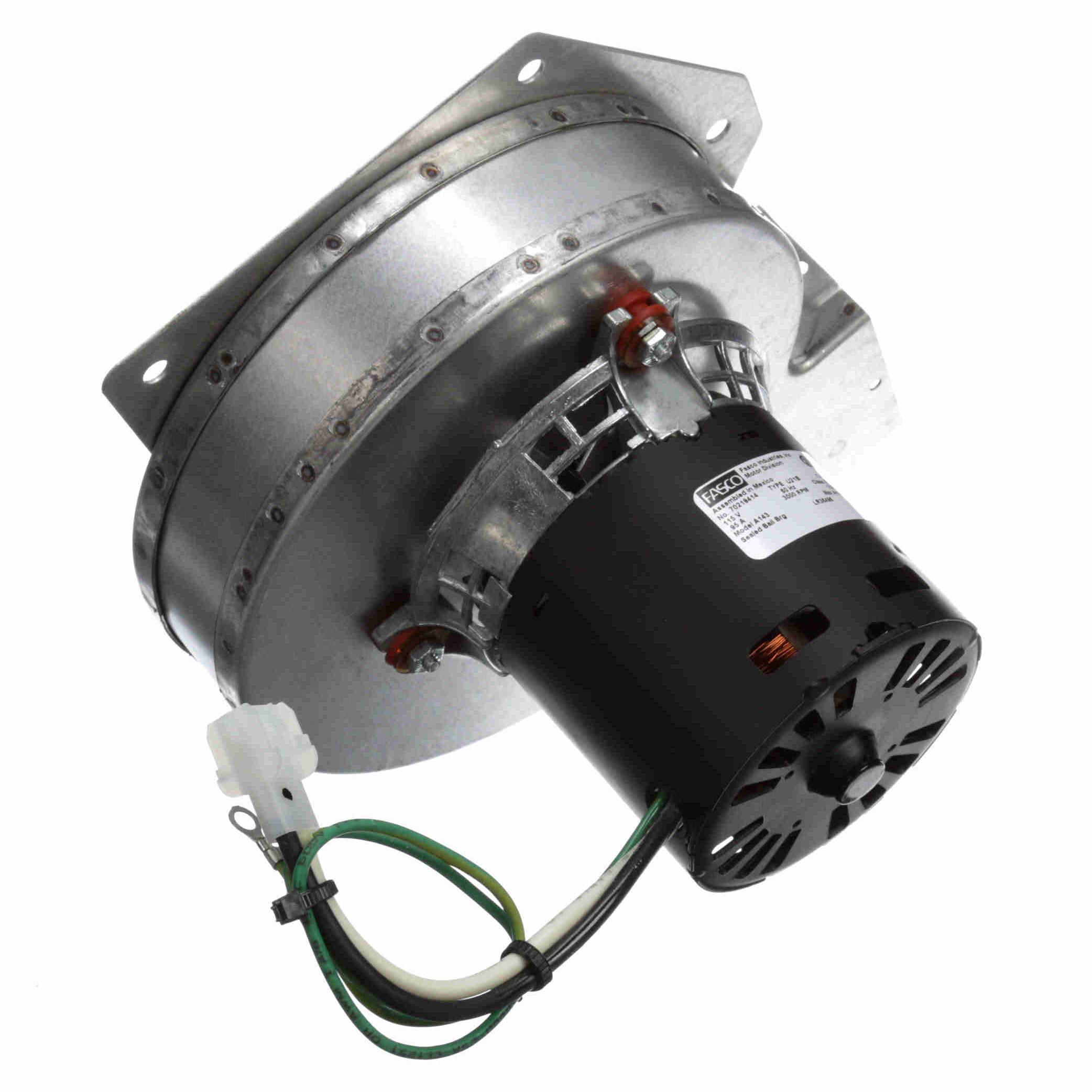

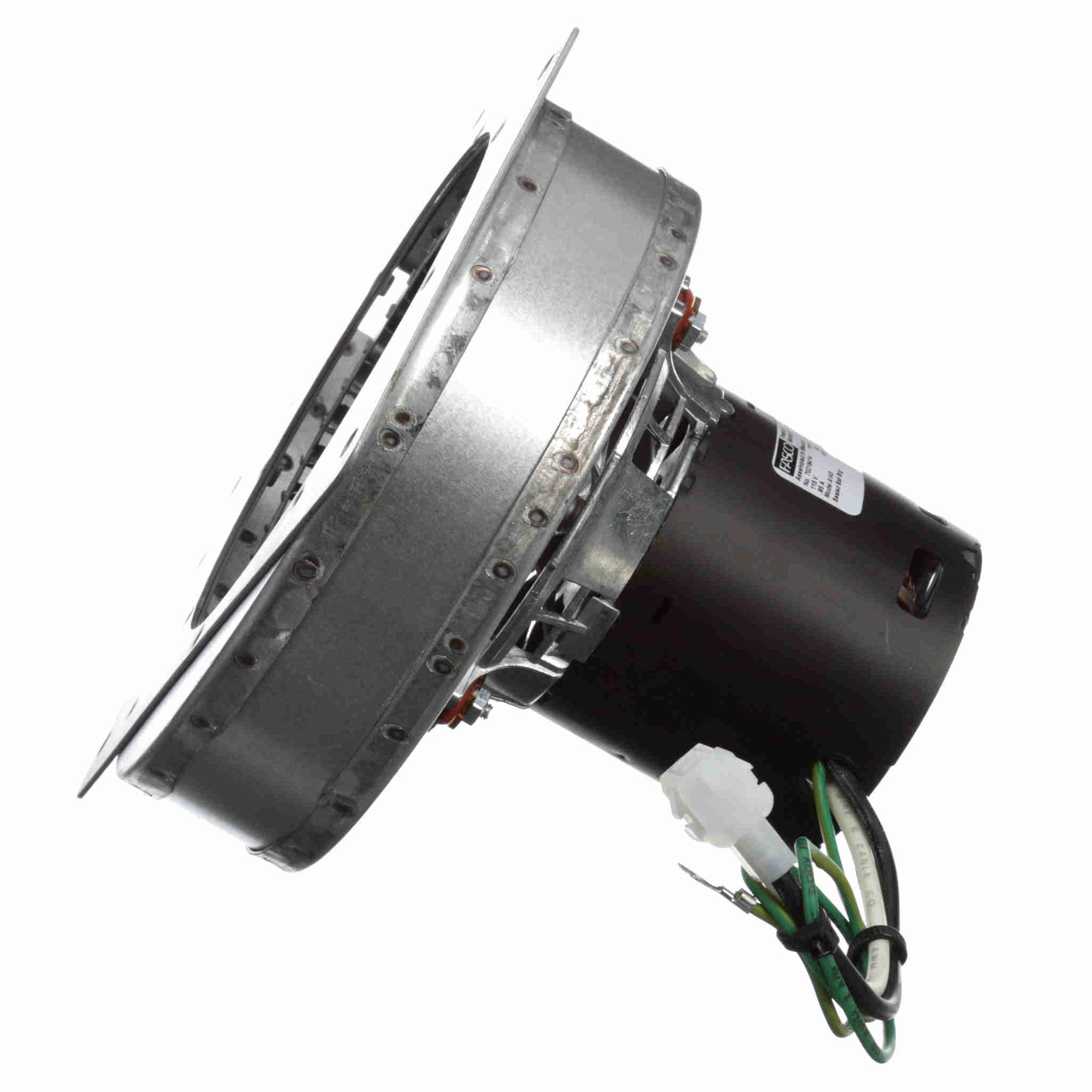

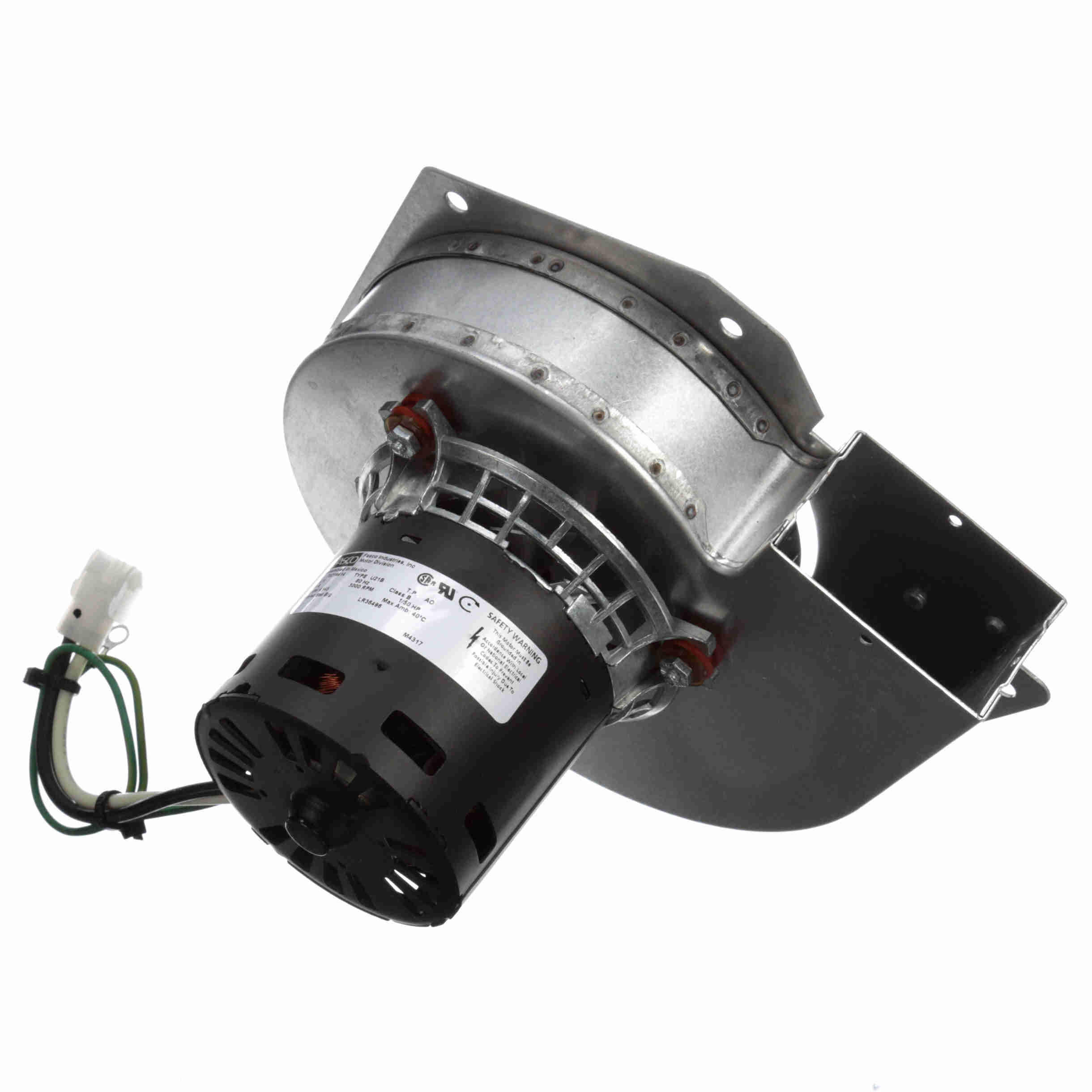

A143 Fasco Rectangular Outlet Draft Inducer Blower Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A143

Selected accessories will also be added to cart
$150.97 / Each
Quantity:
Open, 3.3" Diameter, 115VAC Single Phase 60Hz

Features

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 6" Lead with Pin Housing Terminal

General Specifications

UPC: 815585026242 Weight: 5.00 LB
Packaged Length: 12 IN Packaged Width: 10.38 IN
Packaged Height: 8 IN

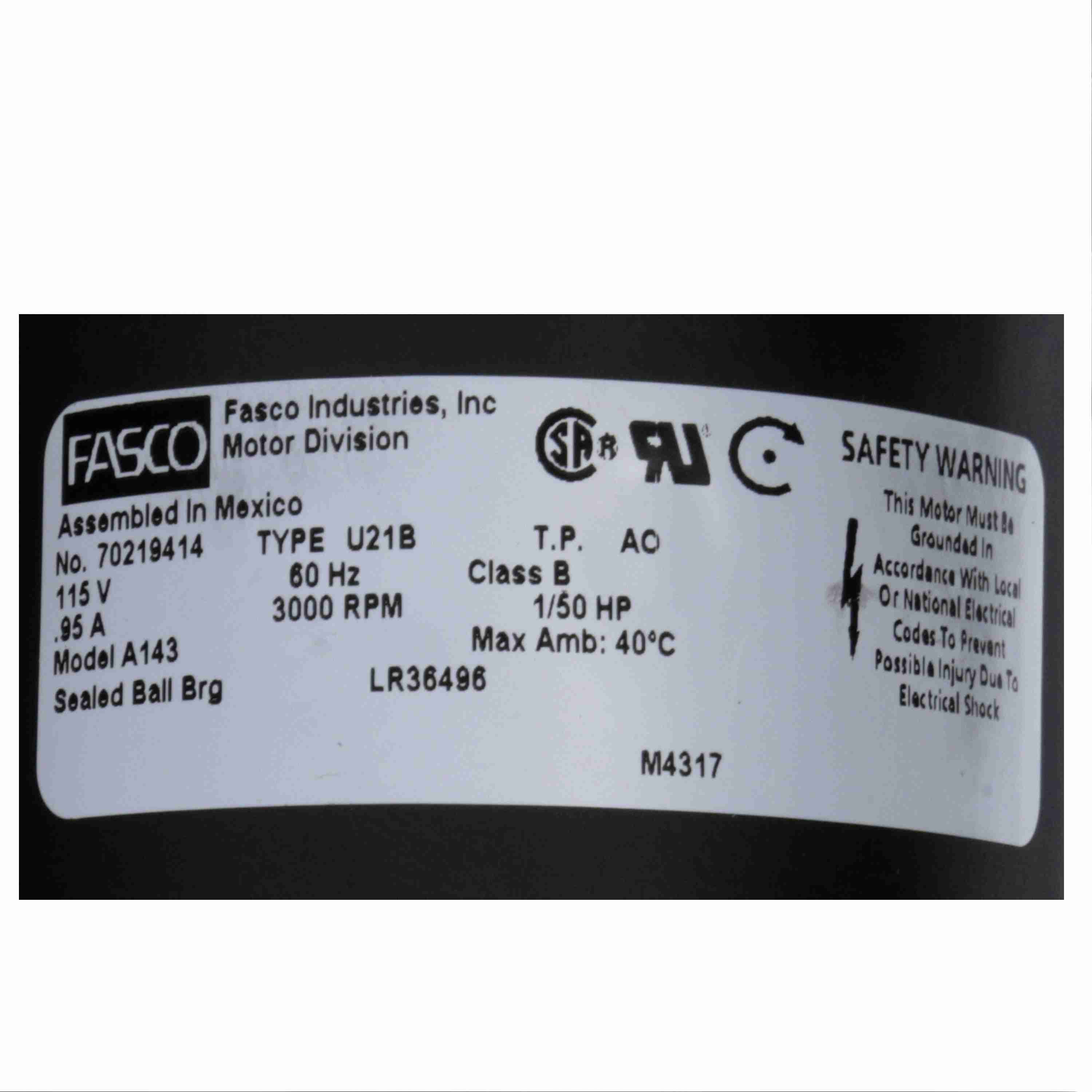

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 0.95 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

Speed & Load Characteristics
