/Blowers/A1200 Fasco Centrifugal Blower Electric Motor, 1500/1400RPM
Click Image to Expand

Product ID: A1200

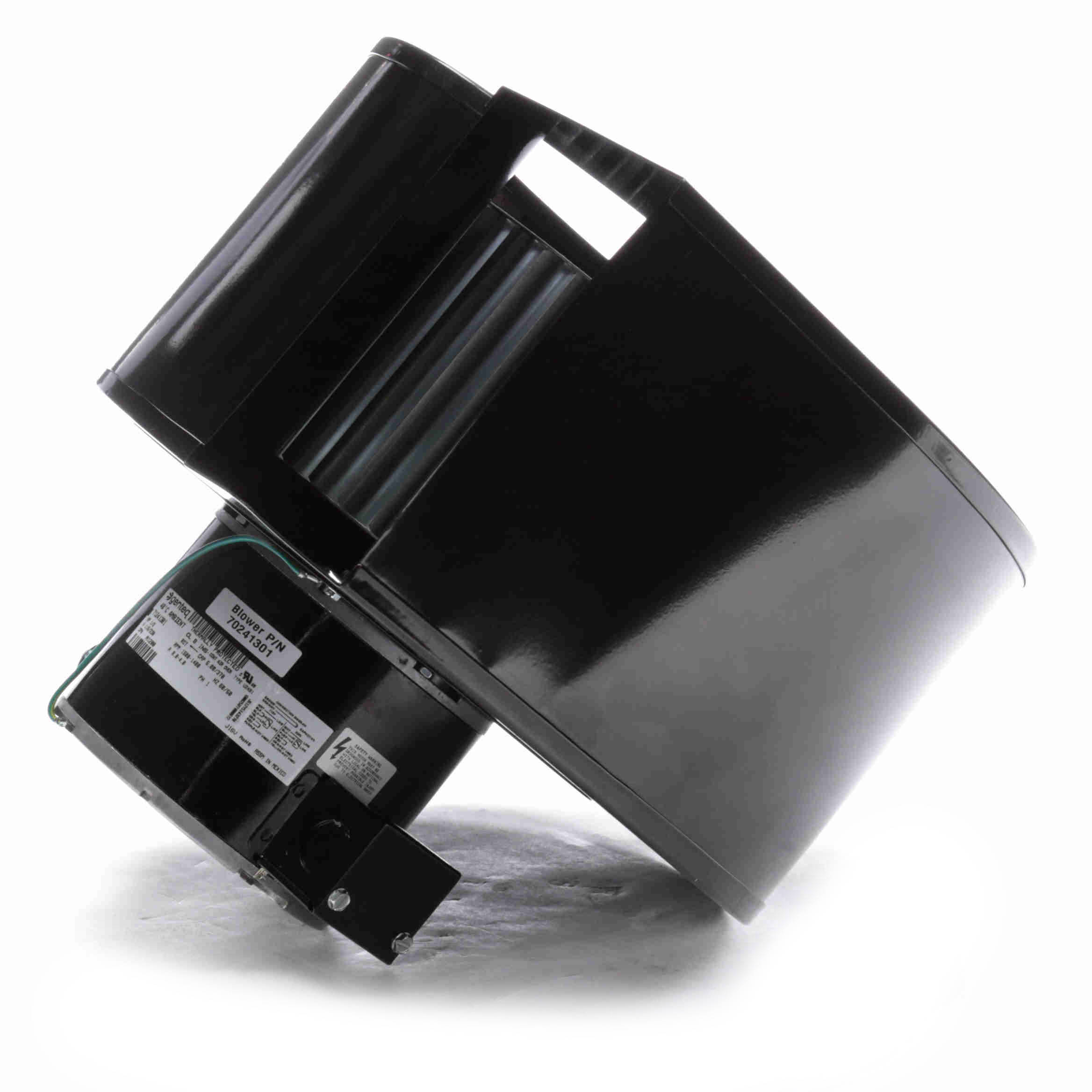

A1200 Fasco Centrifugal Blower Electric Motor, 1500/1400RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A1200

Selected accessories will also be added to cart
$552.97 / Each
Quantity:
1200 CFM, 115/230V 60Hz 2-Speed

Features

Features
  • Centrifugal Blower
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 7" Leads with Stripped ends
  • 1175 CFM

General Specifications

General Specifications
Model : Catalog No : A1200
Part Description : 70241301.BLOWER...2 SPD. Category : Centrifugal
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Voltage : 115/230 V Motor Type : Permanent Split Capacitor
Overload Protector : Thermally Speed : 1550/1450 RPM
Current : 8.0/4.0 A Number of Speeds : 2
Frequency : 60 Hz Phase : 1
Ambient Temperature : 40 °C UL : No
Insulation Class : B CSA : No

Technical Specifications

Technical Specifications
Blower Outlet Shape : Rectangle Motor Enclosure : Open
Blower Outlet Flange : No Bearing Type : Sleeve
UPC : 815585025832 Weight : 27.00 LB

Speed & Load Characteristics

CFM At Static Pressure
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
1200 1260/1065 1240/1060 1200/1050 1150/1000 1075/950
