/Products/Electric Motors/Single Phase/Leeson/TEAO Rigid Base/A099946.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM
Click Image to Expand

Product ID: A099946.00

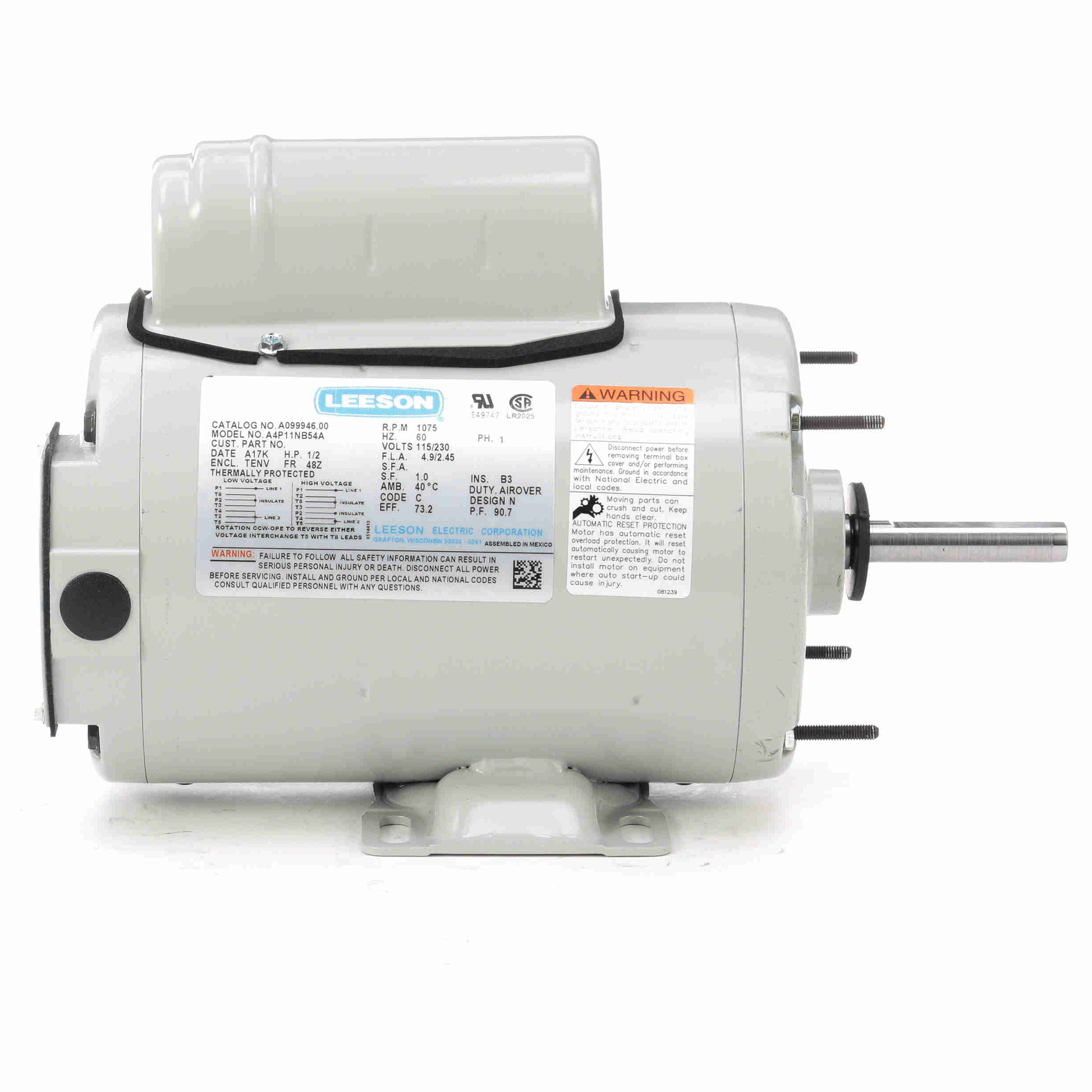

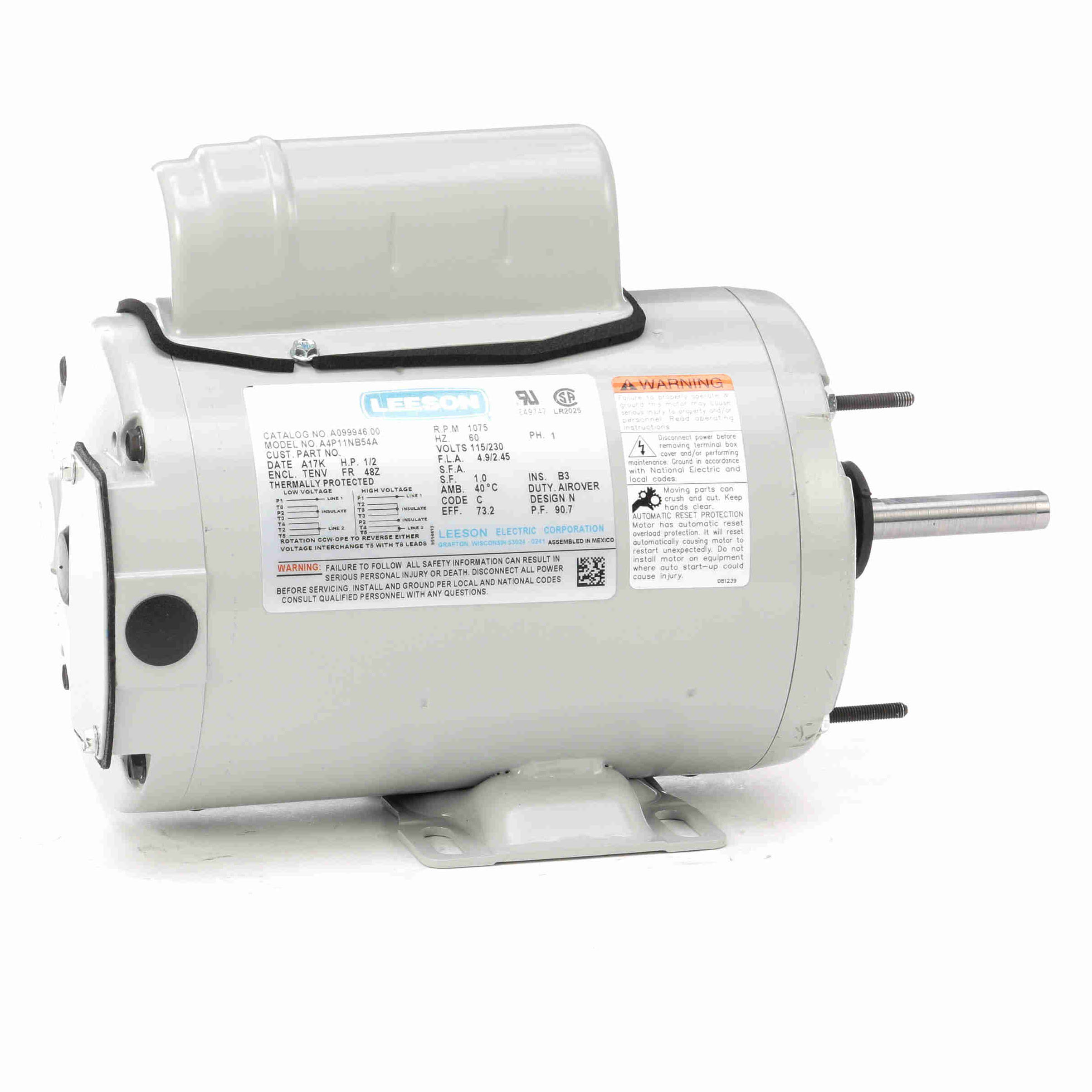

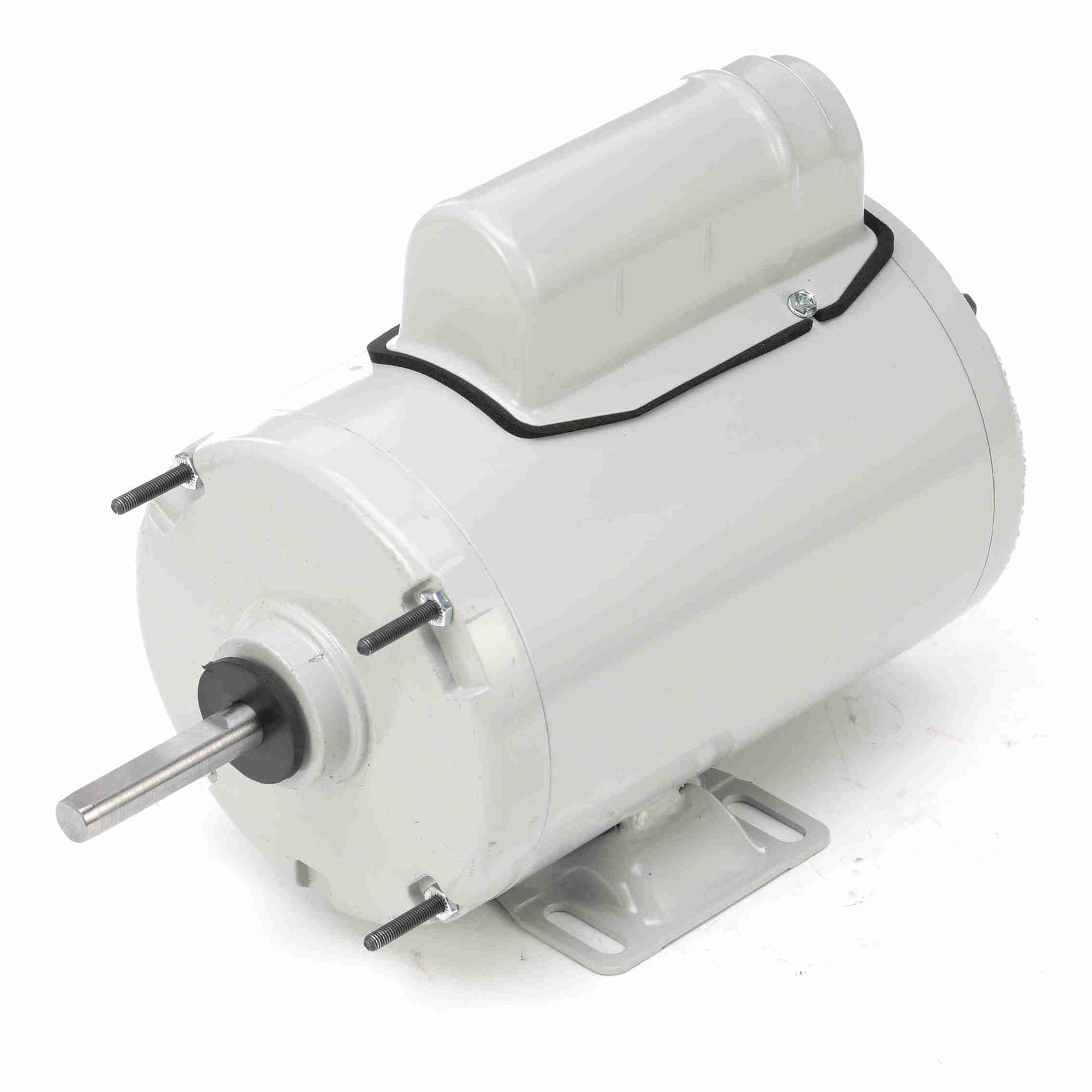

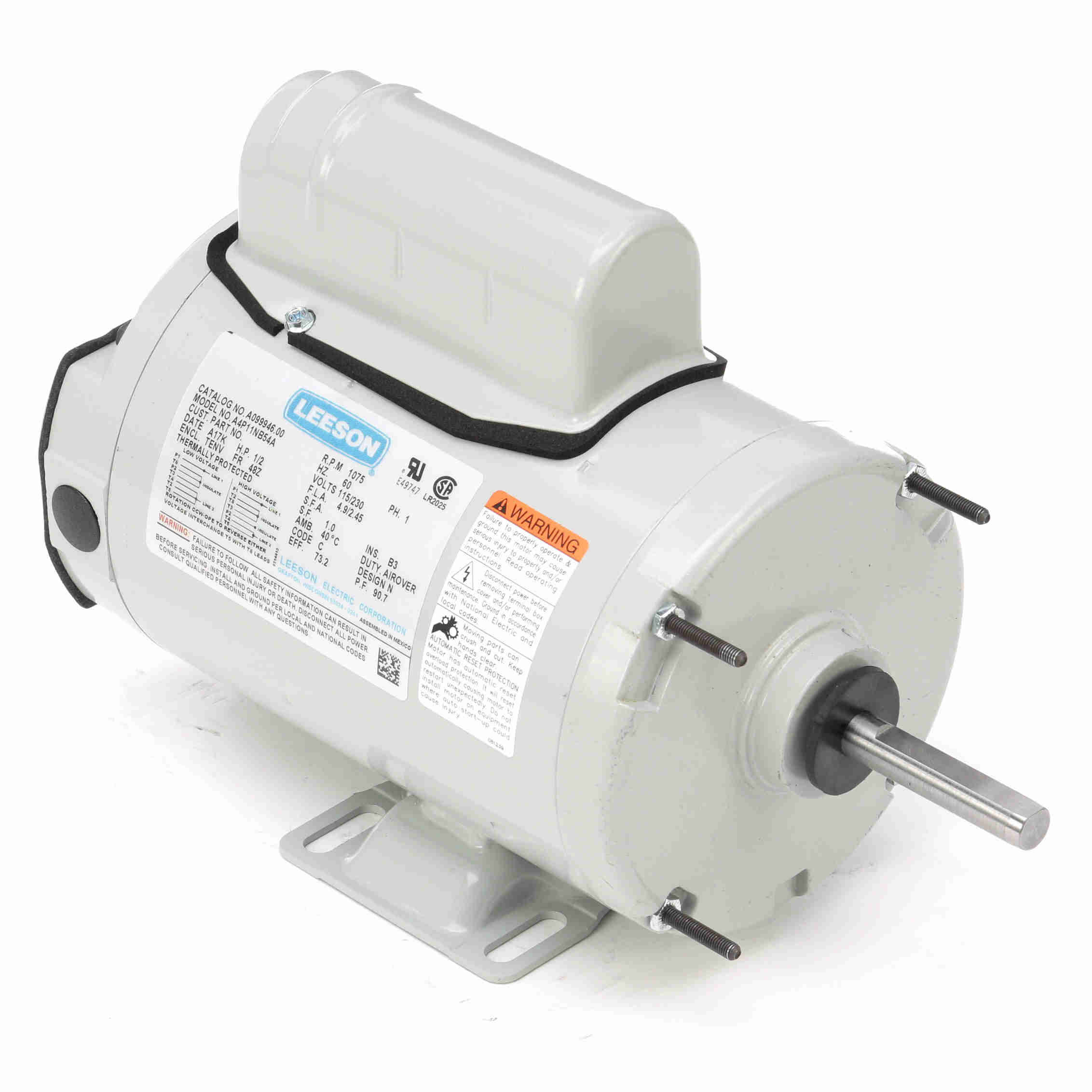

A099946.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P11NB54

Temporarily out of stock
Selected accessories will also be added to cart
$297.26 / Each
TEAO, 48Y Frame, 115-230VAC Single Phase 60Hz, A4P11NB54A, Rigid Base, Rolled Steel, 1/2" Shaft

Features

  • PSC designs offer low in-rush current
  • Two speed operation - most ratings
  • Automatic overload protected
  • Corrosion resistant finish

General Specifications

UPC: 691720102947 Weight: 26.00 LB
Packaged Length: 15.82 IN Packaged Width: 12.56 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 4.9/2.5 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Efficiency: 73.2 % Power Factor: 90.7
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: C
Frame: 48Z Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Lock Rotor Only Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Mounting: Rigid base Motor Orientation: HORIZONTAL
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Shaft Type: Single Special Extension
Overall Length: 11.90 in Frame Length: 6.75 in
Shaft Diameter: 0.500 in Shaft Extension: 2.24 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 5.65 68.50 893 1.13 0.50
Locked-Rotor 8.40 20.20 0 1.48 0.50
Pull-Up 8.35 19.60 30 1.48 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.11 1.29 1.59 1.97 2.45 3.06 4.15
Rated Output (KW) 0.13 0.22 0.30 0.40 0.51 0.64 0.86
Efficiency (%) 0.0 43.7 61.6 69.9 73.2 72.8 65.1
Power Factor (%) 52.1 72.8 83.1 88.3 90.7 91.2 90.1
Speed (RPM) 1,200 1,182 1,165 1,146 1,121 1,090 1,021
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 9.00 18.10 27.50 37.60 48.30 61.80
