/Products/Electric Motors/Single Phase/Leeson/TEAO Rigid Base/A099261.00 Leeson 1/3HP 2-Winding Agriculture/Fan Duty Electric Motor, 1075RPM
Click Image to Expand

Product ID: A099261.00

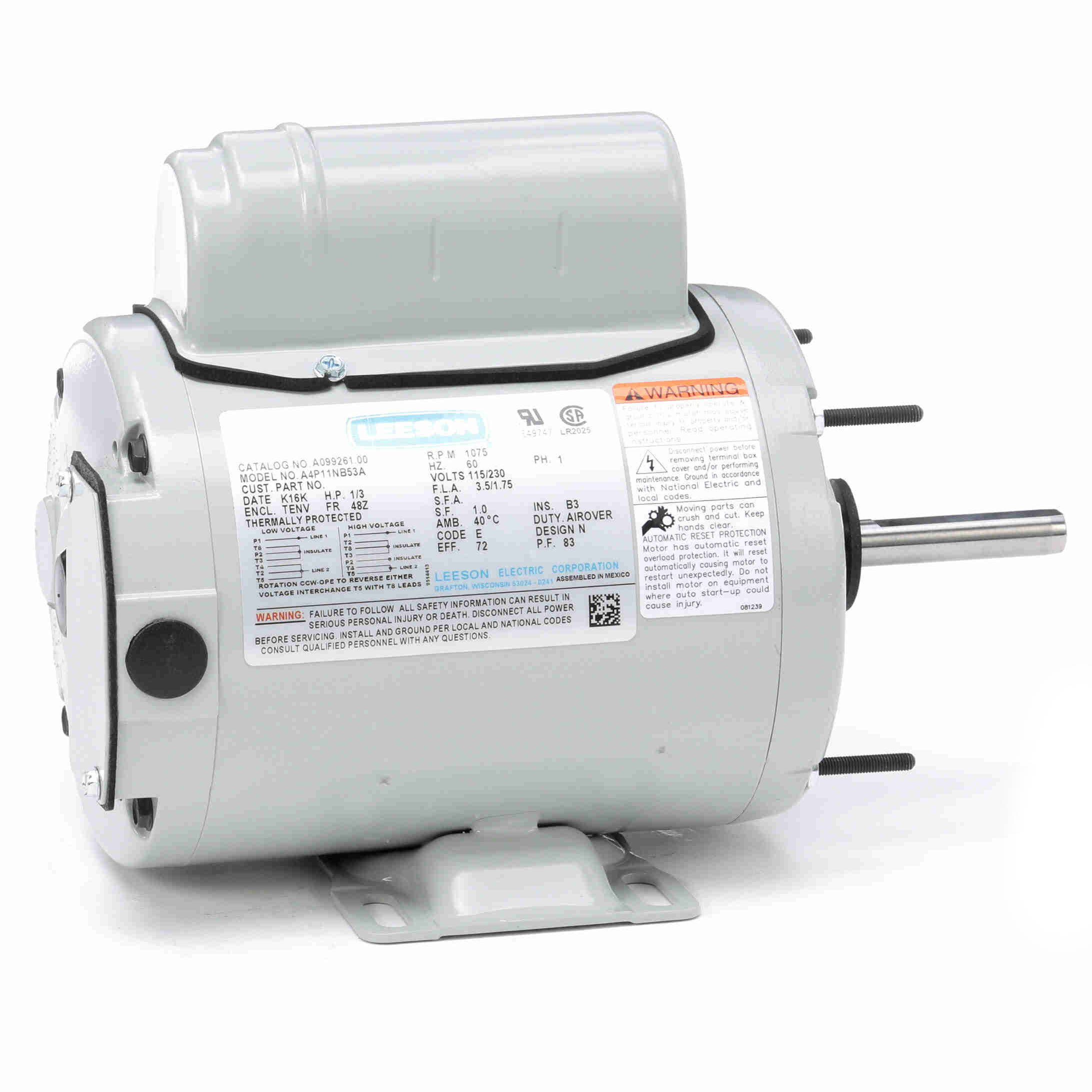

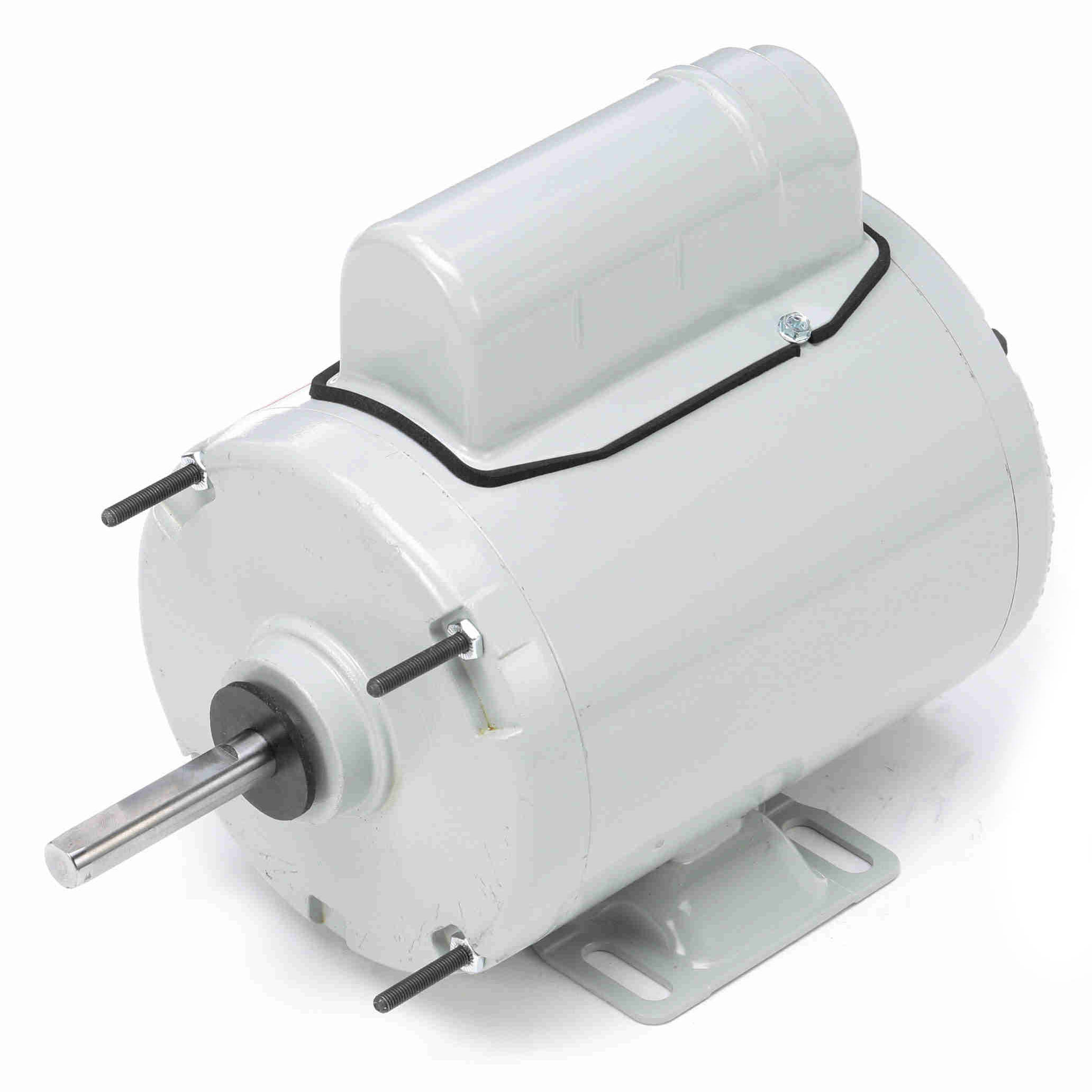

A099261.00 Leeson 1/3HP 2-Winding Agriculture/Fan Duty Electric Motor, 1075RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P11NB53

Temporarily out of stock
Selected accessories will also be added to cart
$288.47 / Each
TEAO, 48Y Frame, 115/230VAC 60Hz Single Phase

Features

  • PSC designs offer low in-rush current
  • Two speed operation - most ratings
  • Automatic overload protected
  • Corrosion resistant finish

General Specifications

UPC:691720102923Weight:22.00 LB
Packaged Length:12.75 INPackaged Width:9.5 IN
Packaged Height:9.38 IN

Nameplate Specifications

Output HP:0.33 HpOutput KW:0.25 kW
Frequency:60 HzVoltage:115/230 V
Current:3.5/1.8 ASpeed:1075 rpm
Service Factor:1Phase:1
Efficiency:72 %Power Factor:83
Duty:ContinuousInsulation Class:B
Design Code:NKVA Code:E
Frame:48ZEnclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor OnlyAmbient Temperature:40 °C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Permanent Split CapacitorStarting Method:Across The Line
Poles:6Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Rigid - Extended Studs
Motor Orientation:HORIZONTALDrive End Bearing:BALL
Opp Drive End Bearing:BALLFrame Material:Rolled Steel
Shaft Type:Single Special ExtensionOverall Length:10.90 in
Frame Length:5.75 inShaft Diameter:0.500 in
Shaft Extension:2.24 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up6.6310.20311.110.33
Locked-Rotor6.6310.5001.110.33
Break-Down4.2849.009430.840.33

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)0.951.051.231.471.762.142.64
Rated Output (KW)0.090.140.200.270.340.420.54
Efficiency (%)0.044.061.070.072.073.069.0
Power Factor (%)40.058.071.078.083.086.088.0
Speed (RPM)1,2001,1861,1731,1581,1411,1201,088
Temp. Rise @ FL0.00.00.00.00.00.00.0
Torque (ft-lbs)0.006.0012.0018.2024.6031.3038.70
