/Blowers/A069 Fasco 1/70HP Blower Electric Motor, 3000RPM
Click Image to Expand

Product ID: A069

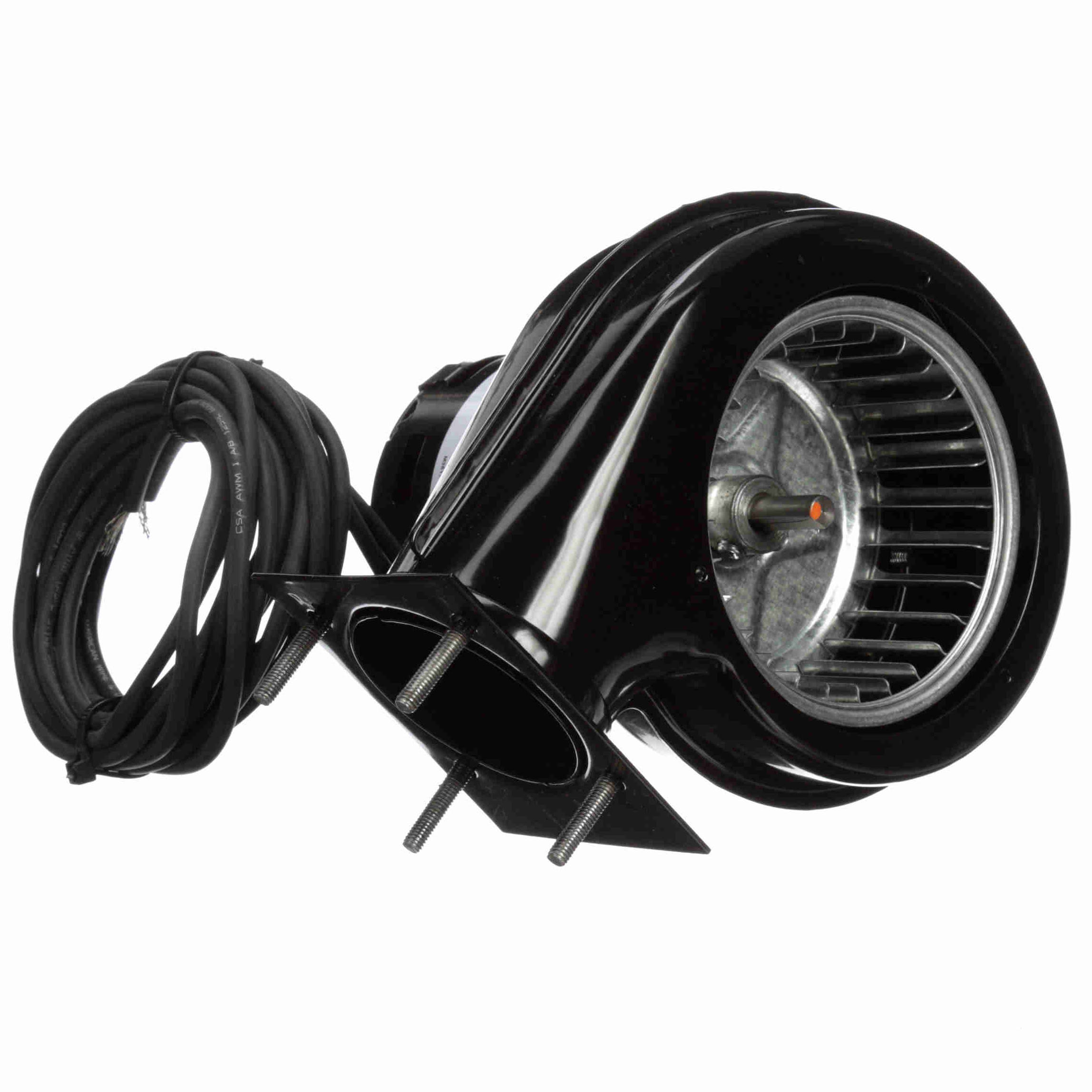

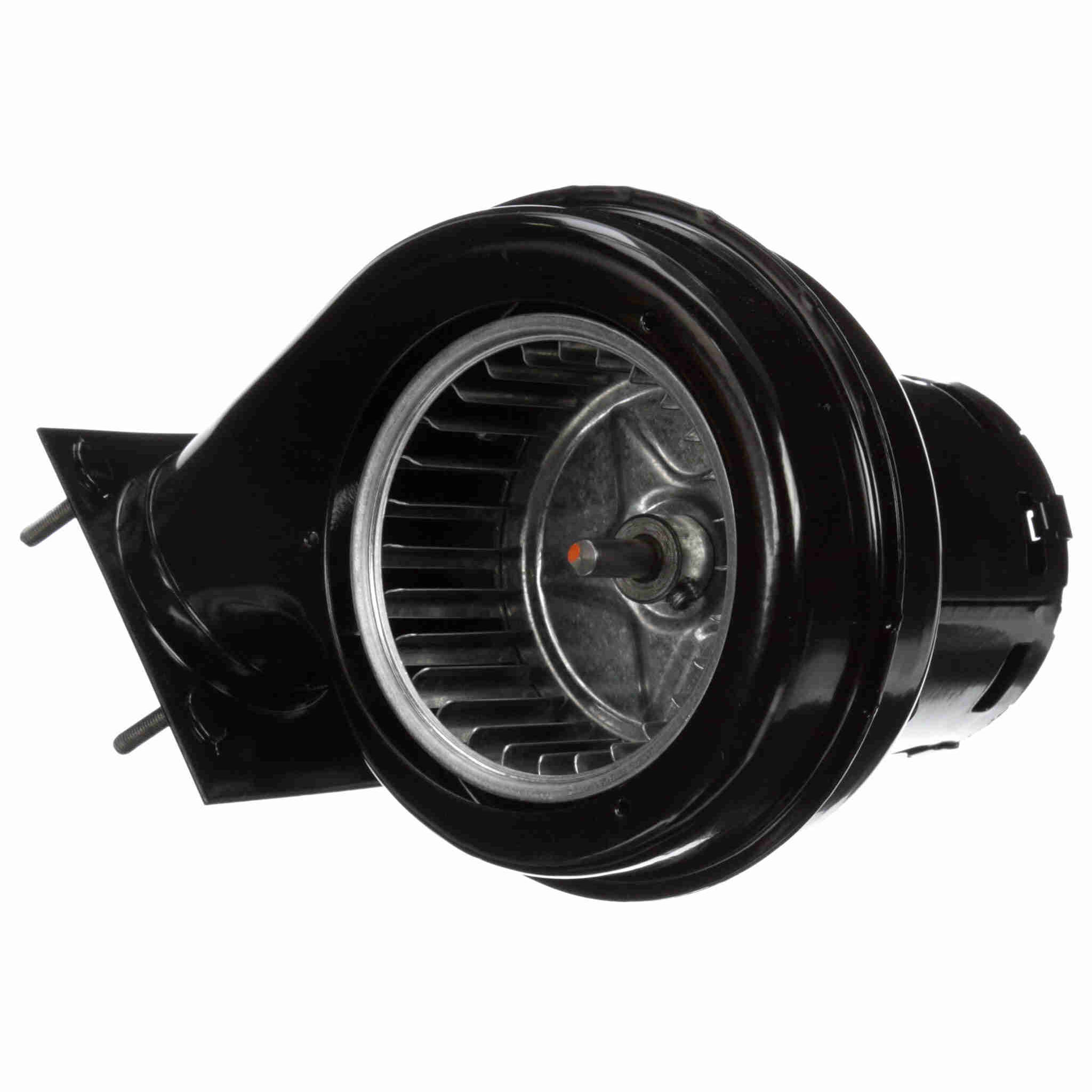

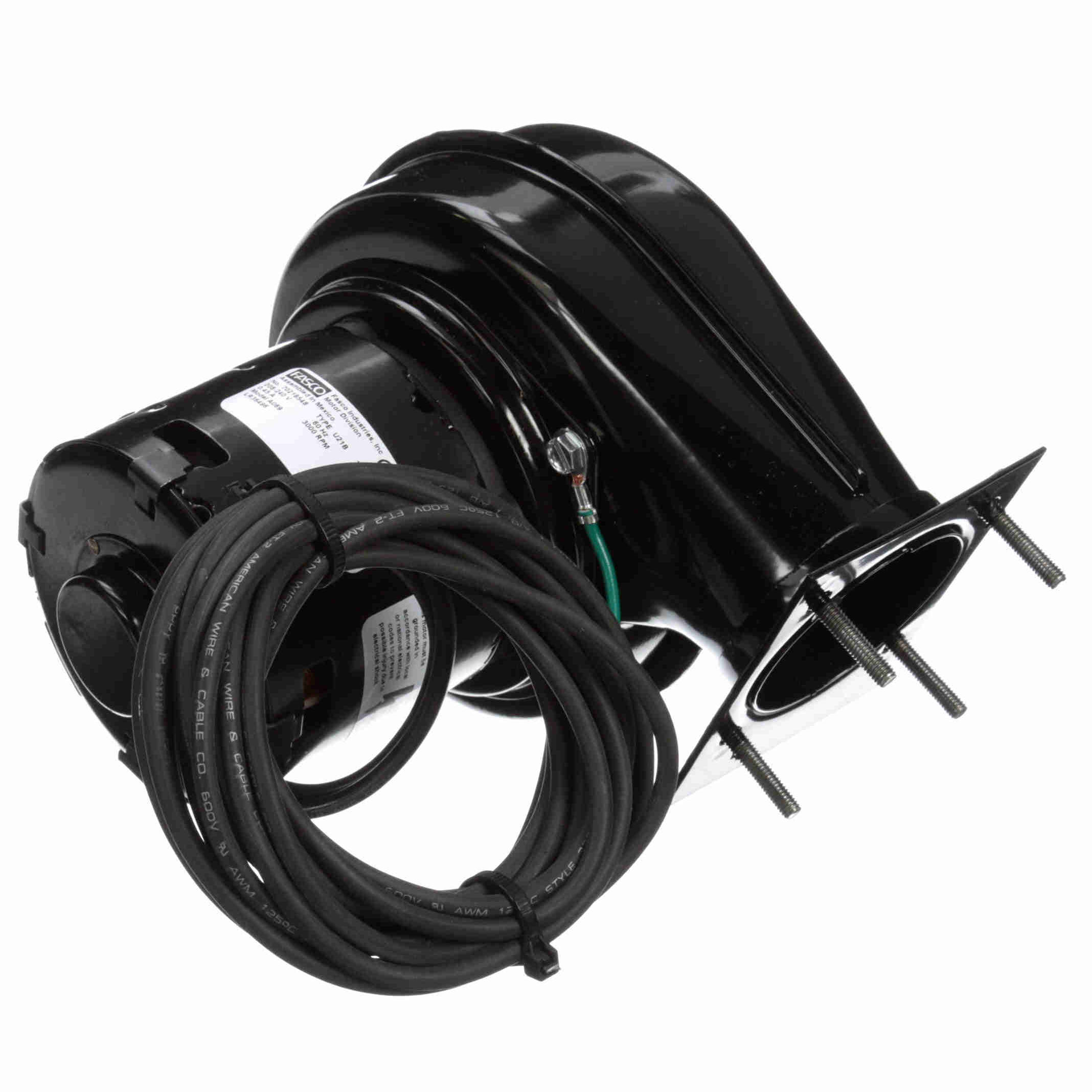

A069 Fasco 1/70HP Blower Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A069

Selected accessories will also be added to cart
$134.97 / Each
Quantity:
Open, 208-240VAC Single Phase 60Hz, CCW, Sleeve Bearing, Shaded Pole

Features

Features
  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 82" Leads with Stripped ends

General Specifications

General Specifications
Model : Catalog No : A069
Part Description : 70218548.BLOWER...1 SPD. Category : Draft Inducer
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Voltage : 208-240 V Motor Type : Shaded Pole
Overload Protector : Thermally Speed : 3000 RPM
Current : 0.45 A Number of Speeds : 1
Frequency : 60 Hz Phase : 1
Ambient Temperature : 40 °C UL : Yes
Insulation Class : B CSA : Yes

Technical Specifications

Technical Specifications
Blower Outlet Shape : Round Motor Enclosure : Open
Blower Outlet Flange : Yes Bearing Type : Sleeve
UPC : 815585025535 Weight : 4.00 LB

Speed & Load Characteristics

CFM At Static Pressure
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
69 72 67 63 60 53 52 50 43 40
