/Products/Electric Motors/Single Phase/Leeson/Agricultural Duty Fan/A009581.00 Leeson 3/4HP Agricultural Duty Electric Fan Motor, 1725RPM
Click Image to Expand

Product ID: A009581.00

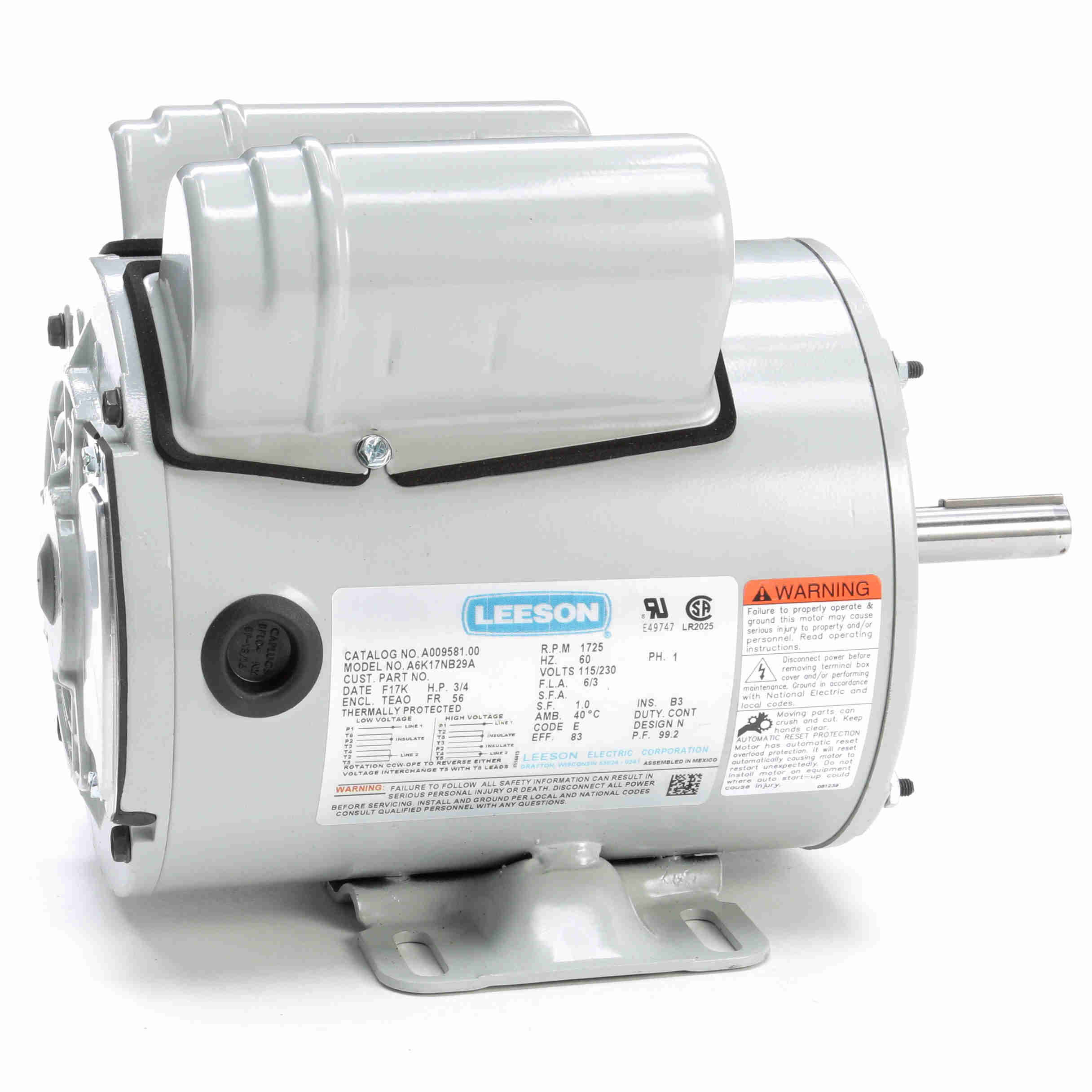

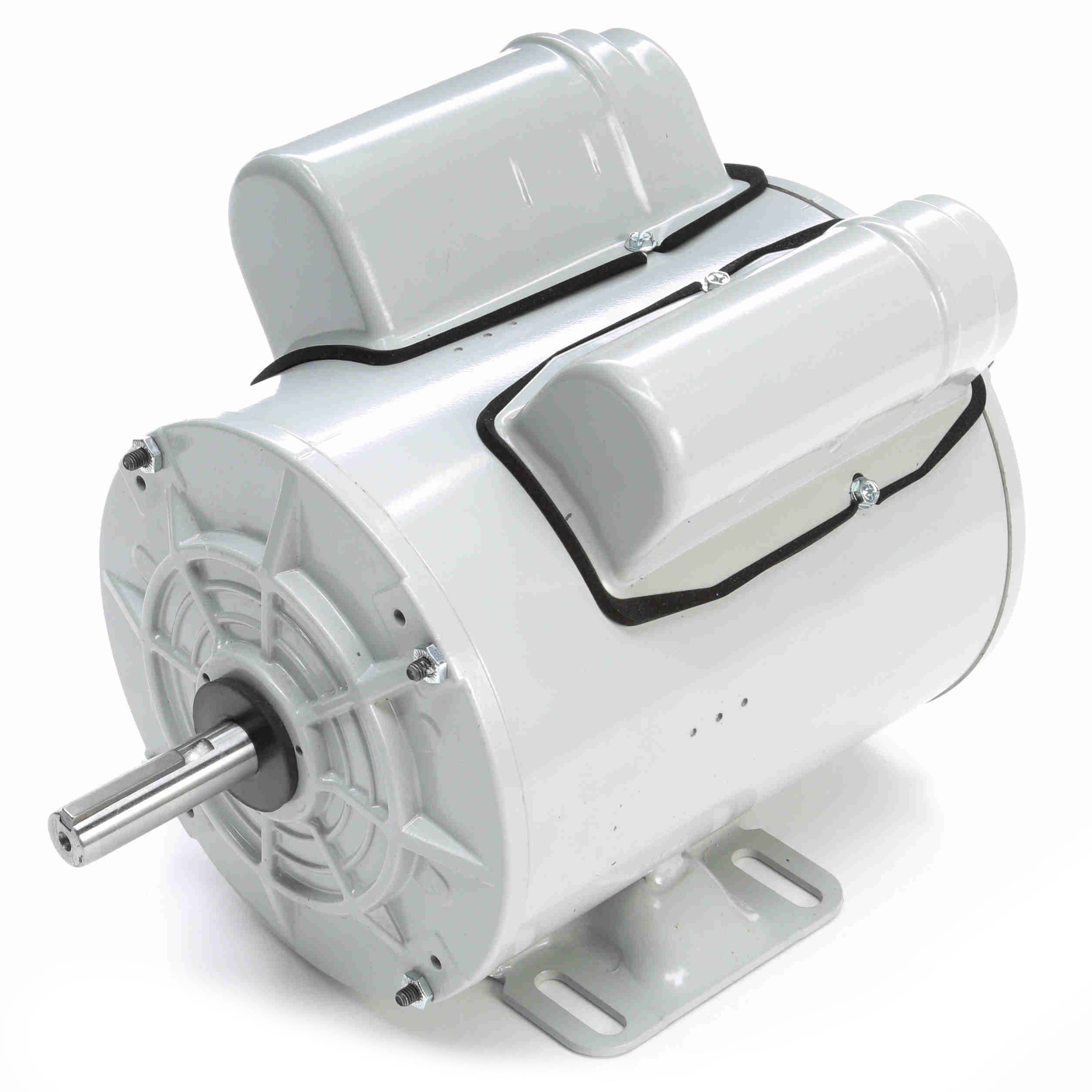

A009581.00 Leeson 3/4HP Agricultural Duty Electric Fan Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A009581.00

Selected accessories will also be added to cart
$449.15 / Each
Quantity:
TEAO, 56 Frame, 115/230VAC Single Phase 60Hz, A6K17NB29A, Rigid Base, Belted Fan, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Capacitor start / Capacitor run designs for high efficiency
  • Mount in airstream for proper cooling
  • Combination 56 / 140 frame stamped steel base

General Specifications

General Specifications
A6K17NB29A A009581.00
...75HP..1725RPM.56.TEAO.115/230V.1PH.60HZ.CONT AOM.40C.1.0SF.RIGID.A6K17NB29A............. Agricultural
No

Nameplate Specifications

Nameplate Specifications
0.75 HP 0.56 kW
60 Hz 115/230 V
6.0/3.0 A 1725 RPM
1 1
83 % Continuous
B N
E 56
Totally Enclosed Air Over Automatic Lock Rotor Only
40 °C 6203
6203
    		Recognized
    Y N
    43

    Technical Specifications

    Technical Specifications
    Capacitor Start Capacitor Run Across The Line
    4 Selective Counterclockwise
    Rigid Base Horizontal
    Ball Ball
    Rolled Steel NEMA 56
    10.94 in7.06 in
    0.625 in 1.88 in
    F1 ONLY 691720103043
    30.00 LB

    Speed & Load Characteristics

    Speed Characteristics
    CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
    Locked-Rotor15.20507.052.00142.003.0387.00.75
    Pull-Up15.20507.052.00142.003.0387.00.75
    Break-Down9.80327.070.00192.01,4401.7287.80.75
    Full Load3.00100.036.52100.01,7400.6799.20.75
    Load Characteristics
    • % of Rated Load
    • Current (Amps)
    • Rated Output (KW)
    • Efficiency (%)
    • Power Factor (%)
    • Speed (RPM)
    • Temp. Rise @ FL
    • Torque (ft-lb)
    • 0 %
    • 0.45
    • 0.095
    • 0.0
    • 92.5
    • 1,795
    • 0.0
    • 0.00
    • 25 %
    • 0.99
    • 0.223
    • 64.8
    • 98.7
    • 1,785
    • 0.0
    • 9.13
    • 50 %
    • 1.58
    • 0.361
    • 79.5
    • 99.9
    • 1,770
    • 0.0
    • 18.26
    • 75 %
    • 2.21
    • 0.506
    • 84.4
    • 100.0
    • 1,760
    • 0.0
    • 27.40
    • 100 %
    • 3.00
    • 0.673
    • 83.0
    • 99.2
    • 1,740
    • 0.0
    • 36.52
    • 115 %
    • 3.45
    • 0.781
    • 82.4
    • 98.6
    • 1,725
    • 0.0
    • 42.00
    • 125 %
    • 3.80
    • 0.855
    • 81.3
    • 98.0
    • 1,715
    • 0.0
    • 45.65
