/Products/VFD's & Soft Starters/KB Electronics/Accessories/9836 KB Electronics Plug-In Horsepower Resistor, 0.25 Ohms
Click Image to Expand

Product ID: KB9836

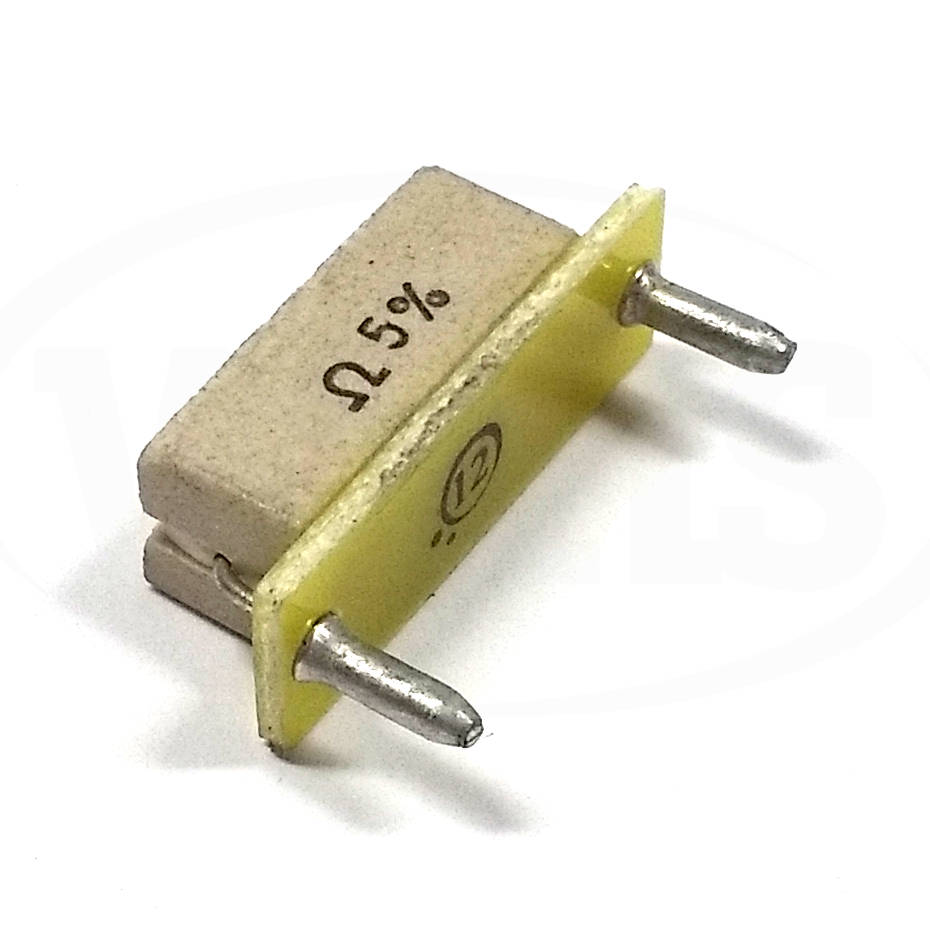

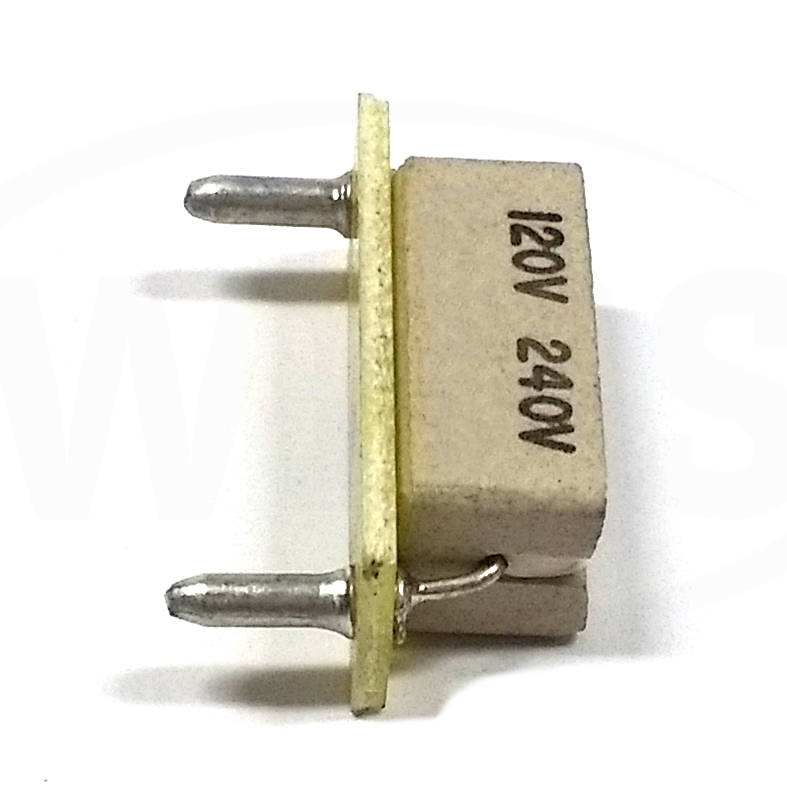

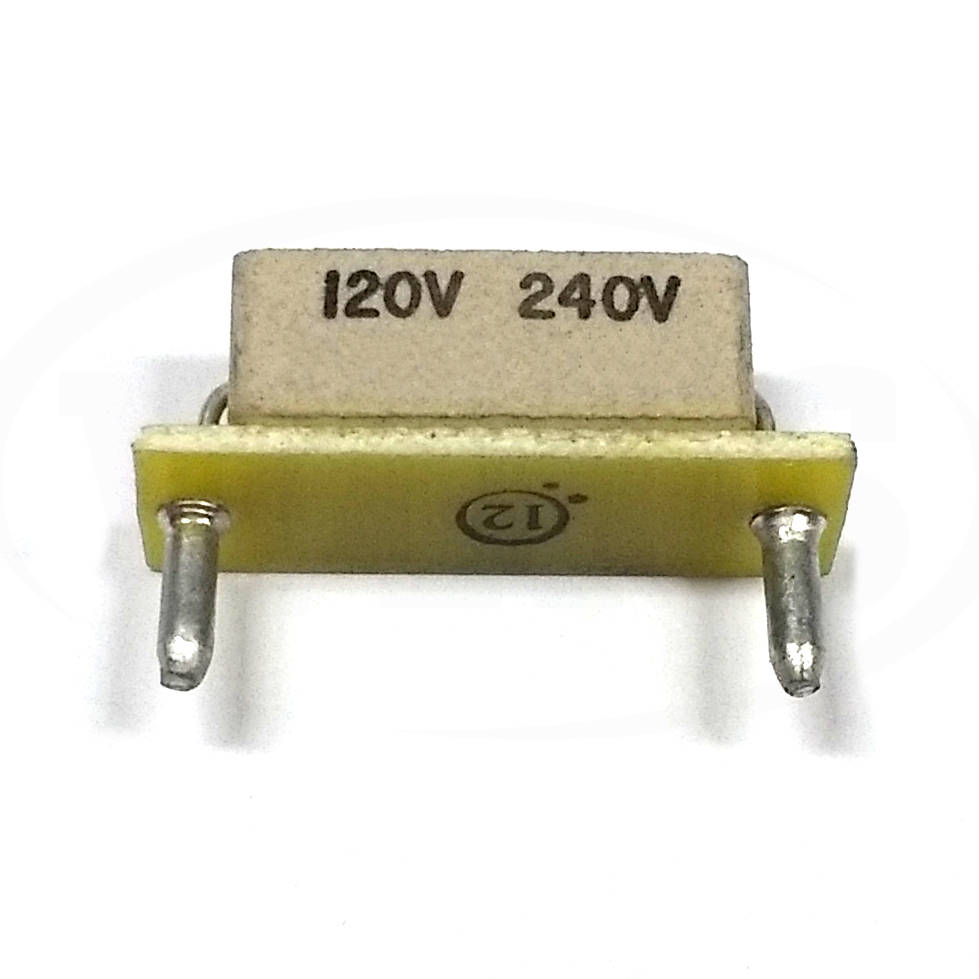

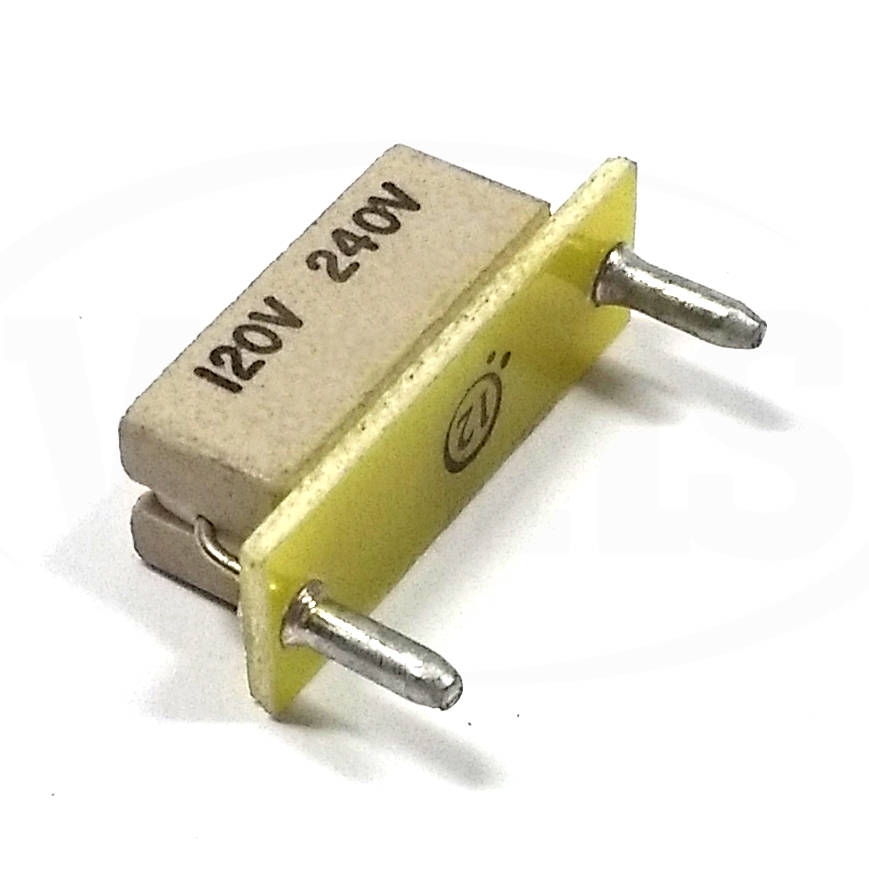

9836 KB Electronics Plug-In Horsepower Resistor, 0.25 Ohms

MFG: KB Electronics, Inc
MFG Part Number: 9836

Available Stock: 28
Selected accessories will also be added to cart
$3.00 / Each
Quantity:

Product Specifications

Brand KB Electronics (Nidec)
Part Number 9836
Quantity 1
Resistance 0.25 Ohms

SCR Controls – KBIC, KBMM, KBPB, KBCC, KBWM & KBMD

Motor Current 0.5 to 0.7 Amps DC
Armature Rating @ 90-130 VDC 1/20 to 1/12 HP
Armature Rating @ 180 VDC 1/10 to 1/6 HP

PWM Controls – KBWD & KBWS

SCR Motor Rating @ 90VDC 1/8 to 1/6 HP
SCR Motor Rating @ 180VDC 1/4 to 1/3 HP
PWM Motor Rating @ 130VDC 1/6 to 1/4 HP
PWM Motor Rating @ 200VDC 1/3 to 1/2 HP
Motor Current 1.3 to 2 Amps DC
