/Products/Electric Motors/Single Phase/Century/Room Air Conditioner/9635A Century 1/6-1/10-1/15HP Fan Coil / Air Conditioner Electric Motor, 1625RPM
Click Image to Expand

Product ID: 9635A

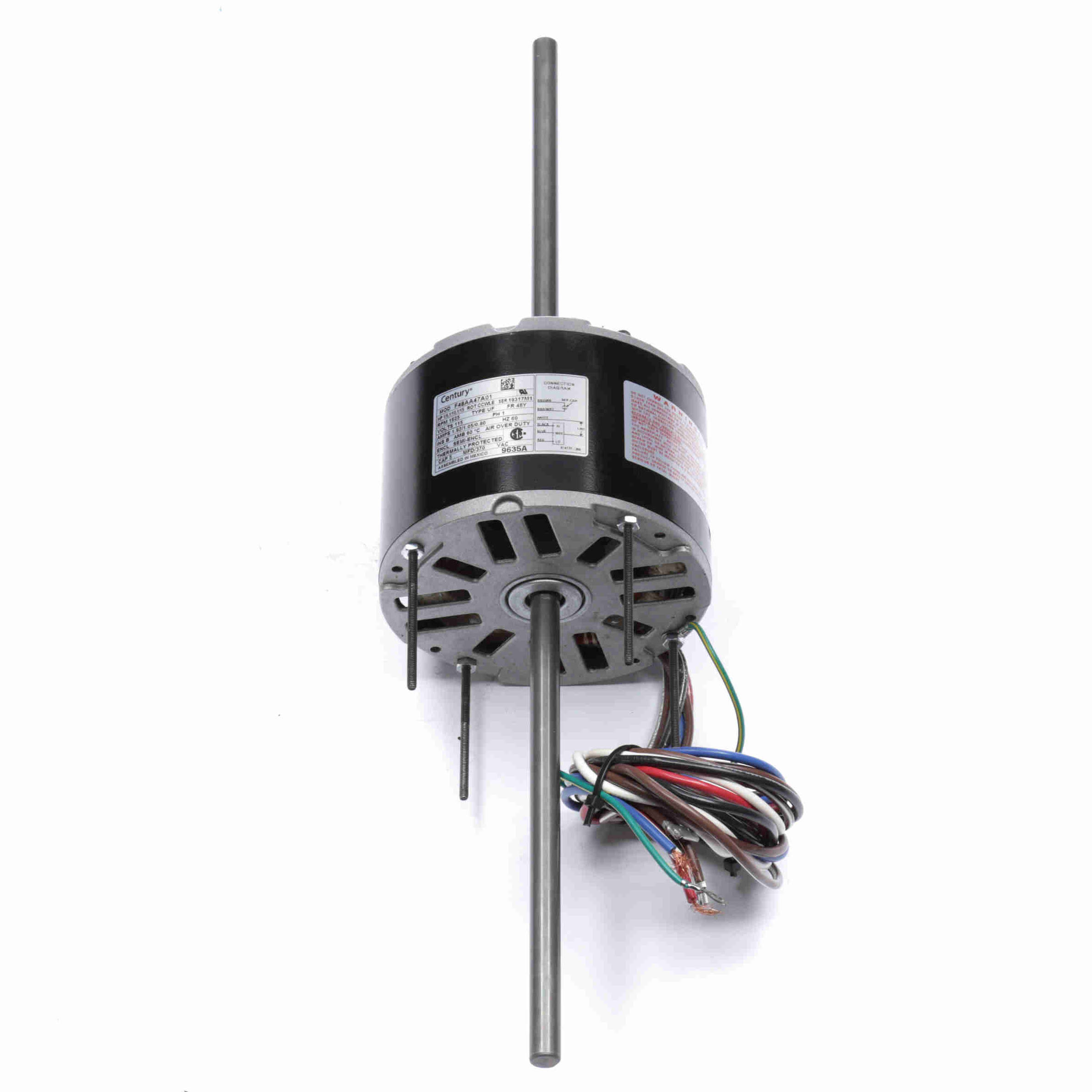

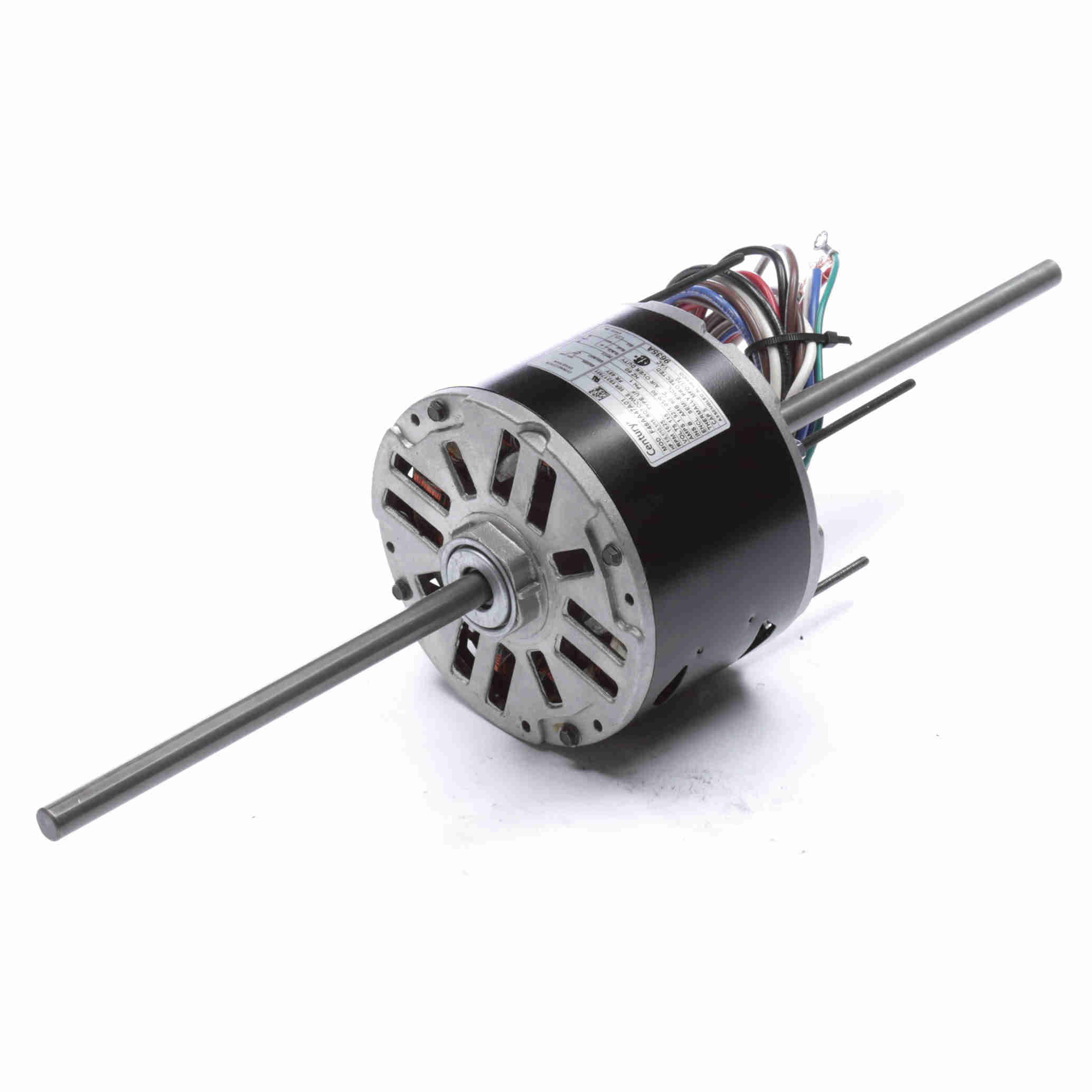

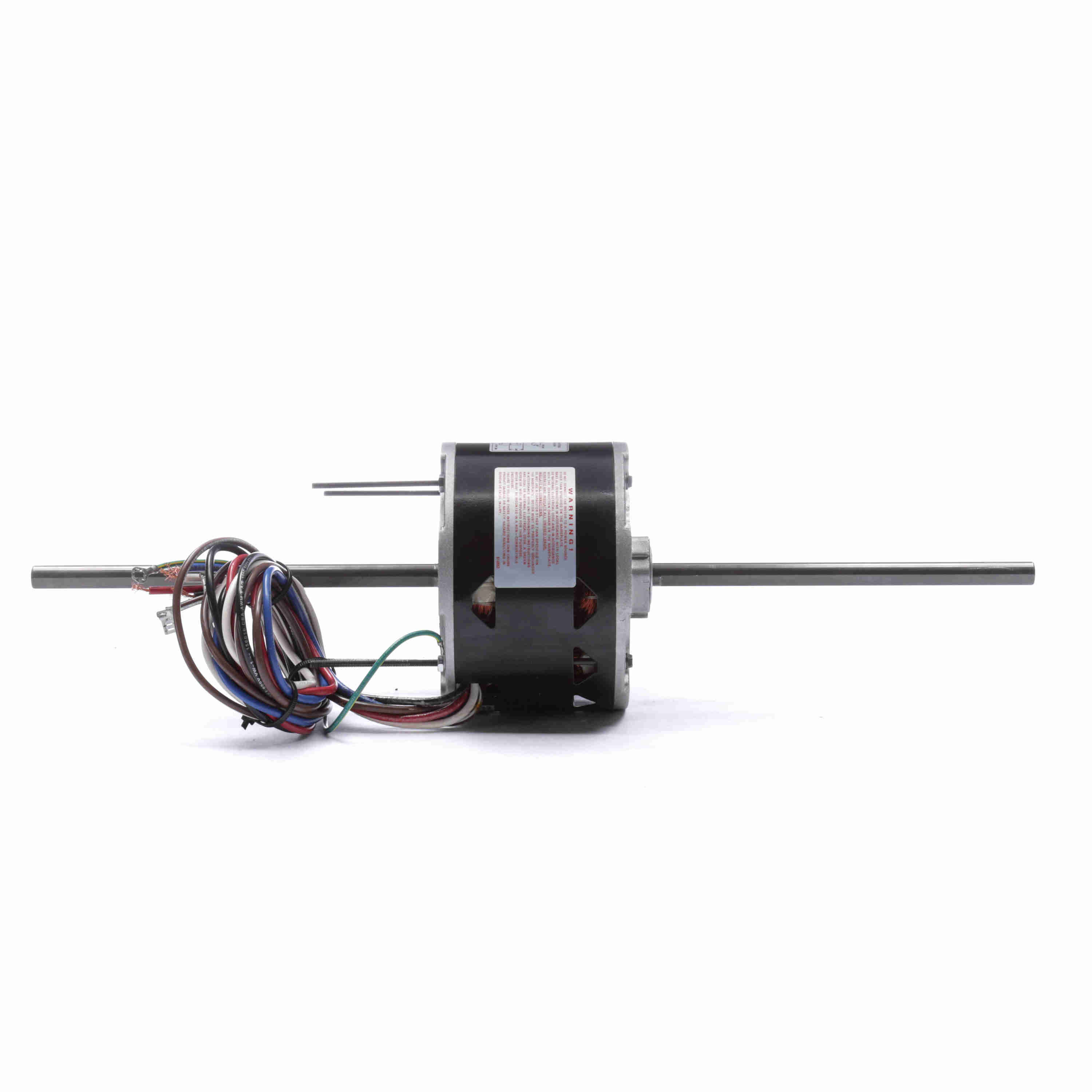

9635A Century 1/6-1/10-1/15HP Fan Coil / Air Conditioner Electric Motor, 1625RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: 9635A

Selected accessories will also be added to cart
$280.97 / Each
Quantity:
Semi-Enclosed, 3-Speed, 48 Frame, 115VAC Single Phase 60Hz, Sleeve Bearings, Rolled Steel, Extended Studs, 1/2" Shaft

Features

  • Fan Coil - Room Air Conditioner - Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Semi-Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 37" Leads
  • Extended Studs Lead End, Resilient Ring Mounting

General Specifications

UPC: 786674011381 Weight: 12.00 LB
Packaged Length: 22.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/6; 1/10; 1/15 Hp Frequency: 60 Hz
Voltage: 115 V Current: 1.92/1.05/0.80 A
Speed: 1625 rpm Service Factor: 1
Phase: 1 Duty: Air Over
Insulation Class: B Frame: F48Y
Enclosure: Semi Enclosed Thermal Protection: Automatic
Ambient Temperature: 60 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Extended Studs Motor Orientation: Vertical Shaft Up Or Down
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 20.75 in Frame Length: 3.25 in
Shaft Diameter: 0.500 in Shaft Extension: 8.4 in

Speed & Load Characteristics
