9618A Century 1/4HP Electric Motor, 1075 RPM
Click Image to Expand
Previous
Next
Product ID: 9618A

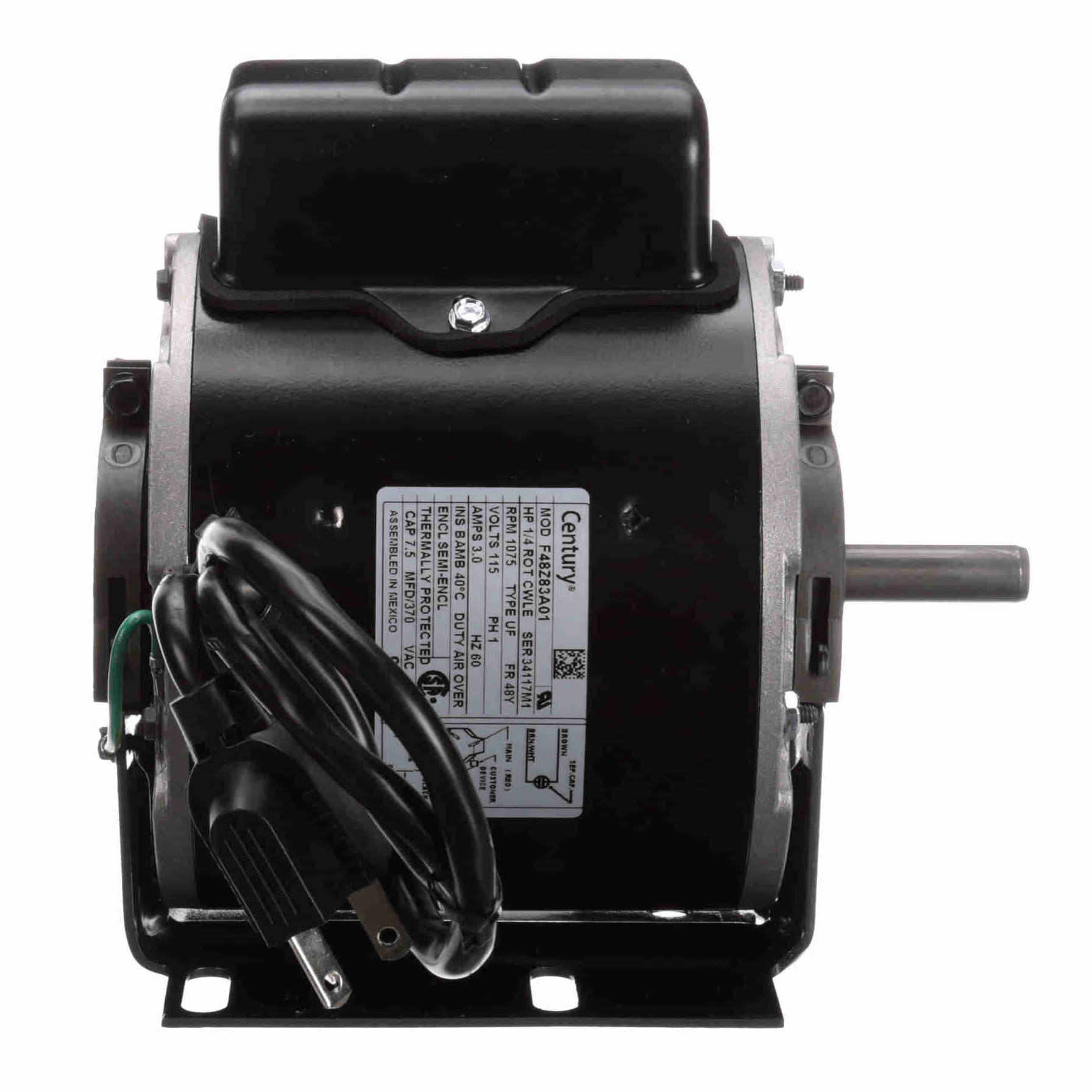

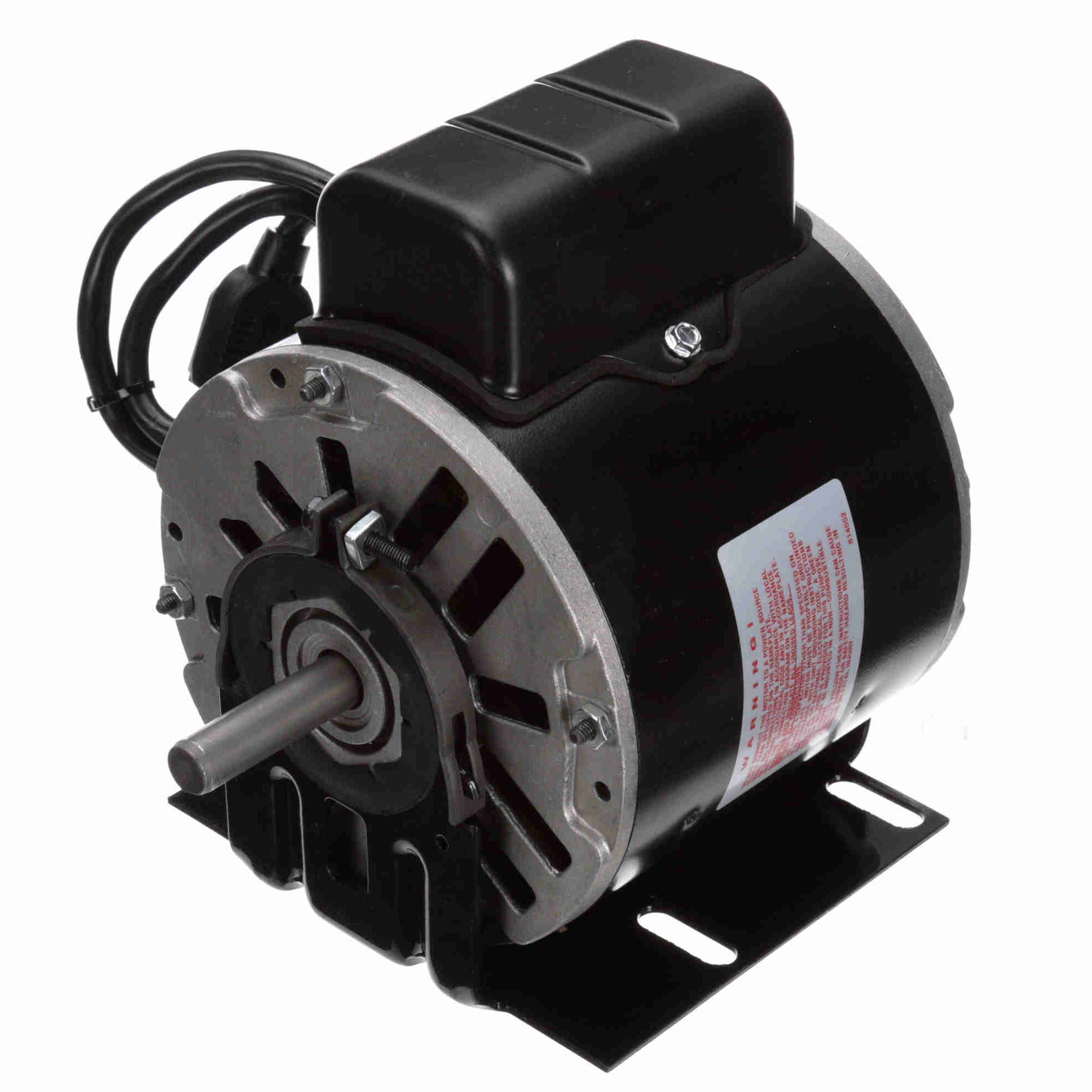

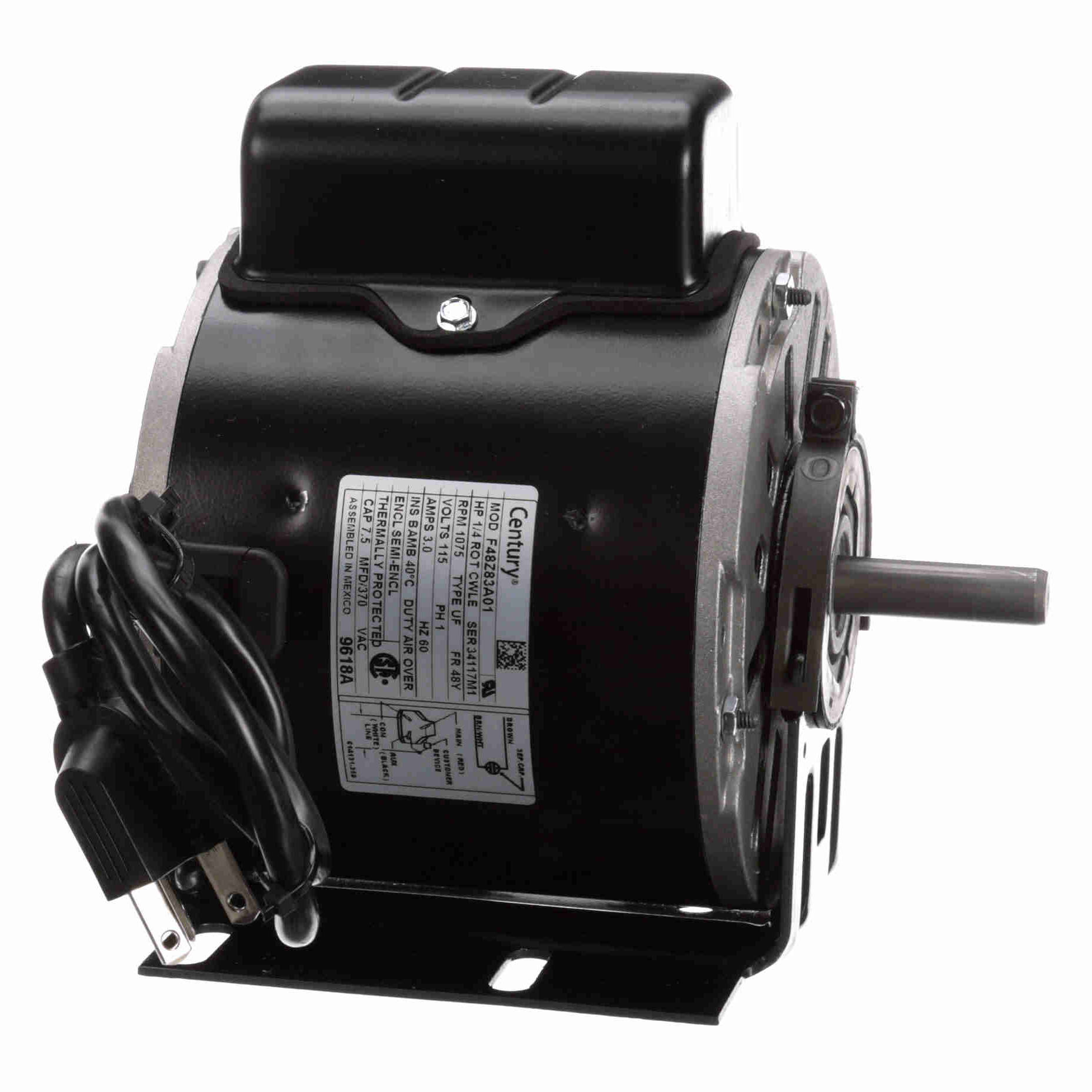

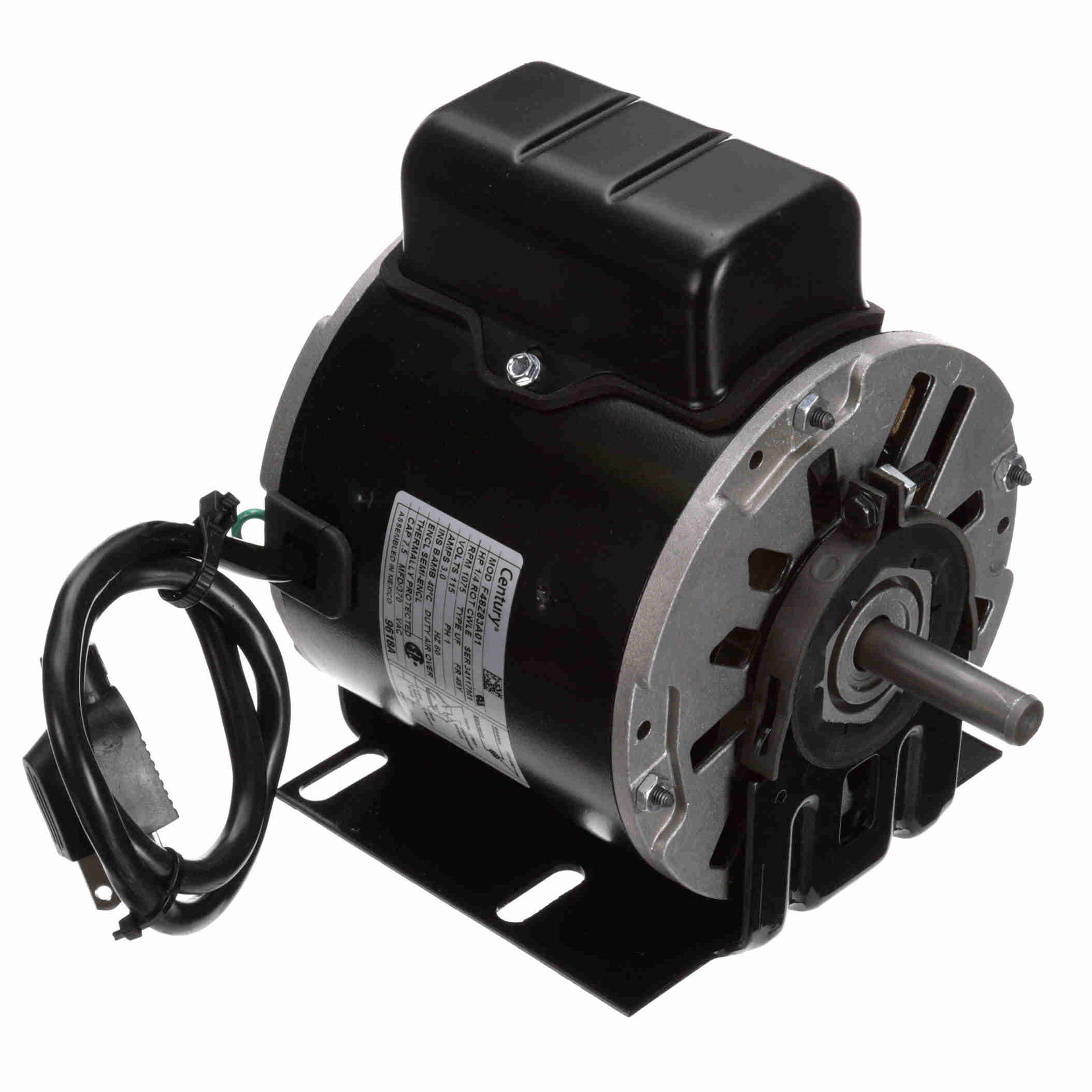

9618A Century 1/4HP Electric Motor, 1075 RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: 9618A
Available Stock:
2
Selected accessories will also be added to cart
$299.97 / Each
Quantity:
48Y Frame, 115VAC 60Hz Single Phase, Resilient Base
Details
Features
Features
OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
23" Leads
Resilient Base
General Specifications
General Specifications
Model :
Catalog No :
9618A
Part Description :
MODEL-RFHP-48FR
Category :
OEM Replacement
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
1/4 Hp
Output KW :
0.19 kW
Frequency :
60 Hz
Voltage :
115 V
Current :
3.0 A
Speed :
1075 rpm
Service Factor :
1
Phase :
1
Duty :
Air Over
Insulation Class :
B
Frame :
48Y
Enclosure :
Semi Enclosed
Overload Protector :
Automatic
Ambient Temperature :
40 °C
UL :
Recognized
CSA :
Y
CE :
N
Technical Specifications
Technical Specifications
Electrical Type :
Permanent Split Capacitor
Starting Method :
Induction Run
Poles :
6
Rotation :
Clockwise Lead End
Mounting :
Resilient Base
Motor Orientation :
Any
Drive End Bearing :
201 Ball
Opp Drive End Bearing :
201 Ball
Frame Material :
Rolled Steel
Shaft Type :
Flat
Overall Length :
7.60 in
Frame Length :
4.38 in
Shaft Diameter :
0.500 in
Shaft Extension :
2.14 in
UPC :
786674011374
Weight :
20.00 LB
