/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/939L Century 1/12HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: 939L

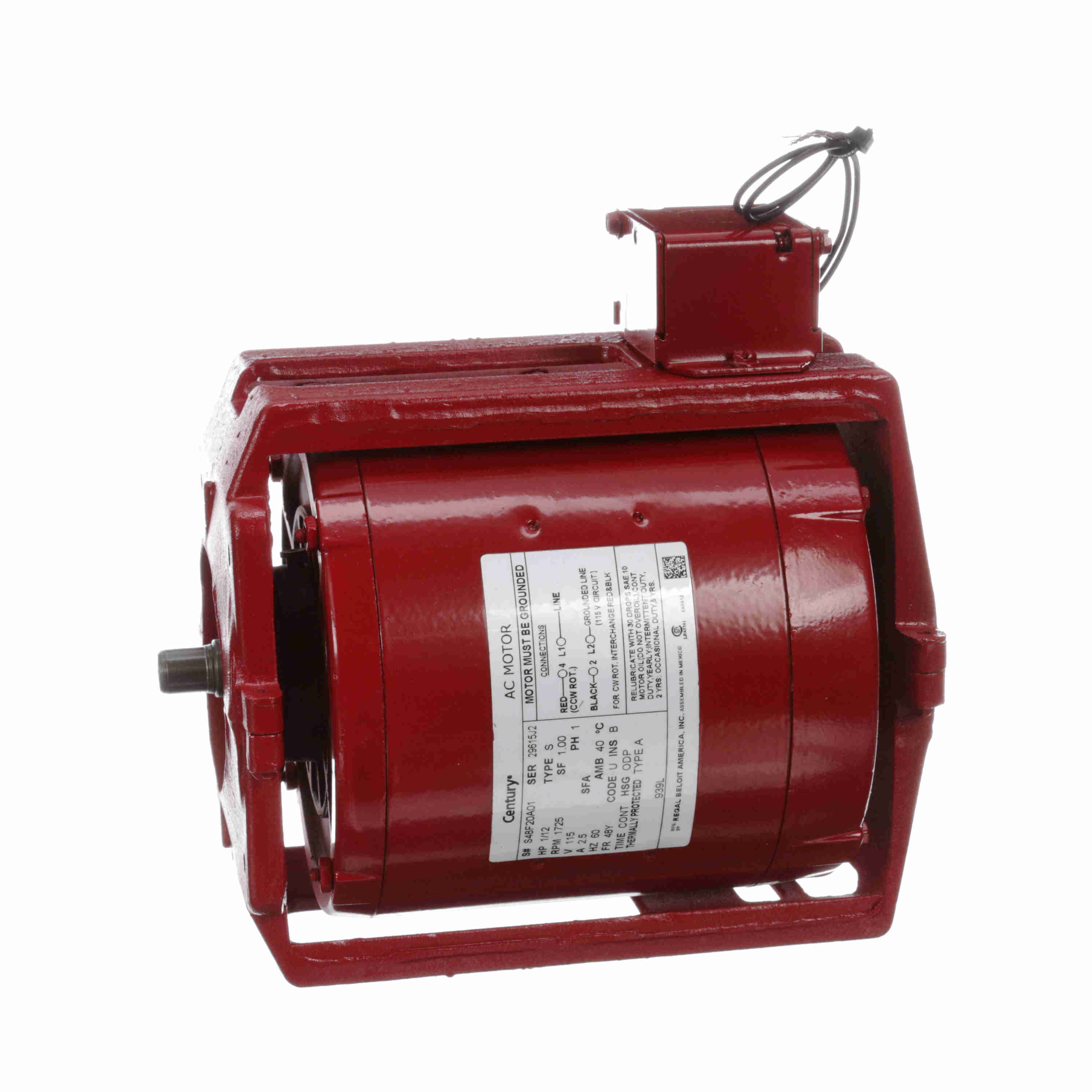

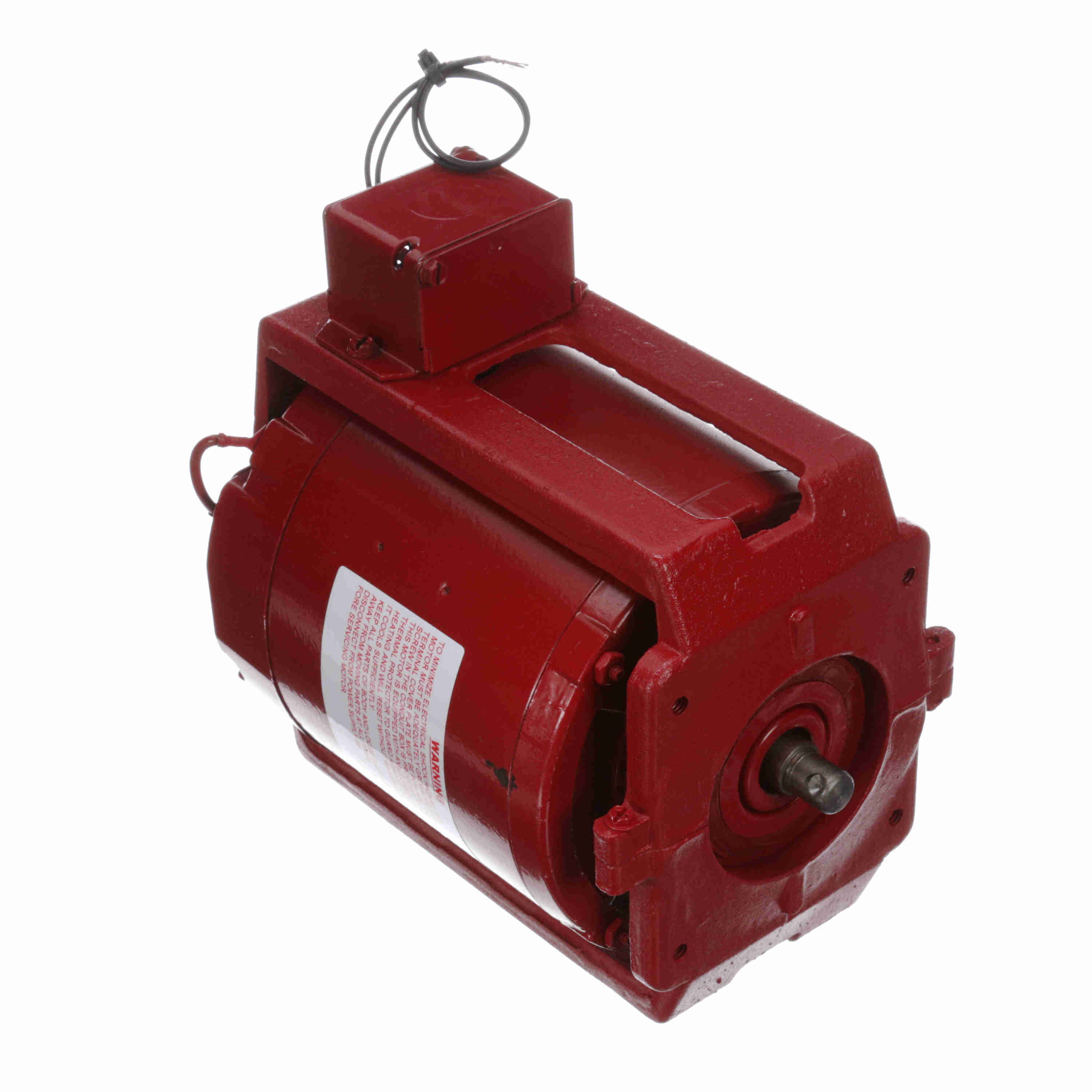

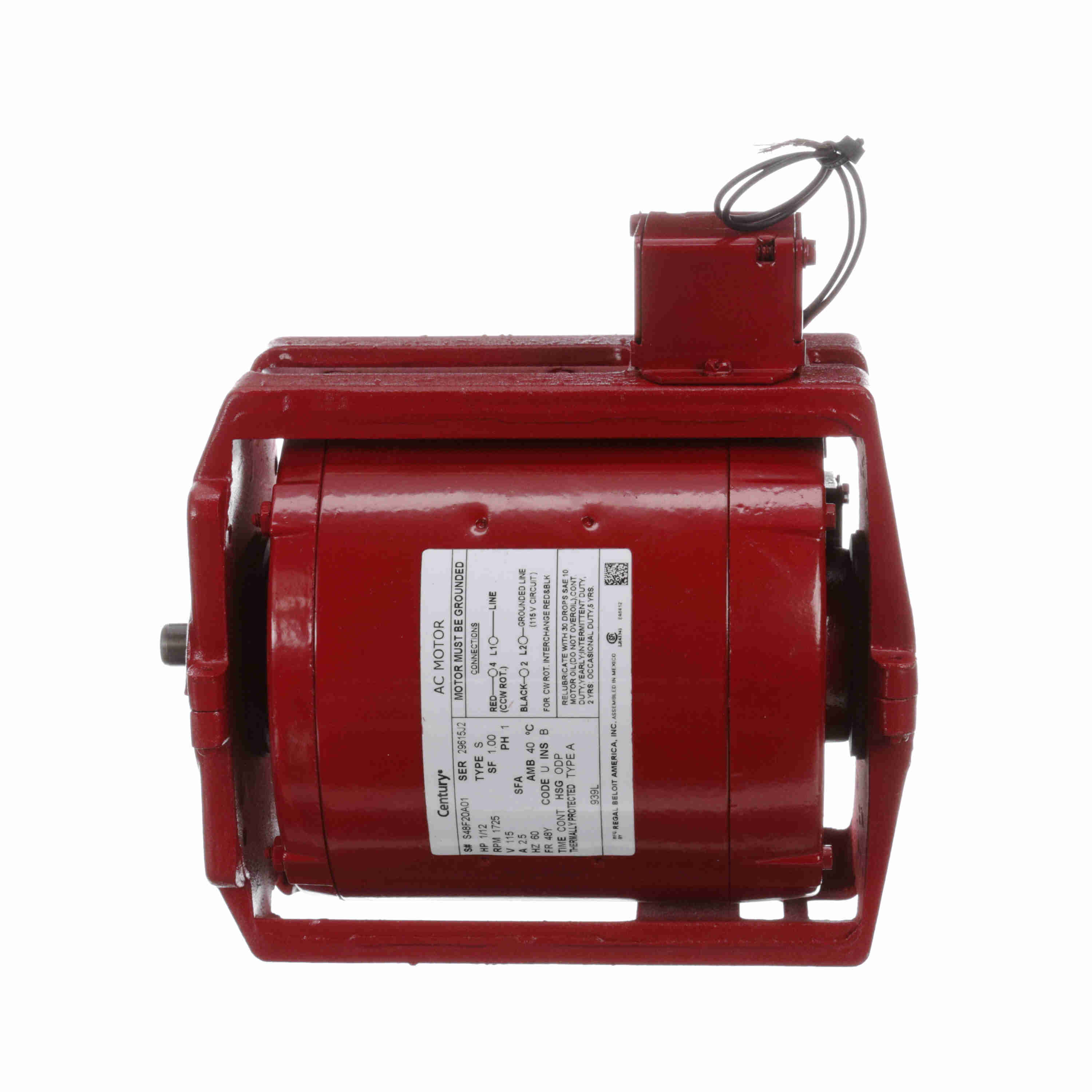

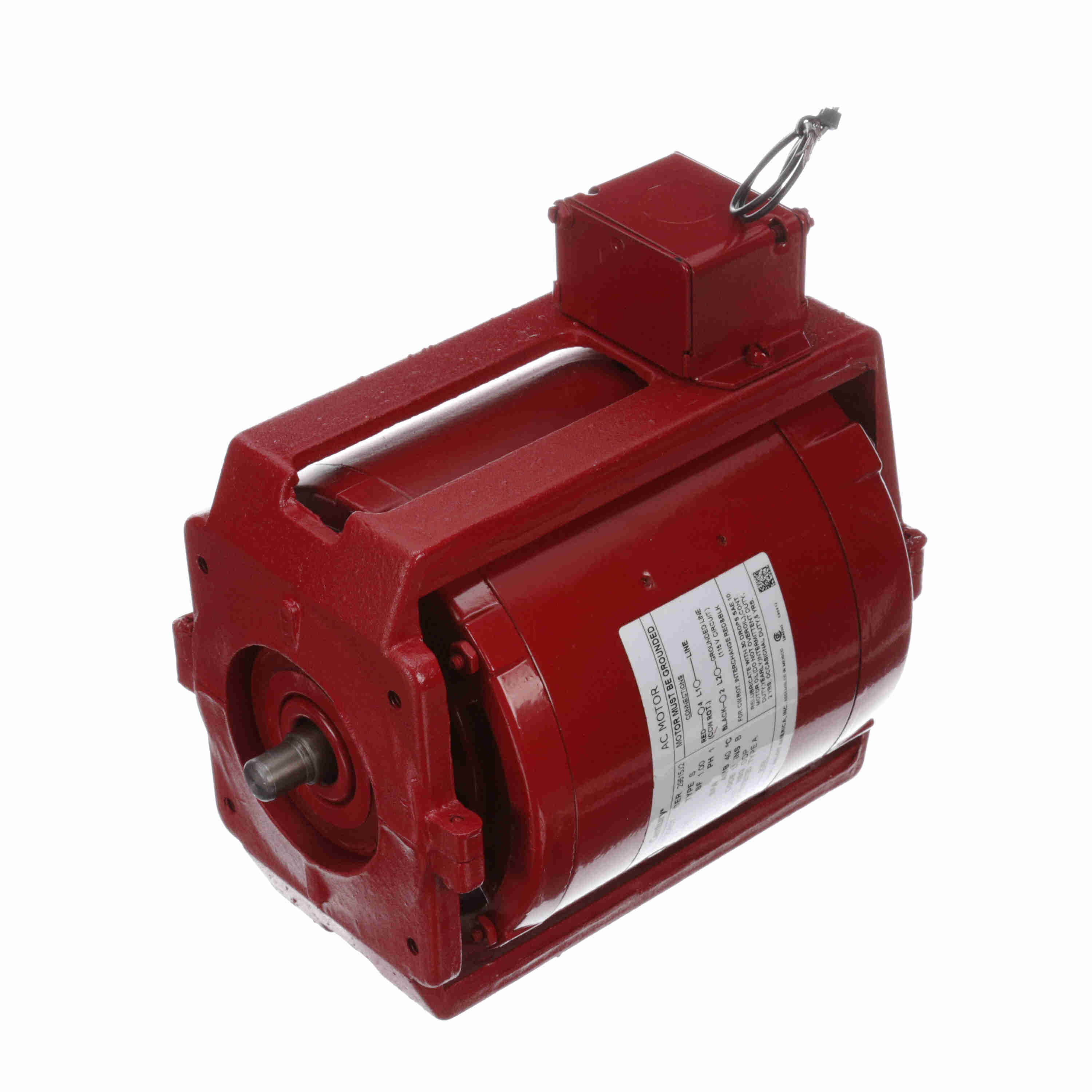

939L Century 1/12HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: 939L

Available Stock: 31
Selected accessories will also be added to cart
$293.97 / Each
Quantity:
ODP, 48Y Frame, 115VAC Single Phase 60Hz

Features

  • Automatic reset thermal protector

General Specifications

UPC: 786674011183 Weight: 14.00 LB
Packaged Length: 9 IN Packaged Width: 9 IN
Packaged Height: 7 IN

Nameplate Specifications

Output HP: 1/12 Hp Output KW: 0.06 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.5 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Spot Drill Overall Length: 8.29 in
Frame Length: 4.35 in Shaft Diameter: 0.500 in
Shaft Extension: 7.76 in

Speed & Load Characteristics
