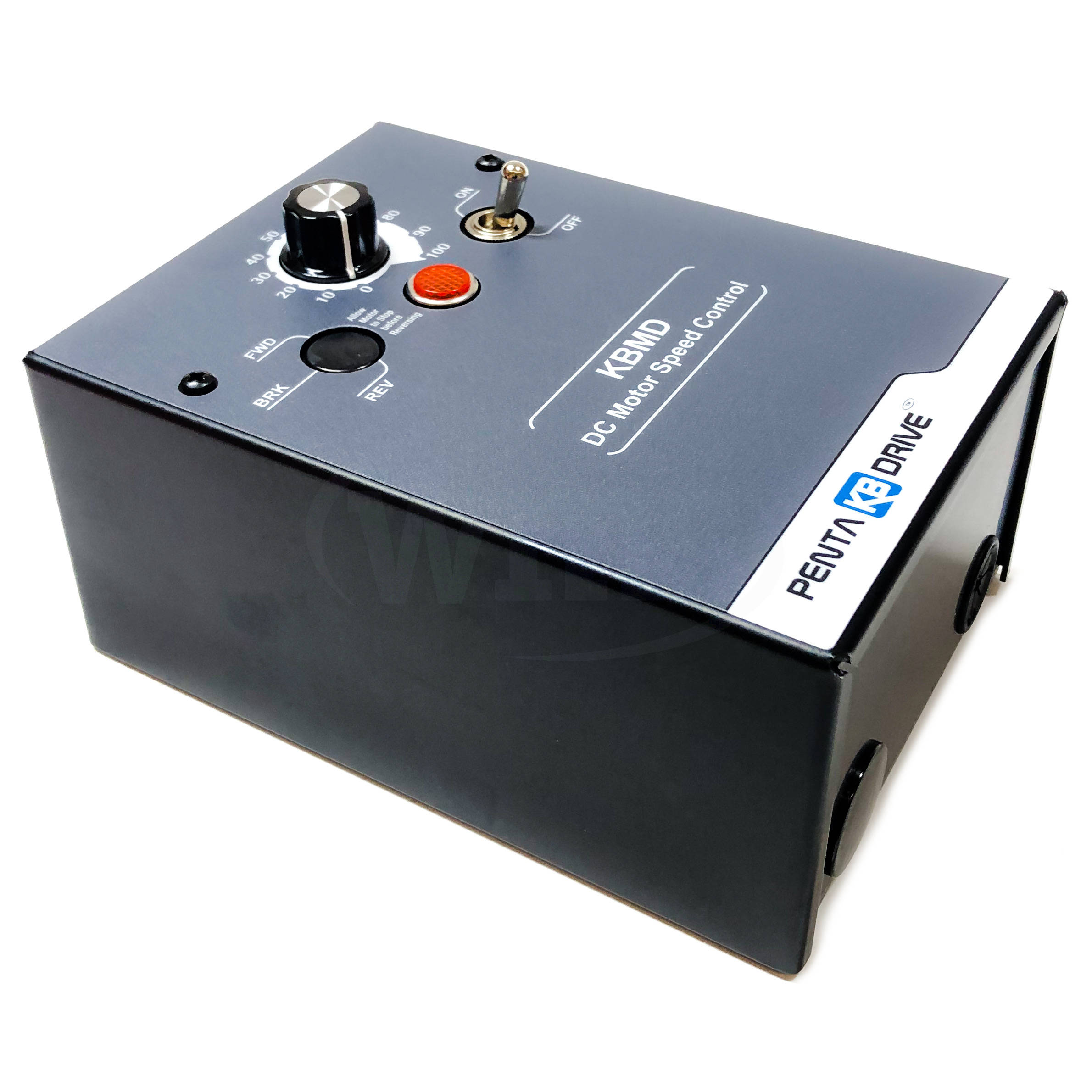

9370 KB Electronics Variable Speed DC SCR Motor Control, 115/230VAC

MFG: KB Electronics, Inc
MFG Part Number: 9370

Available Stock: 32
Selected accessories will also be added to cart
$163.80 / Each
Quantity:
KBMD-240D, 0.75/1.5 HP, 1.0/2.0 HP with Heatsink
Accessories
Select any of the accessories below to purchase them with this inventory item:
Armature Fuse and Horsepower Resistor are not included with this drive!

Description

Multi-Drive™ represents the latest in state-of-the-art design for variable speed DC motor controls. It is rugged and compact is size and is able to handle both 115 and 230V AC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motors by selecting and inserting the appropriate Plug-in Horsepower Resistor®.

The standard model, KBMD-240D, controls all motors through 3/4 Hp at 115V and 11/2 Hp at 230V. By installing the KB Auxiliary Heatsink, the horsepower range is increased to 1 Hp at 115V and 2 Hp at 230V. The versatility of the control is enhanced with the optional Forward-Brake-Reverse Switch Kit.

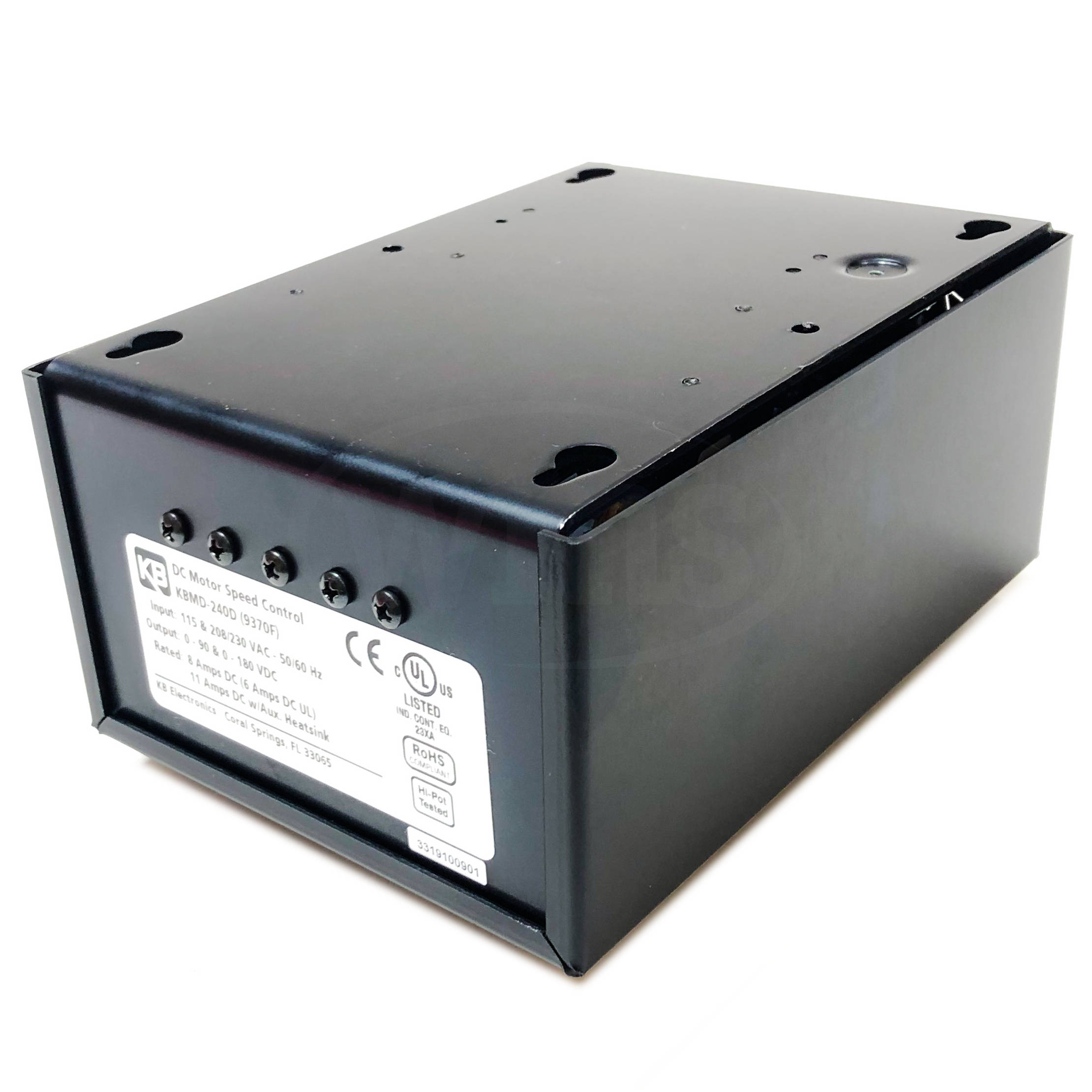

The electronics for the Multi-Drive™ consists of KB’s patented KBMM™ speed control module. Its field-proven reliability is confirmed by over 100,000 controls presently in operation. The KBMM™ module is housed in a rugged metal (not plastic, like other inexpensive drives) enclosure. Keyhole slots facilitate mounting while a readily accessible terminal block simplifies wiring. Included with each control is a detailed instruction and user manual.

Standard Features

  • Plug-in Horsepower Resistor (Supplied Separately). Allows a single model to be used on a wide range of motors.
  • Dual Voltage Switch. Used to select AC line voltage operation of 115 or 230V.
  • Built-in AC Line Fuse
  • MOV Transient Protection (20 JOULE)
  • Trimpots: MIN, MAX, IR, CL, ACCEL, DECEL

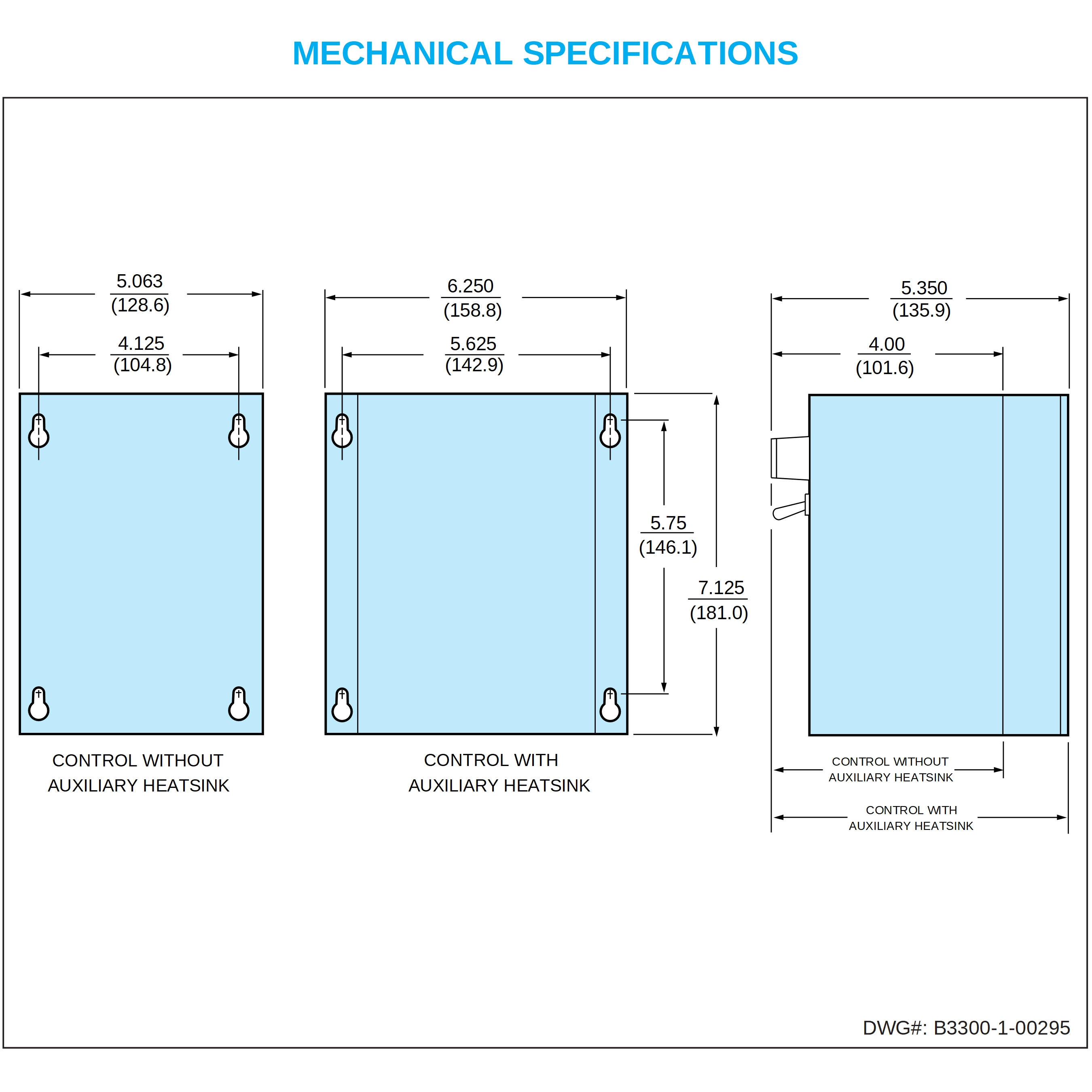

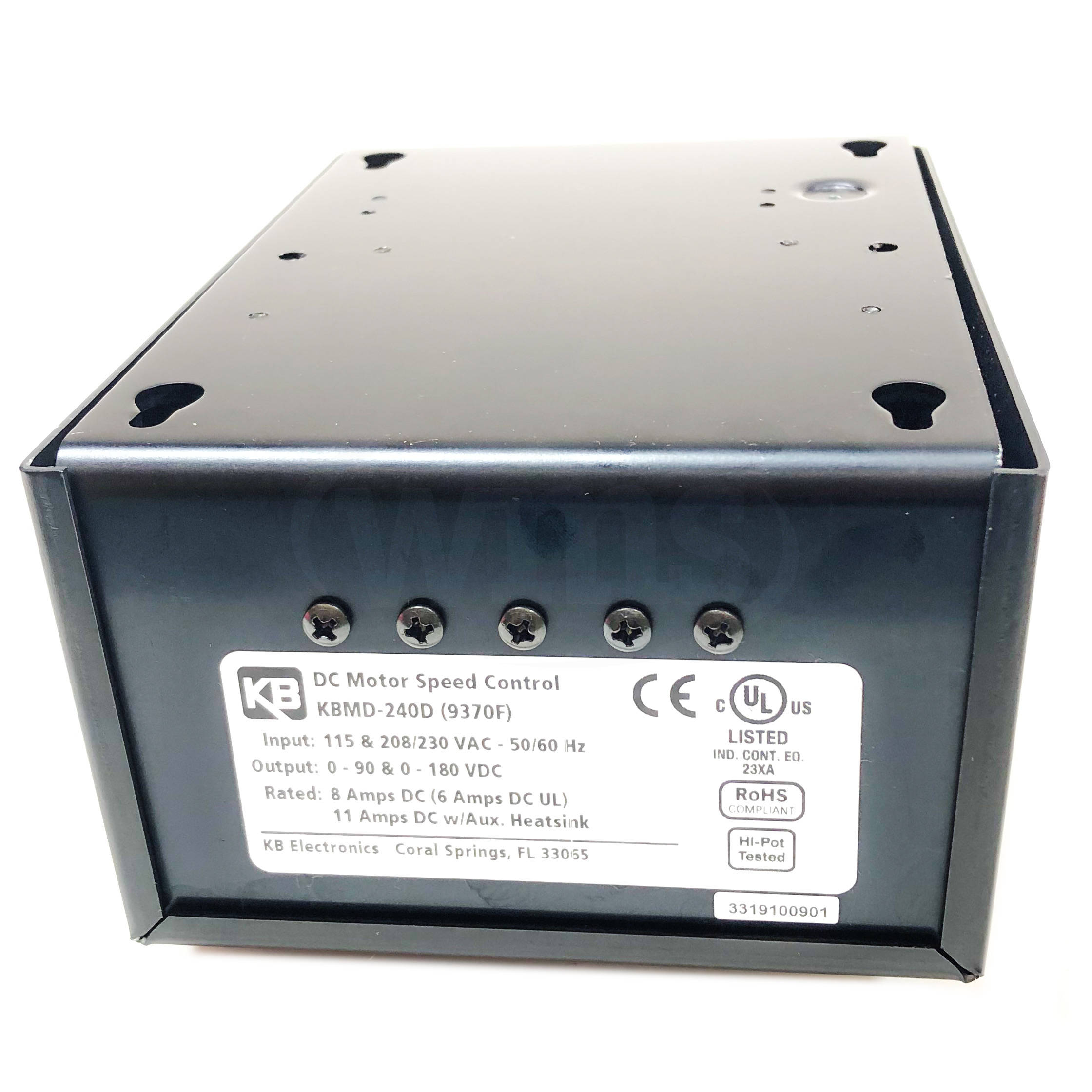

Specifications

Manufacturer KB Electronics
Model Number KBMD-240D
Part Number 9370
Input Line Voltage 115/230VAC +/-15% 50/60Hz
Motor Voltage 90-130 VDC
180 VDC
Maximum AC Load Current 12.0 RMS Amps (without Heatsink)
16.0 RMS Amps (with Heatsink)
Maximum DC Load Current 8.0 DC Amps (without Heatsink)
11.0 DC Amps (with Heatsink)
Maximum Power 3/4 HP (0.6kw) @ 115VAC Input (without Heatsink)
1.5 HP (1.1kw) @ 230VAC Input (without Heatsink)
1 HP (0.75kw) @ 115VAC Input (with Heatsink)
2 HP (1.5kw) @ 230VAC Input (with Heatsink)
UPC 024822093705
Speed Range (Ratio) 50:1
Load Regulation – Armature Feedback
(0 – Full Load, 50:1 Speed Range)
1 % Base Speed
Line Voltage Regulation
(at Full Load, ± 10% Line Variation)
1/2 % Base Speed
Control Linearity
(% Speed vs. Dial Rotation)
2
CL/Torque Range 0-200 % Full Load
Acceleration/Deceleration Time 0.2-10 Seconds
Min. Speed Trimpot Range 0-30 % Full Speed
Max. Speed Trimpot Range 50-120 % Full Speed
Max. Allowable Ambient Temperature at Full Rating 40°C/105°F

Plug-In Horsepower Resistor Chart

Resistance Part No. Motor HP (90-130VDC) Motor HP (180VDC)
1.0 Ohms 9833 1/100 to 1/50 HP 1/50 to 1/25 HP
0.51 Ohms 9834 1/50 to 1/30 HP 1/25 to 1/15 HP
0.35 Ohms 9835 1/30 to 1/20 HP 1/15 to 1/10 HP
0.25 Ohms 9836 1/20 to 1/12 HP 1/10 to 1/6 HP
0.18 Ohms 9837 1/12 to 1/8HP 1/6 to 1/4 HP
0.1 Ohms 9838 1/8 to 1/5 HP 1/4 to 1/3 HP
0.05 Ohms 9839 1/4 HP 1/2 HP
0.035 Ohms 9840 1/3 HP 3/4 HP
0.025 Ohms 9841 1/2 HP 1 HP
0.015 Ohms 9842 3/4 HP 1.5 HP
0.01 Ohms 9843 1 HP * 2 HP *
* Requires 9861 Auxiliary Heat Sink

Armature Fuse Selection Chart

Motor HP (90VDC) Motor HP (180VDC) Fuse Rating Part No. AC Line Input Fuse Part Number
1/100 to 1/50 HP 1/50 to 1/25 HP 1/3 Amps - 20 Amps 9954 (Installed)
1/50 to 1/30 HP 1/25 to 1/15 HP 1/2 Amps 9736/th> 20 Amps 9954 (Installed)
1/30 to 1/20 HP 1/15 to 1/10 HP 3/4 Amps 9737 20 Amps 9954 (Installed)
1/20 to 1/12 HP 1/10 to 1/6 HP 1.25 Amps 9739 20 Amps 9954 (Installed)
1/12 to 1/8 HP 1/6 to 1/4 HP 2 Amps 9740 20 Amps 9954 (Installed)
1/8 to 1/5 HP 1/4 to 1/3 HP 2.5 Amps 9741 20 Amps 9954 (Installed)
1/4 HP 1/2 HP 4 Amps 9742 20 Amps 9954 (Installed)
1/3 HP 3/4 HP 5 Amps 9743 20 Amps 9954 (Installed)
1/2 HP 1 HP 8 Amps 9744 20 Amps 9954 (Installed)
3/4 HP 1.5 HP 12 Amps 9745 20 Amps 9954 (Installed)
1 HP * 2 HP * 20 Amps 9954 25 Amps 9747
* Requires 9861 Auxiliary Heat Sink
