9007

Heavy duty

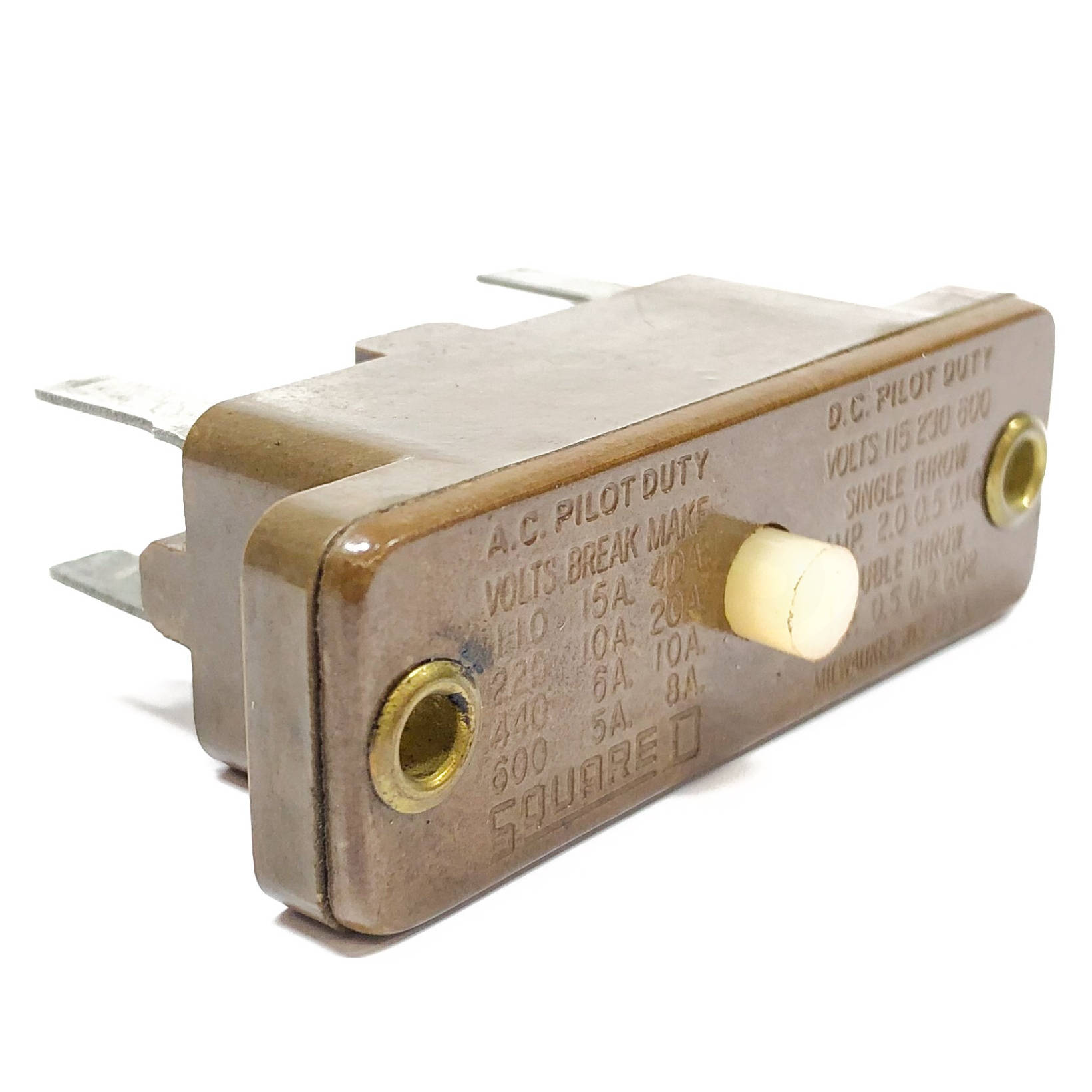

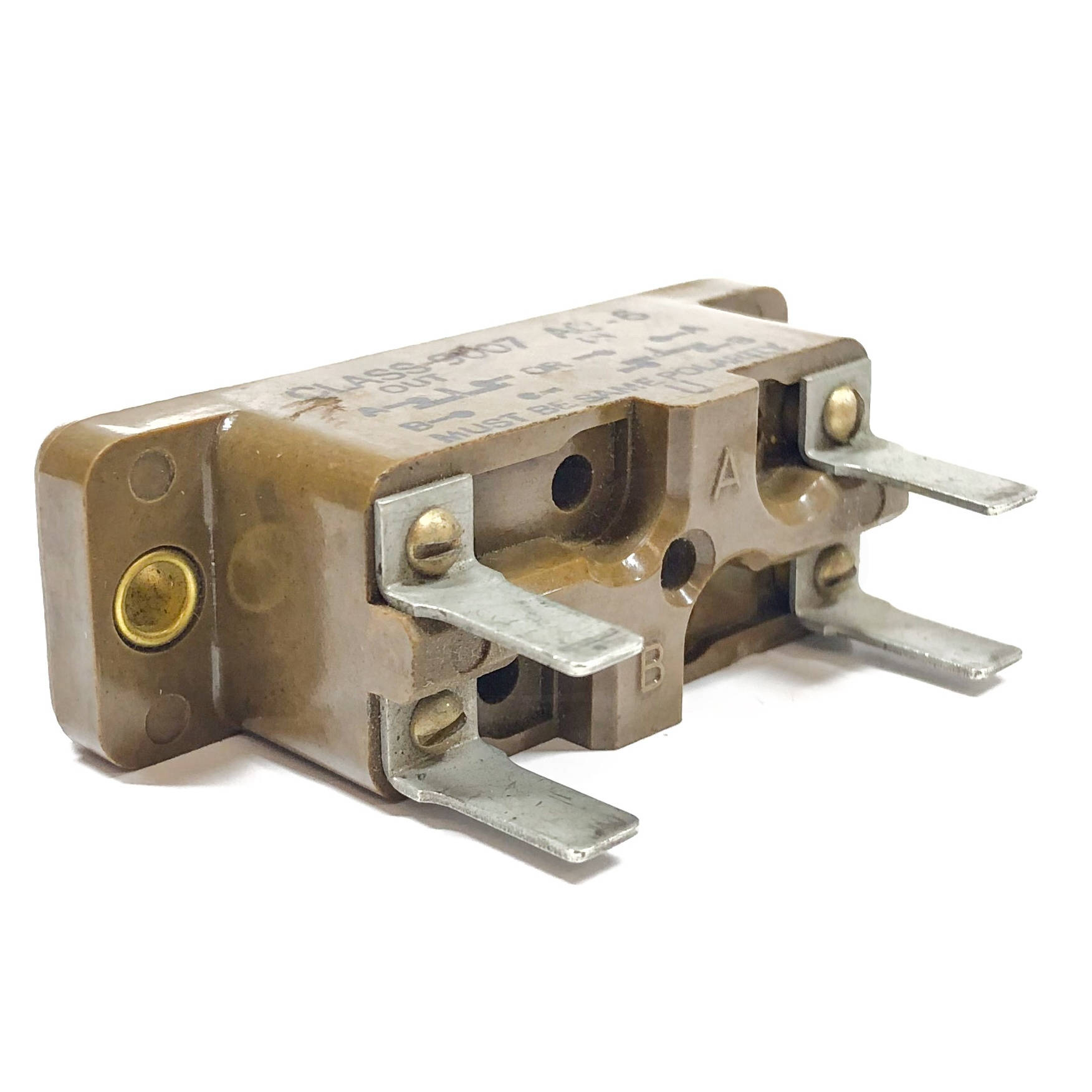

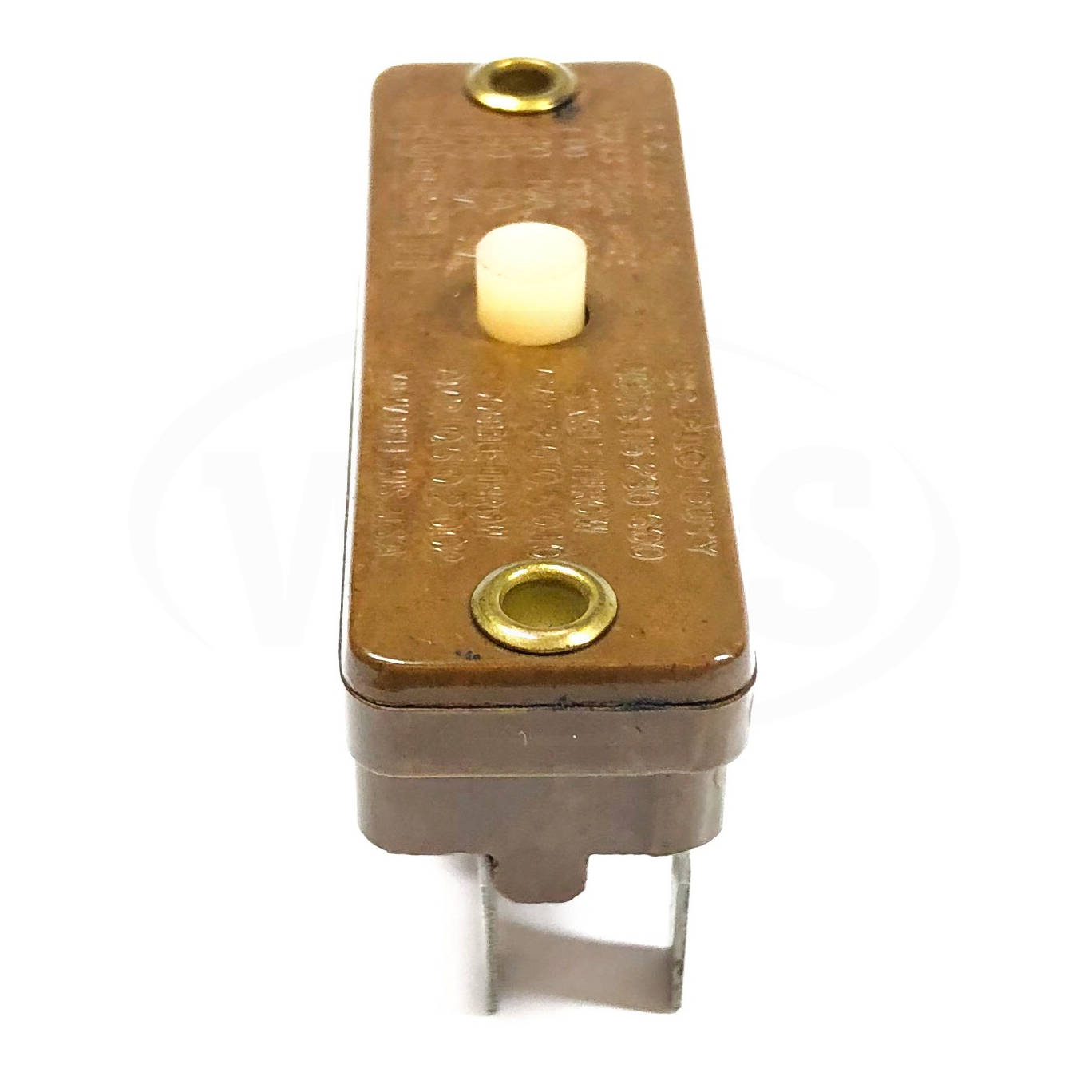

Snap basic limit switch

9007AO/CO

Plug-in

-

Plunger head

Metal

Cast zinc

Cast zinc

By the body

Linear

Plastic spring return plunger with thermoplastic end

On end

1 direction vertical approach

1...2 cables 6 binder head screw terminals (AWG 22...AWG 14)

1

NC-NO, switch function: SPDT-DB

Form Z

Snap action

1

Silver contacts

Without

(1-2)NC
(3-4)NO

0.63 lbf

0.88 lbf

6 A at 480 V AC, A600 conforming to NEMA rating designation
10 A at 240 V AC, A600 conforming to NEMA rating designation
15 A at 120 V AC, A600 conforming to NEMA rating designation
0.1 A at 250 V DC
0.25 A at 125 V DC
5 A at 600 V AC, A600 conforming to NEMA rating designation

15 A

600 V - for contact block (degree of pollution: 3) conforming to UL 508
600 V - for contact block conforming to CSA C22.2 No 14

0.83 in

2.5 in

1.03 in

0.1 lb(US)

NEMA 1 conforming to Nema type 250

IP20 conforming to IEC 60529

-20...185 °F

-20...185 °F
