/Products/Surplus Industrial/Switches/9007 Type CO-6 Square D Snap Switch
Click Image to Expand

Product ID: 9007CO6

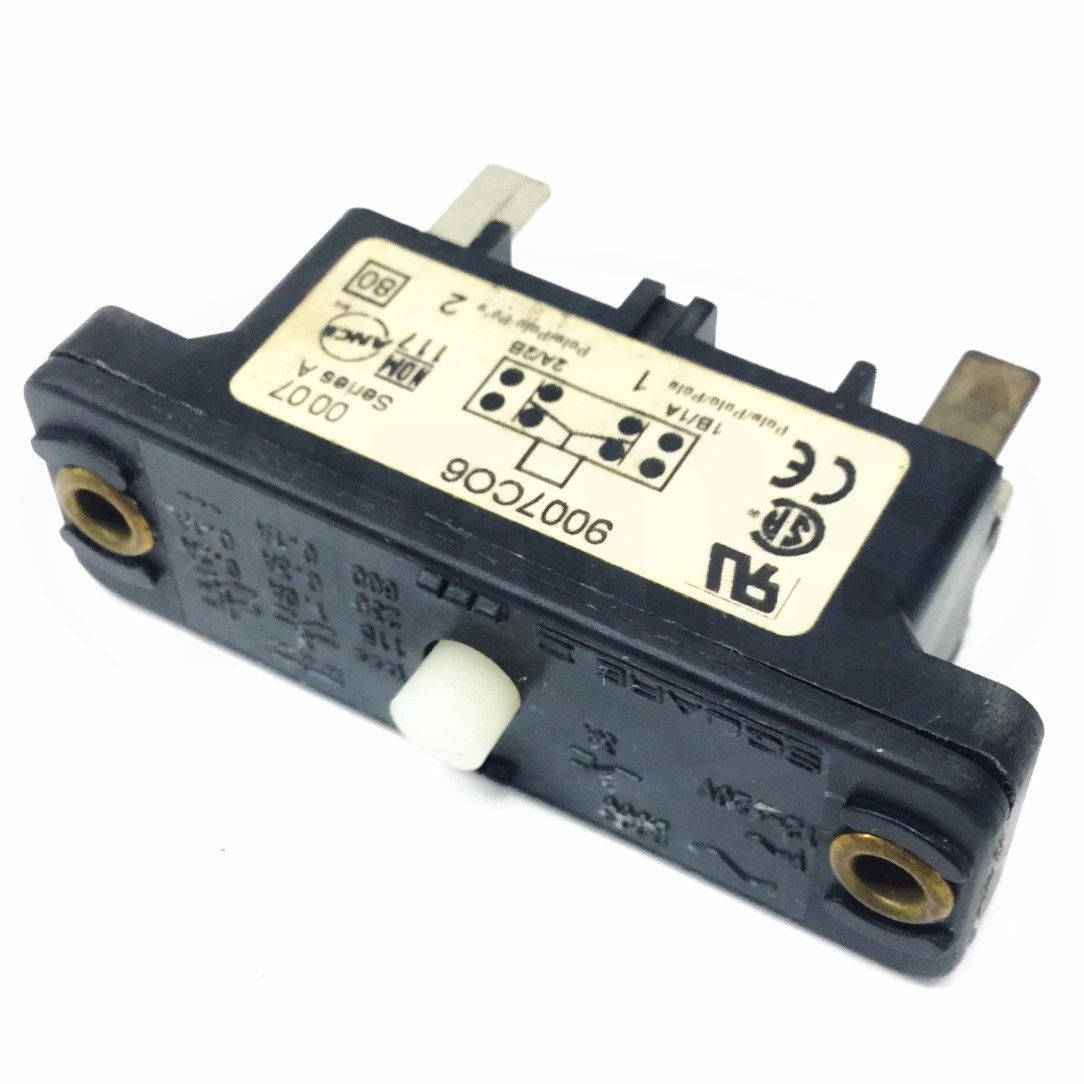

9007 Type CO-6 Square D Snap Switch

MFG: Schneider Electric (Square D)
MFG Part Number: 9007CO6

Available Stock: 4
Selected accessories will also be added to cart
$39.97 / Each
Quantity:
New, Surplus Stock

  • Characteristics

    Main
    range of product
    9007
    series name
    Heavy duty
    product or component type
    Snap basic limit switch
    device short name
    9007AO/CO
    body type
    Plug-in
    Complementary
    mounting mode
    -
    operator profile
    Plunger head
    material
    Metal
    body material
    Cast zinc
    operator material
    Cast zinc
    fixing mode
    By the body
    movement of operating head
    Linear
    type of operator
    Plastic spring return plunger with thermoplastic end
    switch actuation
    On end
    type of approach
    1 direction vertical approach
    electrical connection
    1...2 cables 6 binder head screw terminals (AWG 22...AWG 14)
    number of poles
    2
    contacts type and composition
    2 NO, switch function: DPST-NO-DB
    contact form
    Form AA
    contact operation
    Snap action
    number of steps
    1
    contacts material
    Silver contacts
    positive opening
    Without
    terminals description ISO n°1
    (7-8)NO
    (3-4)NO
    minimum force for tripping
    0.44 lbf
    maximum force for tripping
    0.75 lbf
    [Ie] rated operational current
    0.1 A at 600 V DC, Q600 conforming to NEMA rating designation
    0.75 A at 480 V AC, B600 conforming to NEMA rating designation
    1.5 A at 240 V AC, B600 conforming to NEMA rating designation
    3 A at 120 V AC, B600 conforming to NEMA rating designation
    0.3 A at 250 V DC, Q600 conforming to NEMA rating designation
    1 A at 125 V DC, Q600 conforming to NEMA rating designation
    0.6 A at 600 V AC, B600 conforming to NEMA rating designation
    [Ithe] conventional enclosed thermal current
    10 A
    [Ui] rated insulation voltage
    600 V - for contact block (degree of pollution: 3) conforming to UL 508
    600 V - for contact block conforming to CSA C22.2 No 14
    width
    0.83 in
    height
    2.5 in
    depth
    1.14 in
    product weight
    0.5 lb(US)
    Environment
    NEMA degree of protection
    NEMA 1 conforming to Nema type 250
    IP degree of protection
    IP20 conforming to IEC 60529
    ambient air temperature for operation
    -20...185 °F
    ambient air temperature for storage
    -20...185 °F
    Ordering and shipping details
    Category
    21492 - 9007 C SNAP SWITCHES
    Discount Schedule
    DS1
    GTIN
    00785901809517
    Nbr. of units in pkg.
    1
    Package weight(Lbs)
    0.5
    Returnability
    N
    Country of origin
    MX
    Offer Sustainability
    Sustainable offer status
    Not Green Premium product
    RoHS (date code: YYWW)
    Will not be compliant
    REACh
    Reference not containing SVHC above the threshold
    Product environmental profile
    Available
    Product end of life instructions
    Need no specific recycling operations
