/Products/Surplus Industrial/Indicator Lights/9001KP25R31 Square D Octagonal Pilot Light
Click Image to Expand

Product ID: 9001KP25R31

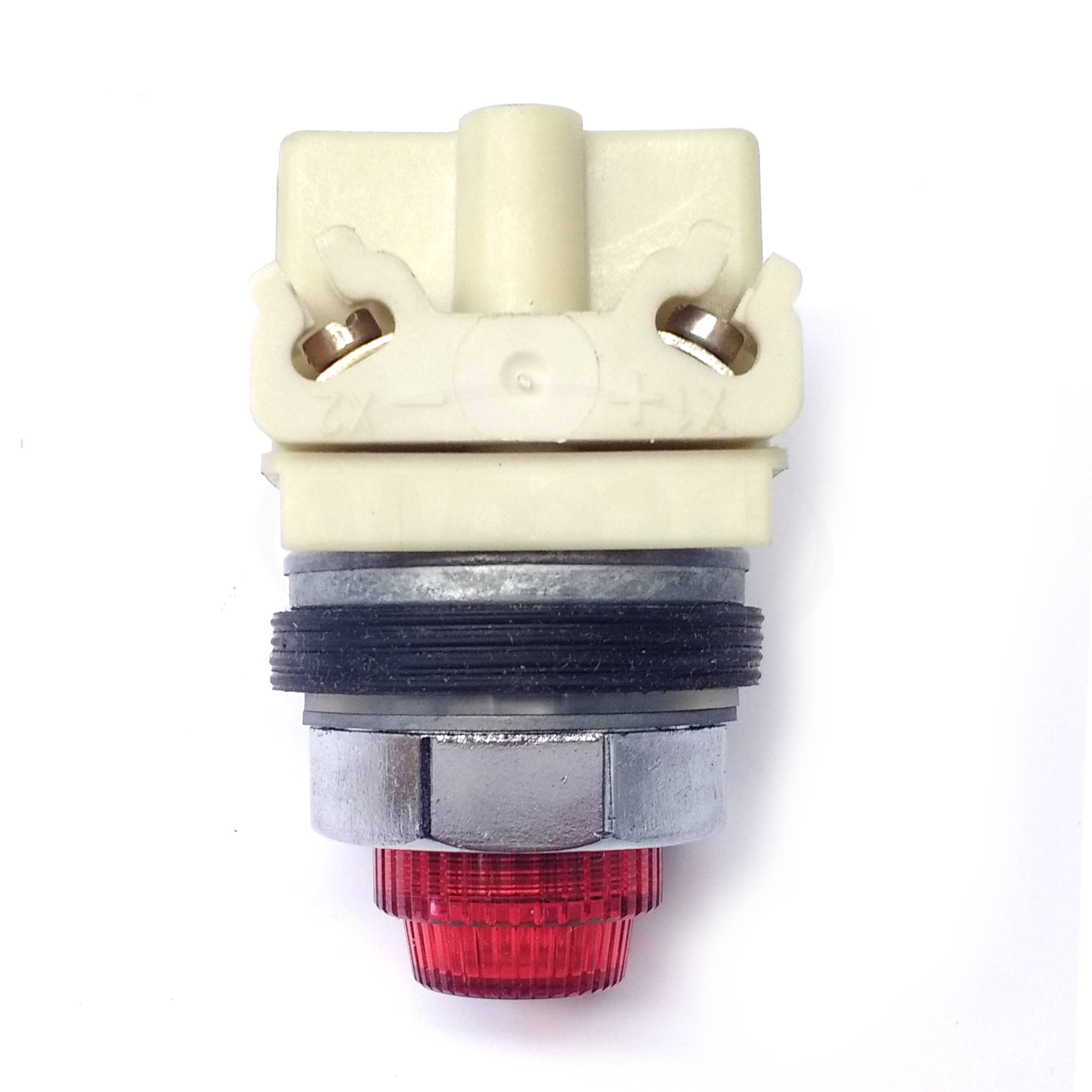

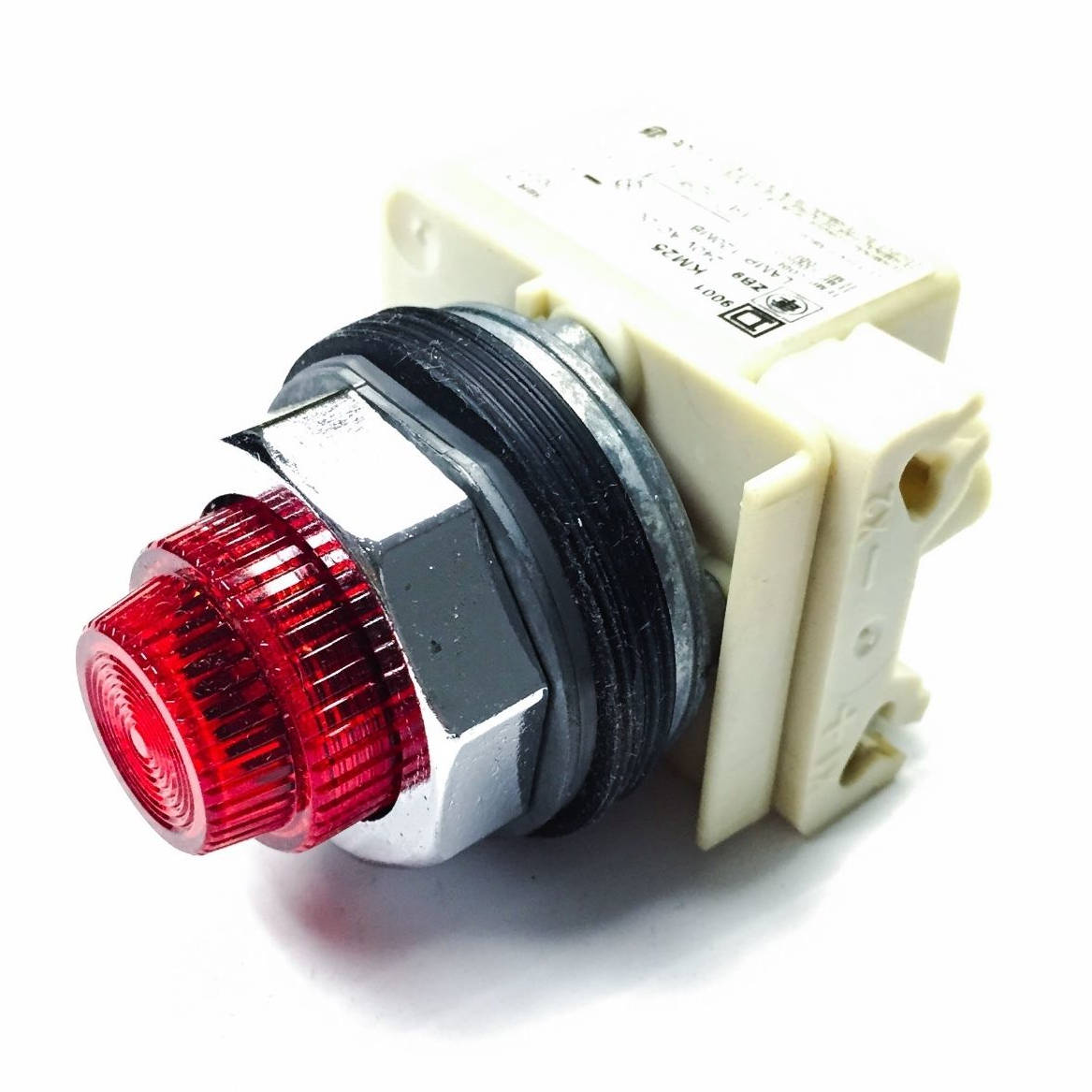

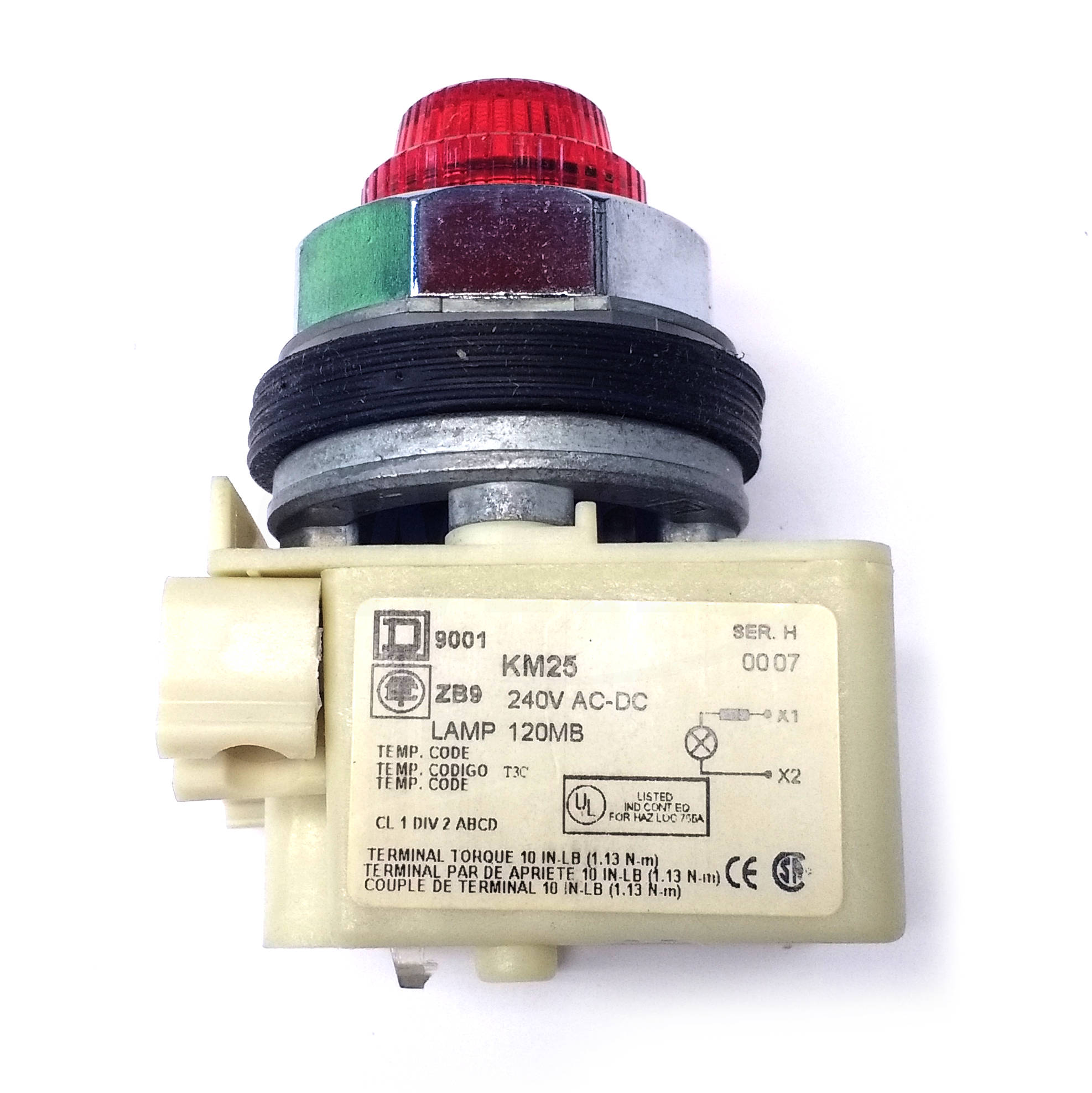

9001KP25R31 Square D Octagonal Pilot Light

MFG: Schneider Electric (Square D)
MFG Part Number: 9001KP25R31

Available Stock: 14
Selected accessories will also be added to cart
$79.97 / Each
Quantity:

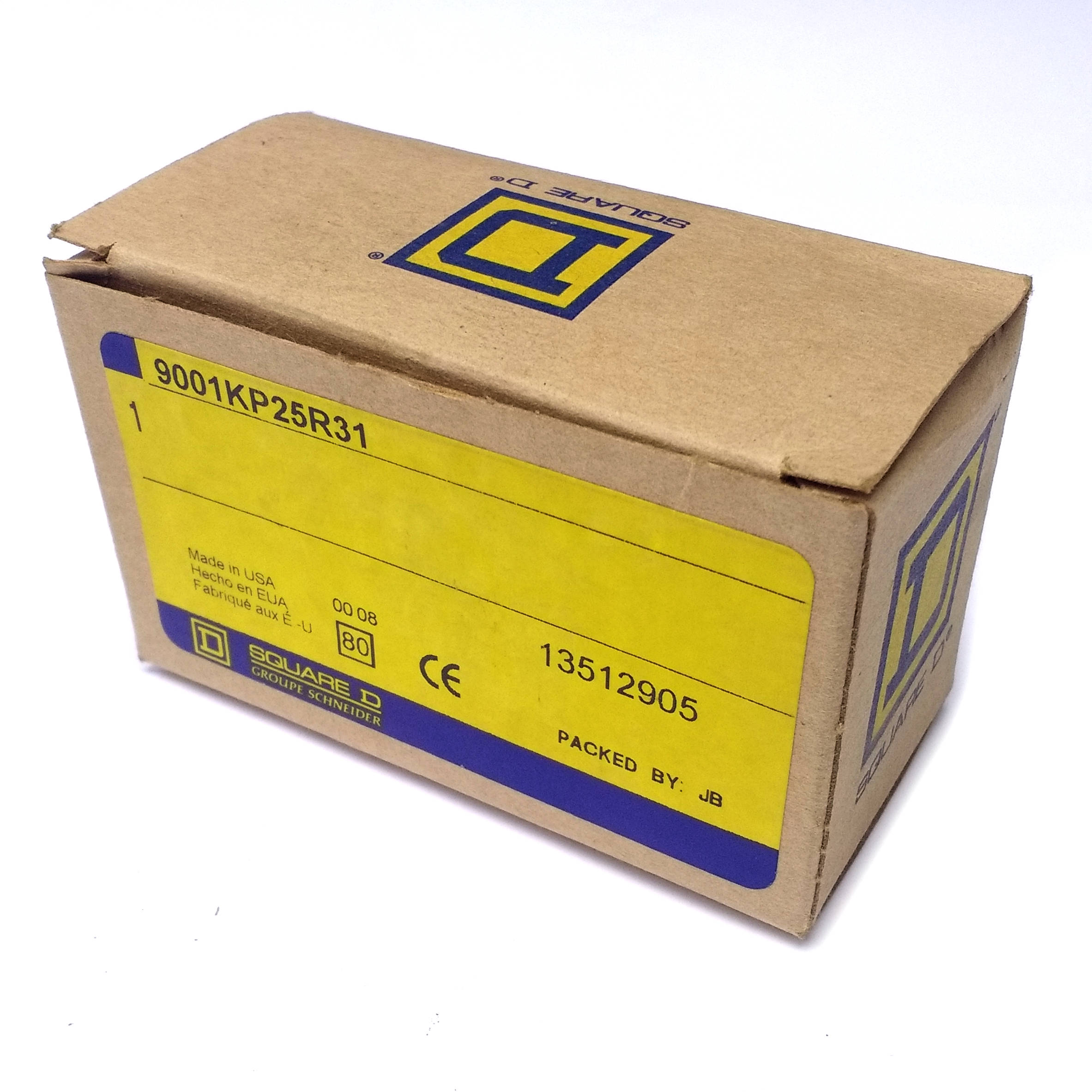

New, Surplus Stock. IP65, 30mm, 230V
Main
range of product
Harmony 9001K
product or component type
Pilot light
device short name
9001K
Complementary
bezel material
Chromium plated metal
mounting diameter
1.18 in (30 mm)
shape of signaling unit head
Round
lens type
Domed (plastic)
cap/operator or lens colour
Red
light source
Incandescent
bulb base
BA 9s
light block supply
With resistor
connections - terminals
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1
tightening torque
7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1
shape of screw head
Cross slotted
operating position
Any position
[Ui] rated insulation voltage
250 V (degree of pollution: 2) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 kV conforming to IEC 60947-1
short-circuit protection
10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
CAD overall width
2.13 in (54 mm)
CAD overall height
2.76 in (70 mm)
CAD overall depth
1.65 in (42 mm)
product weight
0.46 lb(US) (0.21 kg)
compatibility code
9001K
Environment
standards
JIS C 4520
CSA C22.2 No 14
UL 508
EN/IEC 60947-1
JIS C 852
EN/IEC 60947-5-1
EN/IEC 60947-5-4
product certifications
NEMA
UL 508
protective treatment
TC
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-13...158 °F (-25...70 °C)
vibration resistance
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn conforming to IEC 60068-2-27
overvoltage category
Class II conforming to IEC 61140
IP degree of protection
IP66 conforming to IEC 60529
NEMA degree of protection
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6
Ordering and shipping details
Category
21426 - 9001 K (NOT KA,KM,KX)
Discount Schedule
CS1
GTIN
00785901032120
Nbr. of units in pkg.
1
Package weight(Lbs)
0.5
Returnability
N
Country of origin
MX
