/Products/Surplus Industrial/Disconnects/82355R Square D Double Throw Safety Switch, 400 Amps, 240VAC, 3 Poles
Click Image to Expand

Product ID: 82355R

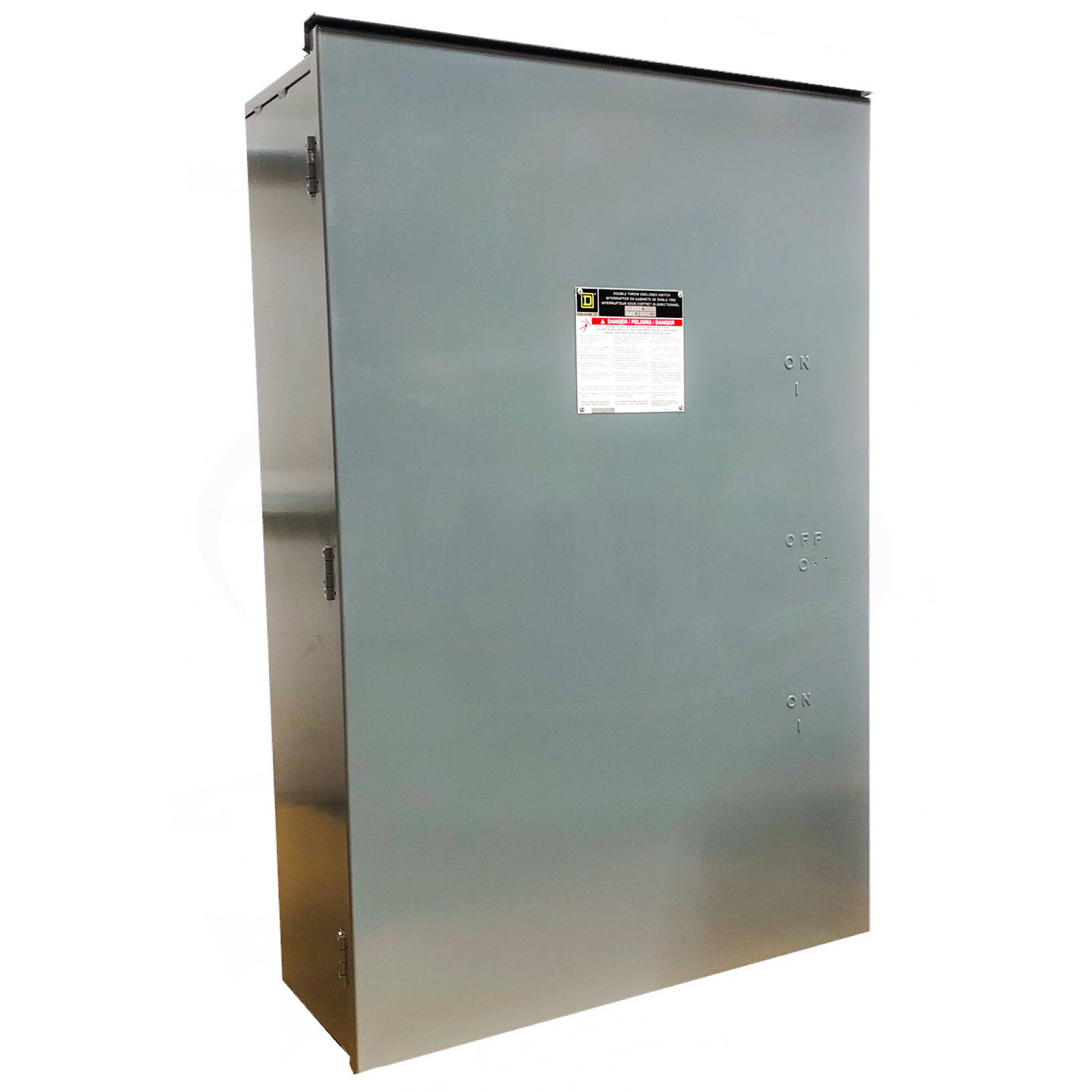

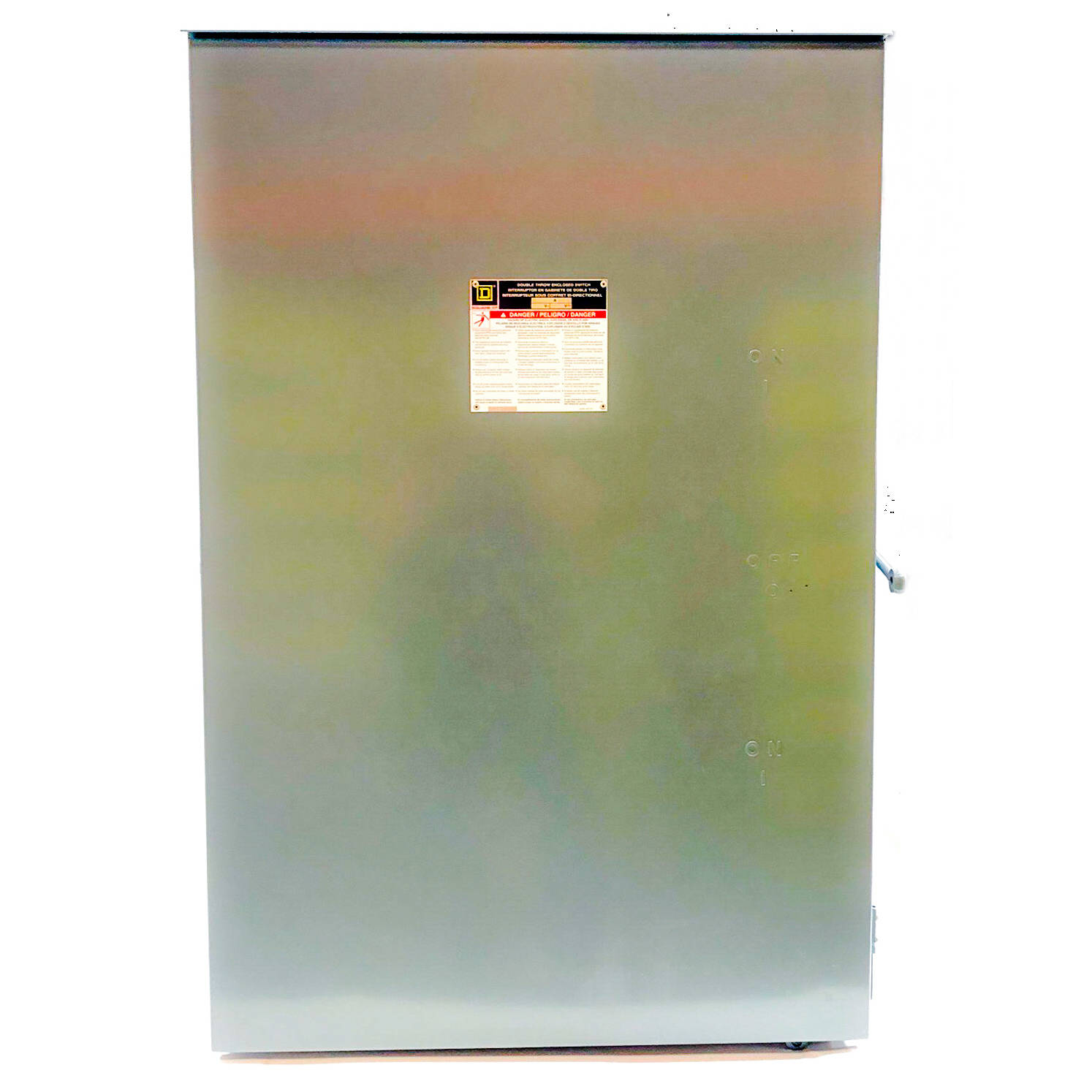

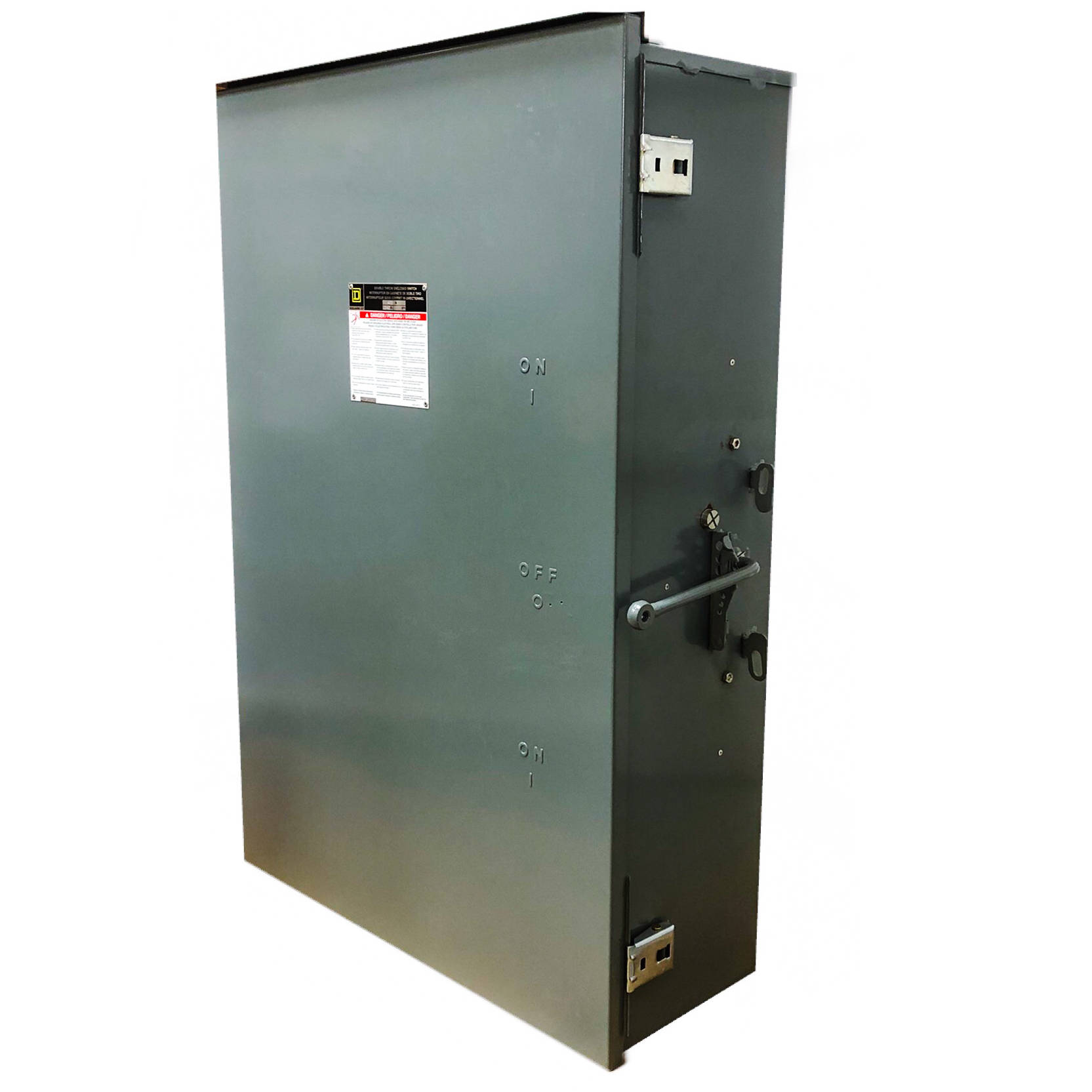

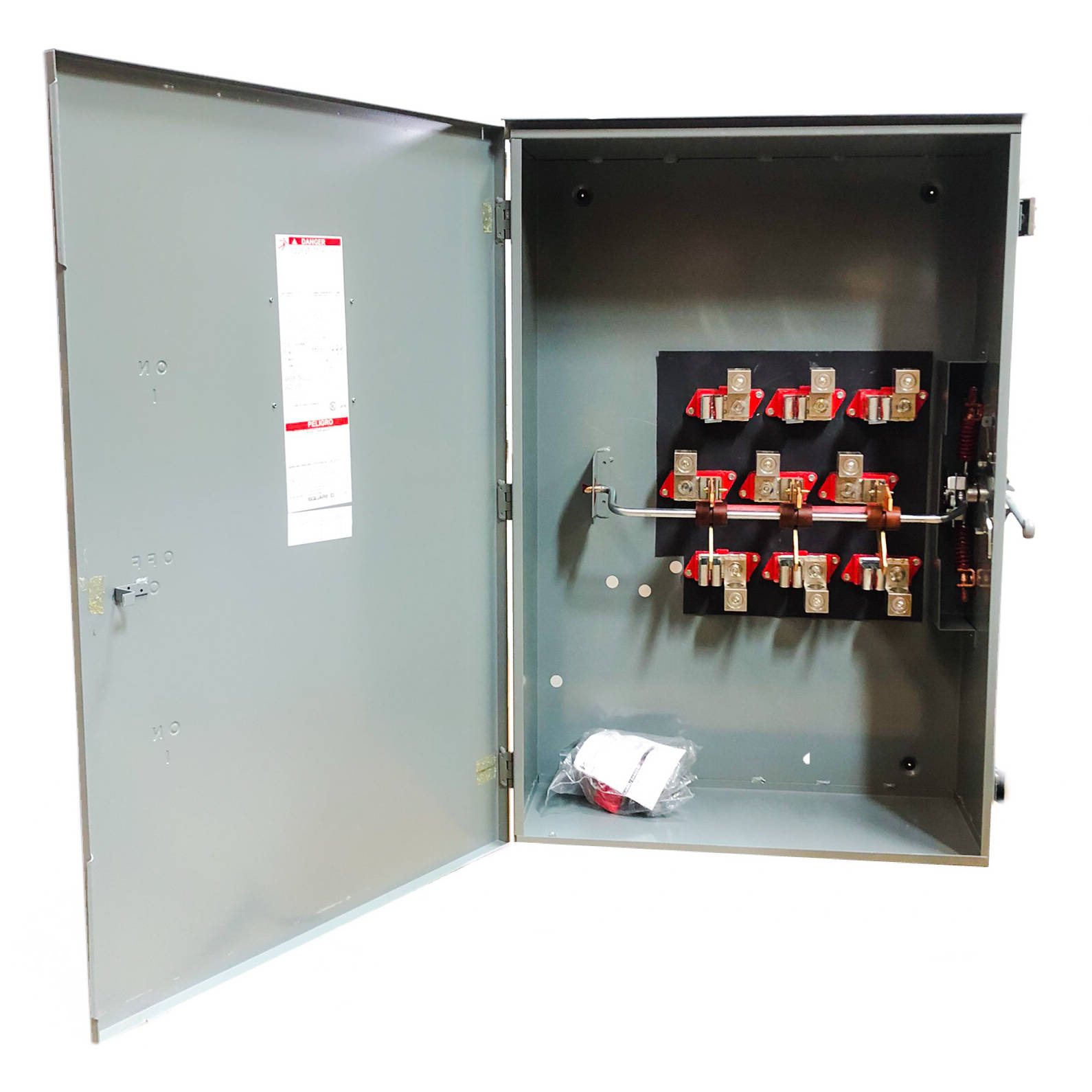

82355R Square D Double Throw Safety Switch, 400 Amps, 240VAC, 3 Poles

MFG: Schneider Electric (Square D)
MFG Part Number: 82355R

Available Stock: 2
Selected accessories will also be added to cart
$7,999.97 / Each
Quantity:
New, Surplus Stock. NEMA 3R, Non-Fusible
Main
ProductDouble Throw Safety Switch
Duty RatingGeneral duty
Disconnect TypeNon-fusible disconnect
Factory Installed NeutralNone
Number of Poles3
Current Rating400 A
Voltage Rating240 V AC
Enclosure RatingNEMA 3R
Complementary
short-circuit current10 kA H or J
fuse typeH or J
Mounting TypeSurface
Wire SizeAWG 1/0...600 kcmil copper or aluminium
Depth10.63 in (270.00 mm)
Width30.02 in (762.51 mm)
Height39 in (990.60 mm)
Net Weight98.99 lb(US) (44.9 kg)
Environment
CertificationsUL Listed
Ordering and shipping details
Category00133-DT SWITCH,NEMA3R
Discount ScheduleDE1
GTIN785901930464
Nbr. of units in pkg.1
Package weight(Lbs)105.00 lb(US) (47.627 kg)
ReturnabilityYes
Country of originUS
