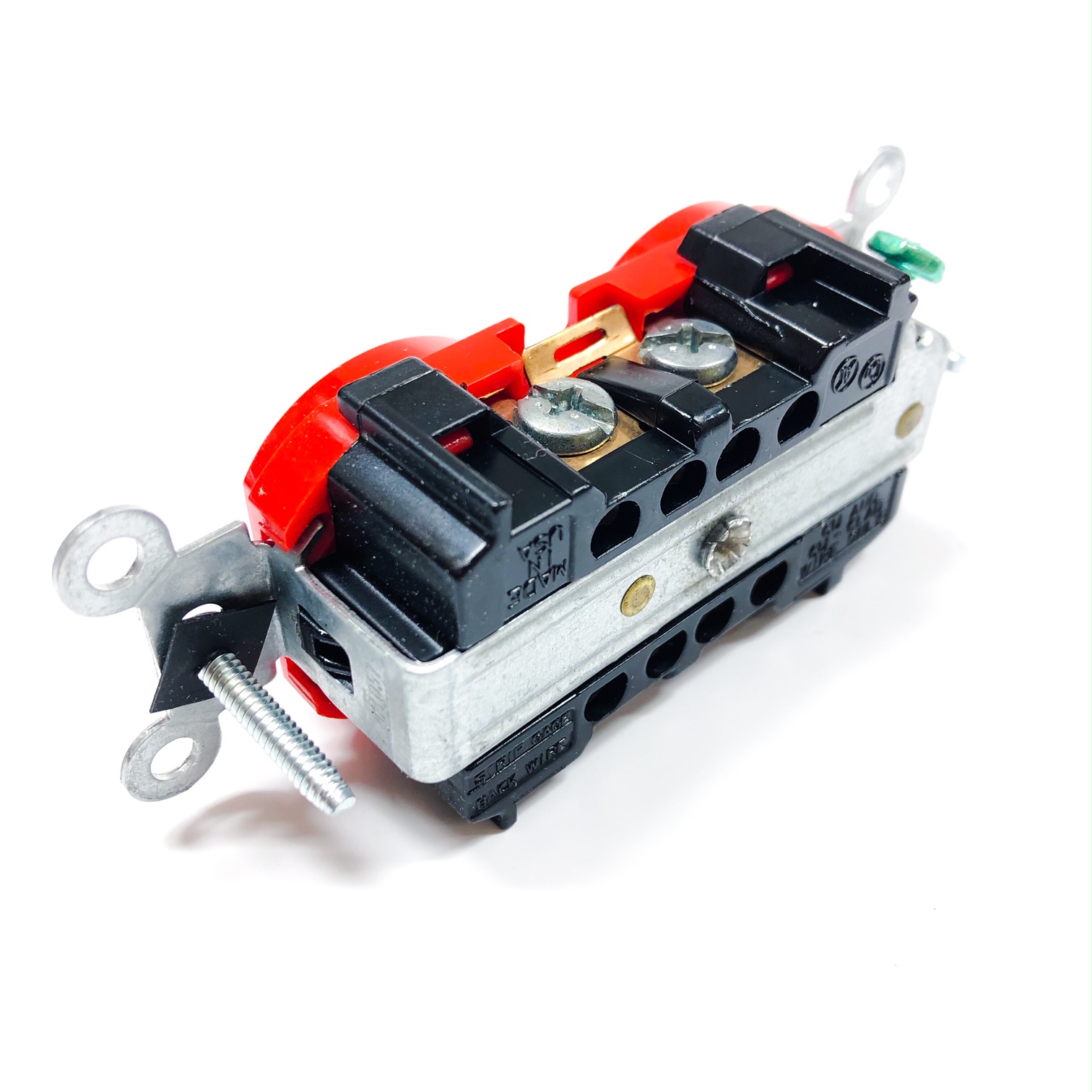

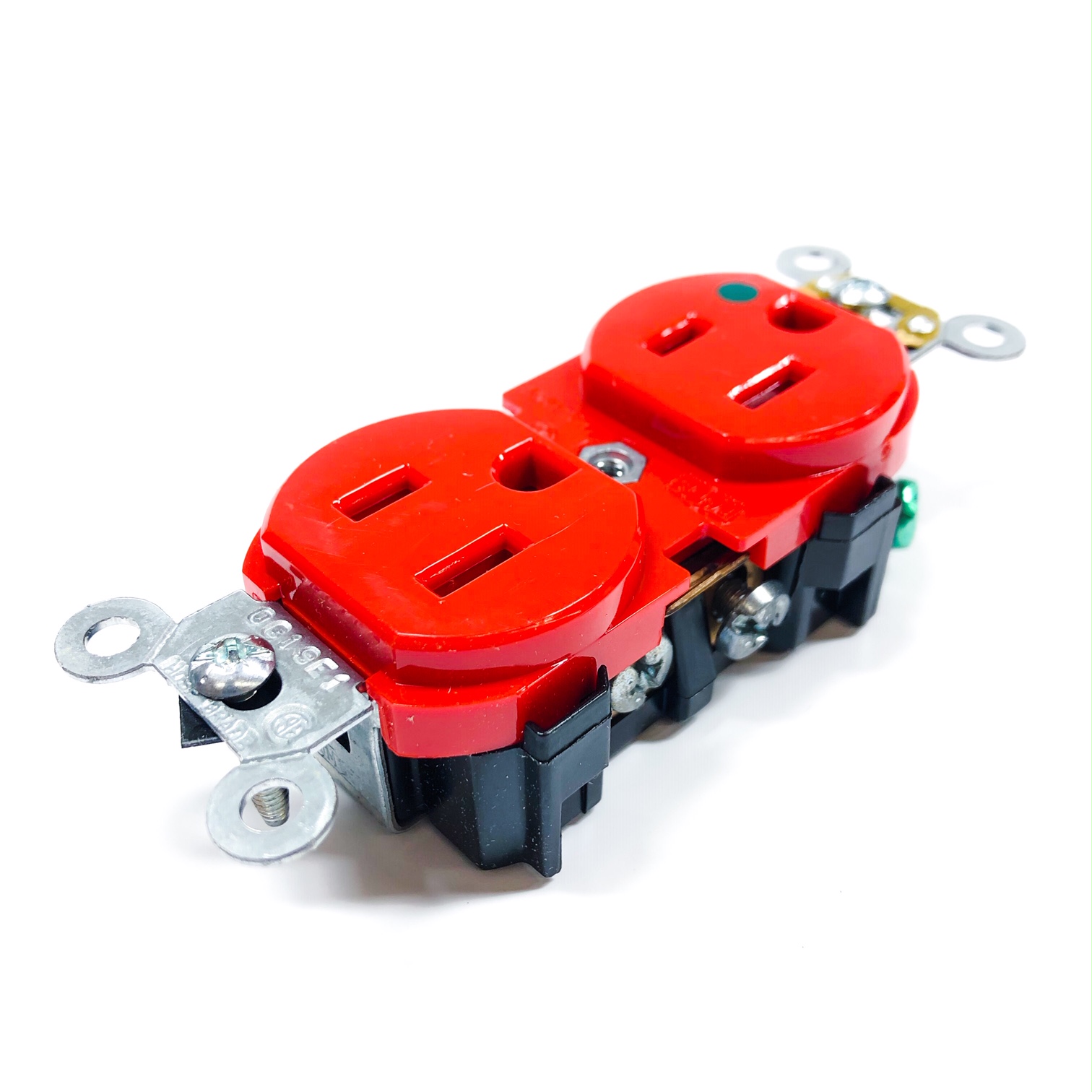

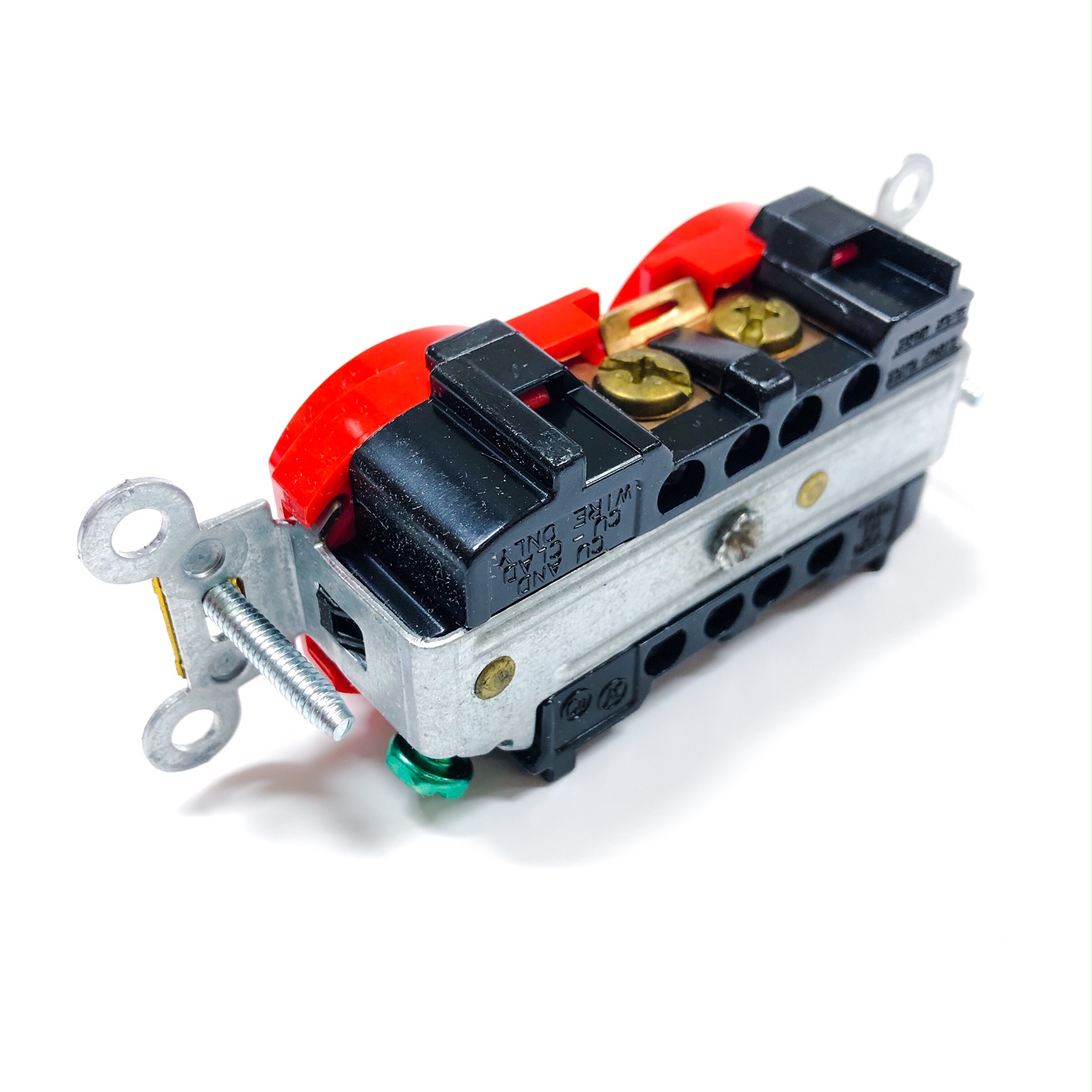

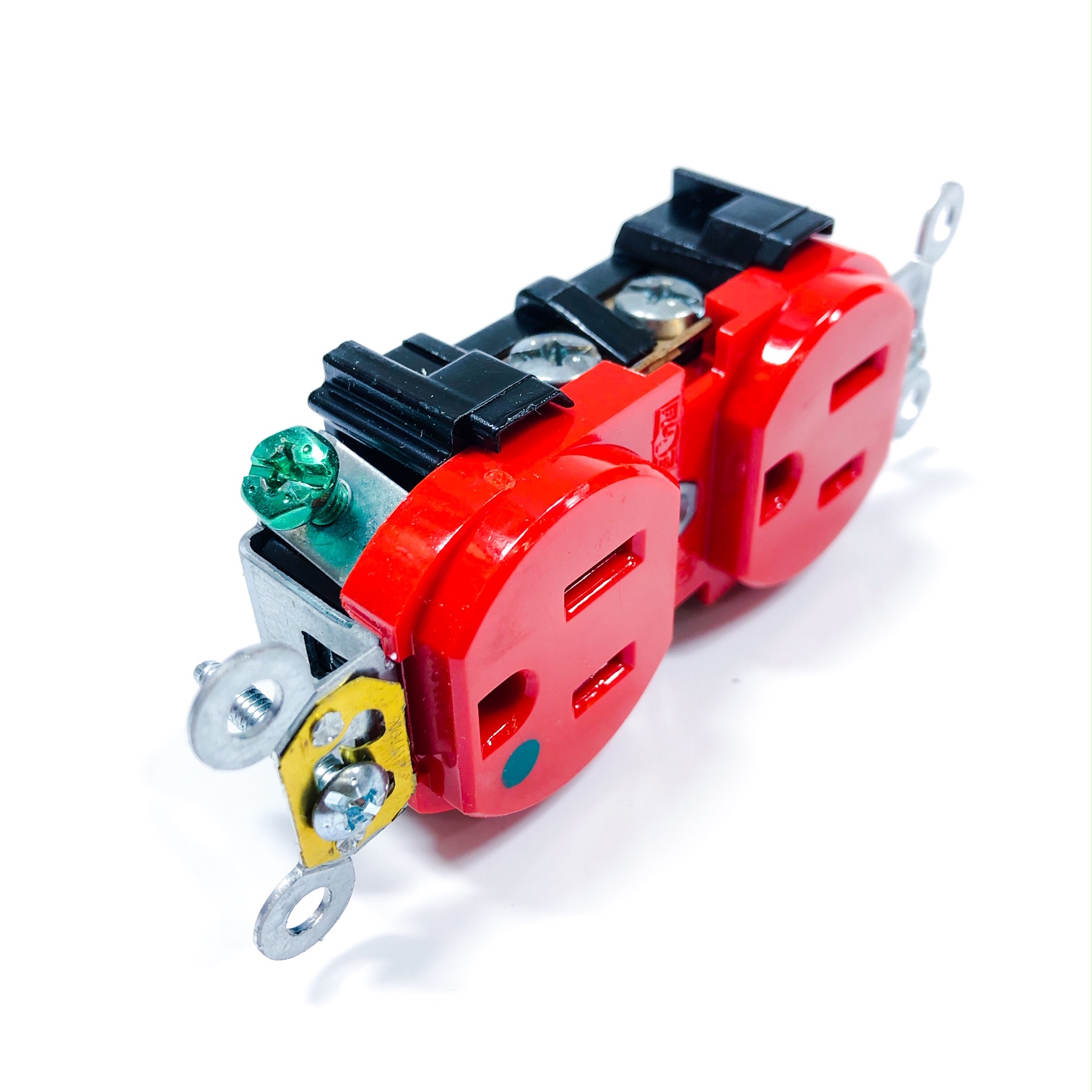

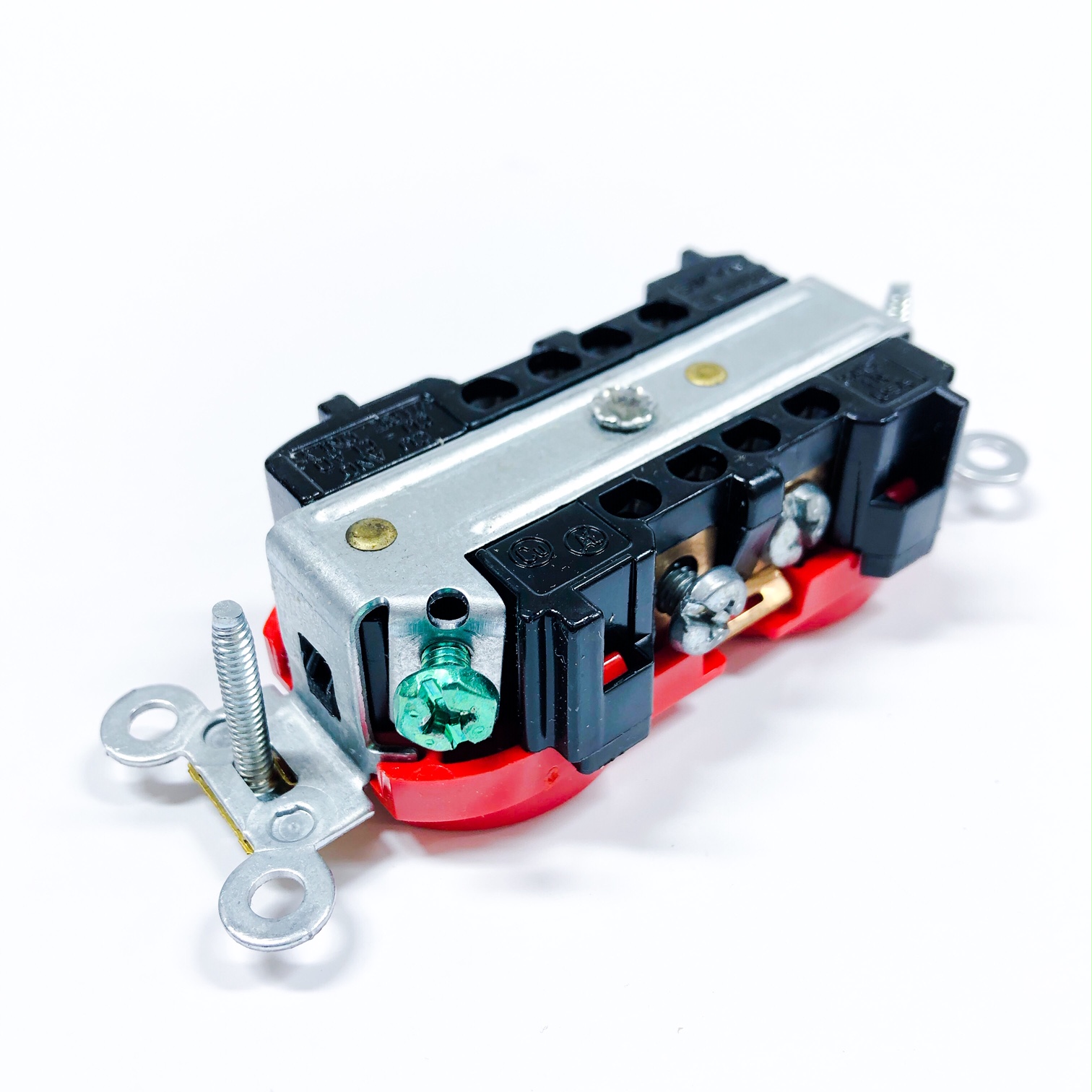

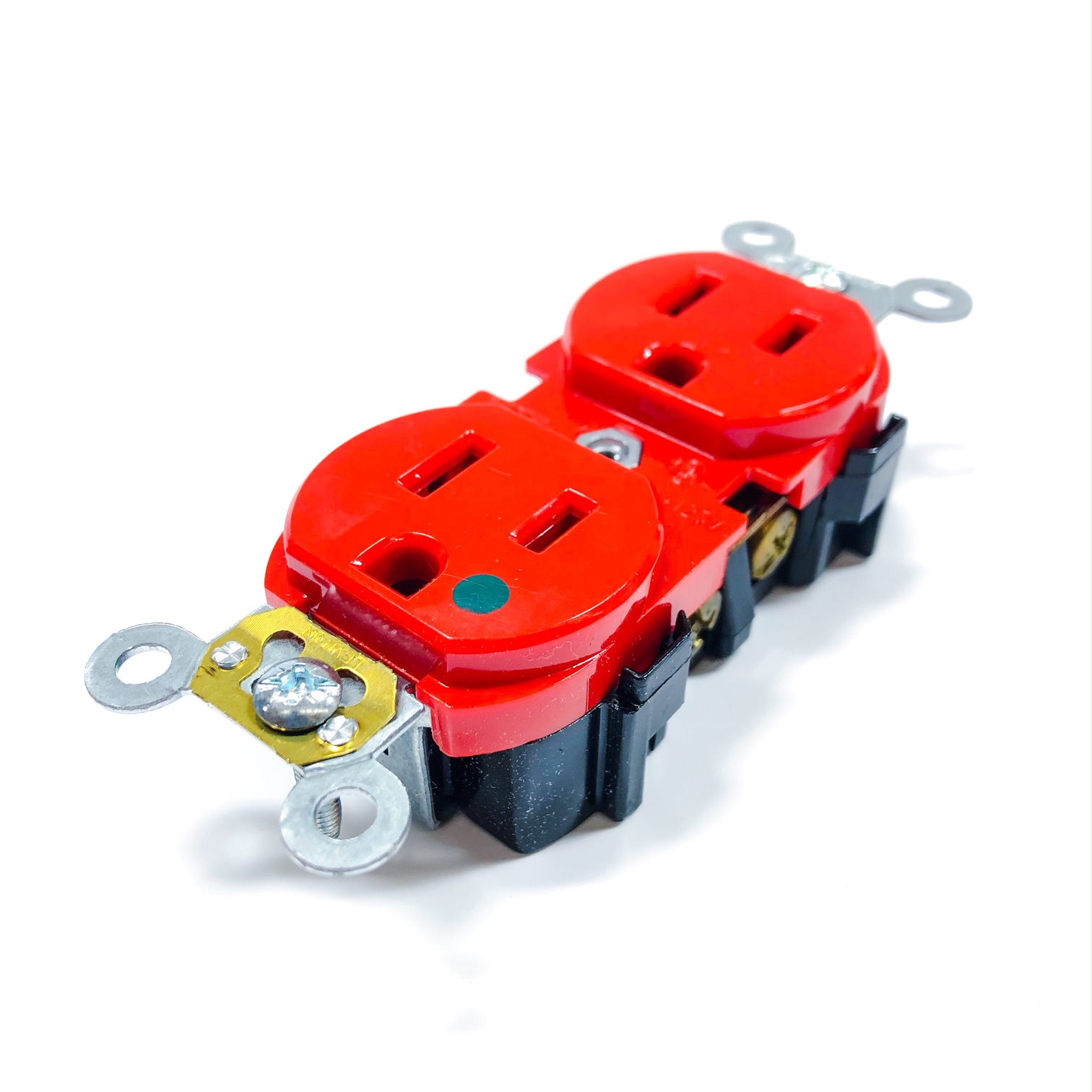

Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red
AC Horsepower Ratings
Horsepower Rating: 1/2 HP
Electrical Specifications
Amperage: 15 A
Dielectric Voltage: Withstands 3000V min
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 75°C
Material Specifications
Body Material: PBT Polyester Blend
Face Material: PBT Polyester Blend
Ground Clips: Brass
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Strap Material: Steel (Galvanized G60)
Terminal Screws: #8 Triple-Drive Brass
Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: #14-#10 AWG
Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
Termination: Back and Side Wire
Product Features
Color: Red
Device Type: Duplex Receptacle Outlet
Grade: Heavy-Duty Hospital Grade
NEMA: 5-15R
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
UL Fed Spec WC-596: File E13399
UL498HG: File E13399
