/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/80036OT3Q5010S-W40 WEG 800HP General Purpose Electric Motor, 3600RPM

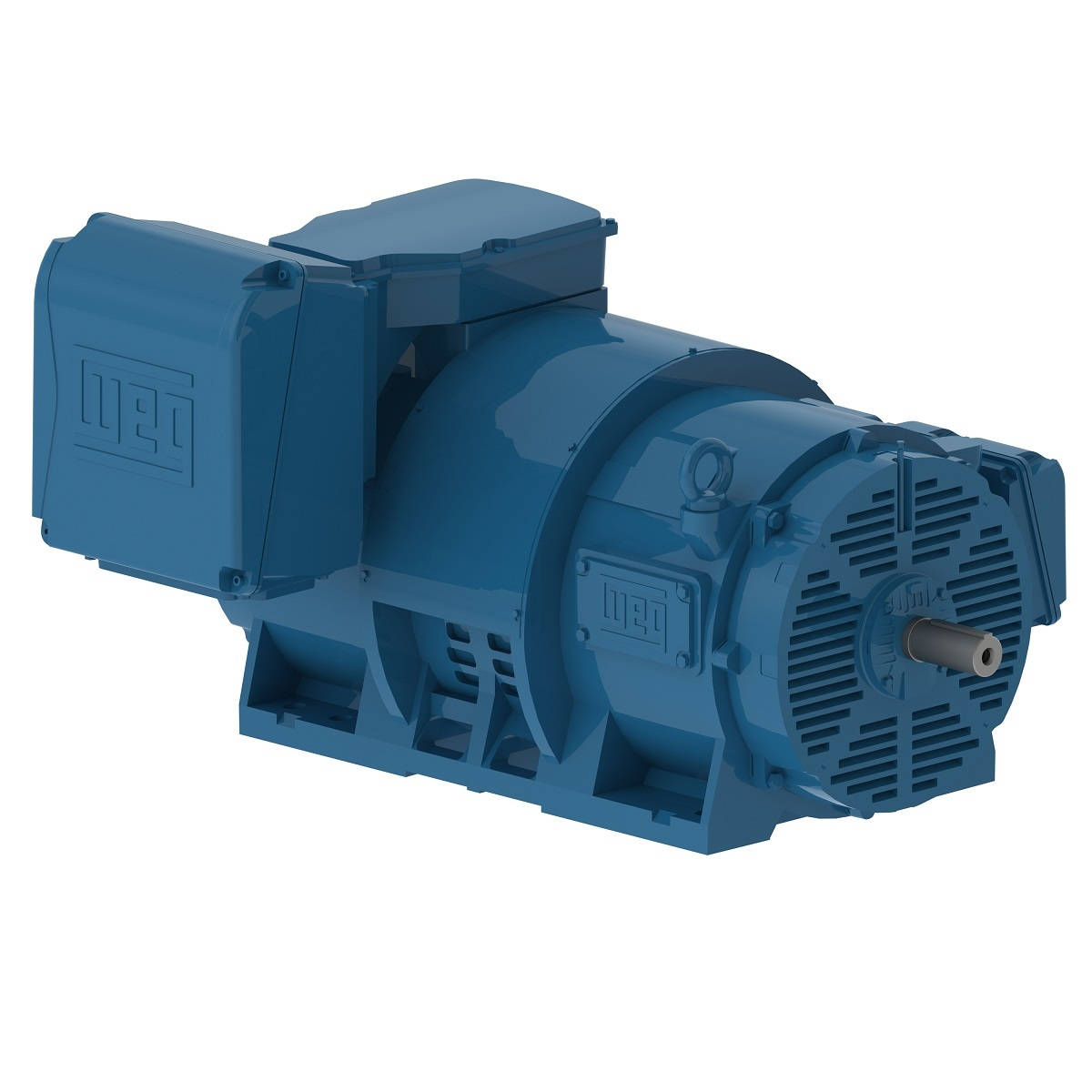

80036OT3Q5010S-W40 WEG 800HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 80036OT3Q5010S-W40

80036OT3Q5010S-W40 WEG 800HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 80036OT3Q5010S-W40

Selected accessories will also be added to cart
$33,779.25 / Each
Quantity:
IC01 - ODP, IP23, 5010/5011 Frame, 460VAC 60Hz 3 Phase, 13821180, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-5/8" Keyed Shaft

Electric Motors

Frame 5010/11
Output 800 HP (590 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3575 rpm
Slip 0.69 %
Rated voltage 460 V
Rated current 885 A
L. R. Amperes 6549 A
LRC 7.4x(Code H)
No load current 220 A
Rated torque 1180 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.78  0.85  0.87
Frame 5010/11
Output 650 HP (480 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 380 V
Rated current 885 A
L. R. Amperes 6638 A
LRC 7.5x(Code H)
No load current 220 A
Rated torque 1150 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.5  95.8  95.8

Power factor

50% 75% 100%
0.77  0.84  0.86
Frame 5010/11
Output 650 HP (480 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 400 V
Rated current 861 A
L. R. Amperes 6888 A
LRC 8.0x(Code J)
No load current 250 A
Rated torque 1150 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.2  95.8  95.8

Power factor

50% 75% 100%
0.71  0.80  0.84
Frame 5010/11
Output 650 HP (480 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 415 V
Rated current 850 A
L. R. Amperes 7225 A
LRC 8.5x(Code J)
No load current 280 A
Rated torque 1150 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.6  95.8

Power factor

50% 75% 100%
0.67  0.76  0.82
Frame 5010/11
Output 700 HP (515 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 939 A
L. R. Amperes 6573 A
LRC 7.0x(Code G)
No load current 220 A
Rated torque 1240 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.8  95.8

Power factor

50% 75% 100%
0.78  0.85  0.87
Frame 5010/11
Output 700 HP (515 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 400 V
Rated current 913 A
L. R. Amperes 6848 A
LRC 7.5x(Code H)
No load current 250 A
Rated torque 1240 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.2  95.8  95.8

Power factor

50% 75% 100%
0.74  0.81  0.85
Frame 5010/11
Output 700 HP (515 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 415 V
Rated current 912 A
L. R. Amperes 7296 A
LRC 8.0x(Code J)
No load current 280 A
Rated torque 1240 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
Approx. weight³ 3529 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.6  95.8

Power factor

50% 75% 100%
0.69  0.78  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 4"
Terminal Block Without
Accessories Terminal Box With
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Triple
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval 4500 h  4500 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM
