/Products/Electric Motors/Single Phase/WEG/Compressor Duty/.7536OS1BCDW56-S WEG 3/4HP Compressor Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: .7536OS1BCDW56-S

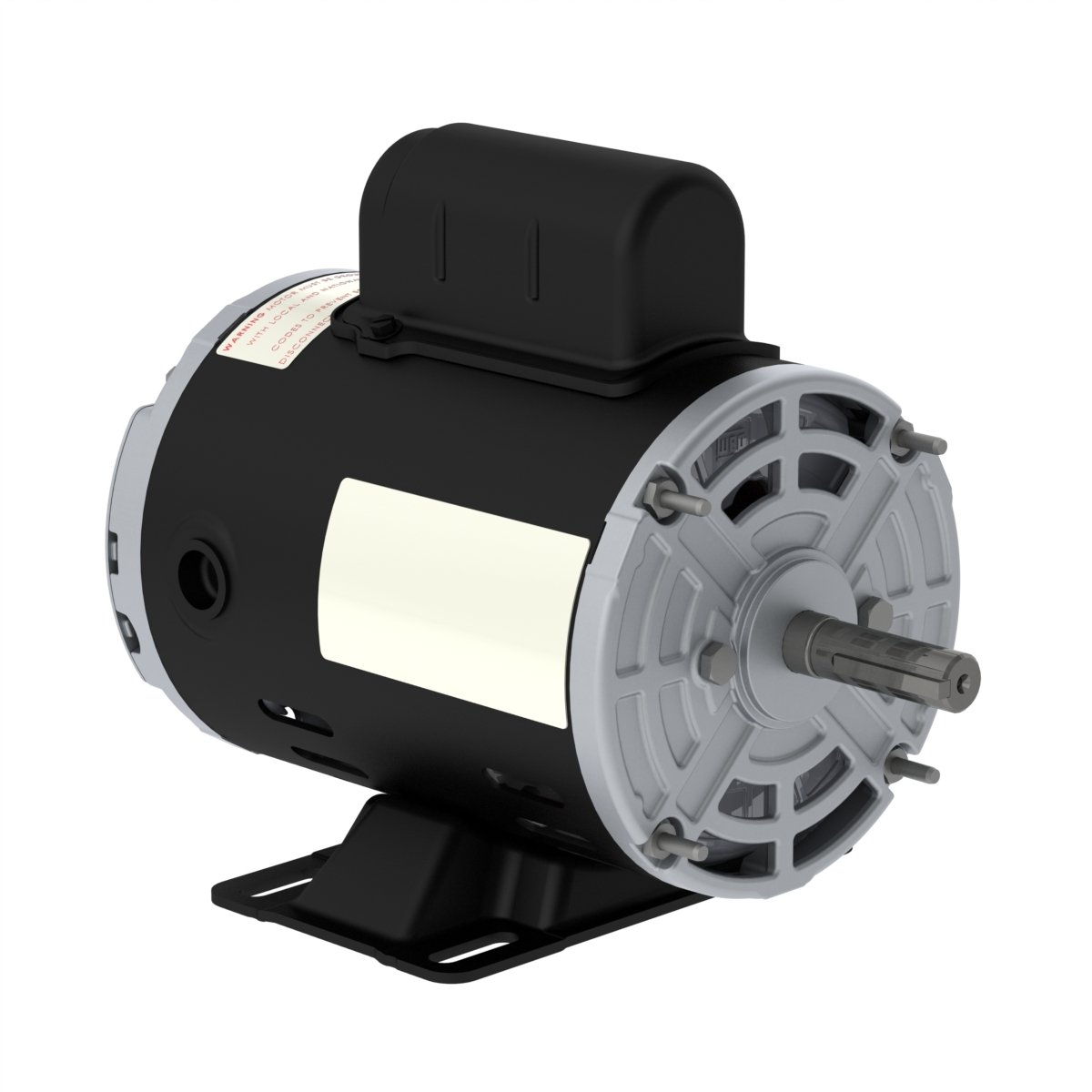

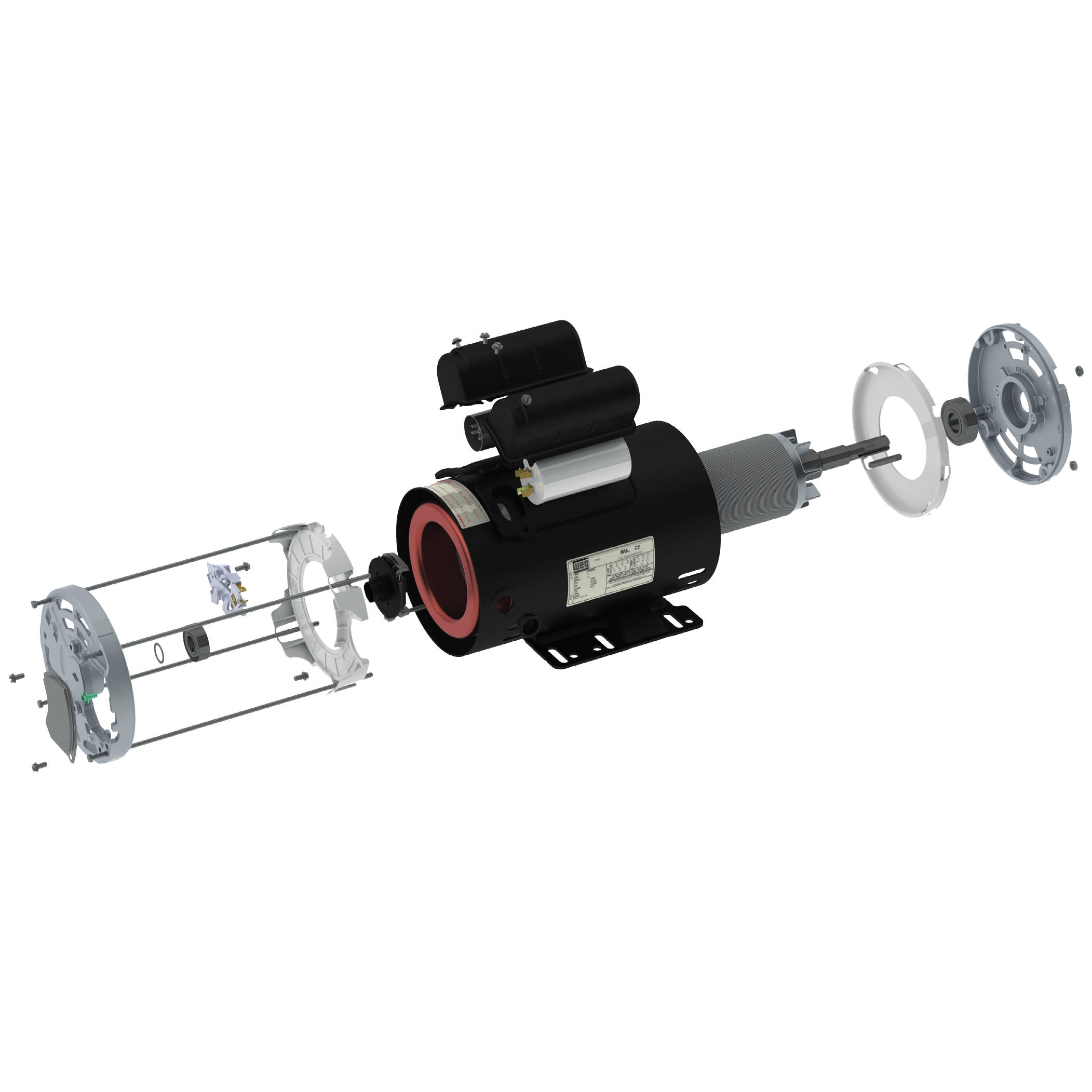

.7536OS1BCDW56-S WEG 3/4HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OS1BCDW56-S

Selected accessories will also be added to cart
$177.75 / Each
Quantity:
IC01 - ODP, W56 Frame, 115/208-230VAC Single Phase 60Hz, 13444696, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame W56
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 115/208-230 V
Rated current 9.14/4.70-4.57 A
L. R. Amperes 59.4/30.6-29.7 A
LRC 6.5x(Code L)
No load current 6.00/2.59-3.00 A
Rated torque 1.12 ft.lb
Locked rotor torque 175 %
Breakdown torque 225 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0233 sq.ft.lb
Design N
Insulation Class F
Temperature rise 105 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 21.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
60.7  66.5  68.0

Power factor

50% 75% 100%
0.56  0.68  0.77

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
