/Products/Electric Motors/Single Phase Stainless Steel/Leeson/Boat Hoist/6439191264 Leeson 2HP Stainless Steel Boat Hoist Electric Motor, 1800RPM
Click Image to Expand

Product ID: 6439191264

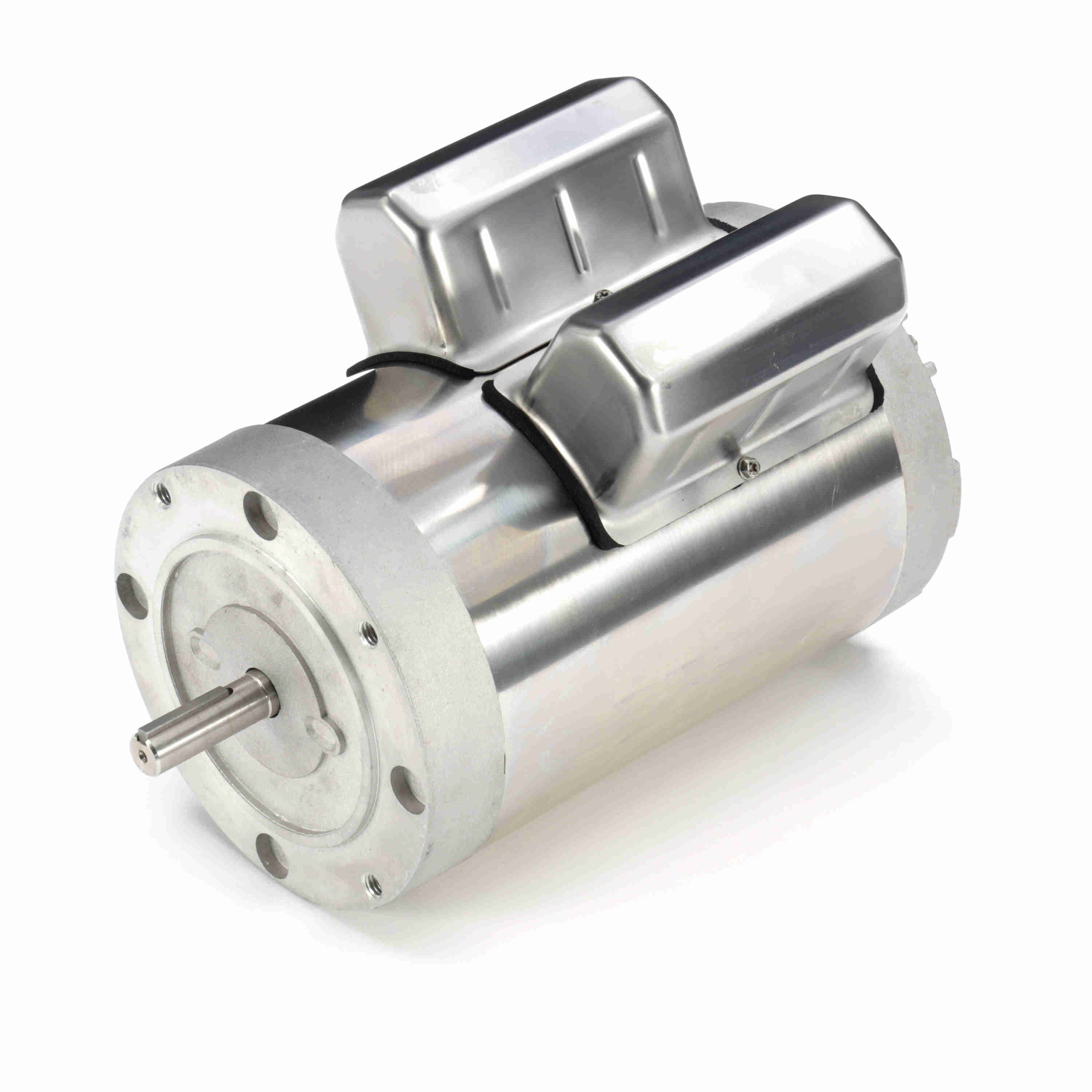

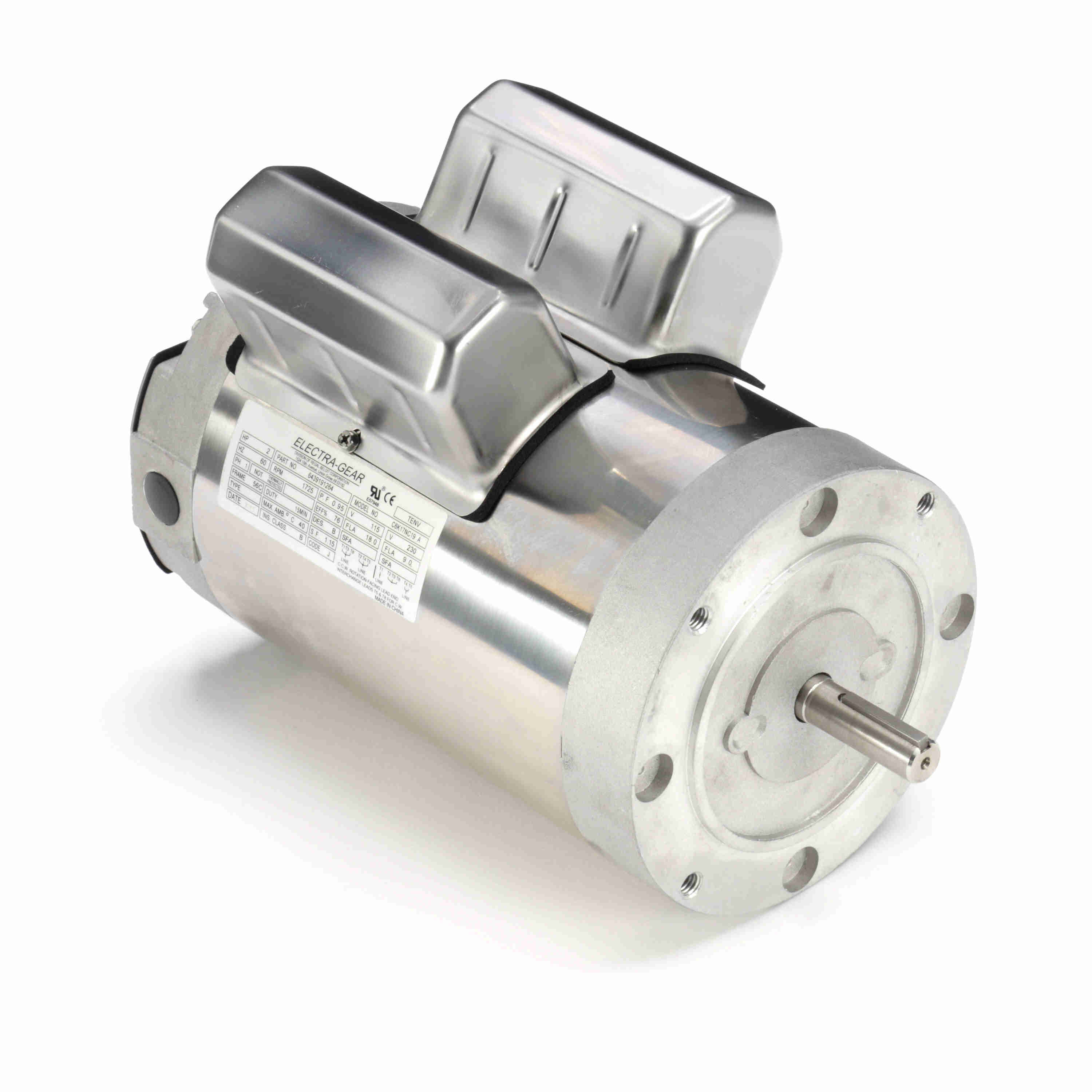

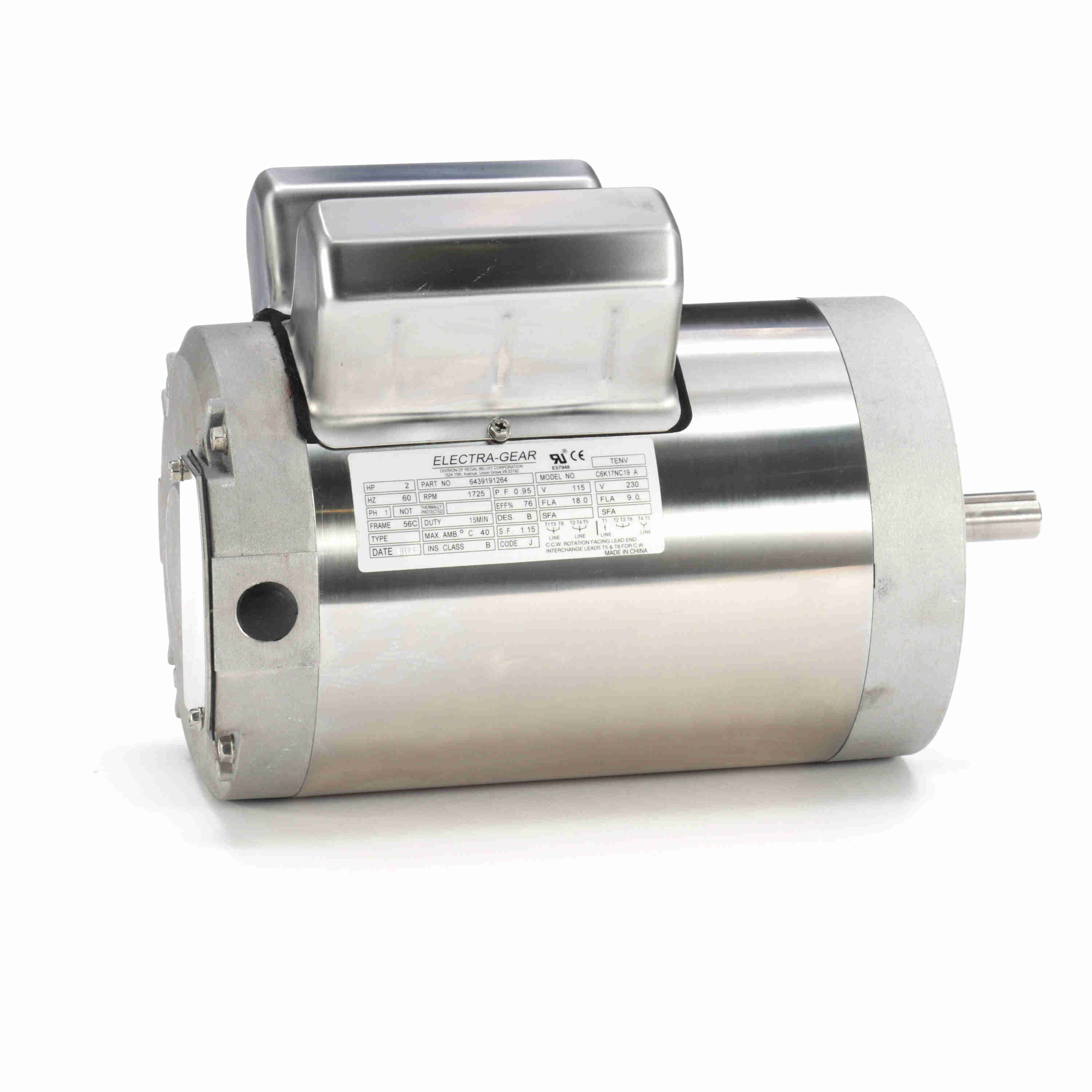

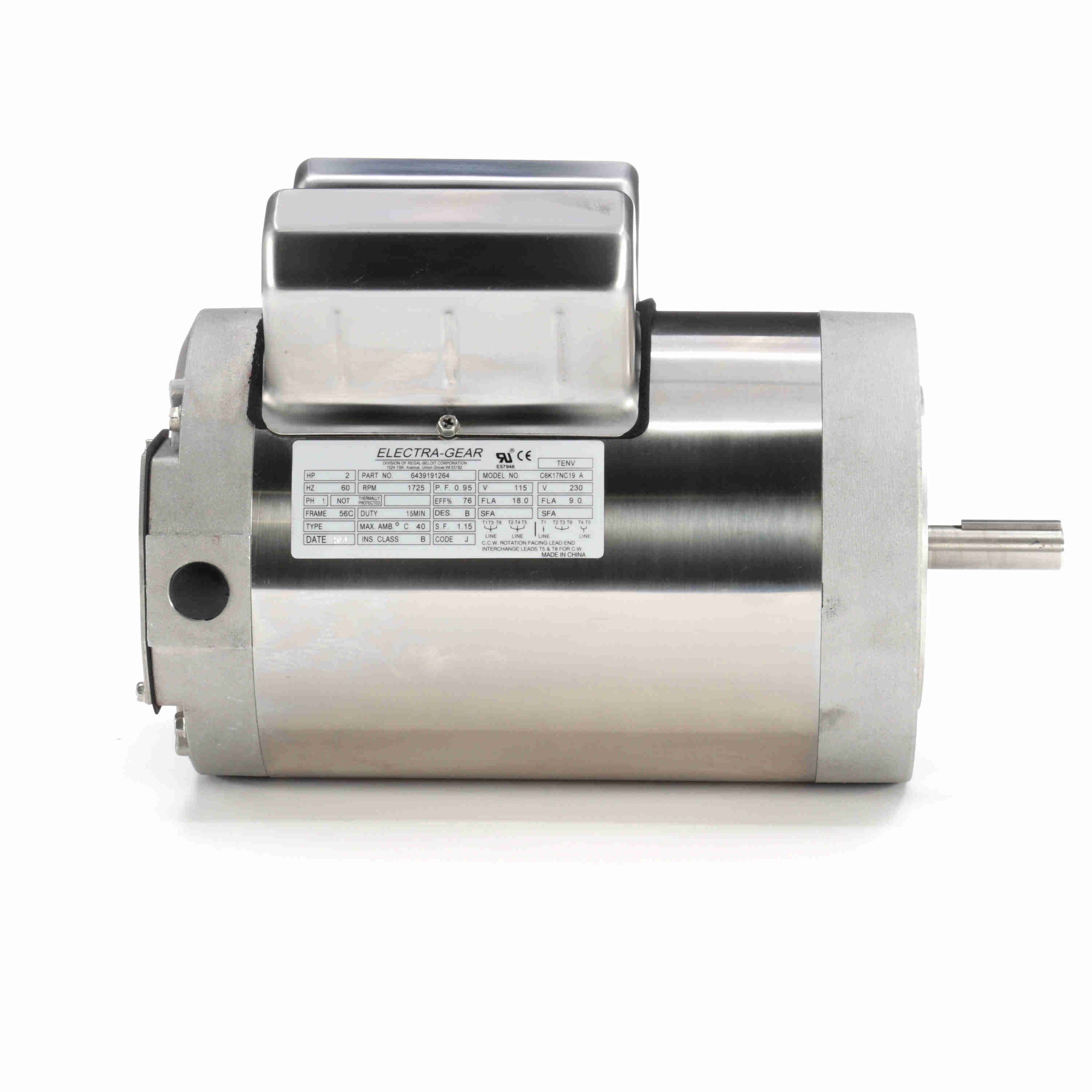

6439191264 Leeson 2HP Stainless Steel Boat Hoist Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 6439191264

Selected accessories will also be added to cart
$1,122.90 / Each
Quantity:
TENV, 56C Frame, 115/230V Single Phase 60Hz
Features
  • Stainless steel frame, base, capacitor case and conduit box cover
  • 15 minute duty cycle
  • Drain holes located at 6:00 position
  • TENV enclosure
  • Die cast Aluminum end bells
  • Capacitor case located at 12:00
  • 115/230 Volt – 1.15 S.F.
  • UL recognized component listing and CSA approved
General Specifications
Model :C6K17NC19 A Catalog No :6439191264
Part Description :2HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.C-FACE.BOAT HOIST. Category :Boat Hoist Duty
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :115/230 V
Current :18.0/9.0 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :76 % Duty :15 Minute
Insulation Class :B Design Code :N
KVA Code :J Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :13.40 in Frame Length :7.68 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720000106
Weight :45.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.0180.50188.01,3430.000.02.00
Full Load8.77100.095.80100.01,7541.770.02.00
Break-Down0.000.0270.20282.01,5210.000.02.00
Locked-Rotor69.30790.0220.60230.0011.600.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.98
  • 0.222
  • 7.2
  • 24.3
  • 1,799
  • 0.0
  • 1.00
  • 25 %
  • 4.46
  • 0.570
  • 65.4
  • 55.6
  • 1,788
  • 0.0
  • 23.50
  • 50 %
  • 5.58
  • 0.948
  • 78.8
  • 73.9
  • 1,778
  • 0.0
  • 47.30
  • 75 %
  • 7.05
  • 1.344
  • 83.2
  • 82.9
  • 1,767
  • 0.0
  • 71.30
  • 100 %
  • 8.77
  • 1.765
  • 84.5
  • 87.5
  • 1,754
  • 0.0
  • 95.80
  • 115 %
  • 9.91
  • 2.030
  • 84.5
  • 89.1
  • 1,746
  • 0.0
  • 110.70
  • 125 %
  • 10.71
  • 2.210
  • 84.4
  • 89.7
  • 1,740
  • 0.0
  • 120.70
  • 150 %
  • 12.86
  • 2.690
  • 83.2
  • 90.9
  • 1,726
  • 0.0
  • 146.10
