6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM
Click Image to Expand
Previous
Next

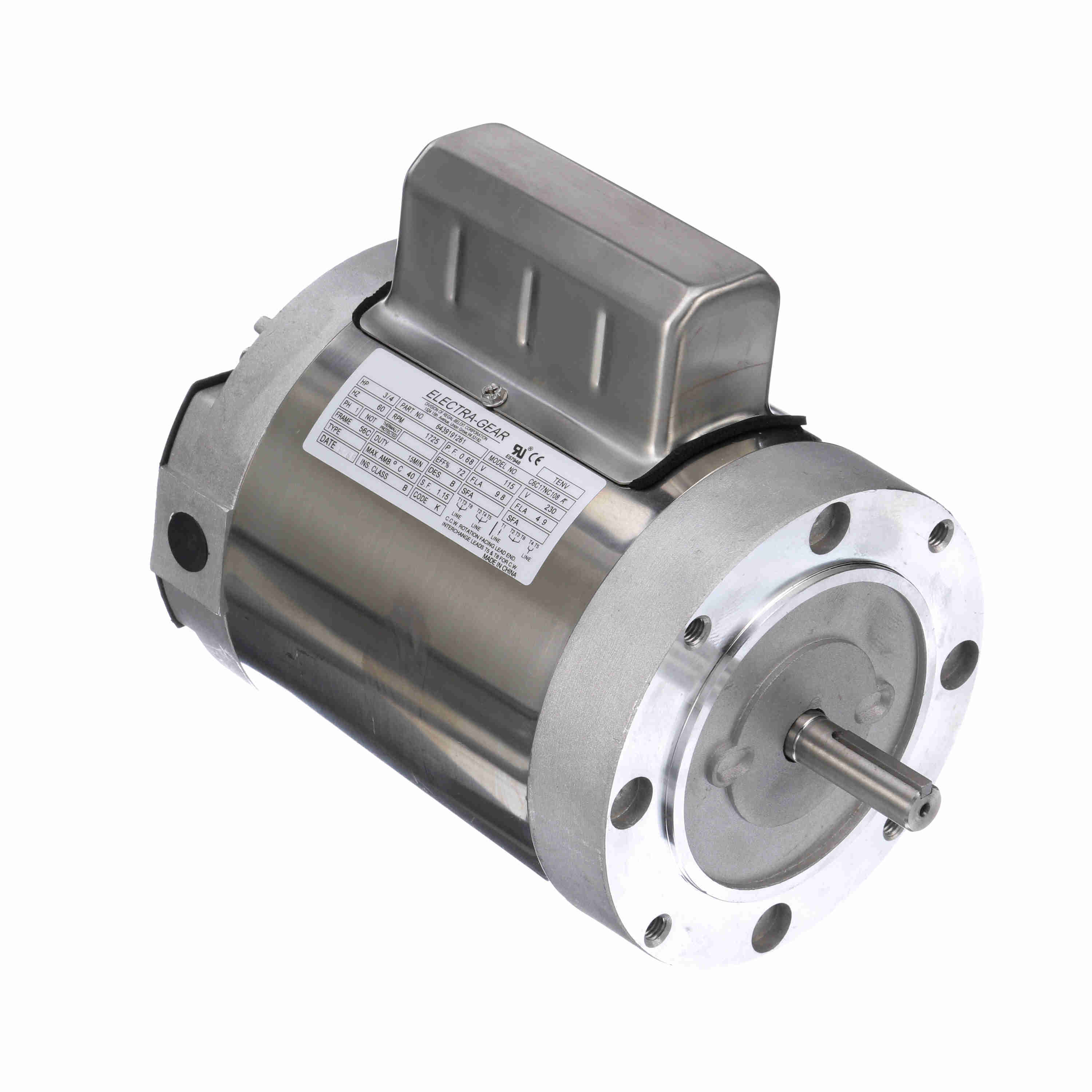

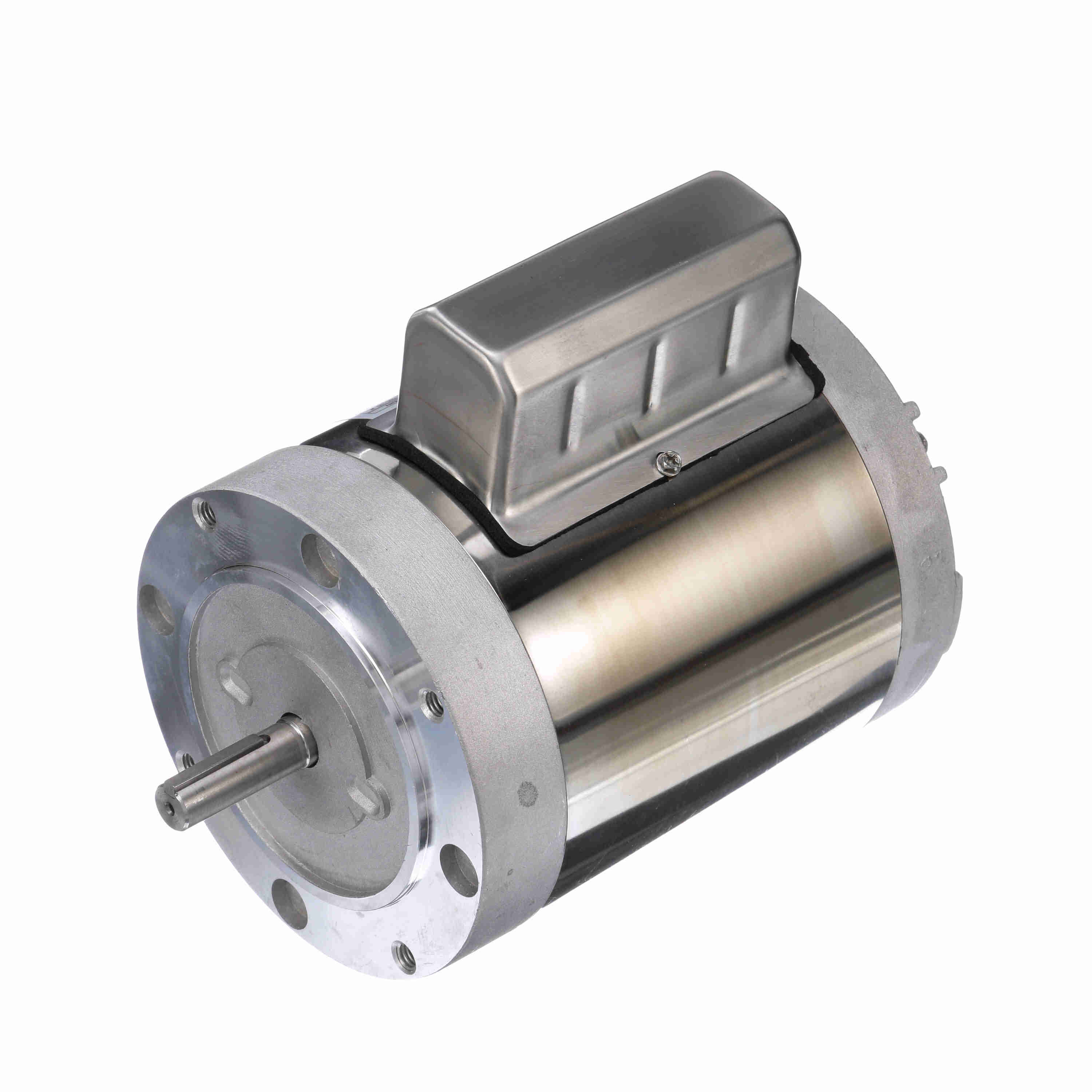

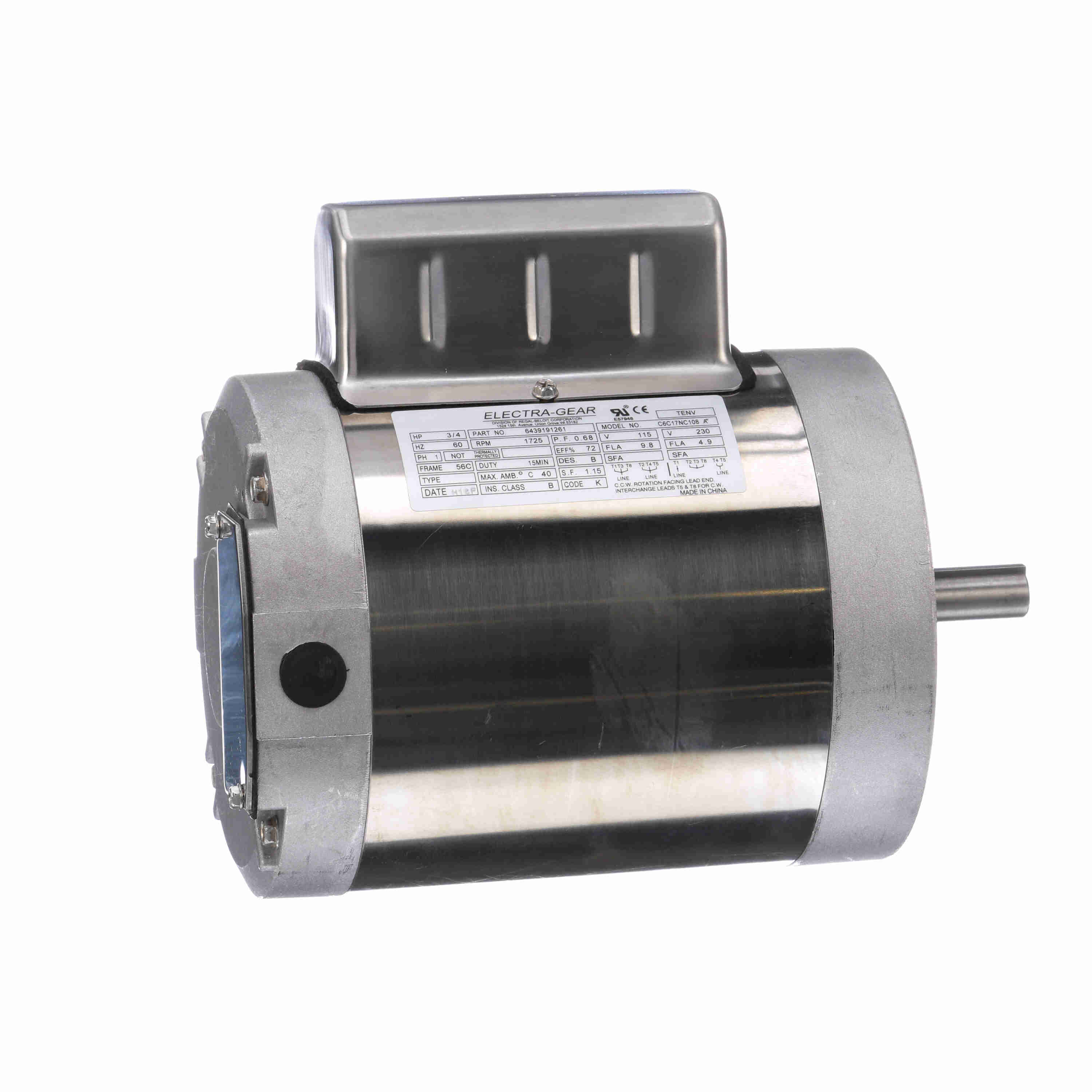

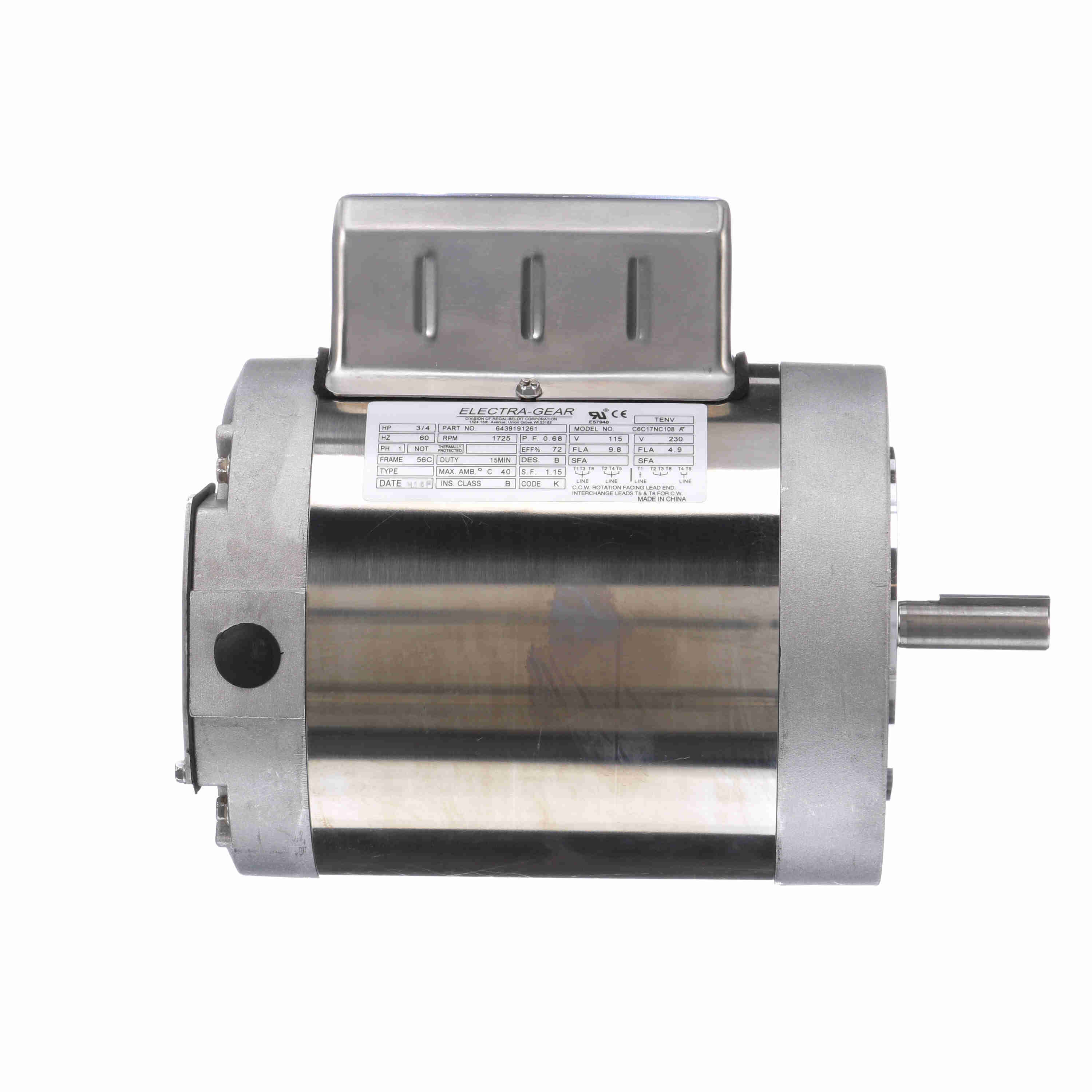

6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM
Product ID: 6439191261
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 6439191261
Selected accessories will also be added to cart
$695.63 / Each
Quantity:
TENV, 56C Frame, 115/230V Single Phase 60Hz, C-Face, Stainless Steel, C6C17NC108A
Details
Features
Features
Stainless steel frame, base, capacitor case and conduit box cover
15 minute duty cycle
Drain holes located at 6:00 position
TENV enclosure
Die cast Aluminum end bells
Capacitor case located at 12:00
115/230 Volt – 1.15 S.F.
UL recognized component listing and CSA approved
General Specifications
General Specifications
Model :
C6C17NC108 A
Catalog No :
6439191261
Part Description :
3/4HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.C-FACE.BOAT HOIST.
Category :
Boat Hoist Duty
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
0.75 HP
Output KW :
0.56 kW
Frequency :
60 Hz
Voltage :
115/230 V
Current :
9.8/4.9 A
Speed :
1725 RPM
Service Factor :
1.15
Phase :
1
Efficiency :
72 %
Duty :
15 Minute
Insulation Class :
B
Design Code :
N
KVA Code :
K
Frame :
56C
Enclosure :
Totally Enclosed Non Ventilated
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6203
Opp Drive End Bearing Size :
6203
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
43
Technical Specifications
Technical Specifications
Electrical Type :
Capacitor Start Induction Run
Starting Method :
Across The Line
Poles :
4
Rotation :
Selective Counterclockwise
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
T
Overall Length :
11.10 in
Frame Length :
5.65 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720000014
Weight :
37.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Full Load
5.14
100.0
36.20
100.0
1,743
0.77
64.9
0.75
Locked-Rotor
29.79
580.0
114.10
315.0
10
5.88
85.8
0.75
Break-Down
14.51
282.0
98.30
272.0
1,519
2.70
80.9
0.75
Pull-Up
17.55
341.0
83.60
231.0
1,373
2.95
73.2
0.75
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
3.98
0.187
29.8
20.4
1,792
0.0
3.50
25 %
4.01
0.276
51.1
29.9
1,784
0.0
8.90
50 %
4.25
0.429
65.3
43.9
1,772
0.0
17.80
75 %
4.62
0.592
70.9
55.7
1,758
0.0
26.90
100 %
5.14
0.767
73.0
64.9
1,743
0.0
36.20
115 %
5.53
0.881
73.2
69.3
1,733
0.0
41.90
125 %
5.82
0.959
73.0
71.6
1,726
0.0
45.70
150 %
6.70
1.179
71.6
76.5
1,706
0.0
55.70
