/Products/Electric Motors/Single Phase Stainless Steel/Leeson/Boat Hoist/6439191253 Leeson 1.5HP Boat Hoist Electric Motor, 1800RPM

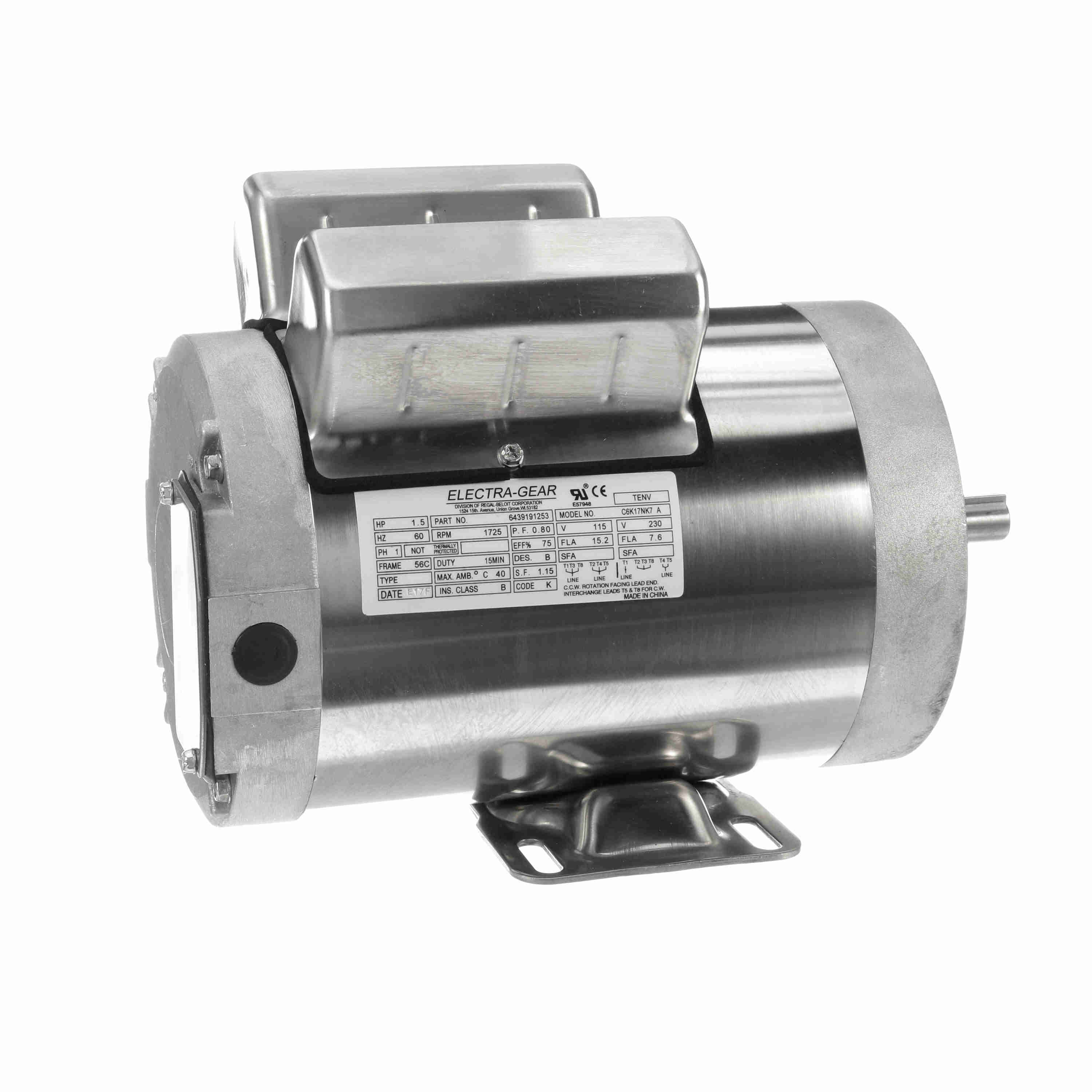

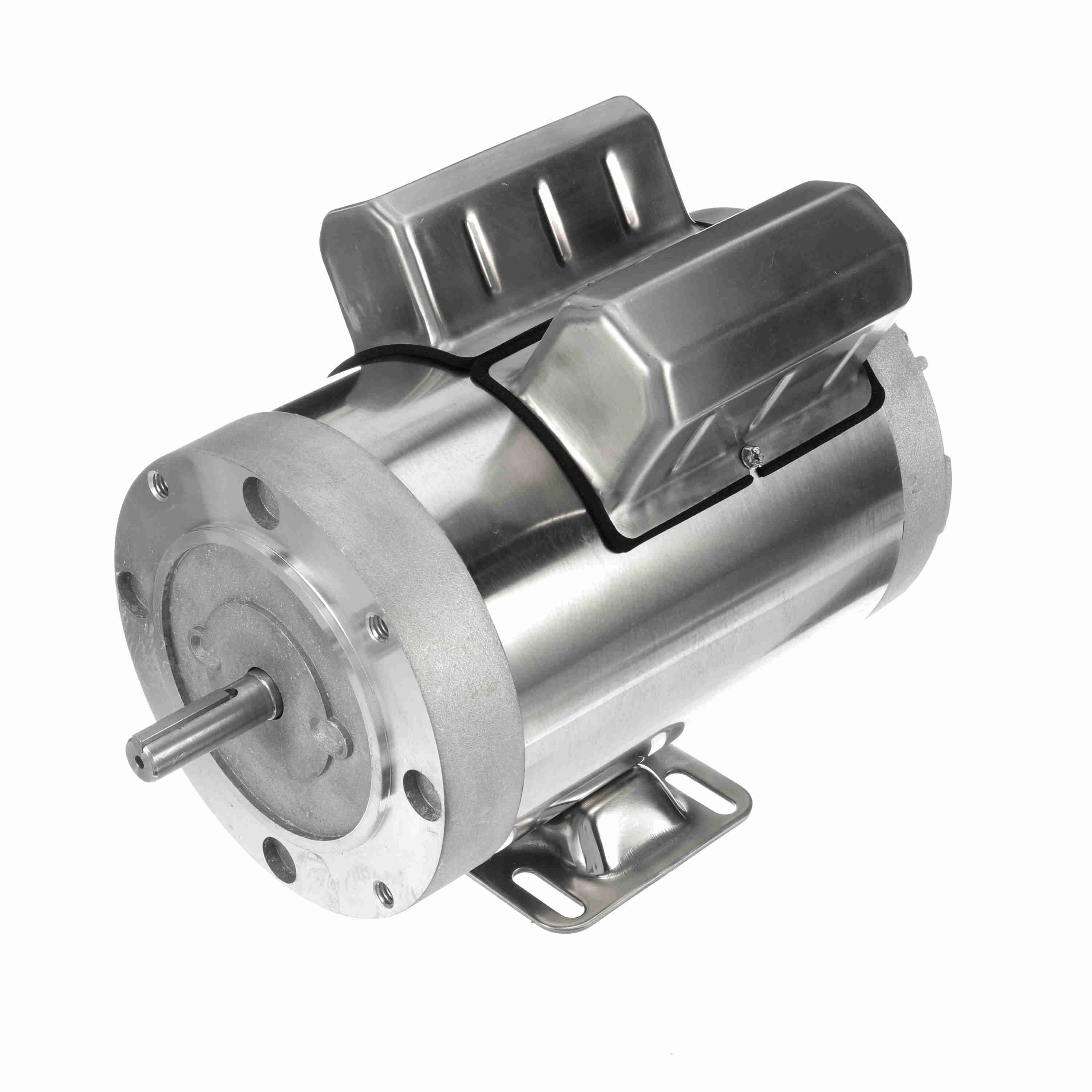

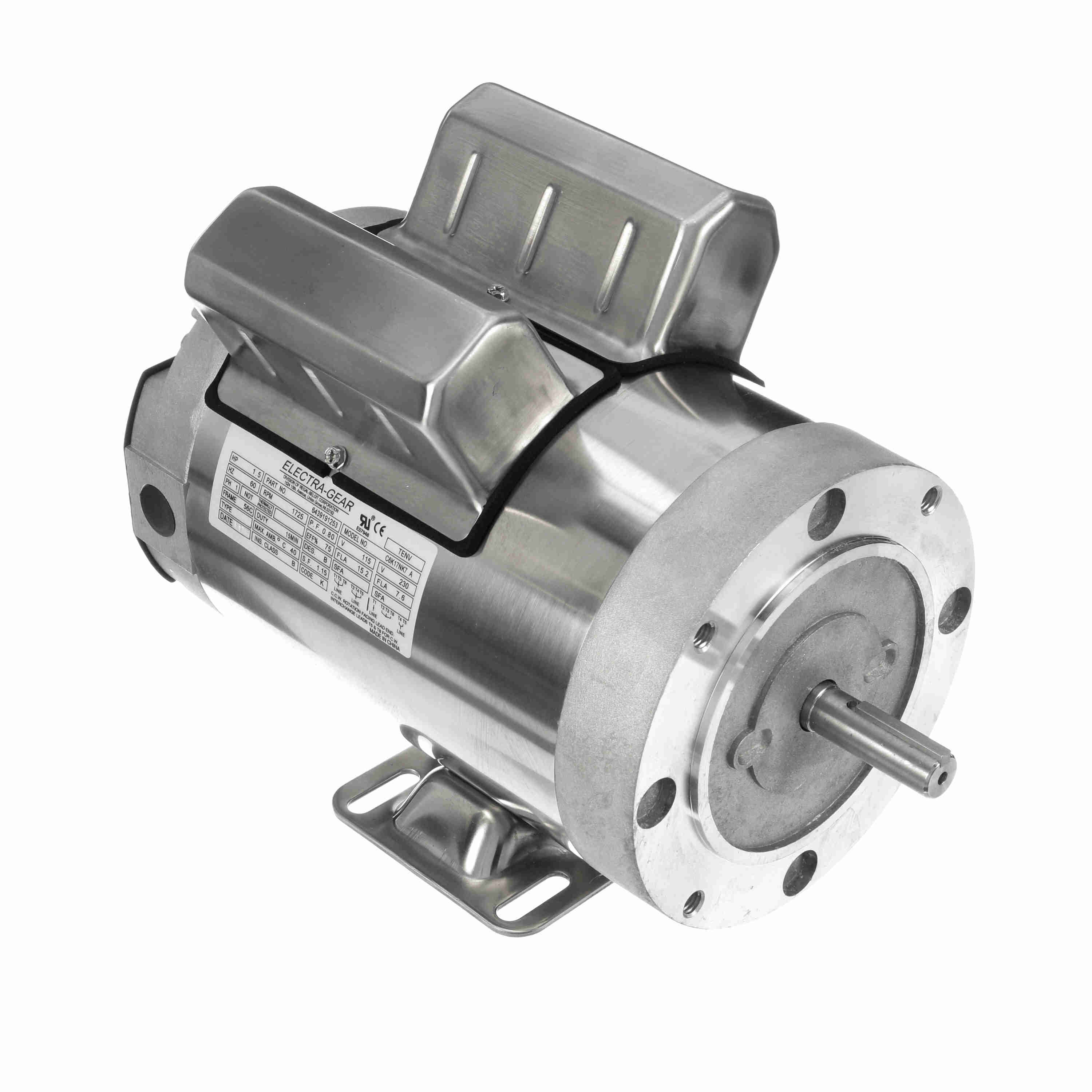

Click Image to Expand

Product ID: 6439191253

6439191253 Leeson 1.5HP Boat Hoist Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 6439191253

Selected accessories will also be added to cart
$1,020.30 / Each
Quantity:
TENV, 56C Frame, 115/230V Single Phase 60Hz, C-Face, Rigid Base, Stainless Steel, C6K17NK7A

Features

Features
  • Stainless steel frame, base, capacitor case and conduit box cover
  • 15 minute duty cycle
  • Drain holes located at 6:00 position
  • TENV enclosure
  • Die cast Aluminum end bells
  • Capacitor case located at 12:00
  • 115/230 Volt – 1.15 S.F.
  • UL recognized component listing and CSA approved

General Specifications

General Specifications
Model :C6K17NK7 A Catalog No :6439191253
Part Description :1.5HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.RIGID-C.BOAT HOIST. Category :Boat Hoist Duty
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 HP Output KW :1.1 kW
Frequency :60 Hz Voltage :115/230 V
Current :15.2/7.6 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :75 % Duty :15 Minute
Insulation Class :B Design Code :N
KVA Code :K Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :12.60 in Frame Length :7.26 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720000281
Weight :40.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.0223.20311.01,5140.000.01.50
Locked-Rotor60.80779.0223.00311.0010.9077.91.50
Pull-Up0.000.0182.00253.01,2360.000.01.50
Full Load7.80100.071.80100.01,7551.3776.61.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.11
  • 0.206
  • 0.0
  • 17.5
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 5.28
  • 0.470
  • 59.4
  • 38.7
  • 1,788
  • 0.0
  • 17.60
  • 50 %
  • 5.85
  • 0.755
  • 74.2
  • 56.1
  • 1,778
  • 0.0
  • 35.50
  • 75 %
  • 6.71
  • 1.060
  • 79.6
  • 68.7
  • 1,767
  • 0.0
  • 53.80
  • 100 %
  • 7.80
  • 1.374
  • 81.4
  • 76.6
  • 1,755
  • 0.0
  • 71.80
  • 115 %
  • 8.58
  • 1.578
  • 81.8
  • 80.0
  • 1,747
  • 0.0
  • 83.20
  • 125 %
  • 9.13
  • 1.719
  • 81.6
  • 81.9
  • 1,741
  • 0.0
  • 90.80
  • 150 %
  • 10.61
  • 2.080
  • 80.7
  • 85.2
  • 1,728
  • 0.0
  • 109.40
