/Products/Electric Motors/Single Phase Stainless Steel/Leeson/Boat Hoist/6439191252 Leeson 1HP Boat Hoist Electric Motor, 1800RPM
Click Image to Expand

Product ID: 6439191252

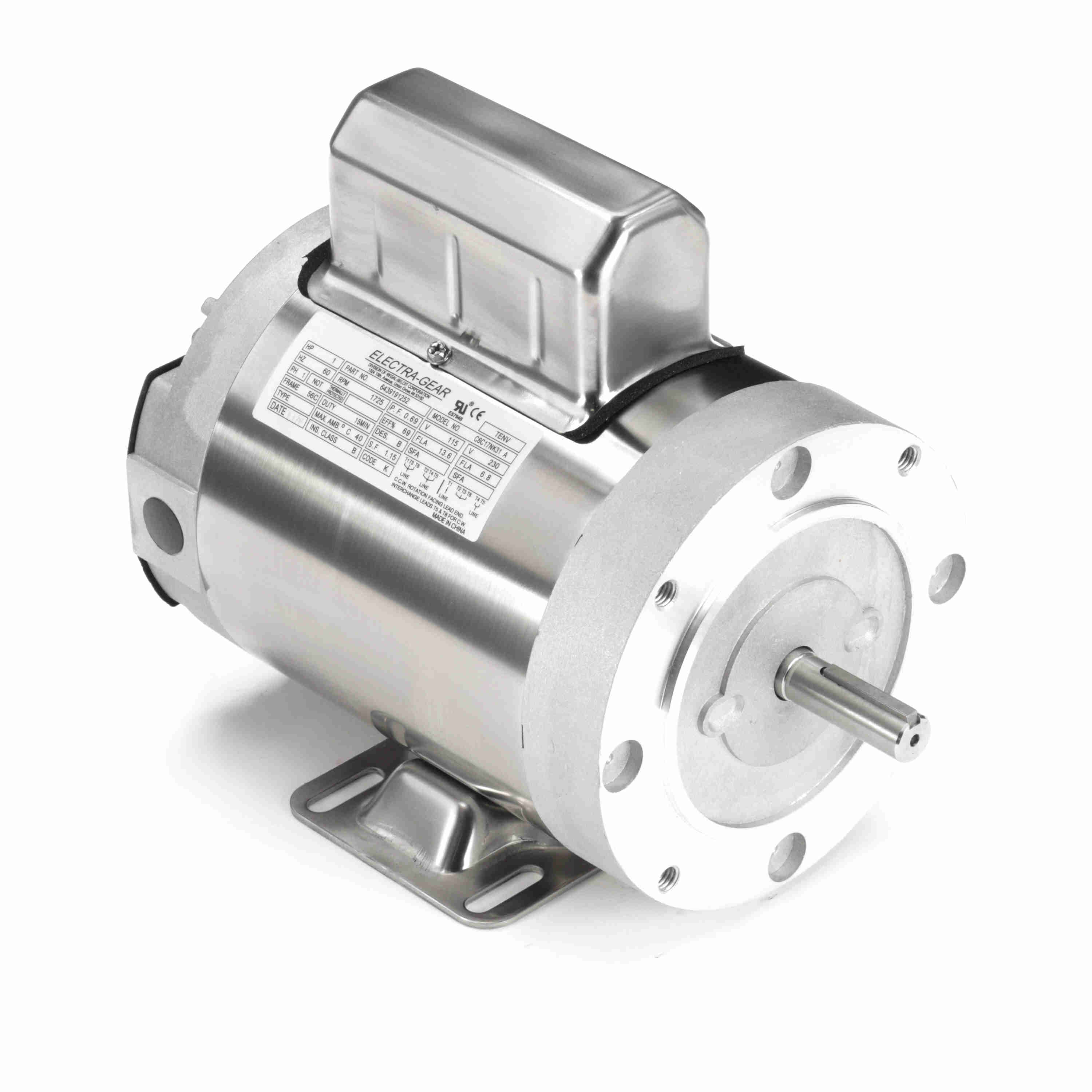

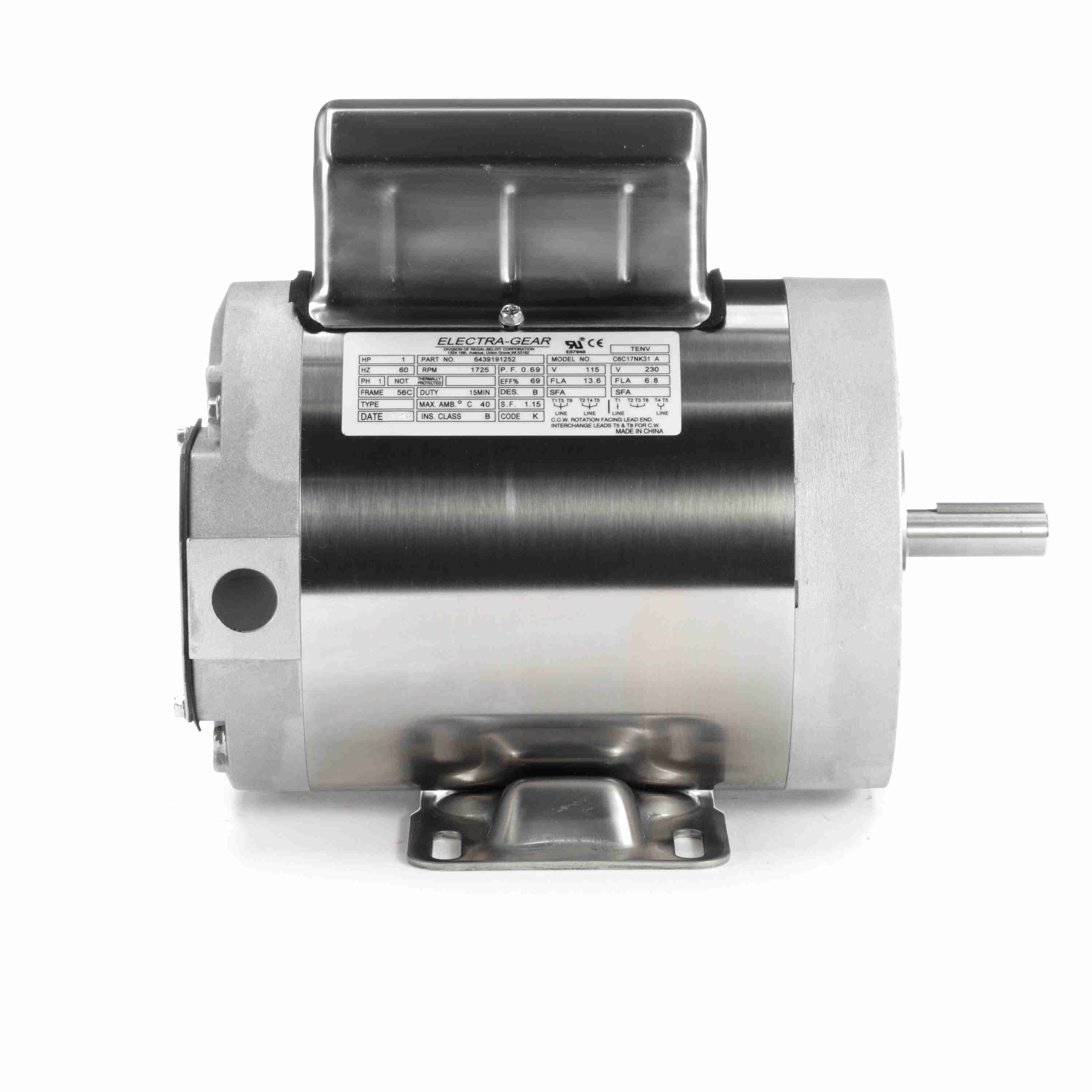

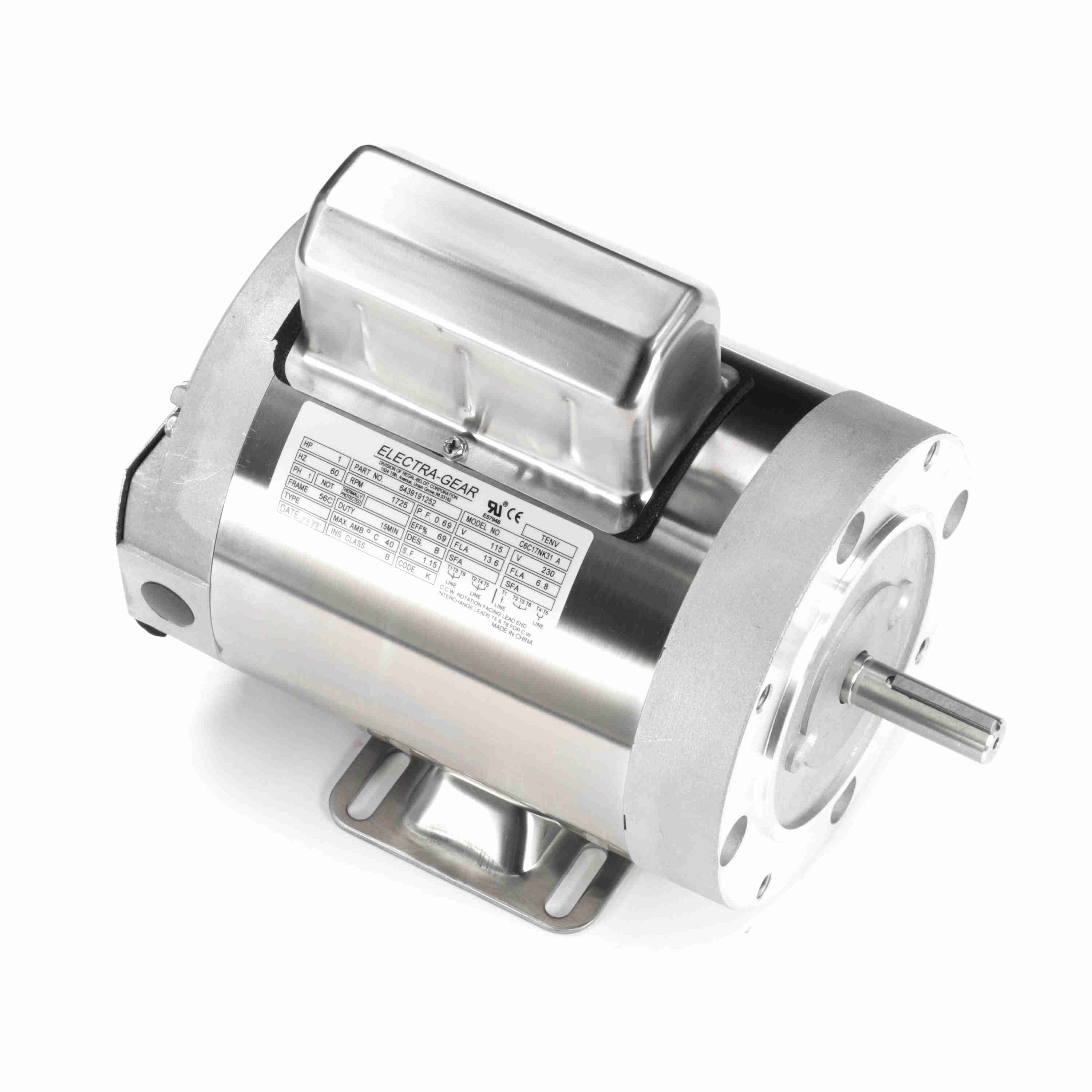

6439191252 Leeson 1HP Boat Hoist Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 6439191252

Selected accessories will also be added to cart
$744.42 / Each
Quantity:
TENV, 56C Frame, 115/230V Single Phase 60Hz, C-Face, Rigid Base, Stainless Steel, C6C17NK31A

Features

Features
  • Stainless steel frame, base, capacitor case and conduit box cover
  • 15 minute duty cycle
  • Drain holes located at 6:00 position
  • TENV enclosure
  • Die cast Aluminum end bells
  • Capacitor case located at 12:00
  • 115/230 Volt – 1.15 S.F.
  • UL recognized component listing and CSA approved

General Specifications

General Specifications
Model :C6C17NK31 A Catalog No :6439191252
Part Description :1HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.RIGID-C.BOAT HOIST. Category :Boat Hoist Duty
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1 HP Output KW :0.75 kW
Frequency :60 Hz Voltage :115/230 V
Current :13.6/6.8 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :69 % Duty :15 Minute
Insulation Class :B Design Code :N
KVA Code :K Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :11.70 in Frame Length :6.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720000250
Weight :41.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.0119.00246.01,5280.000.01.00
Pull-Up0.000.0105.90219.01,4180.000.01.00
Locked-Rotor36.47568.0152.30315.0107.2986.91.00
Full Load6.42100.048.40100.01,7381.0268.71.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.56
  • 0.180
  • 18.6
  • 17.2
  • 1,795
  • 0.0
  • 2.10
  • 25 %
  • 4.68
  • 0.341
  • 54.8
  • 31.7
  • 1,784
  • 0.0
  • 11.80
  • 50 %
  • 5.03
  • 0.549
  • 67.8
  • 47.5
  • 1,770
  • 0.0
  • 23.70
  • 75 %
  • 5.61
  • 0.772
  • 72.5
  • 59.8
  • 1,755
  • 0.0
  • 35.90
  • 100 %
  • 6.42
  • 1.015
  • 73.6
  • 68.7
  • 1,738
  • 0.0
  • 48.40
  • 115 %
  • 7.01
  • 1.173
  • 73.2
  • 72.8
  • 1,727
  • 0.0
  • 56.00
  • 125 %
  • 7.44
  • 1.281
  • 72.8
  • 74.9
  • 1,720
  • 0.0
  • 61.10
  • 150 %
  • 8.74
  • 1.590
  • 70.4
  • 79.1
  • 1,696
  • 0.0
  • 74.30
