Products
/
Ball Bearings
/
6300 Series Ball Bearings
/
6318ZZXC3 Koyo Ball Bearing, Shielded
Click Image to Expand
Previous
Next
Product ID: 6318-ZZC3
6318ZZXC3 Koyo Ball Bearing, Shielded
MFG: JTEKT Corporation
MFG Part Number: 6318ZZXC3
Temporarily out of stock
Selected accessories will also be added to cart
$277.65 / Each
6318-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$25.22 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6318ZZXC3
Group
Deep Groove Ball Bearings
Type

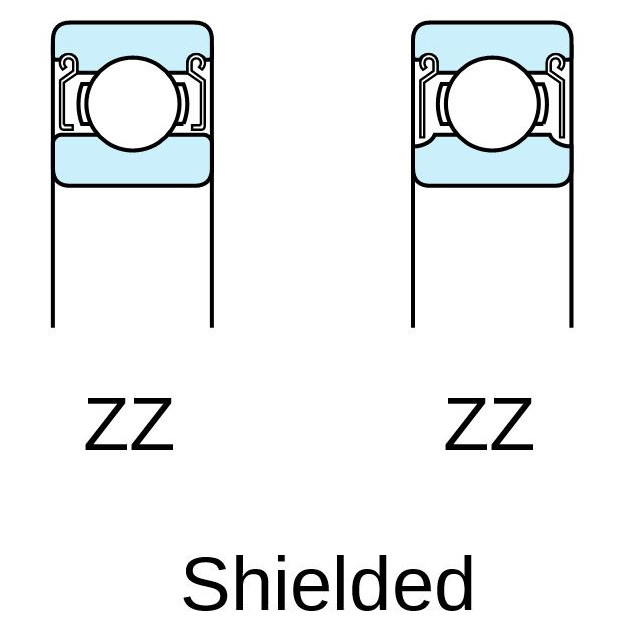

Shielded (ZZX)
Bore / Inside Diameter (d)
90 mm
Housing / Outside Diameter (D)
190 mm
Width (B)
43 mm
Minimum Radius (r)
3 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
143 kN
C
0r
107 kN
Fatigue Load Limit (C
u
)
8.80 kN
Factor (f0)
13.3
Limiting Speeds (Grease Lubrication)
3,500 min
-1
Shaft Shoulder Mounting Dimension (d
a
)
103 mm Minimum
117 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
177 mm Maximum
Shoulder Radius (r
a
)
2.5 mm Maximum
Mass
4.91 kg
10.83 lbs
UPC
4549250175756
Country of Manufacture
Japan
