/Products/Ball Bearings/6300 Series Ball Bearings/6315ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6315-ZZC3

6315ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6315ZZC3

Available Stock: 2
Selected accessories will also be added to cart
$169.33 / Each
Quantity:
6315-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6315ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)
Bore / Inside Diameter (d) 75 mm
Housing / Outside Diameter (D) 160 mm
Width (B) 37 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 113 kN
C0r 77.2 kN
Fatigue Load Limit (Cu) 5.40 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 4,200 min-1

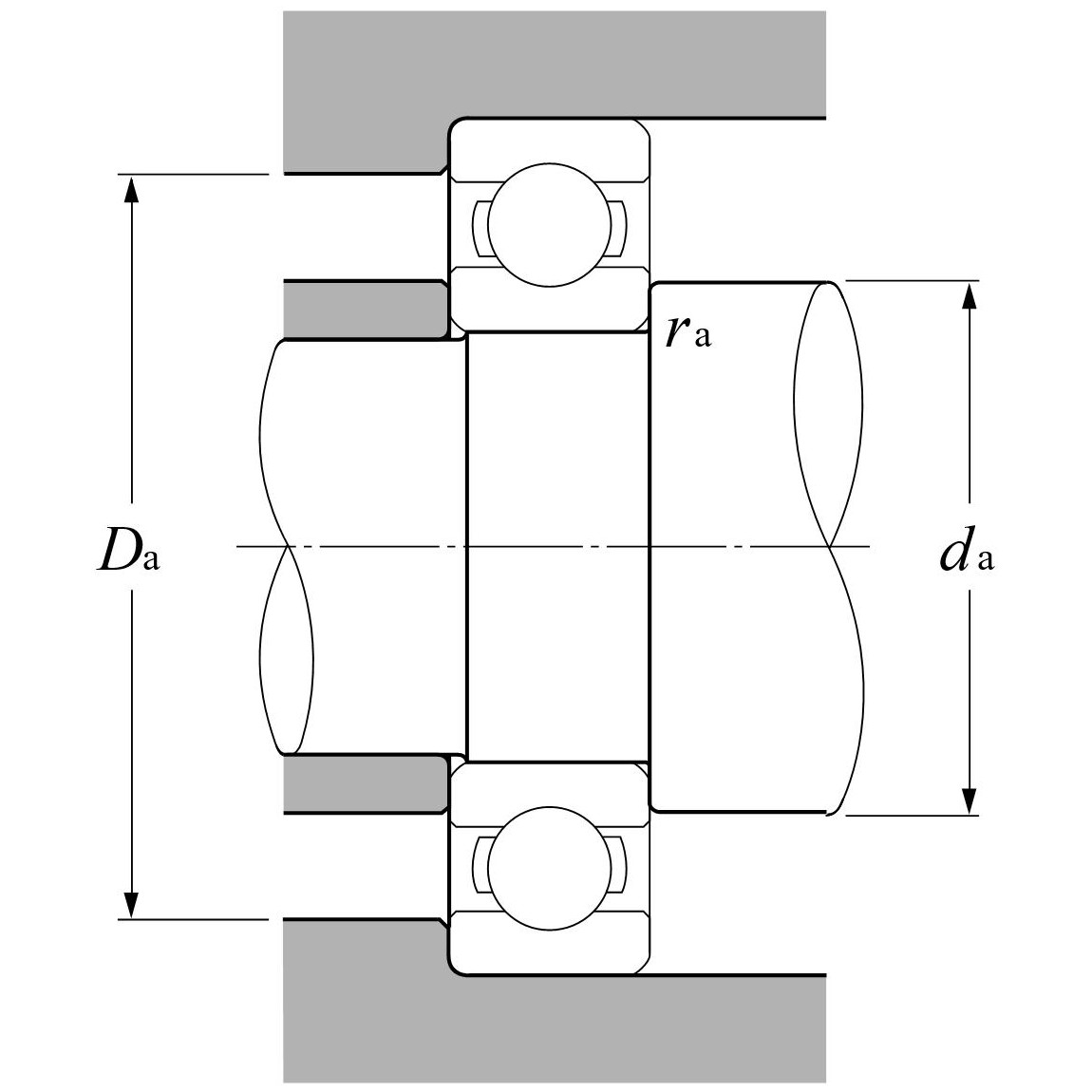

Shaft Shoulder Mounting Dimension (da) 86 mm Minimum
97.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 149 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 3.02 kg
6.67 lbs
UPC 4549250174728
Country of Manufacture Japan
