/Products/Ball Bearings/6300 Series Ball Bearings/6313ZZC3 Koyo Ball Bearing, Double Shielded
Click Image to Expand

Product ID: 6313-ZZC3

6313ZZC3 Koyo Ball Bearing, Double Shielded

MFG: JTEKT Corporation
MFG Part Number: 6313ZZC3

Available Stock: 3
Selected accessories will also be added to cart
$118.93 / Each
Quantity:
6313-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6313ZZC3
Group Deep Groove Ball Bearings

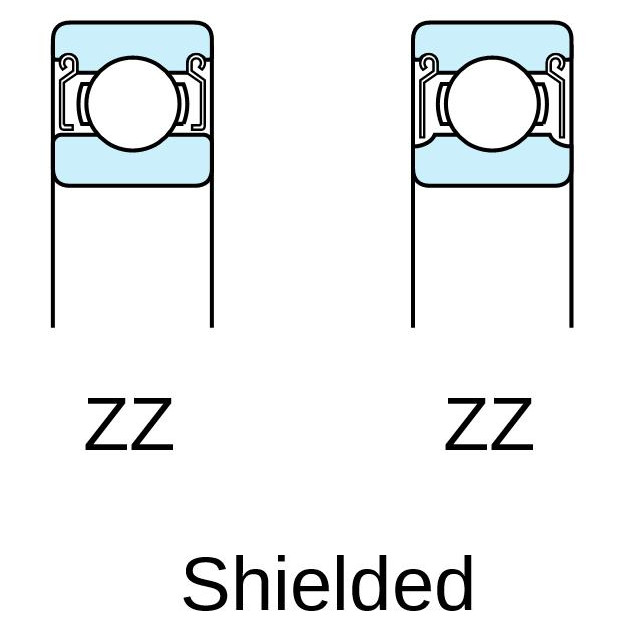

Type Shielded (ZZ)
Bore / Inside Diameter (d) 65 mm
Housing / Outside Diameter (D) 140 mm
Width (B) 33 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 92.7 kN
C0r 59.9 kN
Fatigue Load Limit (Cu) 4.50 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 4,800 min-1

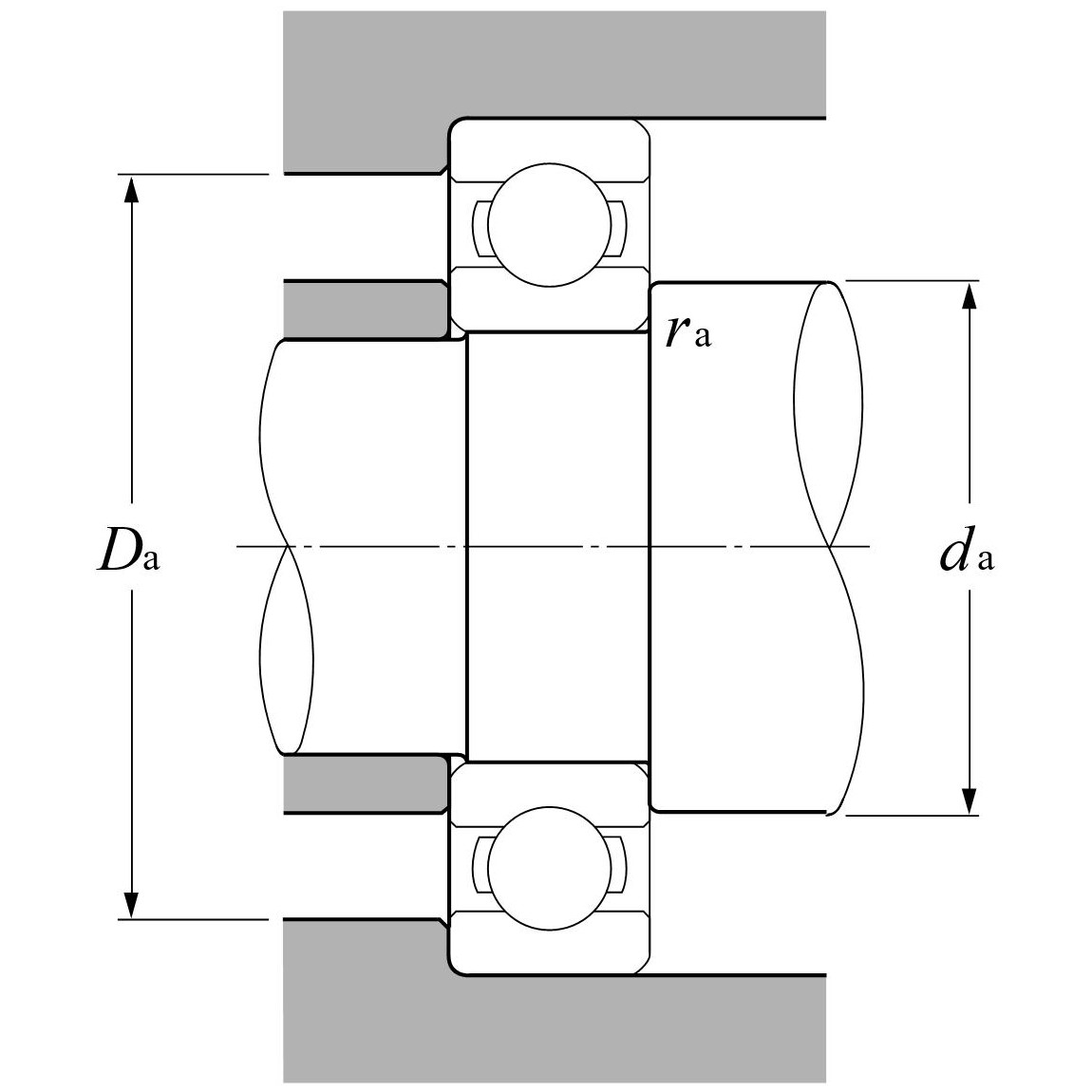

Shaft Shoulder Mounting Dimension (da) 76 mm Minimum
86 mm Maximum
Housing Shoulder Mounting Dimension (Da) 129 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 2.08 kg
4.59 lbs
UPC 454925017384
Country of Manufacture Japan
