Ball Bearings
/
6300 Series Ball Bearings
/
6310ZZC3 Koyo Ball Bearing, Double Shielded
Click Image to Expand
Previous
Next
Product ID: 6310-ZZC3
6310ZZC3 Koyo Ball Bearing, Double Shielded
MFG: JTEKT Corporation
MFG Part Number: 6310ZZC3
Available Stock:
3
Selected accessories will also be added to cart
$51.92 / Each
Quantity:
6310-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$24.44 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6310ZZC3
Group
Deep Groove Ball Bearings
Type

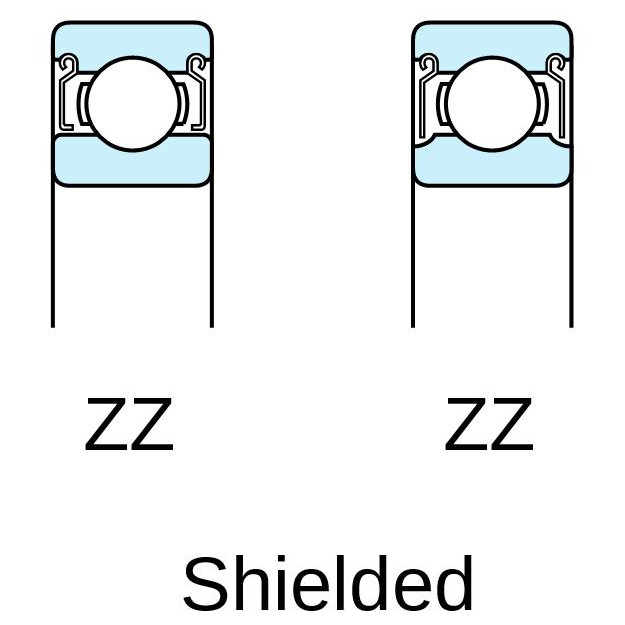

Shielded (ZZ)

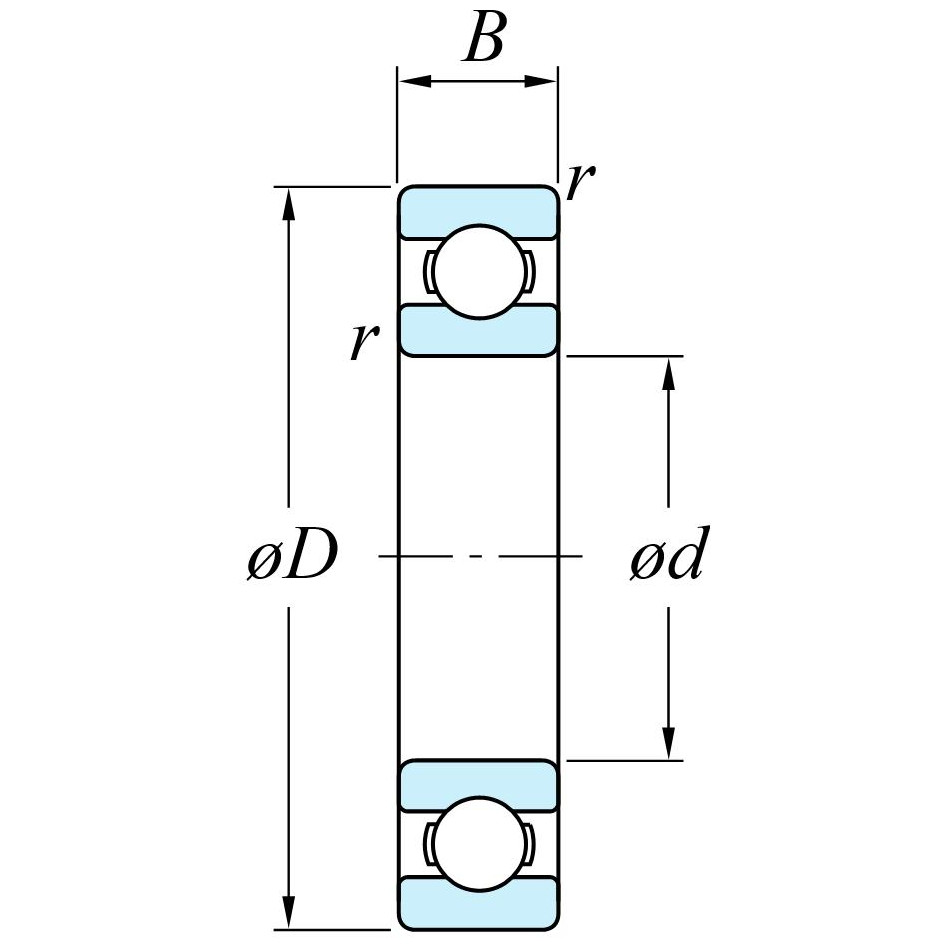

Bore / Inside Diameter (d)
50 mm
Housing / Outside Diameter (D)
110 mm
Width (B)
27 mm
Minimum Radius (r)
2 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
62.0 kN
C
0r
38.3 kN
Fatigue Load Limit (C
u
)
2.90 kN
Factor (f0)
13.2
Limiting Speeds (Grease Lubrication)
6,100 min
-1
Shaft Shoulder Mounting Dimension (d
a
)
59 mm Minimum
66.5 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
101 mm Maximum
Shoulder Radius (r
a
)
2 mm Maximum
Mass
1.07 kg
2.36 lbs
UPC
4549250172113
Country of Manufacture
Japan
