Products
/
Ball Bearings
/
6300 Series Ball Bearings
/
6305ZZC3 Koyo Ball Bearing, Double Shielded
Click Image to Expand
Previous
Next
Product ID: 6305-ZZC3
6305ZZC3 Koyo Ball Bearing, Double Shielded
MFG: JTEKT Corporation
MFG Part Number: 6305ZZC3
Available Stock:
2
Selected accessories will also be added to cart
$14.53 / Each
Quantity:
6305-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$25.22 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6305ZZC3
Group
Deep Groove Ball Bearings

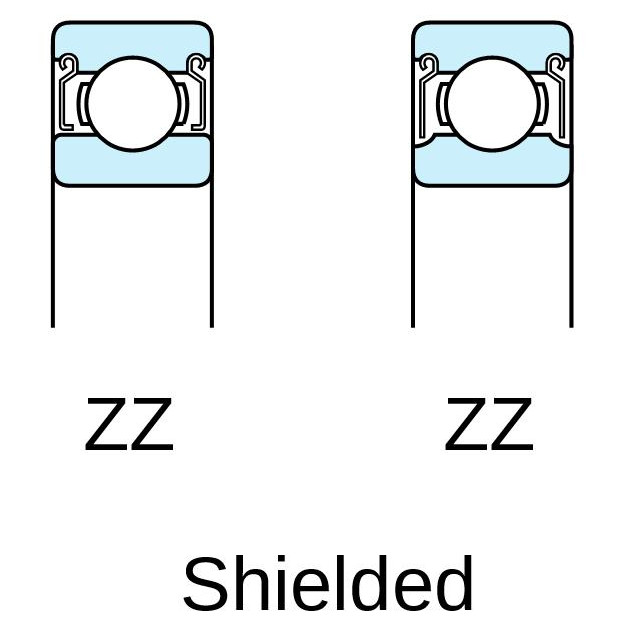

Type
Shielded (ZZ)
Bore / Inside Diameter (d)
25 mm
Housing / Outside Diameter (D)
62 mm
Width (B)
17 mm
Minimum Radius (r)
1.1 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
20.6 kN
C
0r
11.3 kN
Fatigue Load Limit (C
u
)
0.860 kN
Factor (f0)
13.2
Limiting Speeds (Grease Lubrication)
11,000 min
-1
Shaft Shoulder Mounting Dimension (d
a
)
31.5 mm Minimum
34 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
55.5 mm Maximum
Shoulder Radius (r
a
)
1 mm Maximum
Mass
0.232 kg
0.52 lbs
UPC
4549250168352
Country of Manufacture
Japan
