/Products/Ball Bearings/6300 Series Ball Bearings/63022RSC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6302-2RS

63022RSC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63022RSC3

Available Stock: 9
Selected accessories will also be added to cart
$10.03 / Each
Quantity:
6302-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63022RSC3
Group Deep Groove Ball Bearings

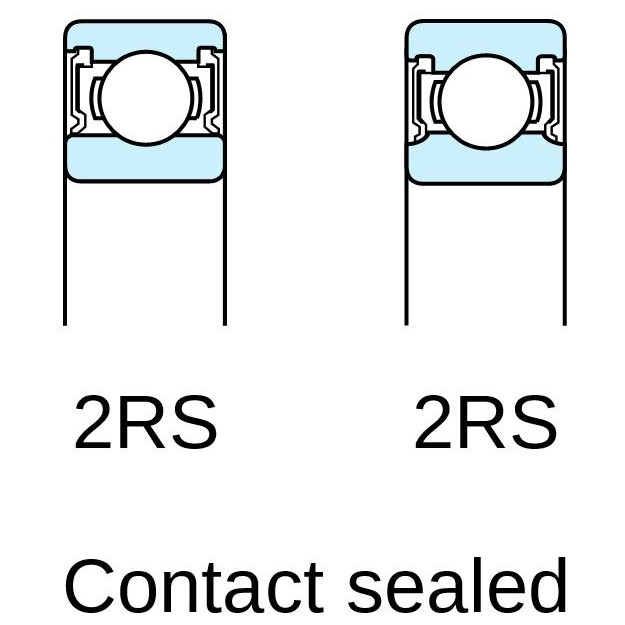

Type Contact Sealed (2RS)

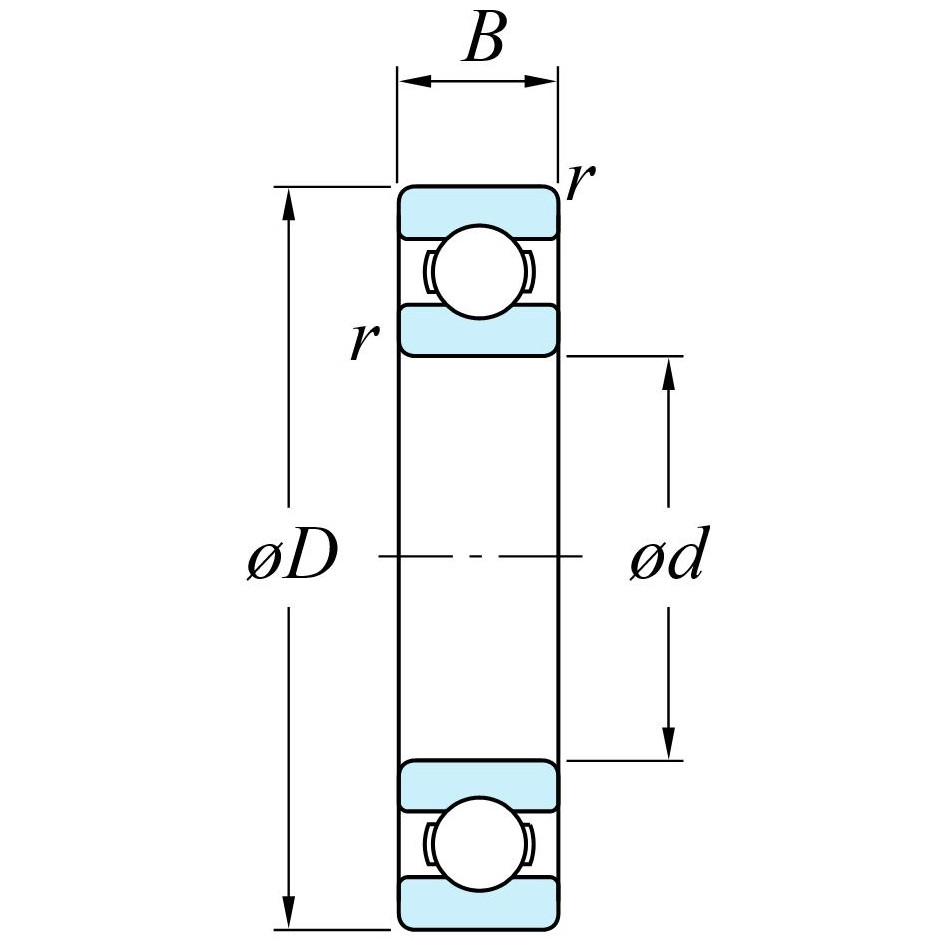

Bore / Inside Diameter (d) 15 mm
Housing / Outside Diameter (D) 42 mm
Width (B) 13 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 11.4 kN
C0r 5.45 kN
Fatigue Load Limit (Cu) 0.460 kN
Factor (f0) 12.3
Limiting Speeds (Grease Lubrication) 15,000 min-1

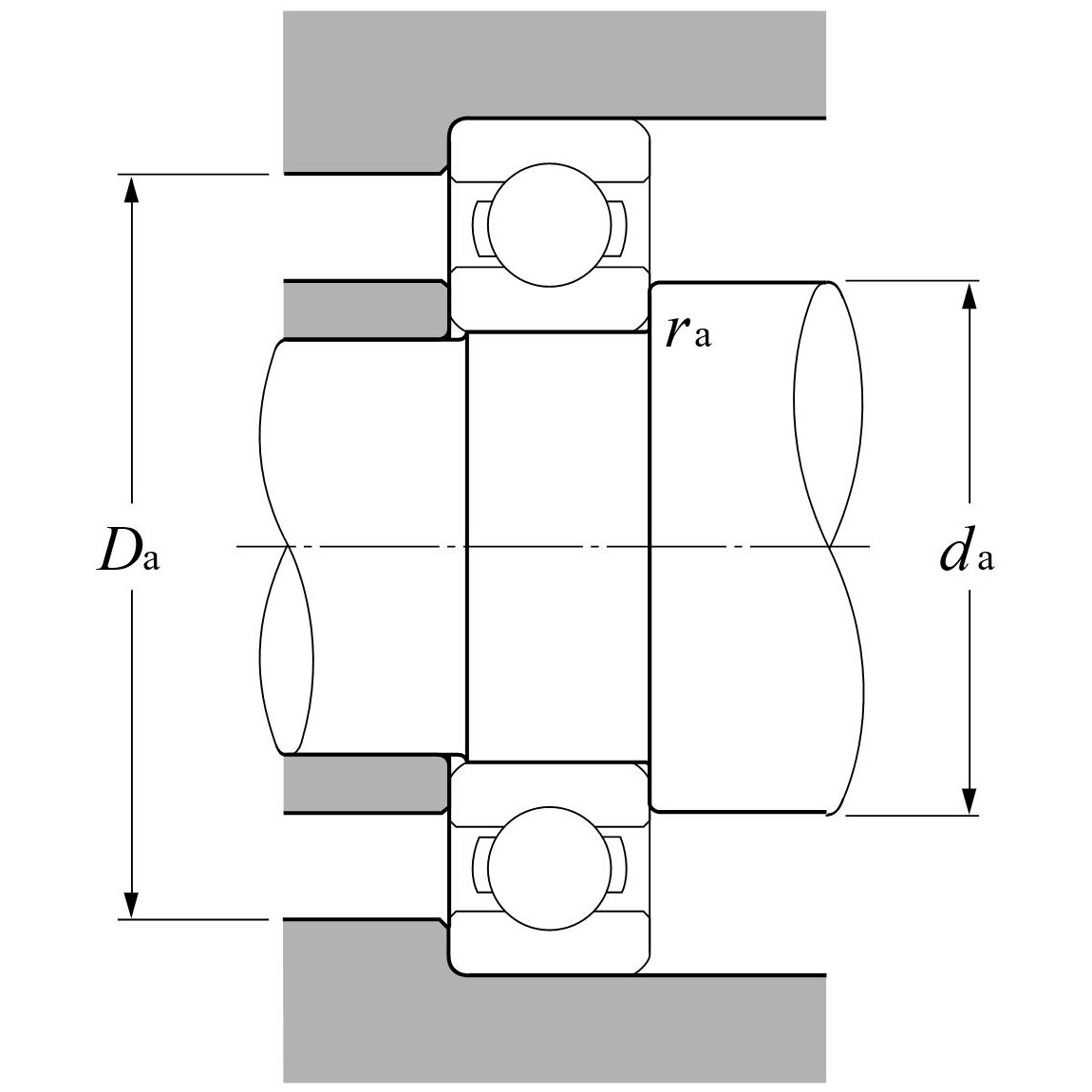

Shaft Shoulder Mounting Dimension (da) 20 mm Minimum
21.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 37 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.082 kg
0.18 lbs
UPC 4549250166501
Country of Manufacture Japan
