/Products/Ball Bearings/6200 Series Ball Bearings/6220ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6220-ZZC3

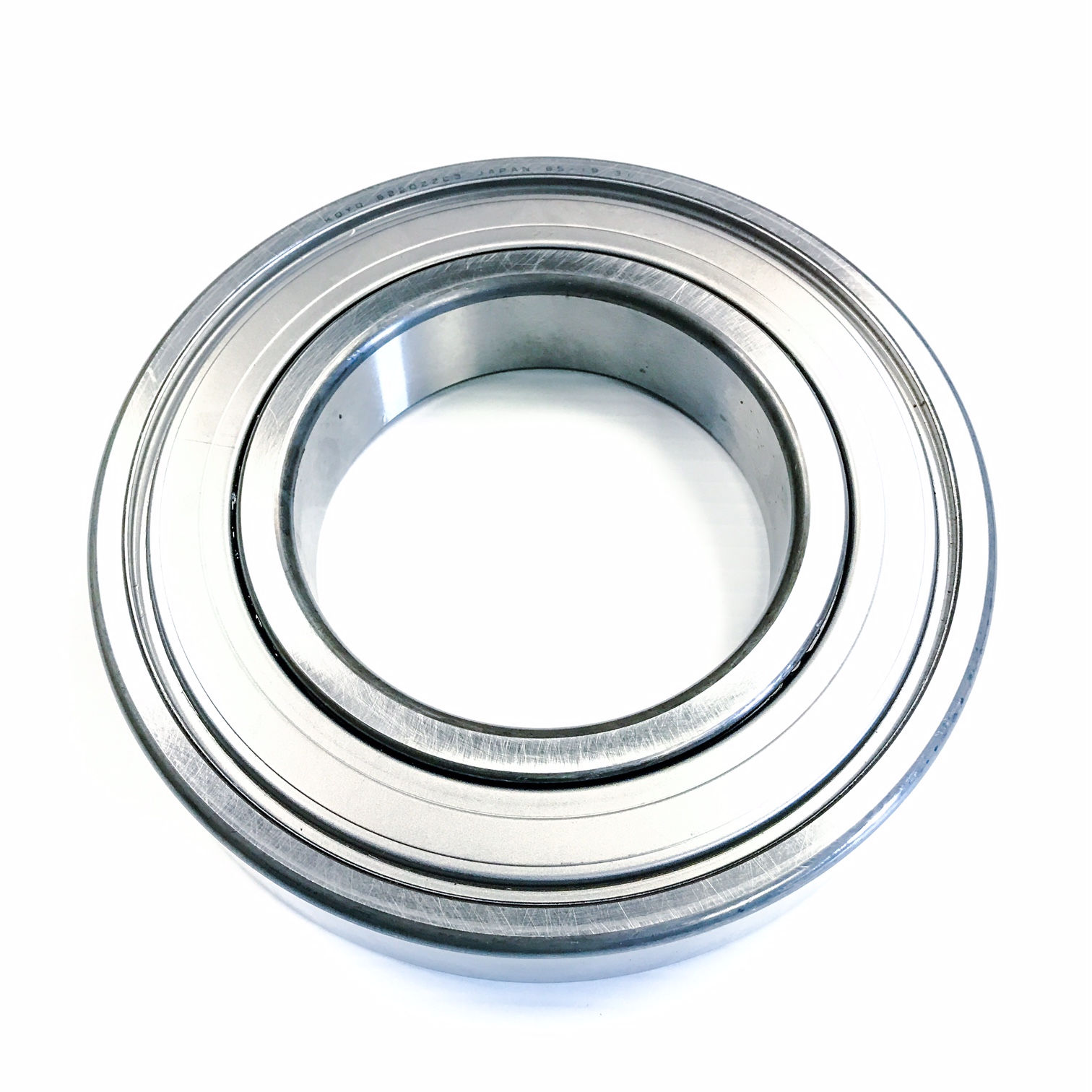

6220ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6220ZZC3

Available Stock: 1
Selected accessories will also be added to cart
$192.47 / Each
Quantity:
6220-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6220ZZC3
Group Deep Groove Ball Bearings

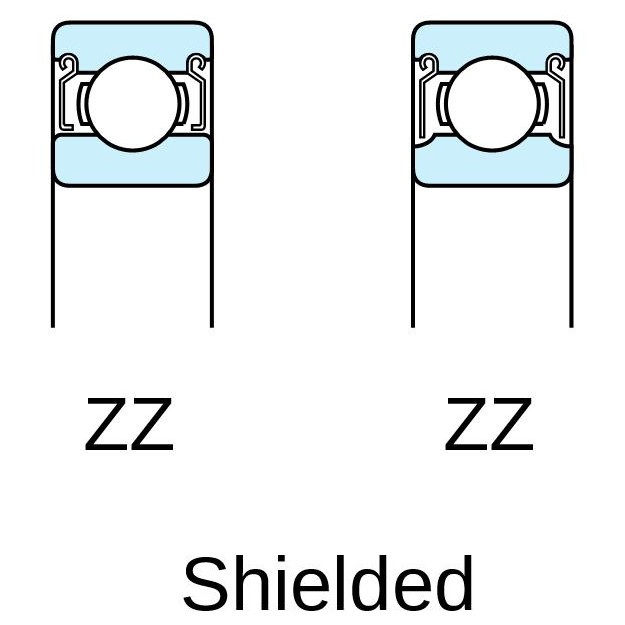

Type Shielded (ZZ)
Bore / Inside Diameter (d) 100 mm
Housing / Outside Diameter (D) 180 mm
Width (B) 34 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 122 kN
C0r 93.1 kN
Fatigue Load Limit (Cu) 5.15 kN
Factor (f0) 14.4
Limiting Speeds (Grease Lubrication) 3,500 min-1

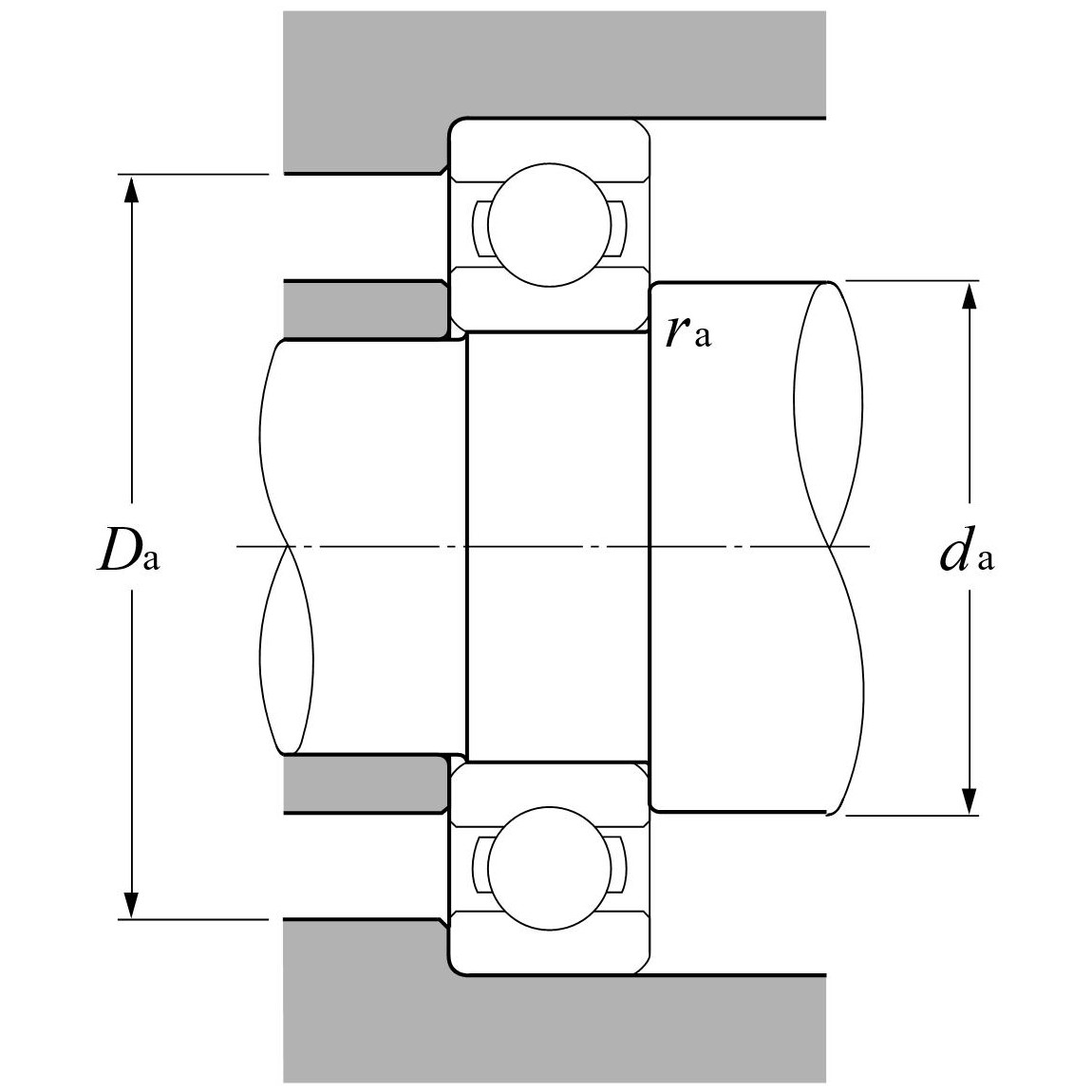

Shaft Shoulder Mounting Dimension (da) 111 mm Minimum
122 mm Maximum
Housing Shoulder Mounting Dimension (Da) 169 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 3.14 kg
6.93 lbs
UPC 4549250163579
Country of Manufacture Japan
