/Products/Ball Bearings/6200 Series Ball Bearings/6216ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6216-ZZC3

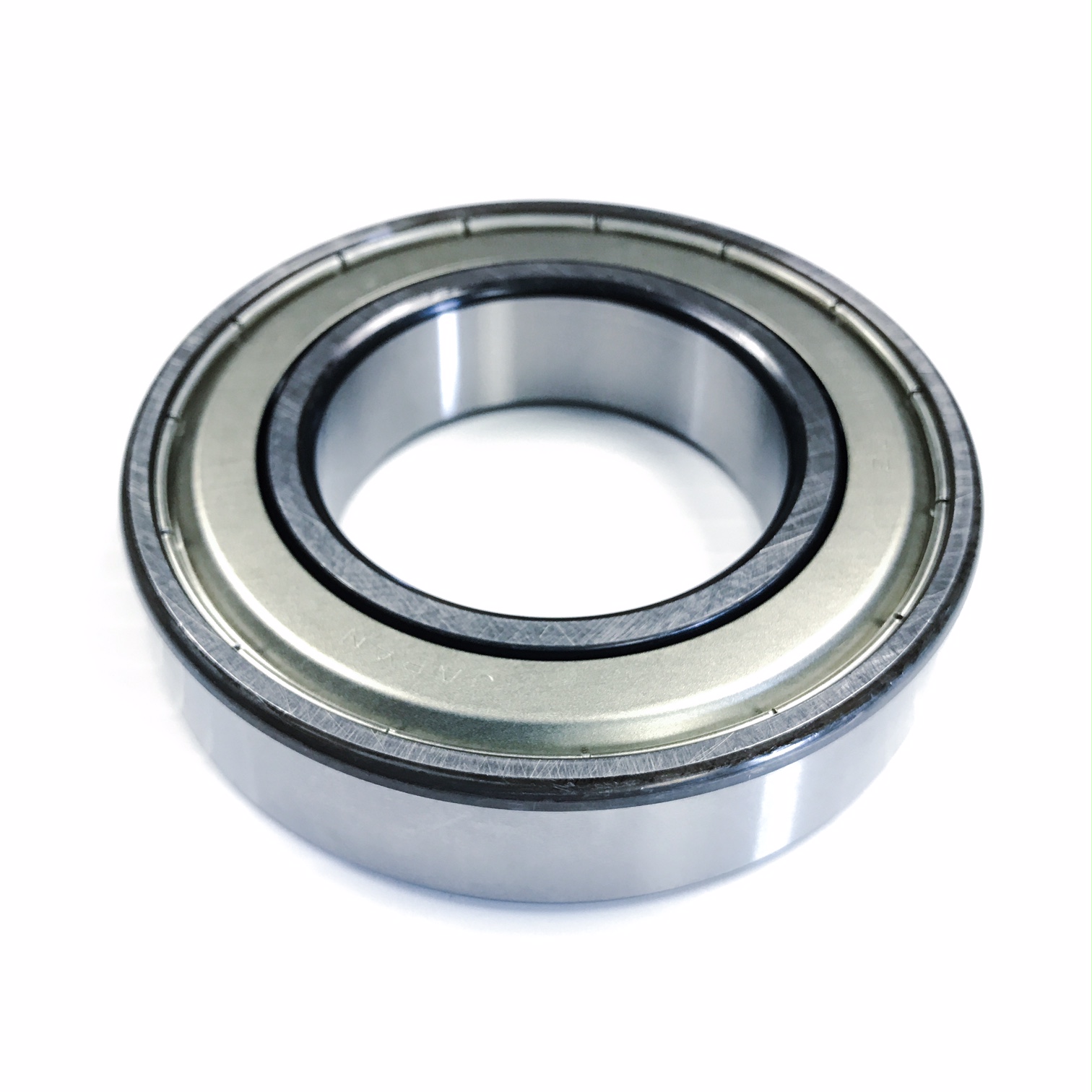

6216ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6216ZZC3

Available Stock: 2
Selected accessories will also be added to cart
$94.31 / Each
Quantity:
6216-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6216ZZC3
Group Deep Groove Ball Bearings

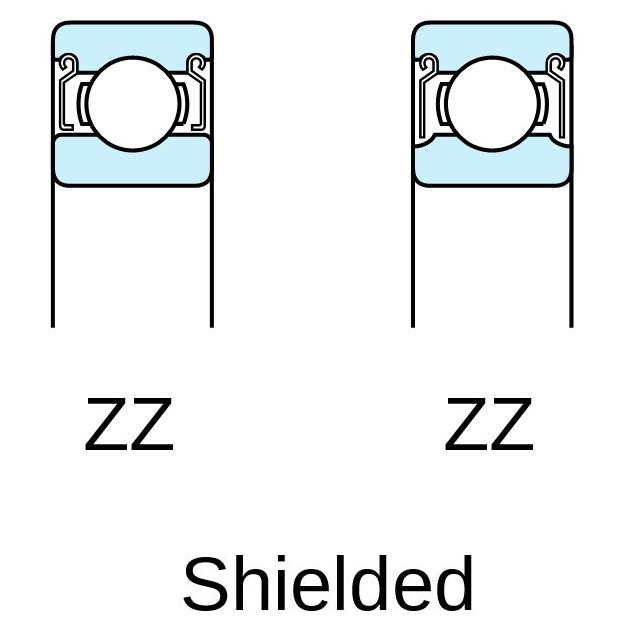

Type Shielded (ZZ)
Bore / Inside Diameter (d) 80 mm
Housing / Outside Diameter (D) 140 mm
Width (B) 26 mm
Minimum Radius (r) 2 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 72.7 kN
C0r 53.0 kN
Fatigue Load Limit (Cu) 3.25 kN
Factor (f0) 14.6
Limiting Speeds (Grease Lubrication) 4,500 min-1

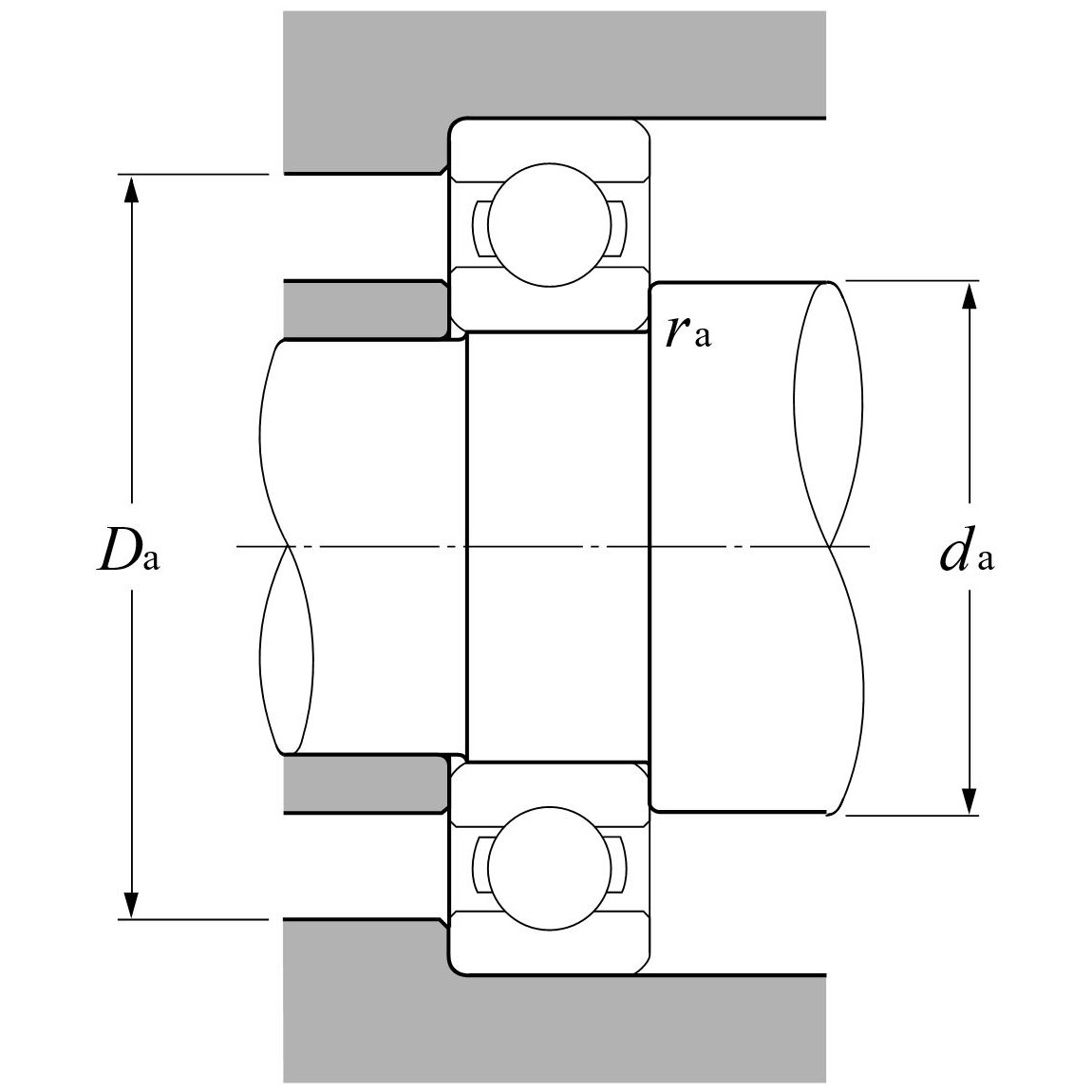

Shaft Shoulder Mounting Dimension (da) 89 mm Minimum
93 mm Maximum
Housing Shoulder Mounting Dimension (Da) 131 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 1.40 kg
3.09 lbs
UPC 4549250162275
Country of Manufacture Japan
