/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Refrigeration/60036OT3G449TS-RFW40 WEG 600HP Refrigeration Electric Motor, 3600RPM

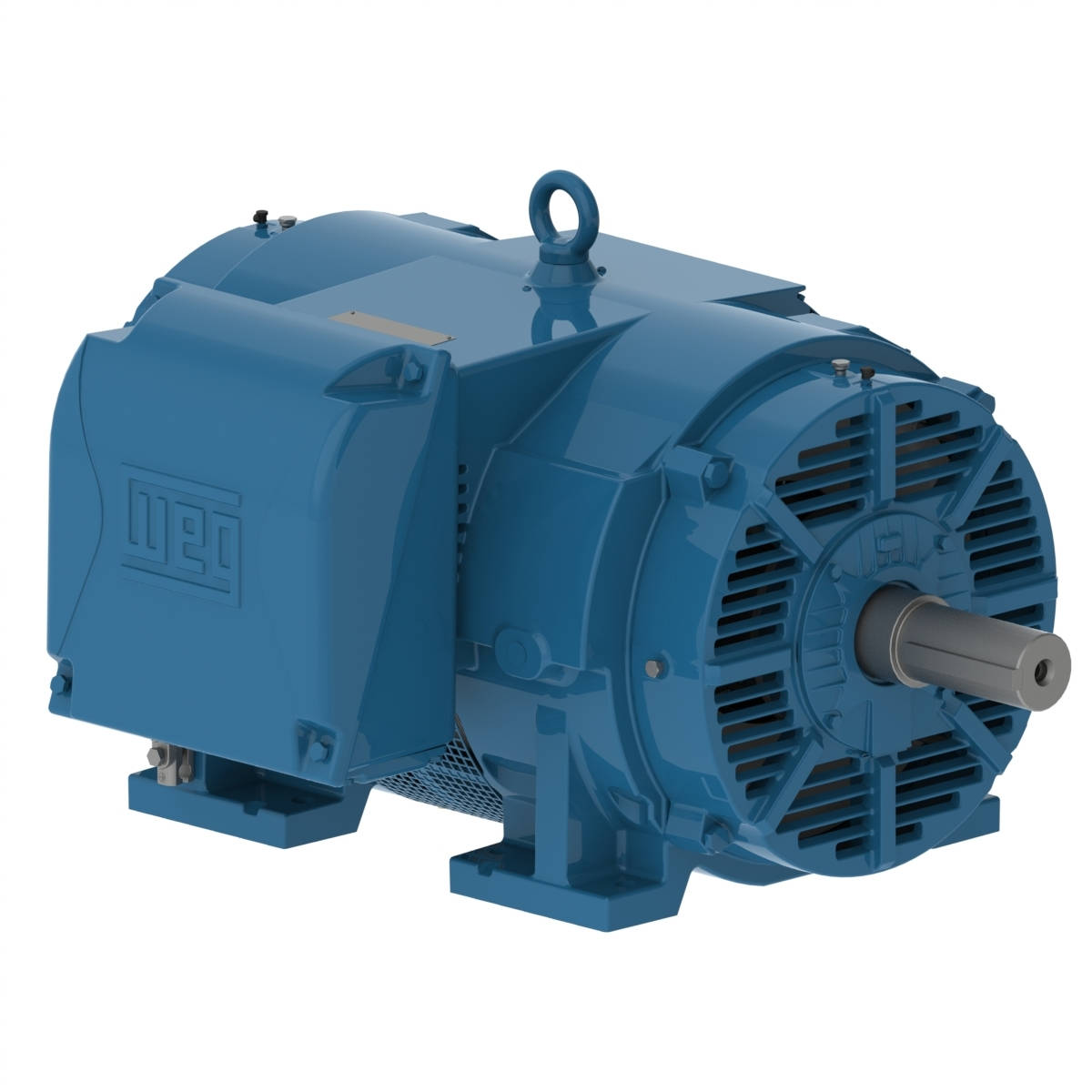

60036OT3G449TS-RFW40 WEG 600HP Refrigeration Electric Motor, 3600RPM
Enlarge Photo

Product ID: 60036OT3G449TS-RFW40

60036OT3G449TS-RFW40 WEG 600HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 60036OT3G449TS-RFW40

Selected accessories will also be added to cart
$28,457.25 / Each
Quantity:
IC01 - ODP, IP23, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 13575099, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 447/9TS
Output 600 HP (440 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 645 A
L. R. Amperes 5096 A
LRC 7.9x(Code H)
No load current 165 A
Rated torque 884 ft.lb
Locked rotor torque 190 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.81  0.88  0.89
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 645 A
L. R. Amperes 4709 A
LRC 7.3x(Code G)
No load current 155 A
Rated torque 886 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.2  95.8

Power factor

50% 75% 100%
0.82  0.90  0.91
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 619 A
L. R. Amperes 5014 A
LRC 8.1x(Code H)
No load current 170 A
Rated torque 884 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.3  95.2  95.8

Power factor

50% 75% 100%
0.81  0.89  0.90
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 597 A
L. R. Amperes 5254 A
LRC 8.8x(Code J)
No load current 185 A
Rated torque 884 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.3  95.2  95.8

Power factor

50% 75% 100%
0.79  0.88  0.90
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 700 A
L. R. Amperes 4620 A
LRC 6.6x(Code F)
No load current 155 A
Rated torque 974 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.4

Power factor

50% 75% 100%
0.85  0.90  0.91
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 670 A
L. R. Amperes 4958 A
LRC 7.4x(Code G)
No load current 170 A
Rated torque 972 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.8

Power factor

50% 75% 100%
0.84  0.89  0.90
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 645 A
L. R. Amperes 5160 A
LRC 8.0x(Code H)
No load current 185 A
Rated torque 972 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.8

Power factor

50% 75% 100%
0.83  0.88  0.90

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
