/Products/Ball Bearings/6000 Series Ball Bearings/6002DDC3G81 KBC Ball Beaing, Rubber Sealed
Click Image to Expand

Product ID: 6002-2RS

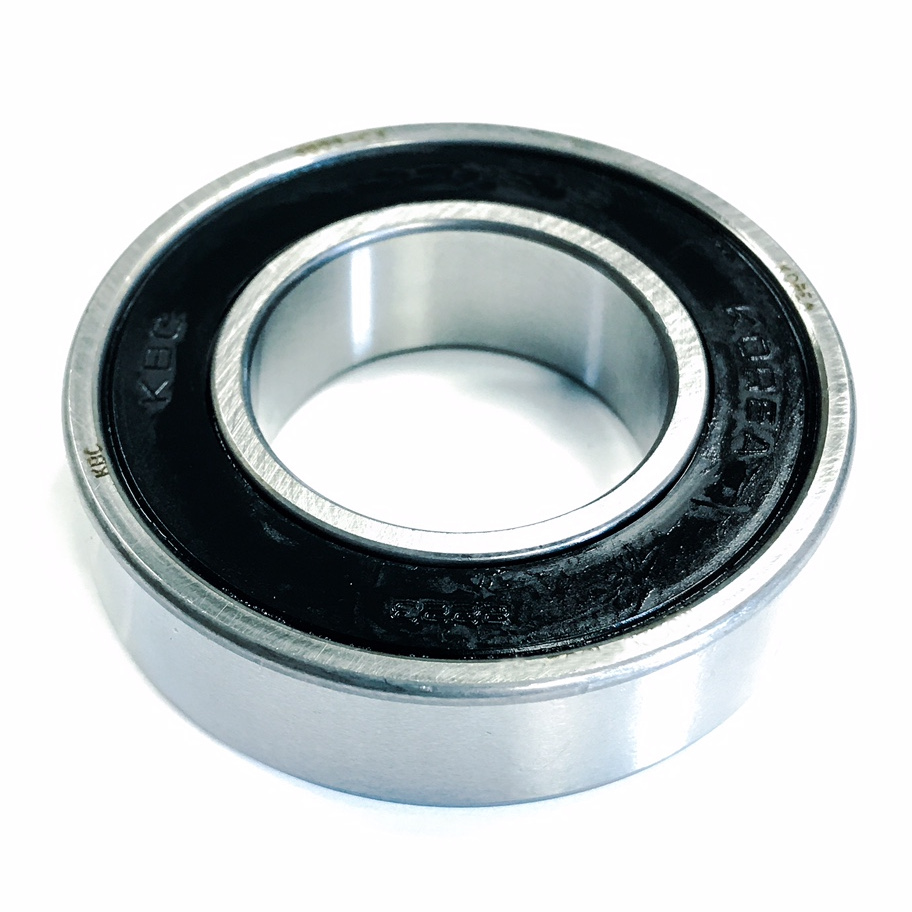

6002DDC3G81 KBC Ball Beaing, Rubber Sealed

MFG: AST Bearings (Owns KBC, JAF, SMT)
MFG Part Number: 6002DDC3G81

Available Stock: 12
Selected accessories will also be added to cart
$7.50 / Each
Quantity:
6002-2RS

Specifications

Brand KBC Bearings (AST Bearing)
Manufacturer Part Number 6002DDC3G81
Group Deep Groove Ball Bearings

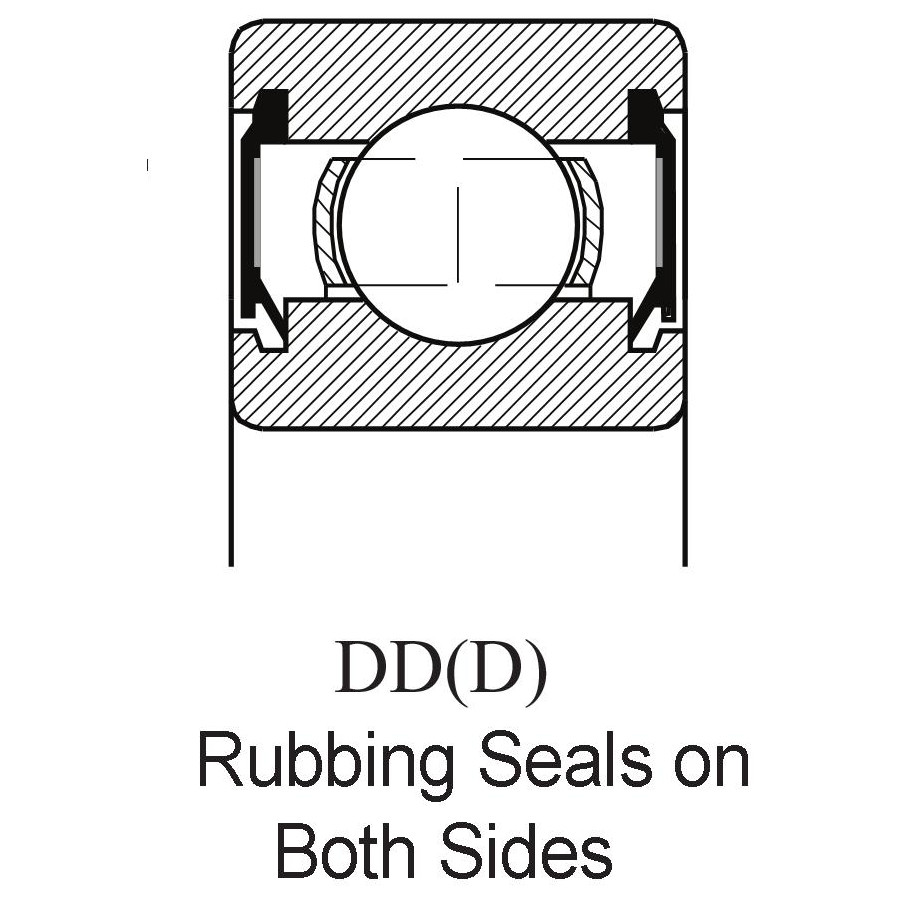

Type Rubbing Seals on Both Sides (DD)

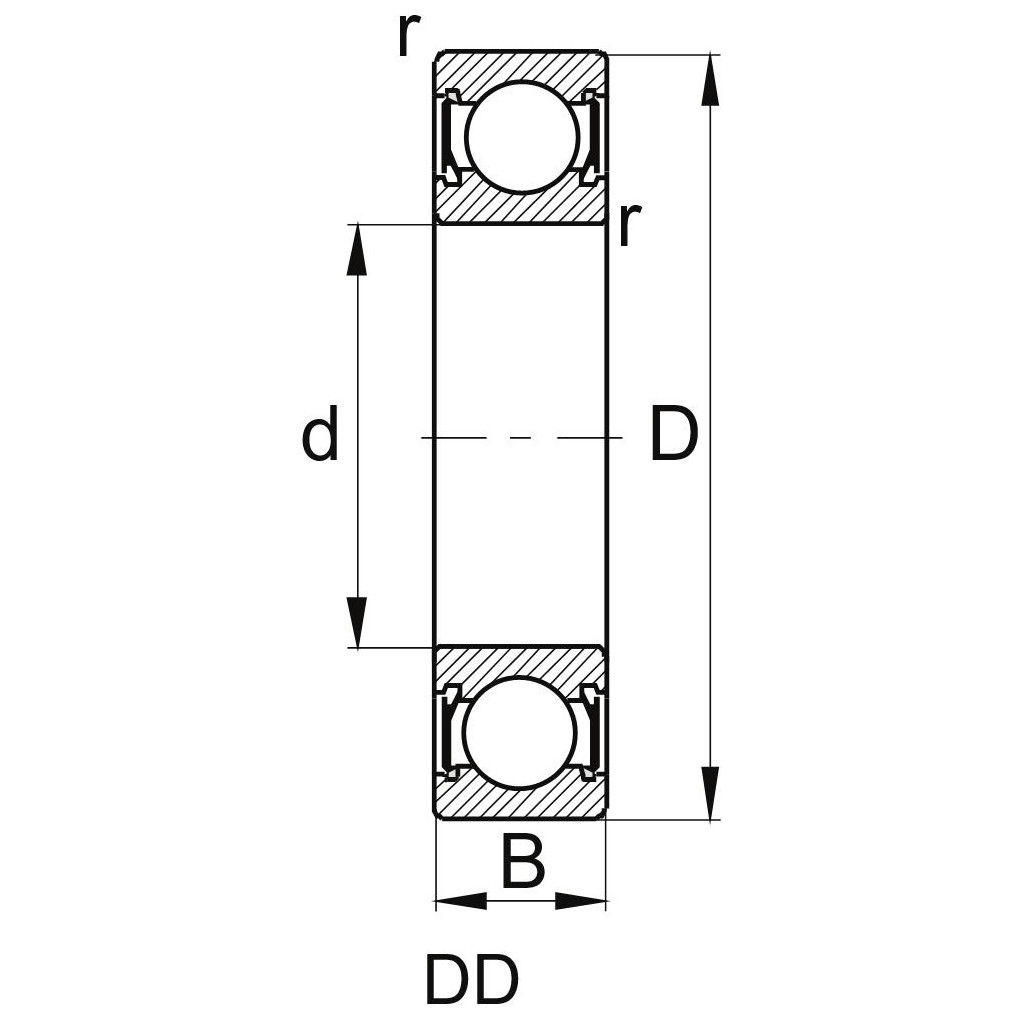

Bore / Inside Diameter (d) 15 mm
Housing / Outside Diameter (D) 32 mm
Width (B) 9 mm
Minimum Radius (r) 0.3 mm
Operating Temperature 120°C
Cage Type Pressed Steel Cage
Configuration Single-row
Standards KS B 2023
Allowable Misalignment Low Loads: 2’… 6’
High Loads: 5’… 10’
Basic Load Rating Cr 5,600 N (571 kgf)
C0r 2,840 N (290 kgf)
Limiting Speeds (Grease Lubrication) 15,000 min-1
Weight 0.032 kg
0.08 lbs
Ball Qty 9
Ball Diameter 4.762 mm
Shaft Abutment Dimension (da) 17 mm Minimum
Housing Abutment Dimension (Da) 30 mm Maximum
Abutment Radius (ra) 0.3 mm Maximum
Precision A1
Standard Clearance C0
Material 52100 Chrome Steel (or equivalent)
Country of Manufacture Korea
