/Products/Electric Motors/Single Phase/Century/593 Century 1/6HP Direct Drive Blower Electric Motor, 1550RPM
Click Image to Expand

Product ID: 593

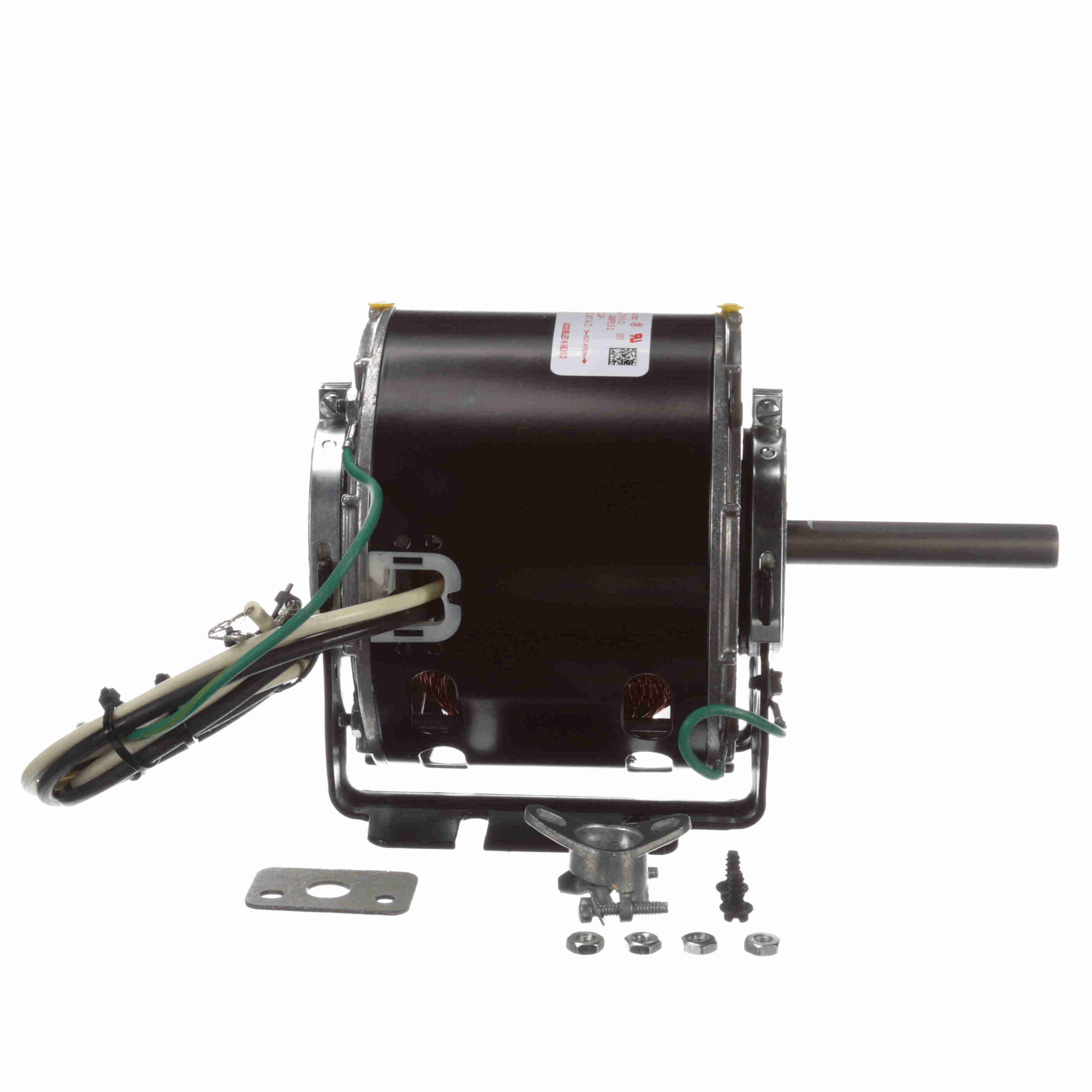

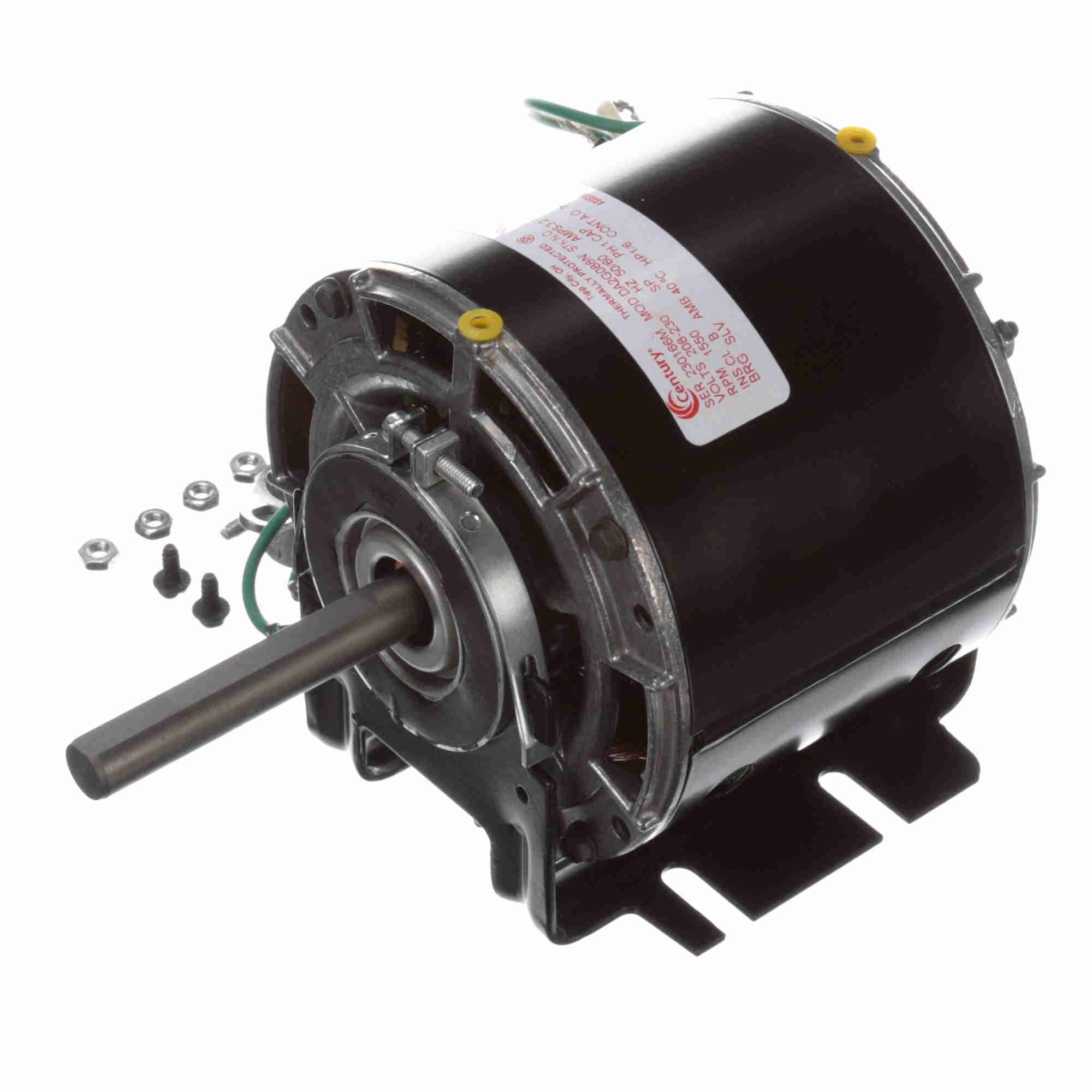

593 Century 1/6HP Direct Drive Blower Electric Motor, 1550RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: 593

Temporarily out of stock
Selected accessories will also be added to cart
$210.97 / Each
Air Over, 42Y Frame, 208-230V Single Phase 50Hz, Resilient Base

Features

Features
  • Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Resilient Base

General Specifications

Nameplate Specifications

Output HP : 1/6 HP Output KW : 0.13 kW
Frequency : 50 Hz Voltage : 208-230 V
Current : 3.2 A Speed : 1550 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Air Over Insulation Class : B
Frame : 42Y Enclosure : Open Air Over
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Nameplate Specifications

Nameplate Specifications

Output HP : 1/6 HP Output KW : 0.13 kW
Frequency : 50 Hz Voltage : 208-230 V
Current : 3.2 A Speed : 1550 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Air Over Insulation Class : B
Frame : 42Y Enclosure : Open Air Over
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications

Electrical Type : Shaded Pole Starting Method : Induction Run
Poles : 4 Rotation : Counterclockwise Shaft End
Mounting : Resilient Base Motor Orientation : Horizontal
Drive End Bearing : Sleeve Opp Drive End Bearing : Sleeve
Frame Material : Rolled Steel Shaft Type : Flat
Overall Length : 7.33 in Frame Length : 3.42 in
Shaft Diameter : 0.500 in Shaft Extension : 3.3 FLAT in
UPC : 786674007438 Weight : 10.00 LB

Speed & Load Characteristics
