AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical Specifications
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Body Material: Nylon
Color: Brown
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass Double Wipe .031 Thick
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 8-32

Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire

Product Features
Color: Brown

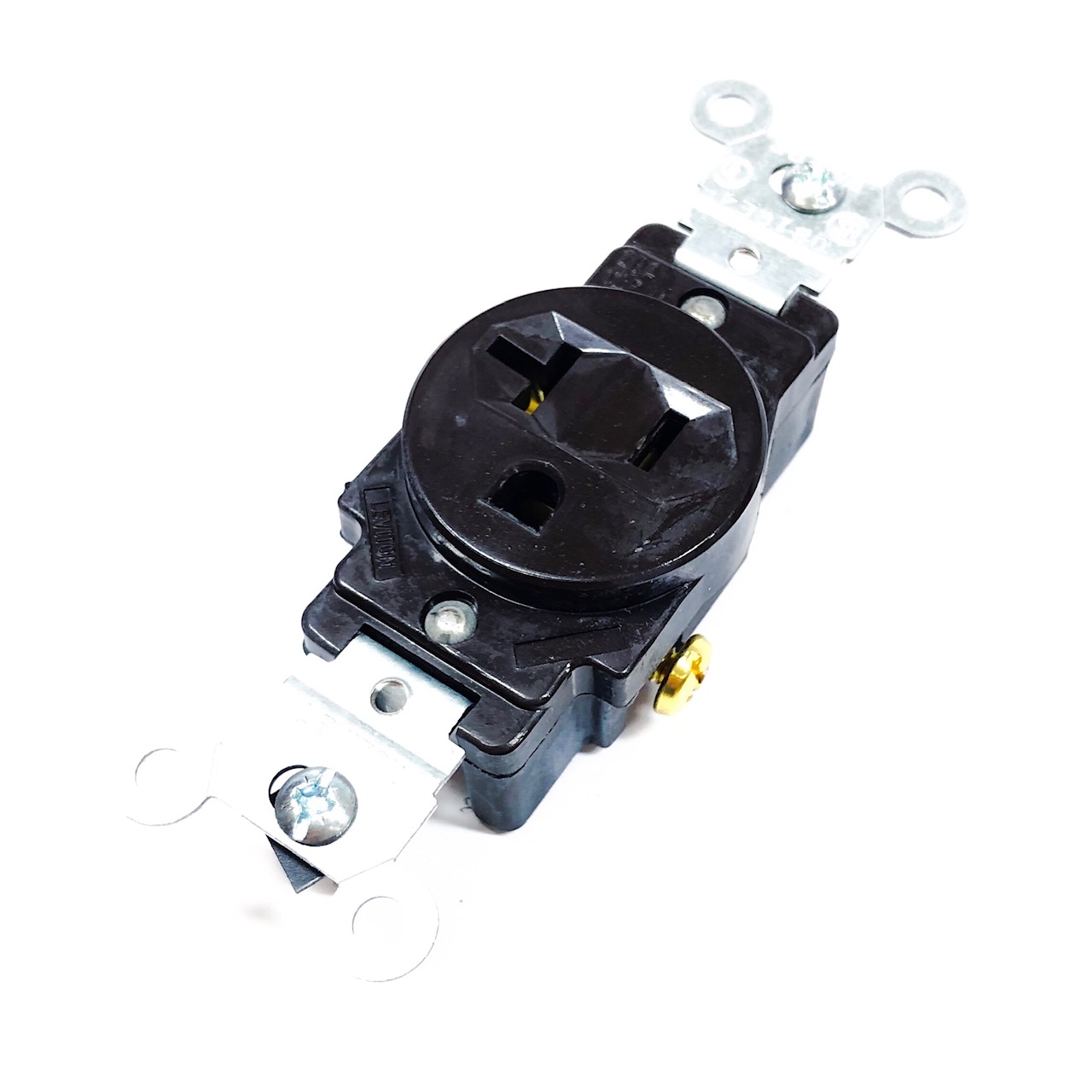

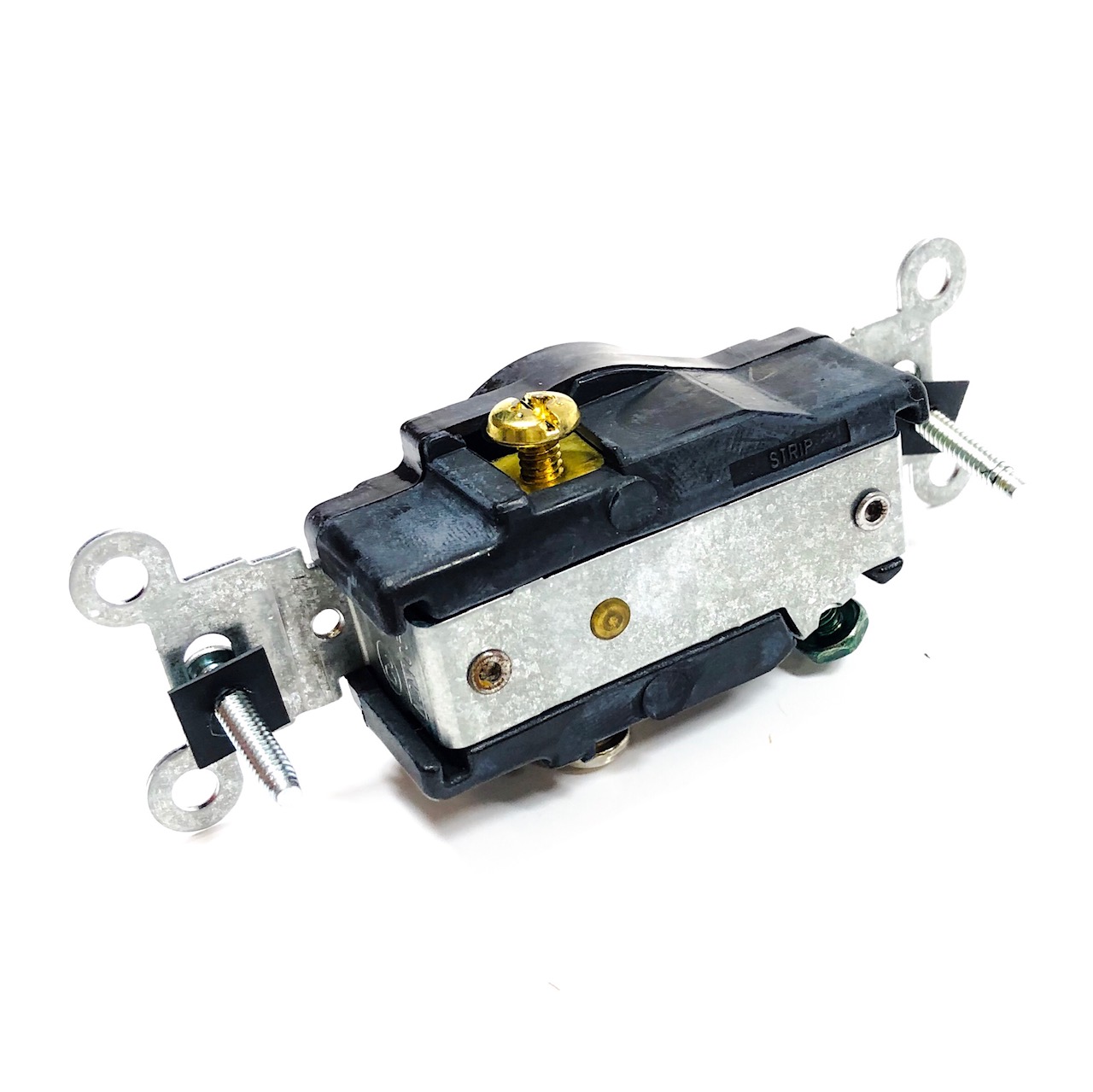

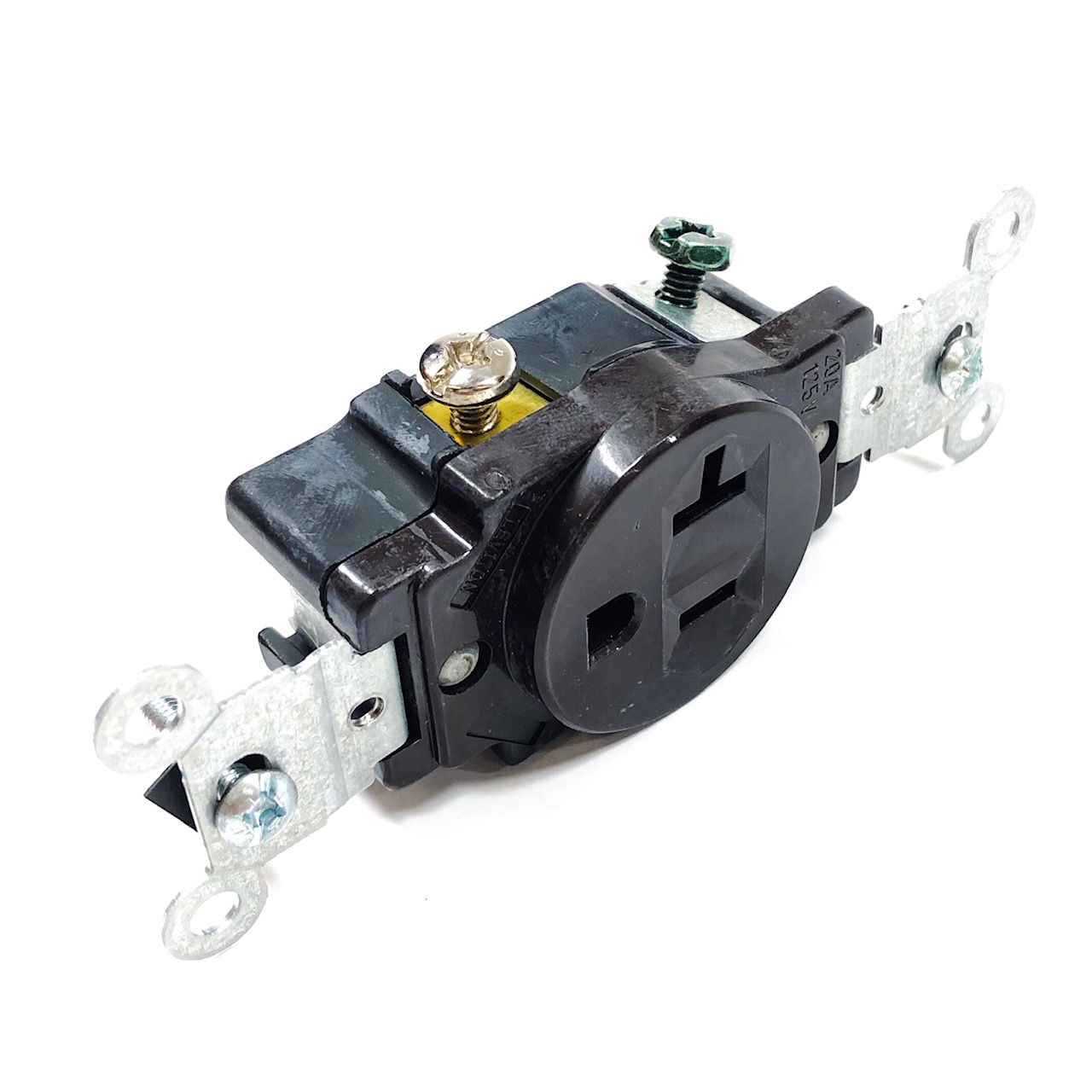

Device Type: Single Receptacle Outlet
Feature 4: Smooth Face
Grade: Commercial Specification Grade
NEMA: 5-20R

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-2 WD-6
NOM: 057
