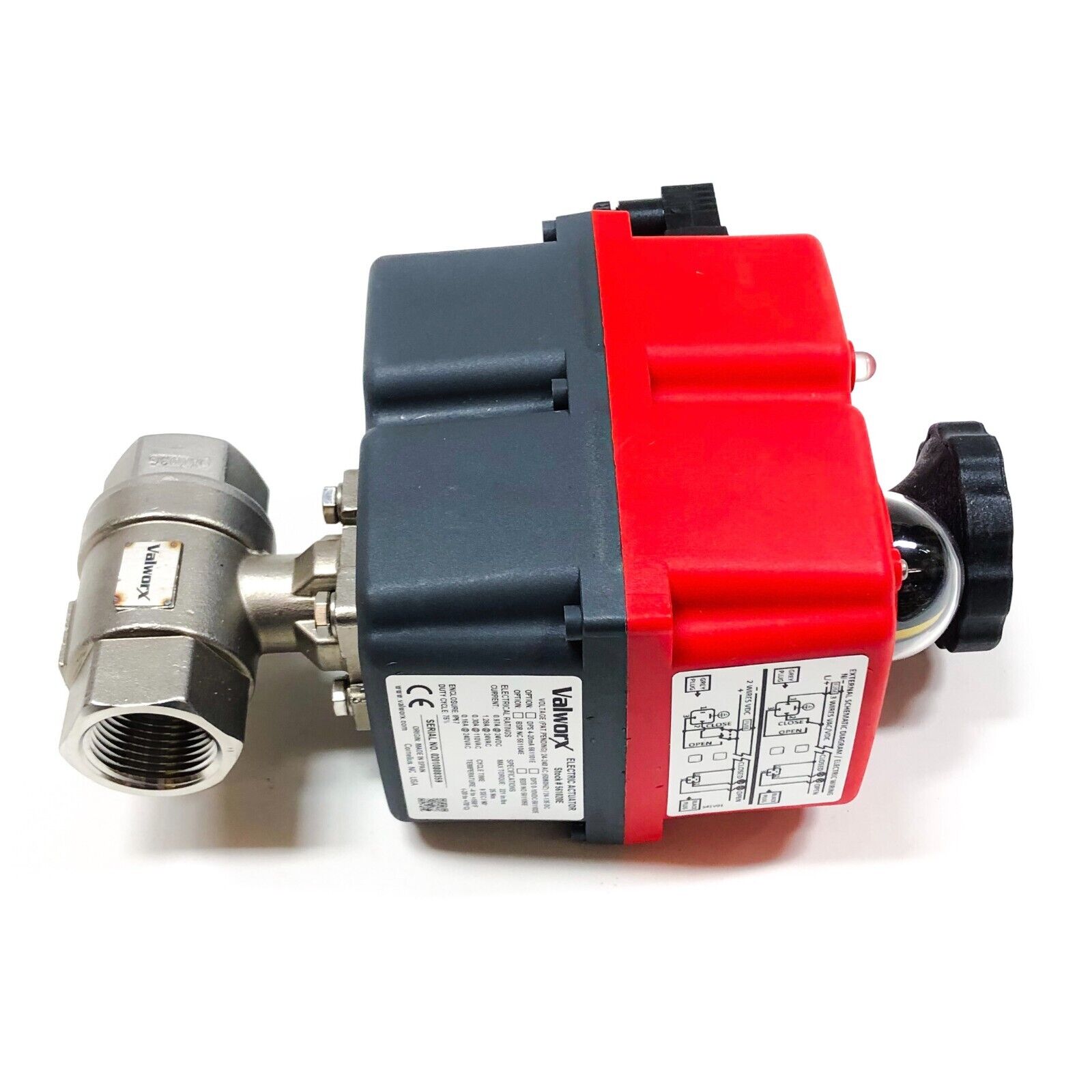

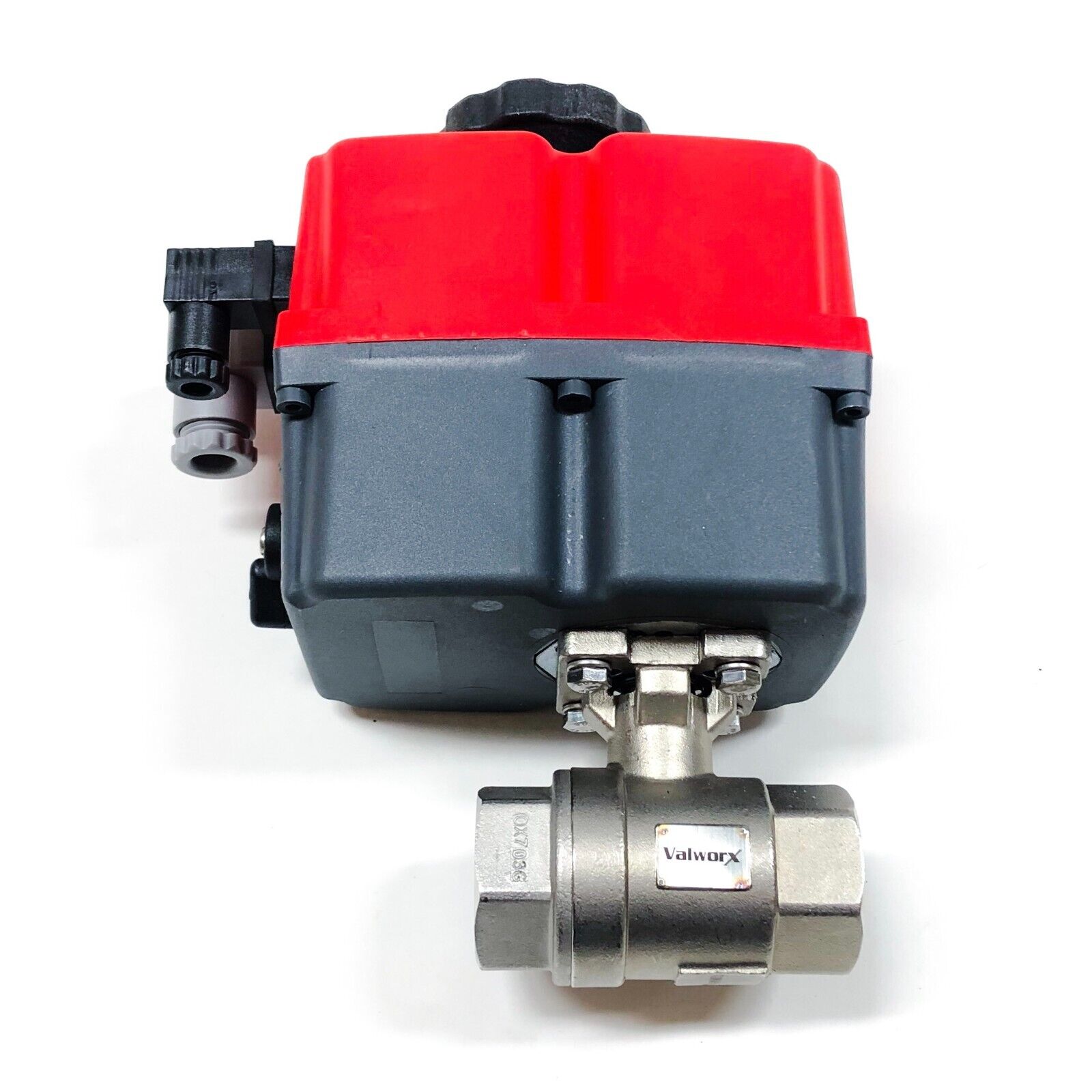

Type 2-way On-Off

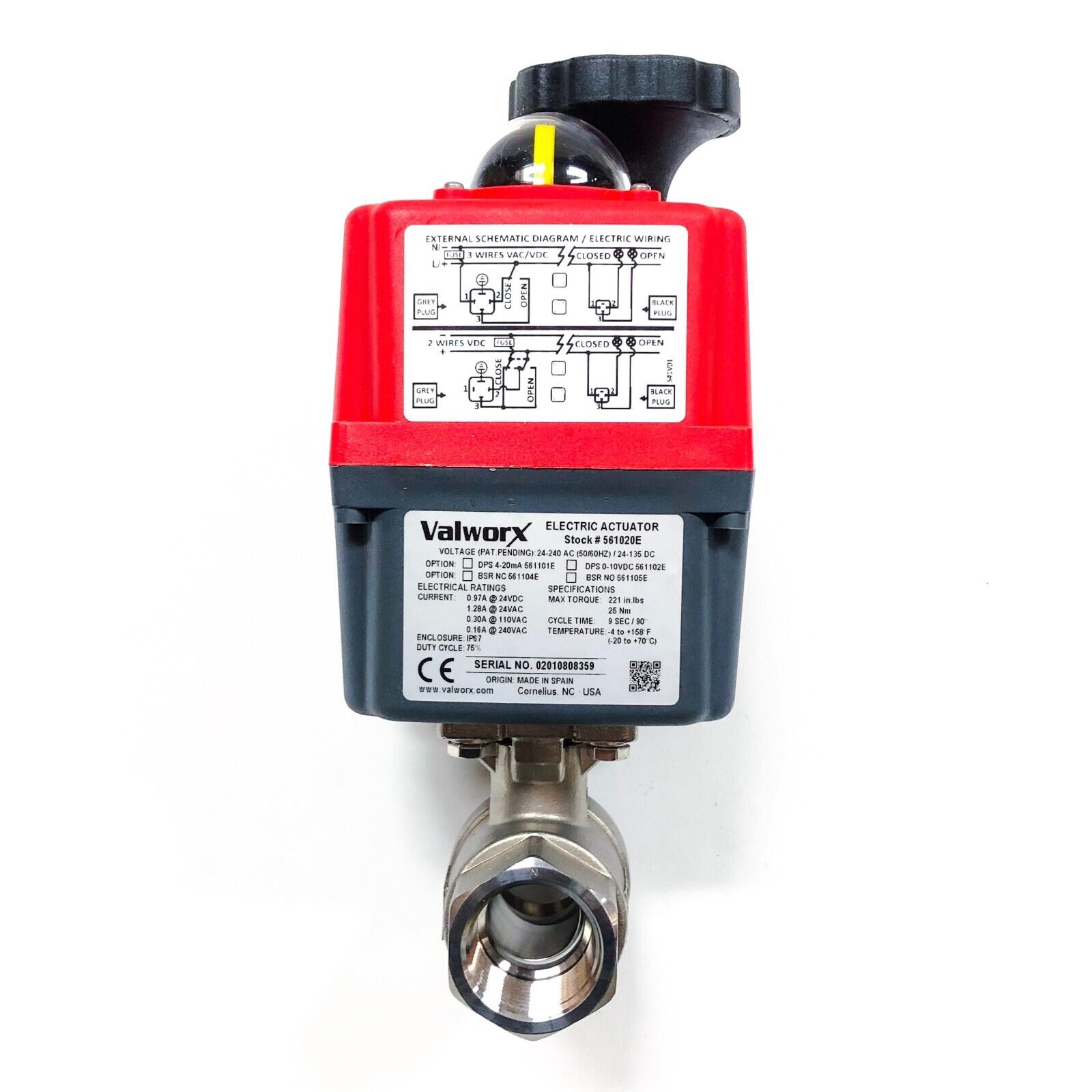

Voltage 24 to 240 Volts AC or 24 to 135 Volts DC (1ph, 50/60Hz) auto voltage sensing
Current Rating 0.3A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC
0.97A @ 24VDC (full load amps)
Cycle Time 9 seconds per 90° rotation (+/- 10% no load)
Pipe Size 1" NPT female
Port Size Full Port, orifice 1.00 inches, Cv 60
Pressure Rating 1000 PSI CWP non-shock (see P/T chart),
Vacuum service to 29"Hg, 25 PSI steam with kit
Valve Temperature Range -4 to 356 °F (-20 to 180 °C)
Actuator Temperature Range -4 to 158 °F (-20 to 70 °C)
Valve Body 316 Stainless Steel
Ball and Stem 316 stainless steel
Ball Seats RTFE (reinforced Teflon)
Stem Seals RTFE (reinforced Teflon)/ Viton
Duty Cycle 75%
Enclosure Anti-corrosive polyamide, SS fasteners
Enclosure Rating IP67 weatherproof, UV protection

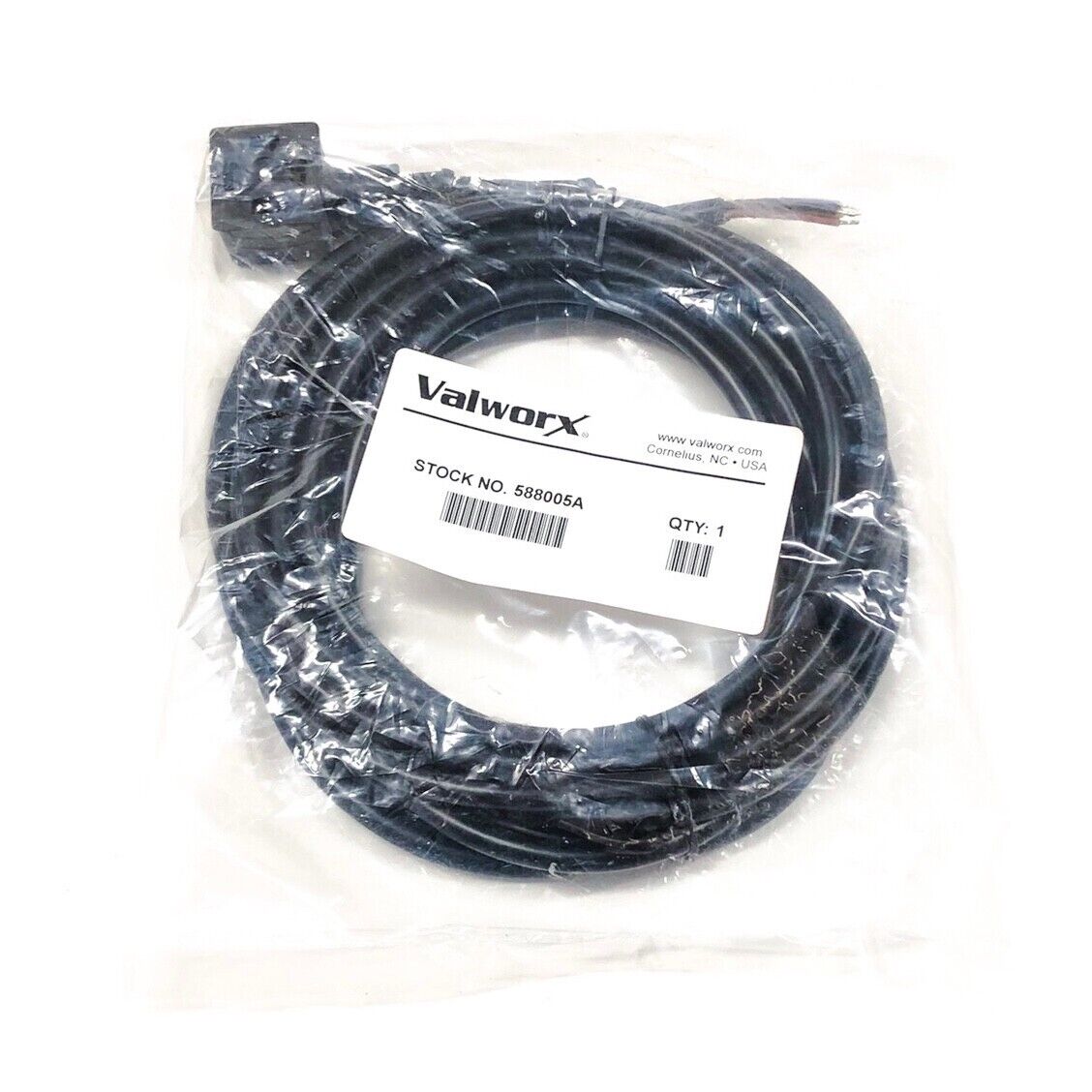

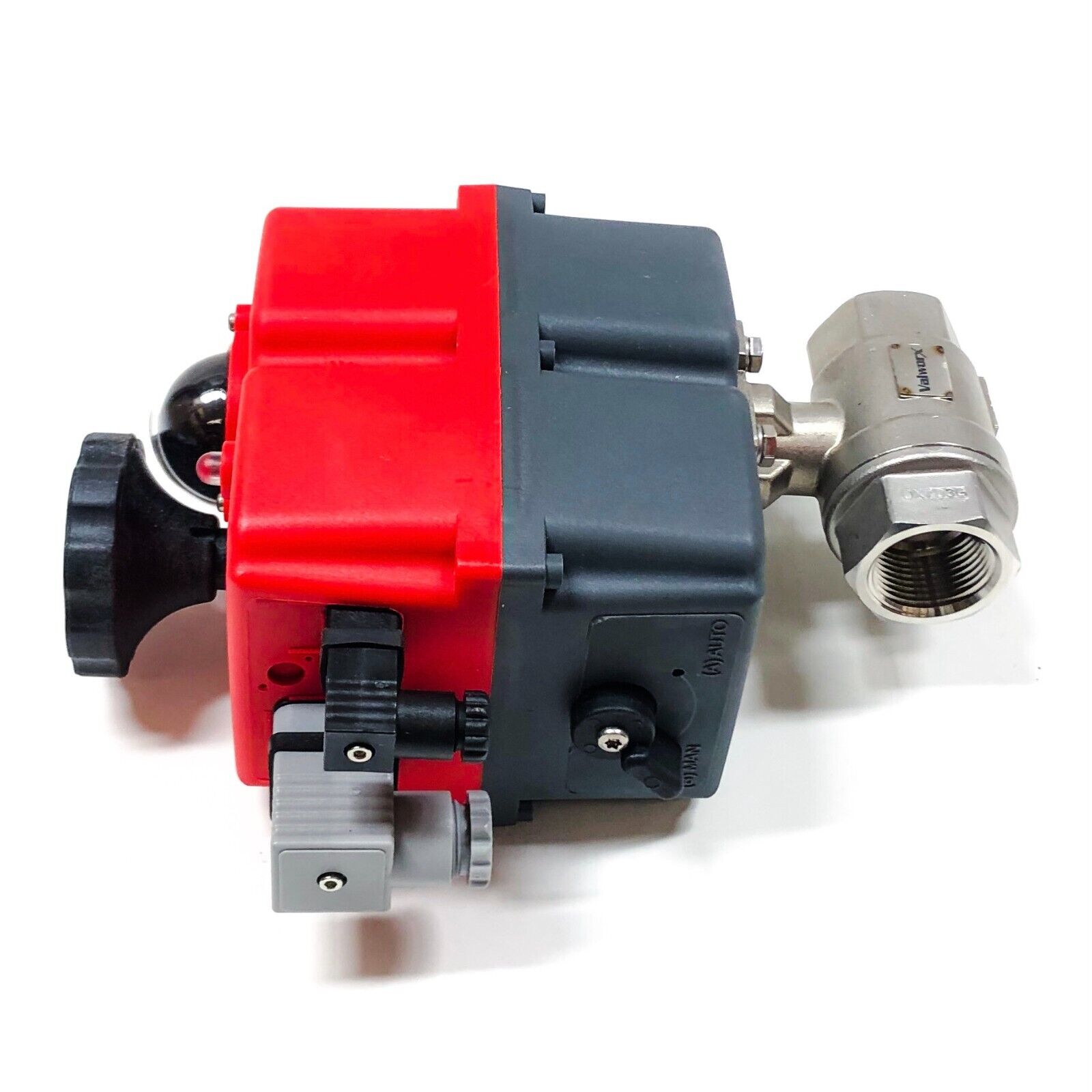

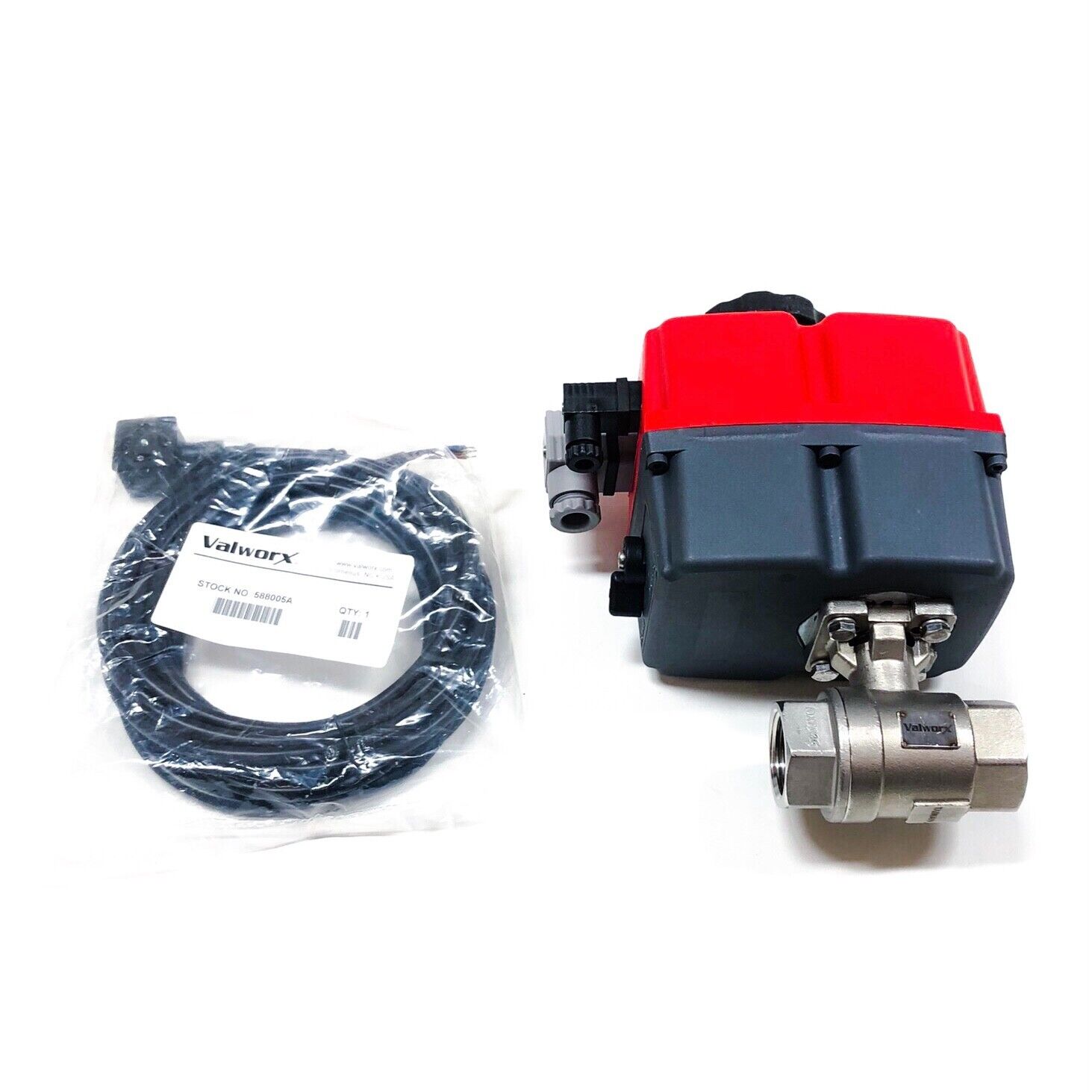

Electrical Connections DIN plugs with cable entry (included), optional 1/2" conduit plugs
Valve Position Confirmation 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load

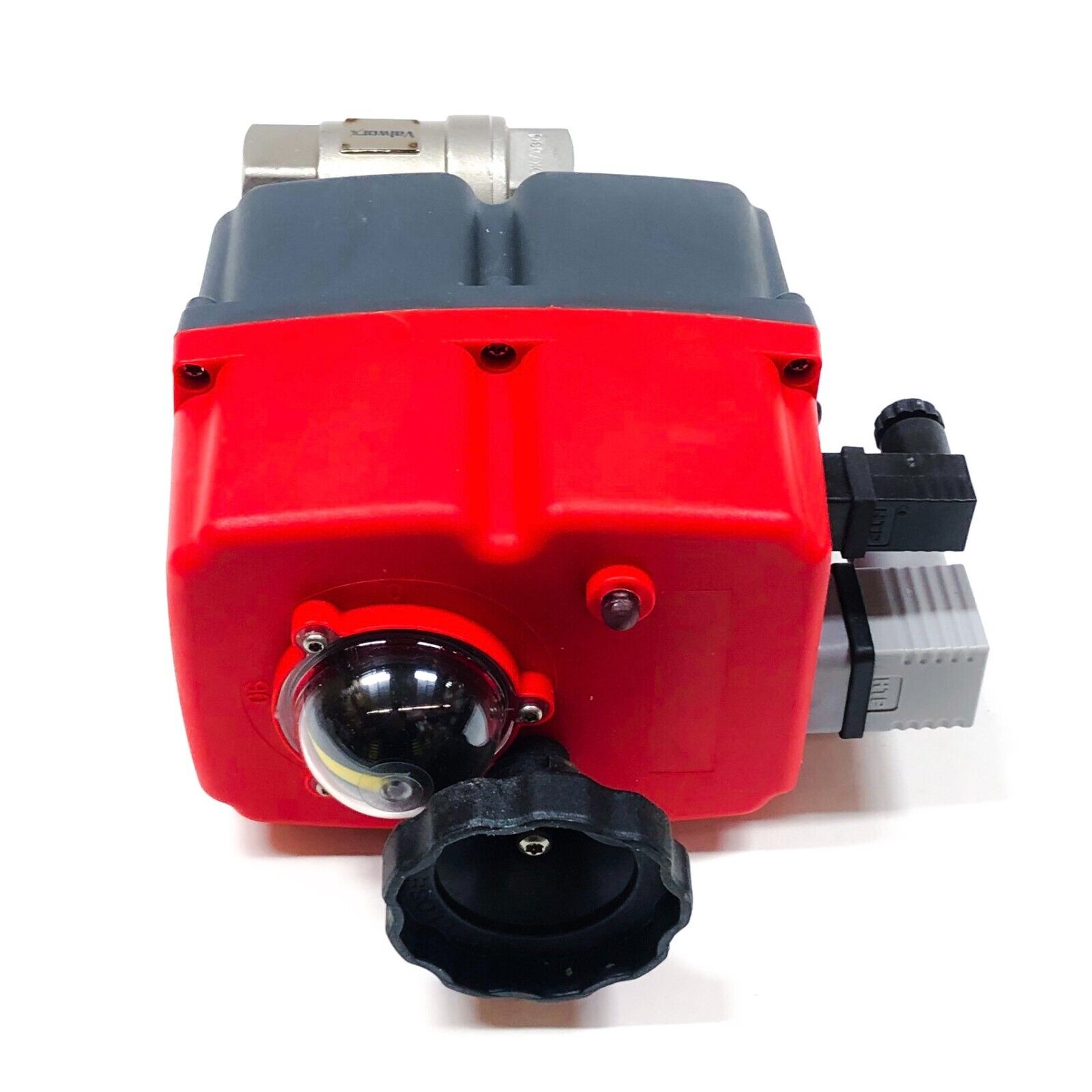

Manual Override Hand knob
Motor Protection Electronic over-torque with LED status light
Anti-Condensation Heater 4 watts thermostatically controlled
Max Fluid Velocity 10 feet per second
