/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/.5536EP3EAL71FF-W22 WEG 0.75HP/0.55kW IEC Tru-Metric Electric Motor, 3600RPM

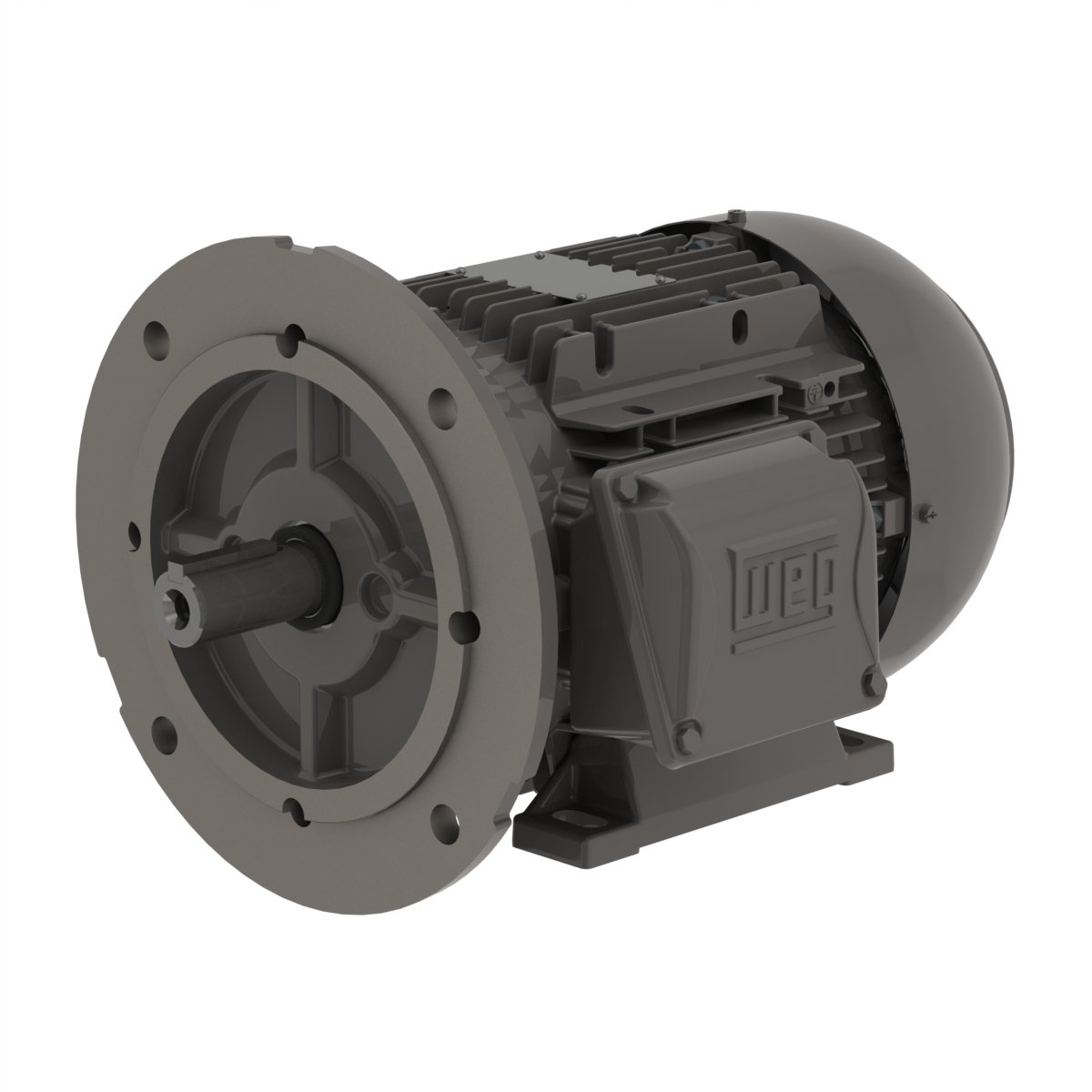

.5536EP3EAL71FF-W22 WEG 0.75HP/0.55kW IEC Tru-Metric Electric Motor, 3600RPM
Enlarge Photo

Product ID: .5536EP3EAL71FF-W22

.5536EP3EAL71FF-W22 WEG 0.75HP/0.55kW IEC Tru-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5536EP3EAL71FF-W22

Selected accessories will also be added to cart
$274.50 / Each
Quantity:
IC411-TEFC, IP55, 71 Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 14051983, Foot Mounted, FF-Flange, Multimounting, High Efficiency, Aluminum Frame, 14mm Keyed Shaft

Electric Motors

Frame 71
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2750 rpm
Slip 8.33 %
Rated voltage 380 V
Rated current 1.31 A
L. R. Amperes 8.91 A
LRC 6.8
No load current 0.600 A
Rated torque 1.41 ft.lb
Locked rotor torque 200 %
Breakdown torque 200 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0107 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 24.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
73.0  74.0  75.0

Power factor

50% 75% 100%
0.67  0.79  0.85
Frame 71
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2785 rpm
Slip 7.17 %
Rated voltage 400 V
Rated current 1.27 A
L. R. Amperes 8.64 A
LRC 6.8
No load current 0.680 A
Rated torque 1.40 ft.lb
Locked rotor torque 220 %
Breakdown torque 220 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0107 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 24.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.5  74.0  75.5

Power factor

50% 75% 100%
0.63  0.75  0.83
Frame 71
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2820 rpm
Slip 6.00 %
Rated voltage 415 V
Rated current 1.26 A
L. R. Amperes 8.57 A
LRC 6.8
No load current 0.750 A
Rated torque 1.38 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0107 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 24.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  74.0  76.0

Power factor

50% 75% 100%
0.58  0.71  0.80
Frame 71
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3420 rpm
Slip 5.00 %
Rated voltage 230/460 V
Rated current 2.28/1.14 A
L. R. Amperes 15.5/7.75 A
LRC 6.8
No load current 1.20/0.600 A
Rated torque 1.14 ft.lb
Locked rotor torque 270 %
Breakdown torque 270 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0107 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 24.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  75.0  76.0

Power factor

50% 75% 100%
0.60  0.72  0.80

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block BMC - 6 pins
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method Not Balanced
Drip Cover Without
Overload protector (phenolic) Without overload protector
