/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Cast Iron/50036OP3GFP447/9TSW4 WEG 500HP Fire Pump Electric Motor, 3600RPM
50036OP3GFP447/9TSW4 WEG 500HP Fire Pump Electric Motor, 3600RPM

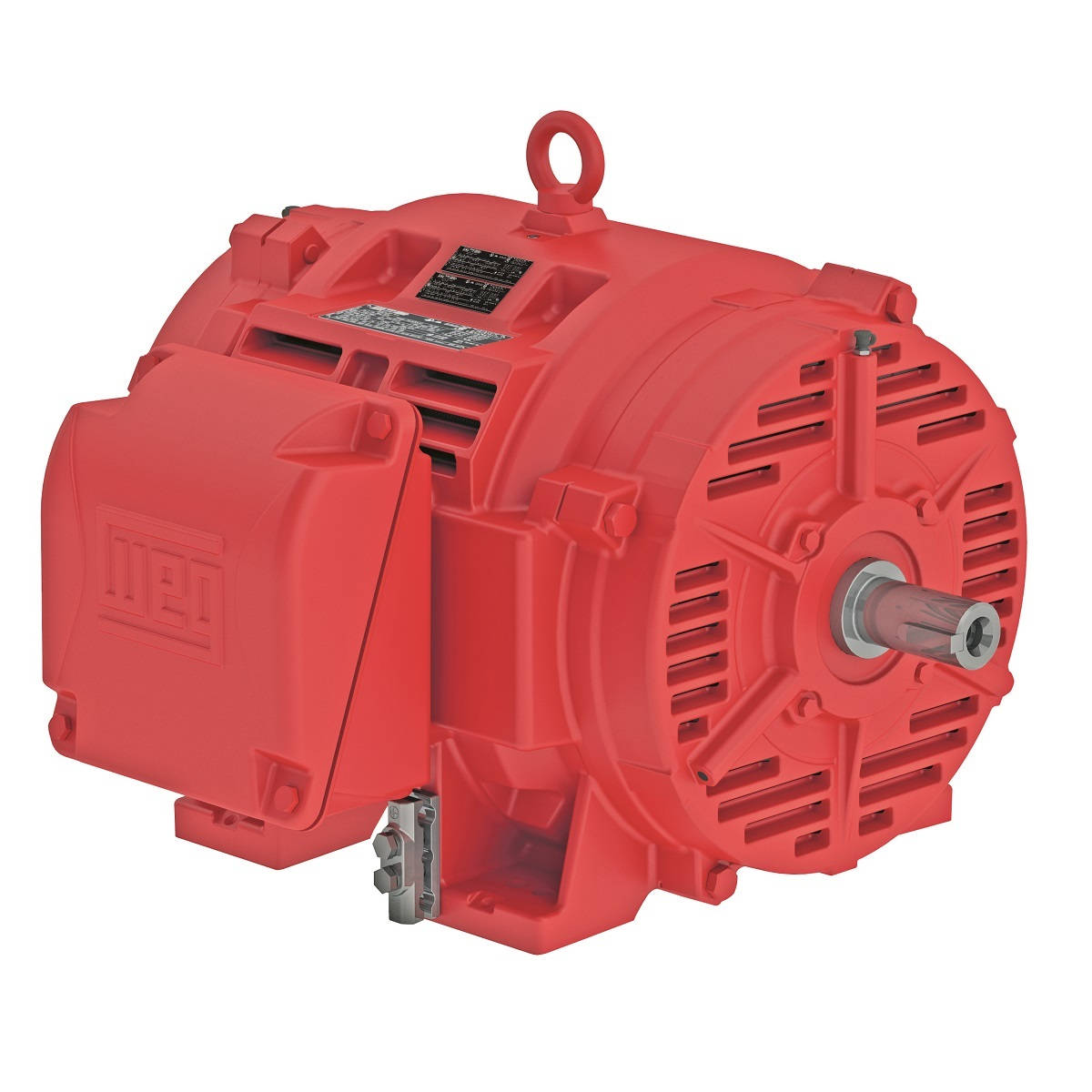

Enlarge Photo

Product ID: 50036OP3GFP447/9TSW4

50036OP3GFP447/9TSW4 WEG 500HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 50036OP3GFP447/9TSW4

Selected accessories will also be added to cart
$20,783.25 / Each
Quantity:
IC01 - ODP, IP23, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 14384660, High Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 539 A
L. R. Amperes 3234 A
LRC 6.0x(Code F)
No load current 120 A
Rated torque 737 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 46.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 2194 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.8

Power factor

50% 75% 100%
0.84  0.89  0.90
Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 584 A
L. R. Amperes 3679 A
LRC 6.3x(Code F)
No load current 115 A
Rated torque 798 ft.lb
Locked rotor torque 150 %
Breakdown torque 210 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 46.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 2194 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.4

Power factor

50% 75% 100%
0.85  0.89  0.90
Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 562 A
L. R. Amperes 3822 A
LRC 6.8x(Code G)
No load current 130 A
Rated torque 797 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 286s (cold) 159s (hot)
Moment of inertia (J) 46.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 2194 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.2

Power factor

50% 75% 100%
0.82  0.88  0.89
Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 548 A
L. R. Amperes 3946 A
LRC 7.2x(Code H)
No load current 230 A
Rated torque 796 ft.lb
Locked rotor torque 170 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 46.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 2194 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.2

Power factor

50% 75% 100%
0.80  0.87  0.88

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6

Bearing details

  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing Sem vedação  Without Bearing Seal
Lubrication interval 14418 h  14418 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
4205 lb  6400 lb
