/Products/Electric Motors/Single Phase/Century/486A Century 1/4HP Pedestal Fan Electric Motor, 1100RPM
Click Image to Expand

Product ID: 486A

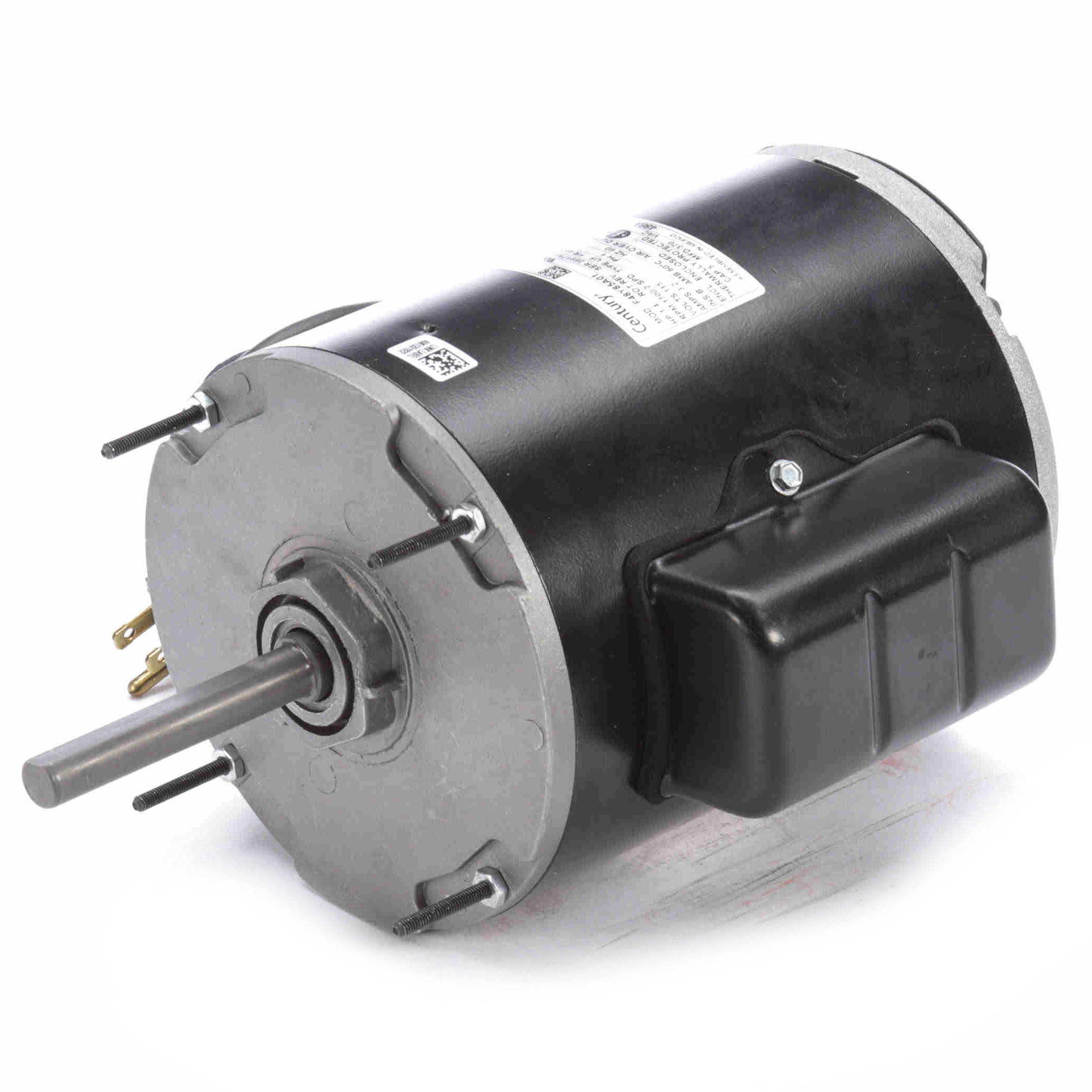

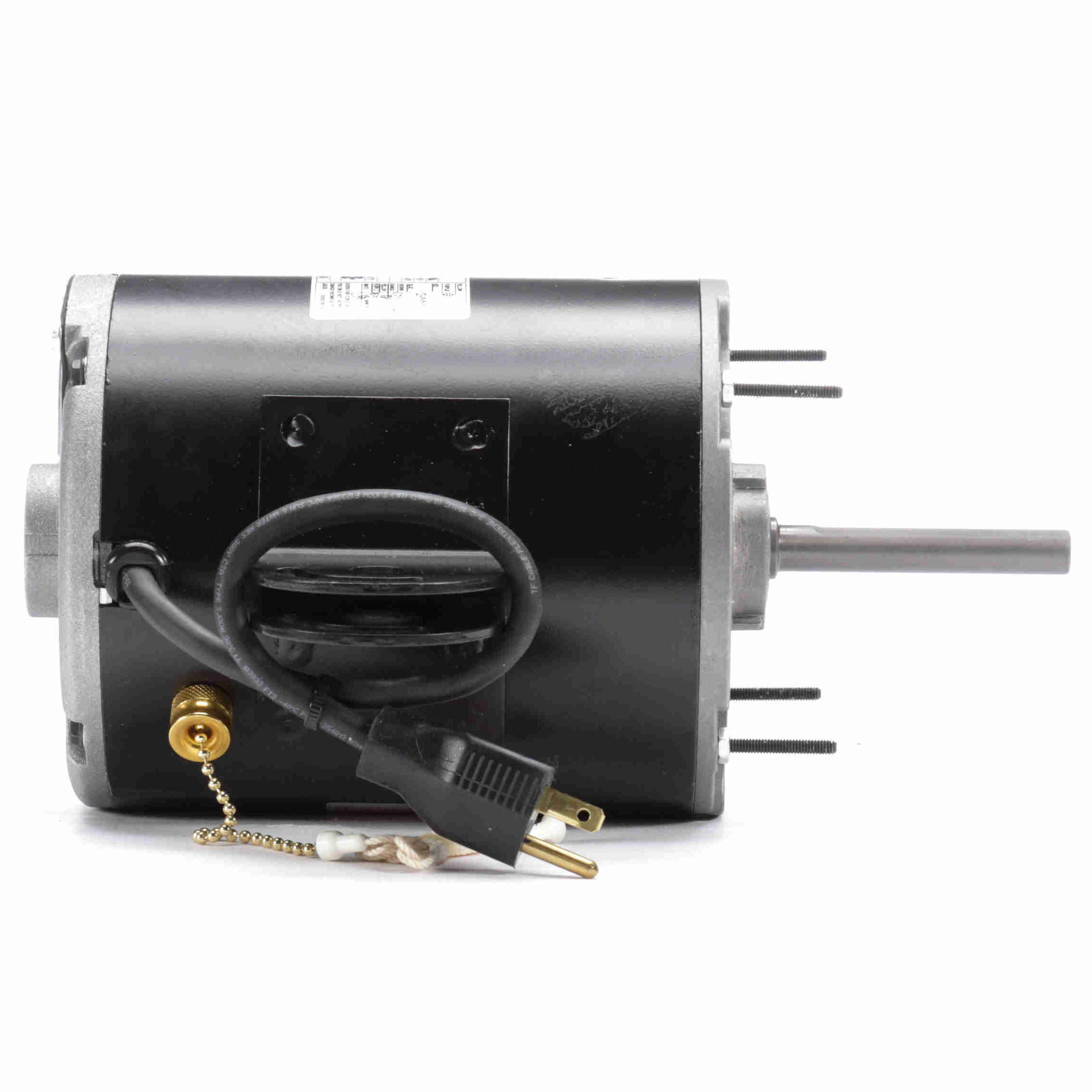

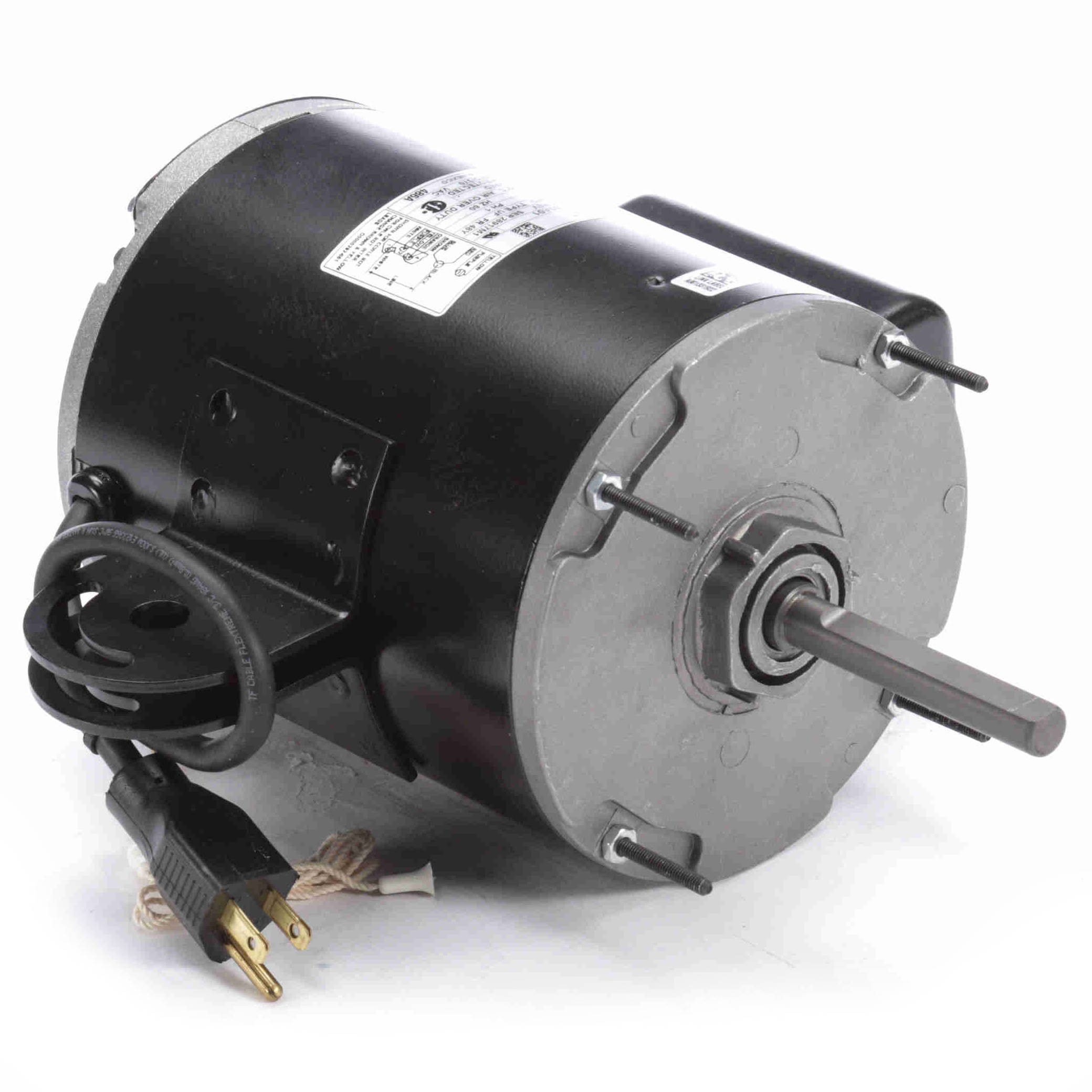

486A Century 1/4HP Pedestal Fan Electric Motor, 1100RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: 486A

Selected accessories will also be added to cart
$256.97 / Each
Quantity:
TEAO, 2-Speed, 48 Frame, 115VAC Single Phase 60Hz, Reversible, 1/2" Shaft

Features

  • Pedestal Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 12" Leads with Molded Plug
  • Yoke Mount

General Specifications

UPC: 786674010223 Weight: 21.00 LB
Packaged Length: 11.7 IN Packaged Width: 7.3 IN
Packaged Height: 10.3 IN

Nameplate Specifications

Output HP: 1/4 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.2 A Speed: 1100 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 48Y Enclosure: Totally Enclosed
Thermal Protection: Automatic Ambient Temperature: 60 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 6 Rotation: Reversible
Mounting: Yoke Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 10.65 in Frame Length: 6.00 in
Shaft Diameter: 0.500 in Shaft Extension: 3.5 FLAT in

Speed & Load Characteristics
