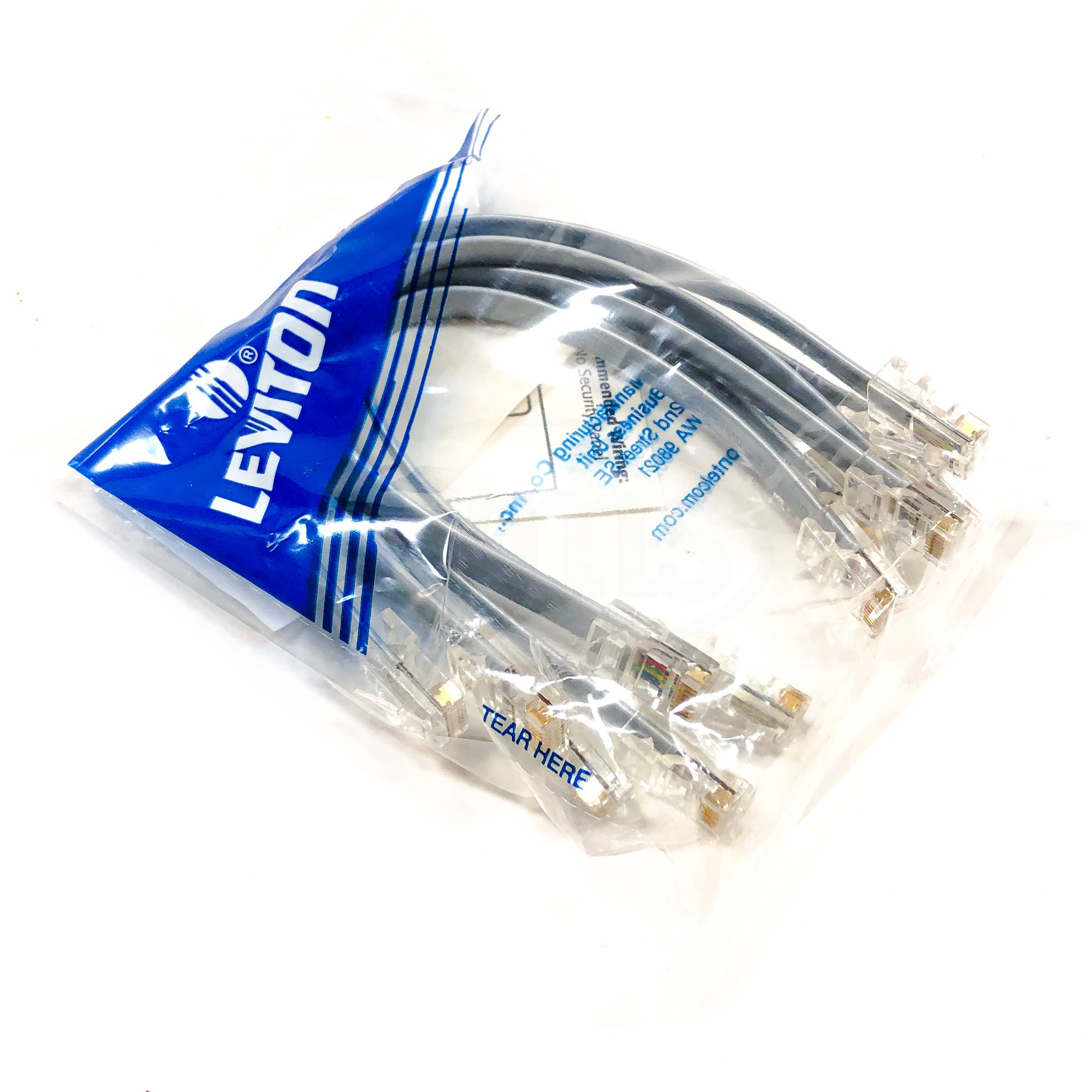

Advanced Home Telephone and Video Panel. 19 multi-line telephone connections (in various combinations of 2 or 4 lines). Patch data or Telephone service to 12 remote locations. Includes (1) Telephone Line Distribution Module (1) Category 5e Voice and Data Module (1) 6-way 2GHz Video Splitter (6) 8” 8P8C Patch Cords

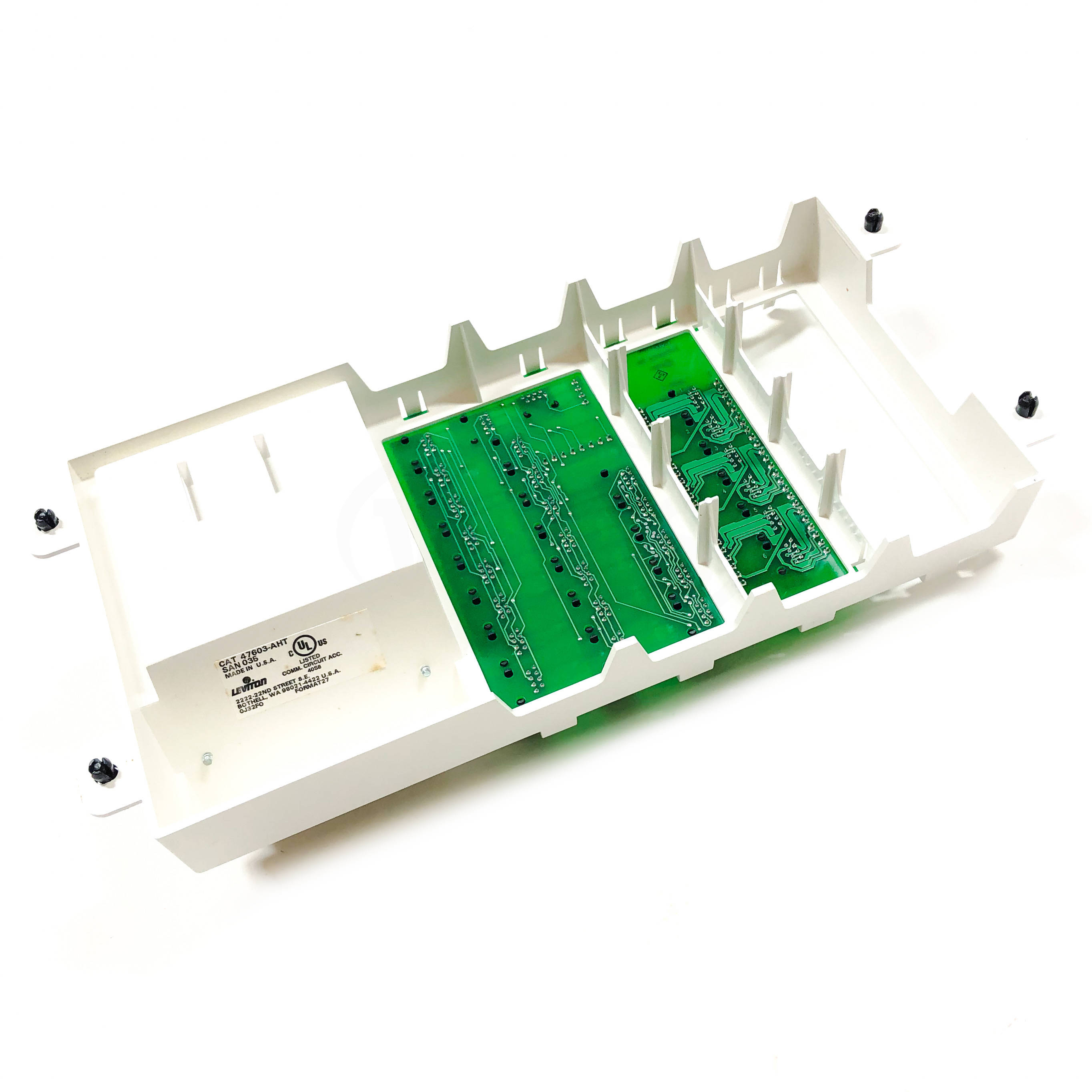

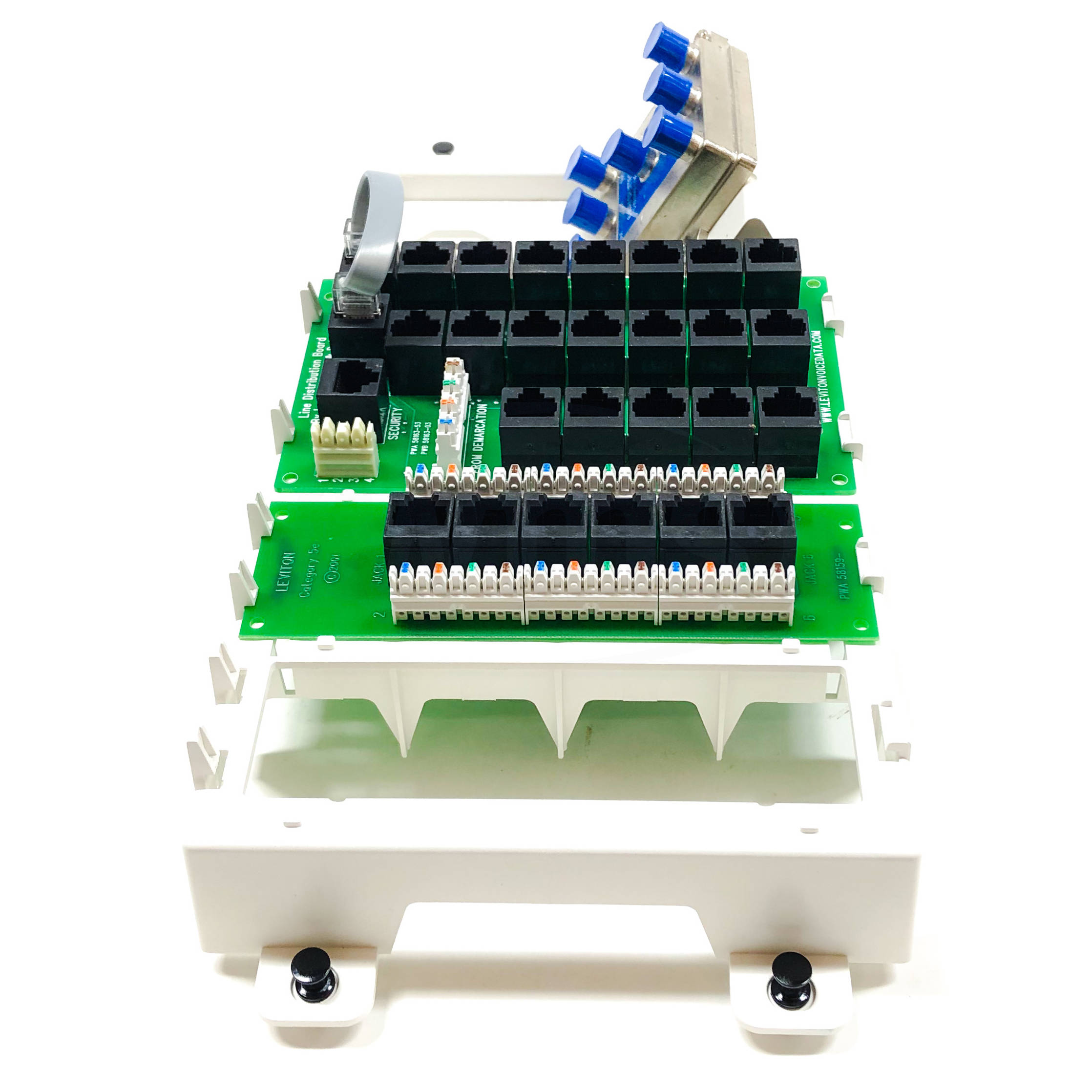

Leviton’s Advanced Home Telephone and Video Panel combines a Telephone Line Distribution Module, Category 5e Voice and Data Board, and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for multi-line systems with video distribution. Provides two to four lines of service to up to 19 connections. Distribute “Line 1” service to up to 12 different connections; distribute four-line service to up to eight different connections. Route voice and data services to up to 6 remote locations via Category 5e Voice & Data modules. Link with other distribution panels or modules to expand the system.
Dimensional Data
Depth: 2.28 Inch
Height: 6.13 Inch
Width: 13.3 Inch
Mechanical Specifications
Cat 5e Voice Data: Six Catagory 5e ports and six 110-IDC Conn.
Telephone Line Distribution: 19 8P8C 2-4-Line Dist, 1 Test, 1 Aux, 1 110-IDC

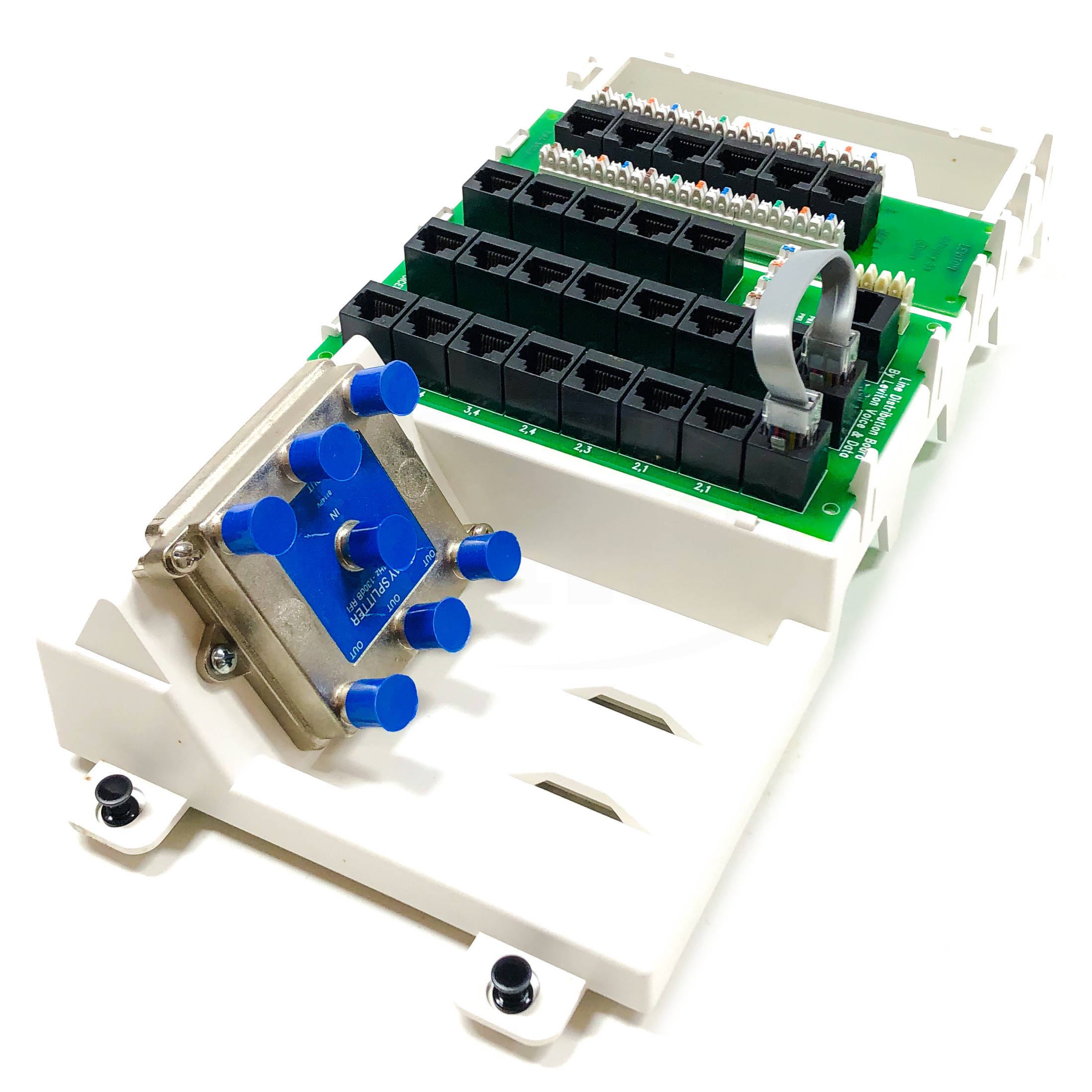

Video Splitter: 1 F-Type Female Input, 6 F-Type Female Output
Video Splitter Frequency: 2 GHz
Product Features
6-Way Video Splitter: 1
Cat 5e Voice Data Module: 1
Description: Advanced Home Telephone and Video
Standards and Certifications: CULUS/FCC/TIA/EIA
Telephone Line Distribution Module: 1
Type: Full Size Pre-Configured Cabling Panel
Warranty: 2-Year Limited
Standards and Certifications
CULUS Listed: Yes
FCC Rated: Part 68 Compliant
TIA/EIA: 568A
Structured Media Components
6-Way Video Splitter: 1
Cat 5e Voice Data Module: 1
Telephone Line Distribution Module: 1
