/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/40018OT3G447/9TS-W40 WEG 400HP, General Purpose Electric Motor, 1800RPM

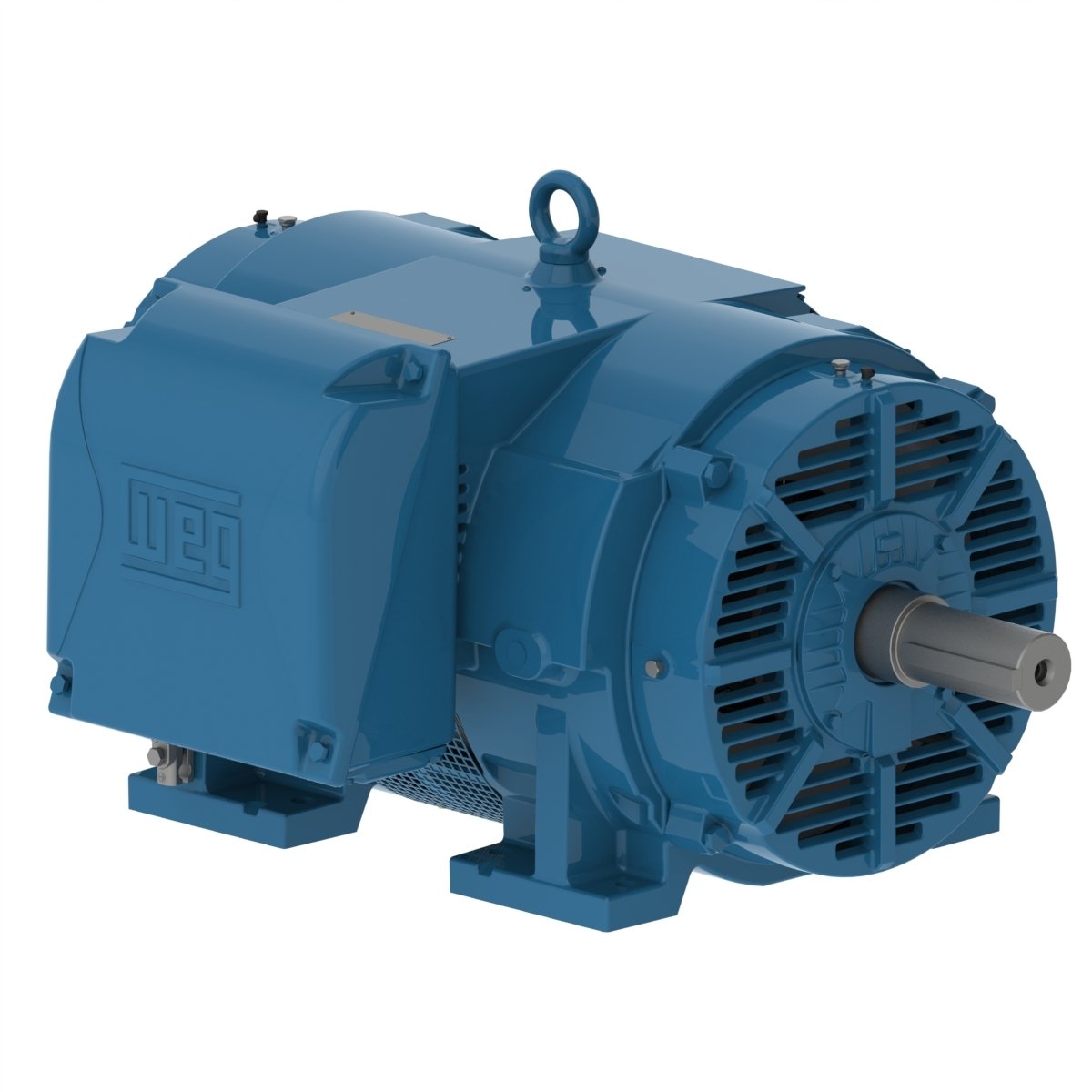

40018OT3G447/9TS-W40 WEG 400HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 40018OT3G447/9TS-W40

40018OT3G447/9TS-W40 WEG 400HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 40018OT3G447/9TS-W40

Selected accessories will also be added to cart
$21,233.25 / Each
Quantity:
IC01 - ODP, IP23, 447TS/449TS Frame, 460VAC 3-Phase 60Hz, 13384870, Cast Iron, Foot Mount, NEMA Premium Efficiency, 2-3/8" Keyed Shaft

Electric Motors

Frame 447/9TS
Output 400 HP (300 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 452 A
L. R. Amperes 3074 A
LRC 6.8x(Code G)
No load current 140 A
Rated torque 1160 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  95.8  95.8

Power factor

50% 75% 100%
0.78  0.85  0.87
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 400 A
L. R. Amperes 2800 A
LRC 7.0x(Code G)
No load current 138 A
Rated torque 1050 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.9  96.0

Power factor

50% 75% 100%
0.74  0.84  0.87
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 385 A
L. R. Amperes 3003 A
LRC 7.8x(Code H)
No load current 149 A
Rated torque 1050 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.4  95.1  96.0

Power factor

50% 75% 100%
0.71  0.82  0.86
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 375 A
L. R. Amperes 3375 A
LRC 9.0x(Code K)
No load current 159 A
Rated torque 1050 ft.lb
Locked rotor torque 290 %
Breakdown torque 300 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.4  95.1  96.0

Power factor

50% 75% 100%
0.68  0.81  0.85
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 479 A
L. R. Amperes 2874 A
LRC 6.0x(Code F)
No load current 138 A
Rated torque 1230 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.8  94.8  94.8

Power factor

50% 75% 100%
0.79  0.85  0.87
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 457 A
L. R. Amperes 3062 A
LRC 6.7x(Code G)
No load current 149 A
Rated torque 1230 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.4

Power factor

50% 75% 100%
0.76  0.84  0.86
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 441 A
L. R. Amperes 3440 A
LRC 7.8x(Code H)
No load current 159 A
Rated torque 1230 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2286 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.4

Power factor

50% 75% 100%
0.74  0.83  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
