/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/40018OT3G447/9T-W40 WEG 400HP, General Purpose Electric Motor, 1800RPM

Product ID: 40018OT3G447/9T-W40

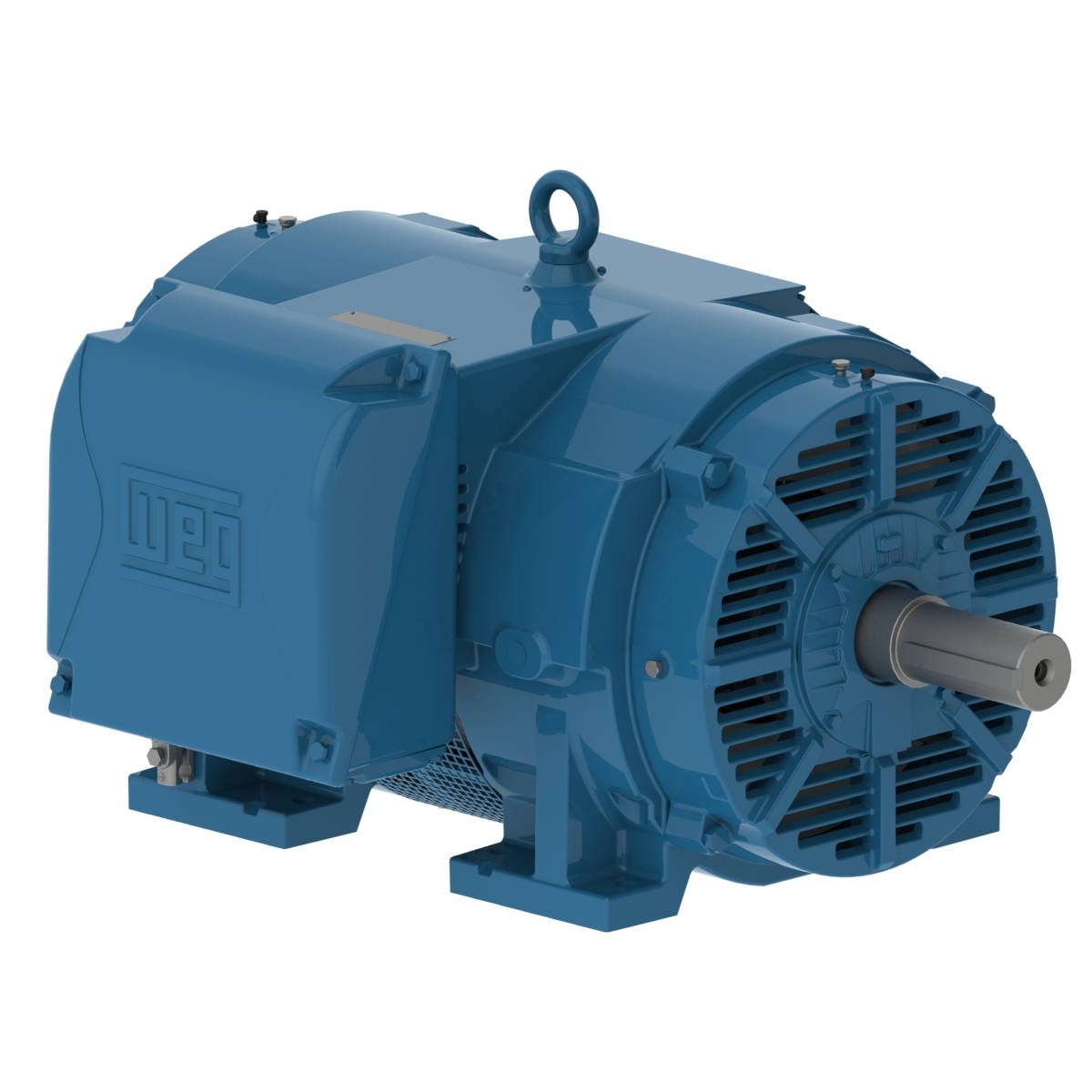

40018OT3G447/9T-W40 WEG 400HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 40018OT3G447/9T-W40

Selected accessories will also be added to cart

$21,233.25 / Each

Quantity:

IC01 - ODP, IP23, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13621555, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	447/9T
Output	400 HP (300 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	452 A
L. R. Amperes	3074 A
LRC	6.8x(Code G)
No load current	140 A
Rated torque	1180 ft.lb
Locked rotor torque	229 %
Breakdown torque	229 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	95.8	95.8

Power factor

50%	75%	100%
0.78	0.85	0.87

Frame	447/9T
Output	300 HP (220 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	400 A
L. R. Amperes	2800 A
LRC	7.0x(Code G)
No load current	138 A
Rated torque	1060 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.9	96.0

Power factor

50%	75%	100%
0.74	0.84	0.87

Frame	447/9T
Output	300 HP (220 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	385 A
L. R. Amperes	3003 A
LRC	7.8x(Code H)
No load current	149 A
Rated torque	1060 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.4	95.1	96.0

Power factor

50%	75%	100%
0.71	0.82	0.86

Frame	447/9T
Output	300 HP (220 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	375 A
L. R. Amperes	3375 A
LRC	9.0x(Code K)
No load current	159 A
Rated torque	1060 ft.lb
Locked rotor torque	290 %
Breakdown torque	300 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.4	95.1	96.0

Power factor

50%	75%	100%
0.68	0.81	0.85

Frame	447/9T
Output	350 HP (260 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	479 A
L. R. Amperes	2874 A
LRC	6.0x(Code F)
No load current	138 A
Rated torque	1240 ft.lb
Locked rotor torque	200 %
Breakdown torque	210 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.8	94.8	94.8

Power factor

50%	75%	100%
0.79	0.85	0.87

Frame	447/9T
Output	350 HP (260 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	457 A
L. R. Amperes	3062 A
LRC	6.7x(Code G)
No load current	149 A
Rated torque	1240 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.4

Power factor

50%	75%	100%
0.76	0.84	0.86

Frame	447/9T
Output	350 HP (260 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	441 A
L. R. Amperes	3440 A
LRC	7.8x(Code H)
No load current	159 A
Rated torque	1240 ft.lb
Locked rotor torque	250 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	77.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	2329 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.4

Power factor

50%	75%	100%
0.74	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
