/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Refrigeration/35036OT3G449TSC-RFW40 WEG 350HP Refrigeration Electric Motor, 3600RPM

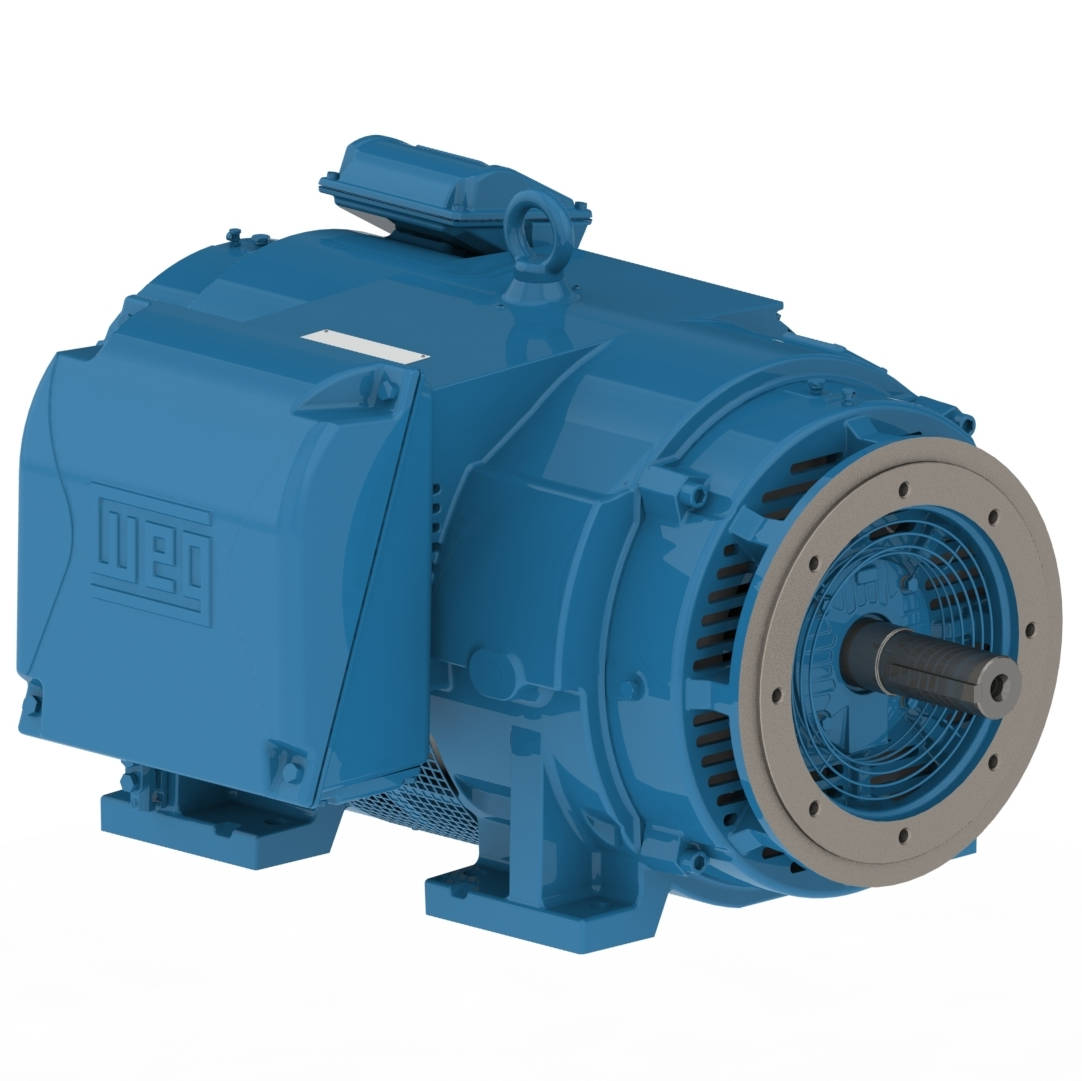

35036OT3G449TSC-RFW40 WEG 350HP Refrigeration Electric Motor, 3600RPM
Enlarge Photo

Product ID: 35036OT3G449TSC-RFW4

35036OT3G449TSC-RFW40 WEG 350HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 35036OT3G449TSC-RFW40

Selected accessories will also be added to cart
$22,227.75 / Each
Quantity:
IC01 - ODP, IP23, 447TSC/449TSC Frame, 460VAC 60Hz 3 Phase, 14112411, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 447/9TSC
Output 350 HP (260 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 384 A
L. R. Amperes 2496 A
LRC 6.5x(Code G)
No load current 88.0 A
Rated torque 516 ft.lb
Locked rotor torque 170 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.4

Power factor

50% 75% 100%
0.83  0.88  0.89
Frame 447/9TSC
Output 300 HP (220 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 388 A
L. R. Amperes 2367 A
LRC 6.1x(Code F)
No load current 86.0 A
Rated torque 533 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.4  94.8  95.8

Power factor

50% 75% 100%
0.81  0.88  0.90
Frame 447/9TSC
Output 300 HP (220 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 372 A
L. R. Amperes 2492 A
LRC 6.7x(Code G)
No load current 92.0 A
Rated torque 531 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.1  95.8

Power factor

50% 75% 100%
0.79  0.87  0.89
Frame 447/9TSC
Output 300 HP (220 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 359 A
L. R. Amperes 2585 A
LRC 7.2x(Code G)
No load current 100 A
Rated torque 531 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.1  95.8

Power factor

50% 75% 100%
0.78  0.86  0.89
Frame 447/9TSC
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 462 A
L. R. Amperes 2402 A
LRC 5.2x(Code E)
No load current 86.0 A
Rated torque 623 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  94.5  95.0

Power factor

50% 75% 100%
0.84  0.89  0.90
Frame 447/9TSC
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 444 A
L. R. Amperes 2531 A
LRC 5.7x(Code F)
No load current 92.0 A
Rated torque 621 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.83  0.88  0.89
Frame 447/9TSC
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 428 A
L. R. Amperes 2654 A
LRC 6.2x(Code F)
No load current 100 A
Rated torque 621 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 35.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 1987 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.82  0.88  0.89

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
