/Products/Electric Motors/Single Phase/WEG/Air Handling/.3318OS1AEC56 WEG 1/3HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .3318OS1AEC56

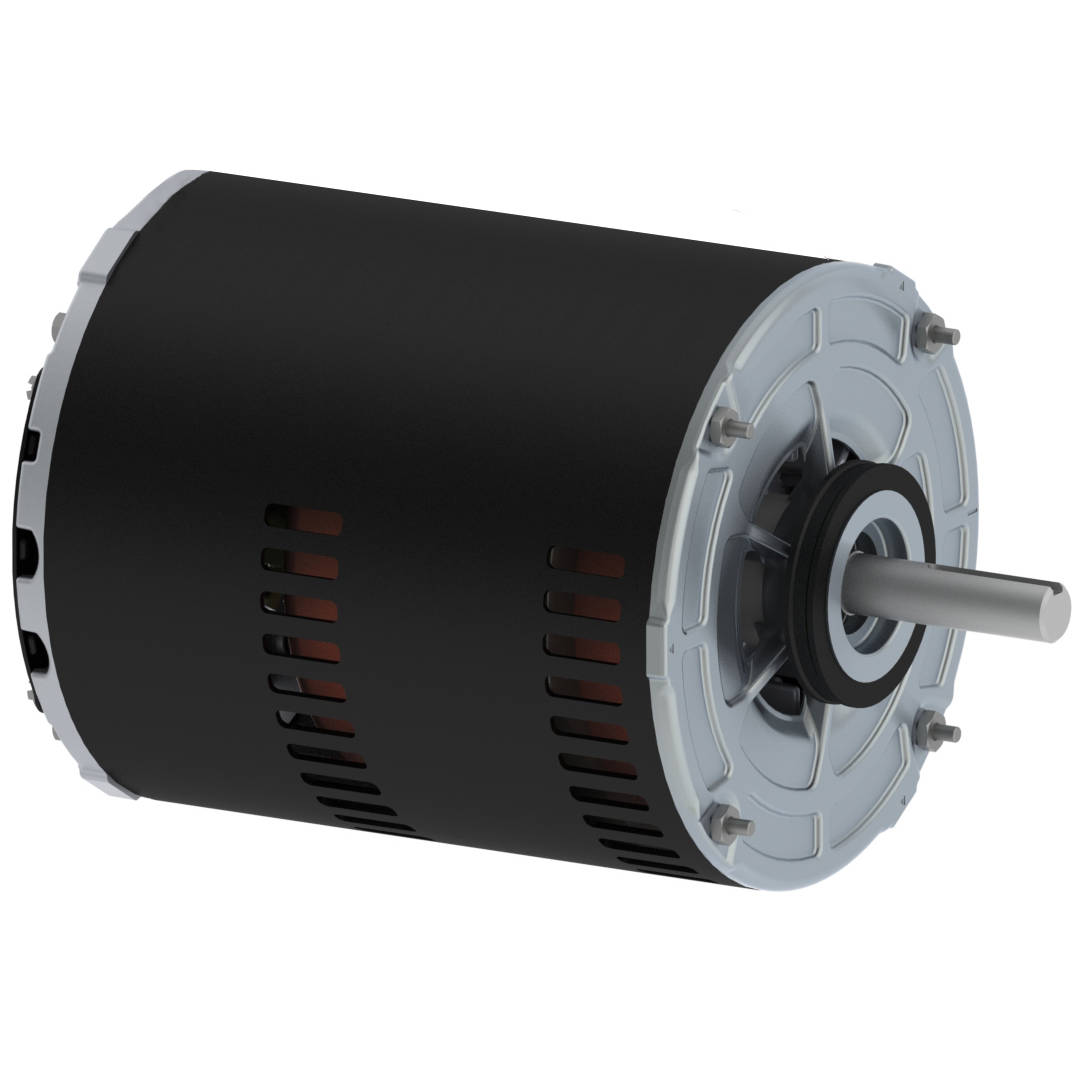

.3318OS1AEC56 WEG 1/3HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .3318OS1AEC56

Selected accessories will also be added to cart

$117.00 / Each

Quantity:

IC01 - ODP, IP21, E56 Frame, 115VAC 60Hz Single Phase, 12239649, Rolled Steel Frame, Footless, 1/2" Flatted Shaft

Details

Electric Motors

Frame	E56
Output	0.25 kW (0.33 HP)
Number of Poles	4
Frequency	60 Hz
Rated speed	1725 rpm
Slip	4.17 %
Rated voltage	115 V
Rated current	6.60 A
L. R. Amperes	42.2 A
LRC	6.4x(Code R)
No load current	6.10 A
Rated torque	1.02 ft.lb
Locked rotor torque	160 %
Breakdown torque	250 %

Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	0.0546 sq.ft.lb
Insulation Class	B
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP21
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	CW
Approx. weight³	17.6 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
38.7	47.3	51.6

Power factor

50%	75%	100%
0.46	0.55	0.63

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Winding thermal protection	Thermostat - 2 wires 1 per phase 130°C
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
