/Products/Electric Motors/Single Phase/US / Nidec/3257 Nidec/US Motors 0.167HP Hot Water Circulating Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: 3257

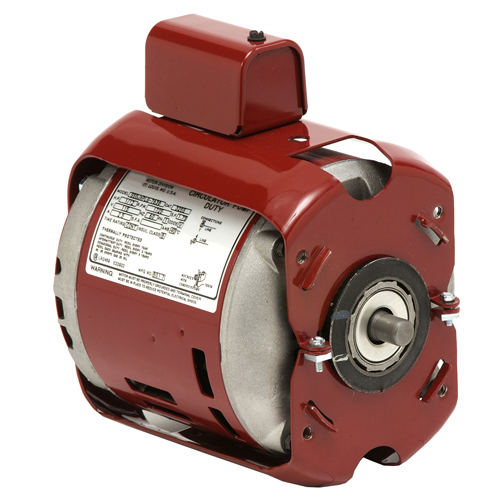

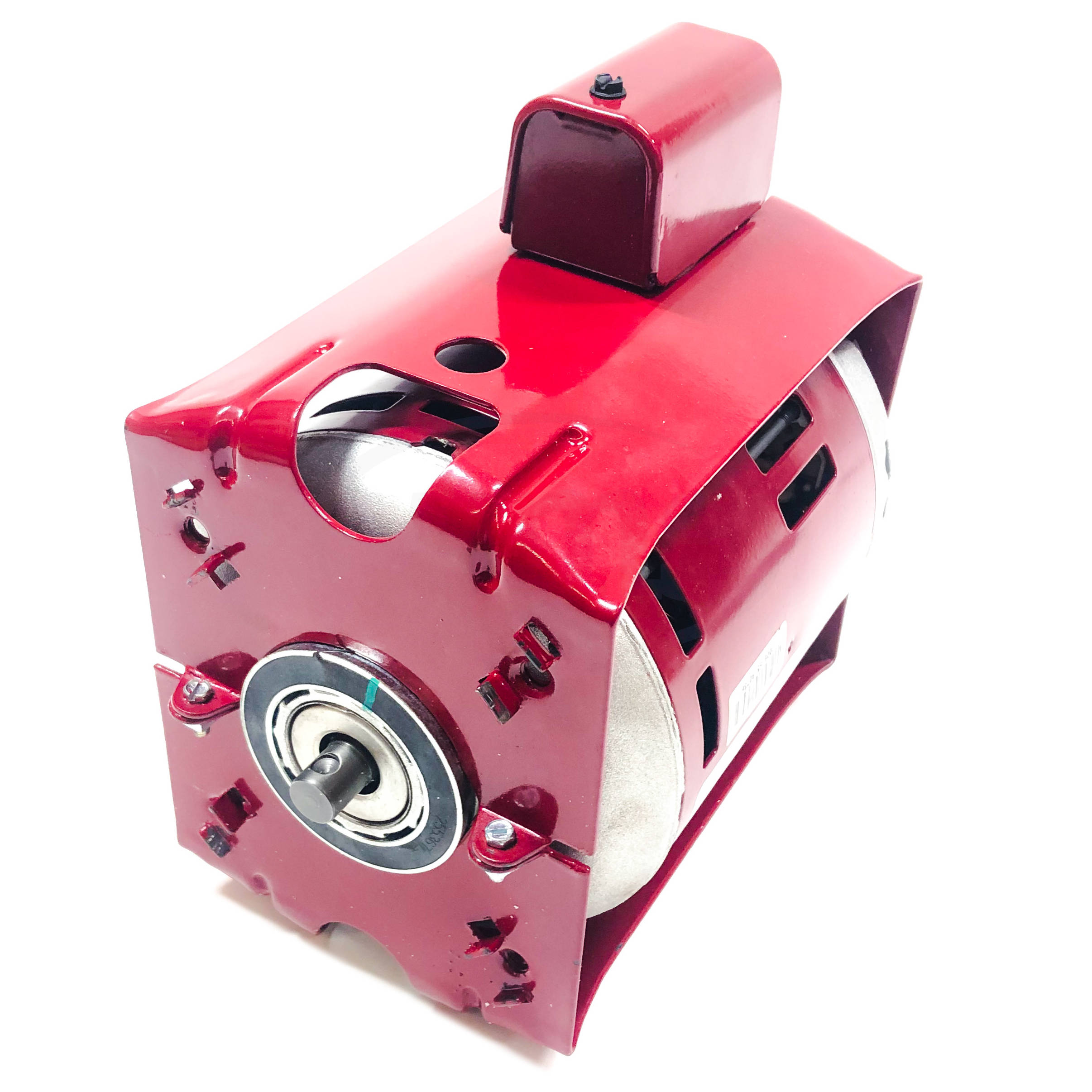

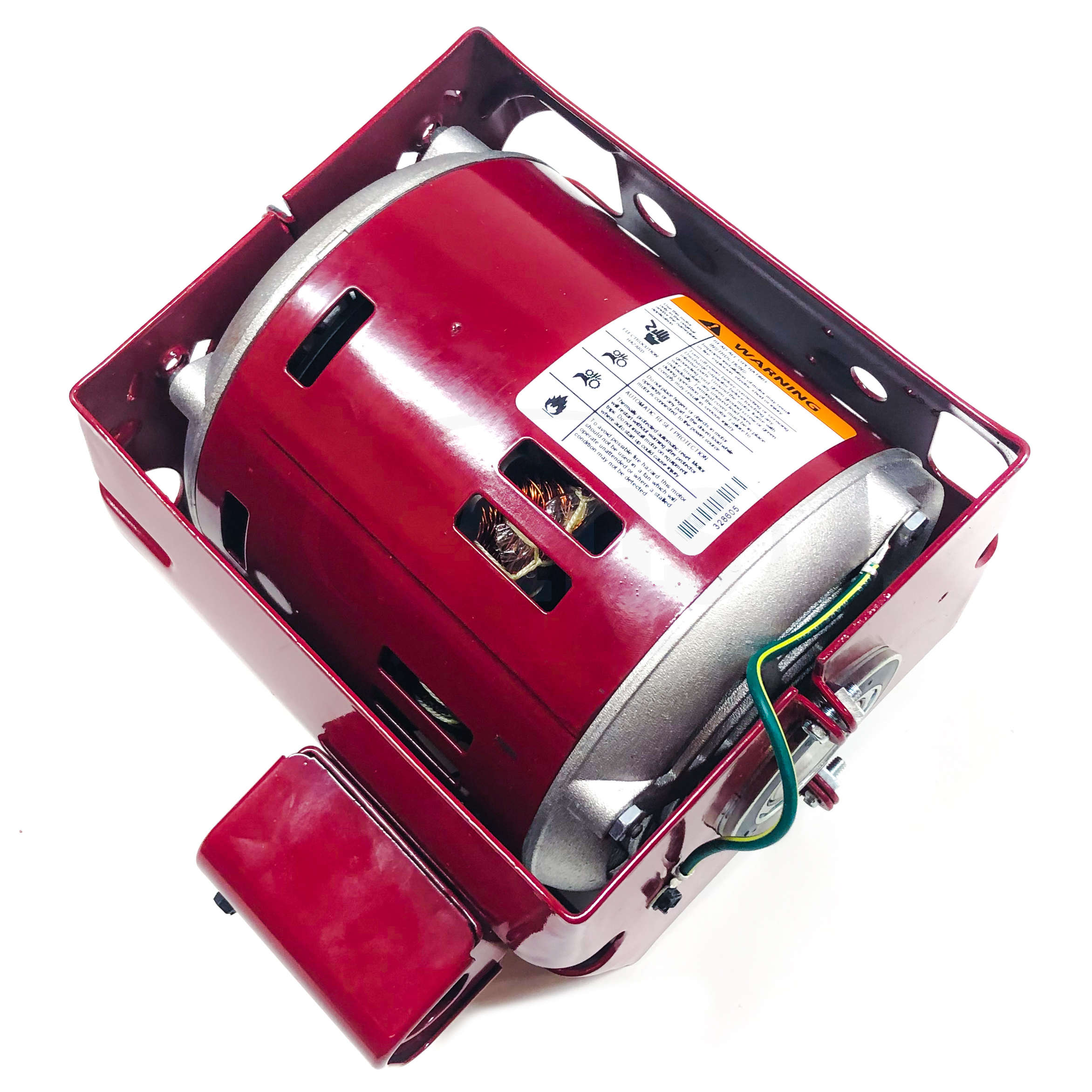

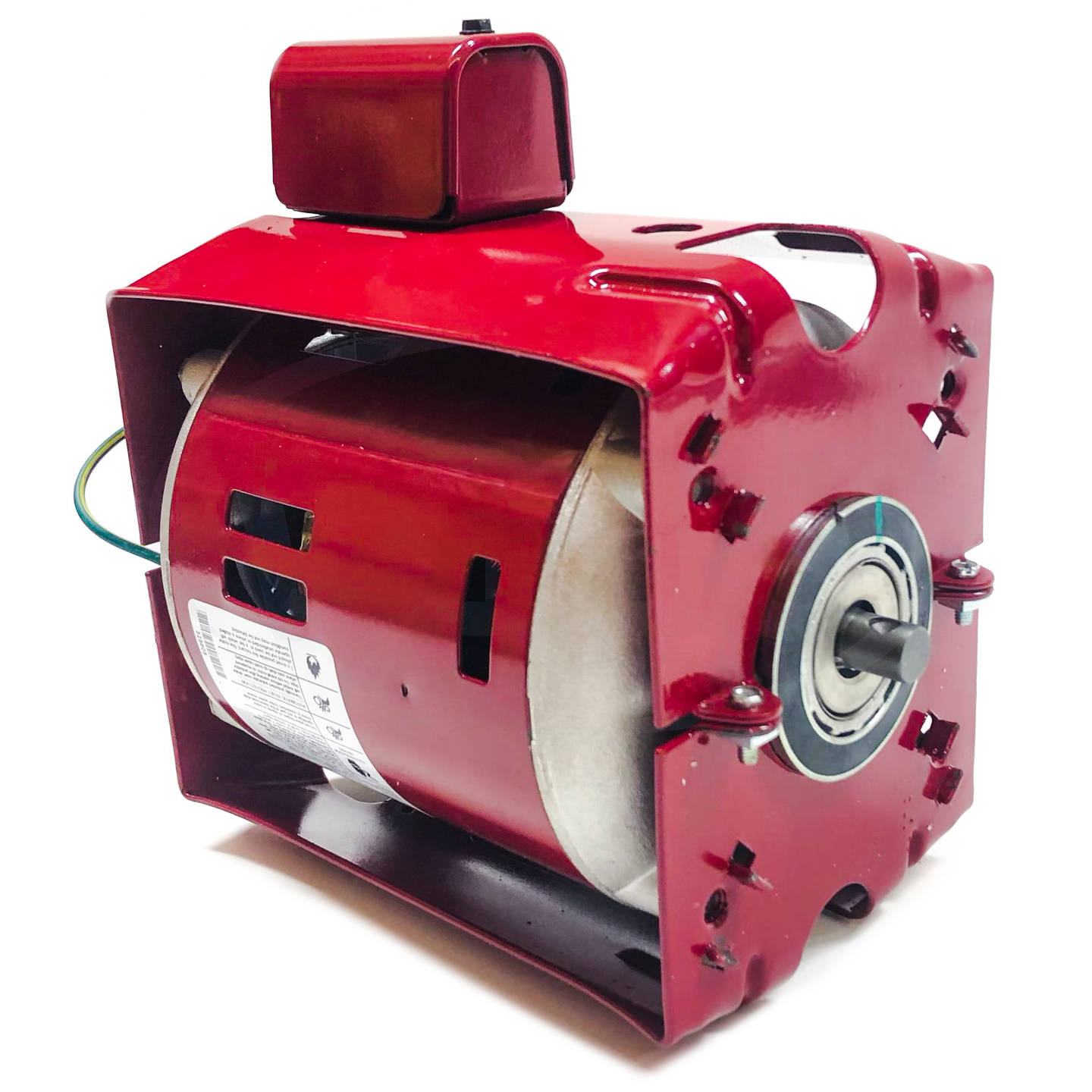

3257 Nidec/US Motors 0.167HP Hot Water Circulating Pump Electric Motor, 1725RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: 3257

Temporarily out of stock
Selected accessories will also be added to cart
$149.04 / Each
Quantity:
OPDP, 48YZ, 115VAC 60Hz Single Phase, S055THH7892011B, B&G Pump Motor, 5.0" Bolt Circle, 1/2" Shaft, CW Shaft End
Model_Number:S055THH7892011B
PRODUCT NAME:.167 HP - OPDP - 1725
PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:OPDP
HORSEPOWER:.167
KILOWATTS:0.1
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:1
MOUNTING:BRACKET
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CW SHAFT END
SERVICE FACTOR:1.75
SHIPPING WEIGHT:14
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:25.73
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:22.16
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:U
LOCKED ROTOR AMPS:28.49
NEMA NOMINAL EFFICIENCY:51.4
FULL LOAD AMPS PRIMARY:3.8
SERVICE FACTOR AMPS PRIMARY:4.9
