/Products/Surplus Industrial/3020E012 Square D PowerLogic Enercept Meter
Click Image to Expand

Product ID: 3020E012

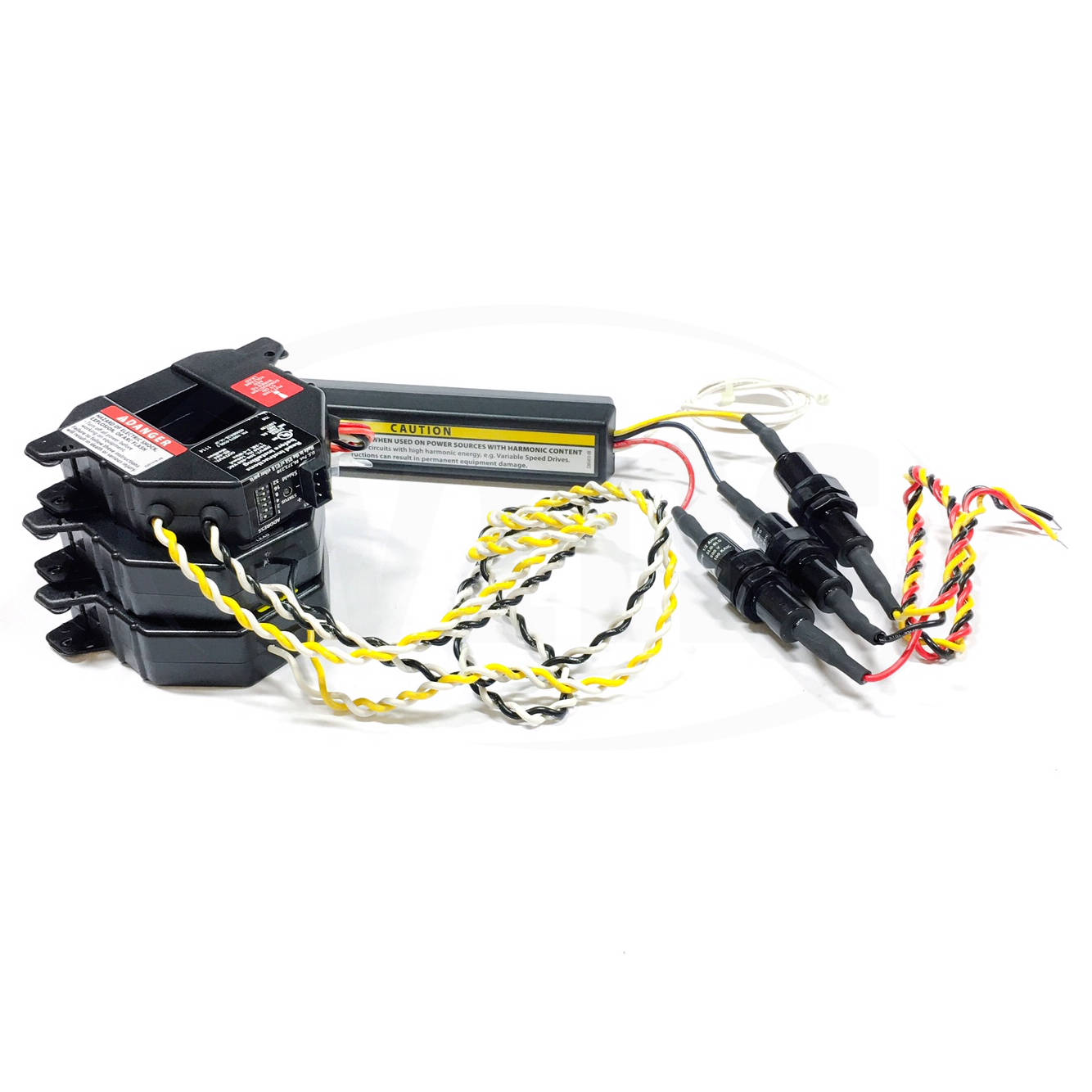

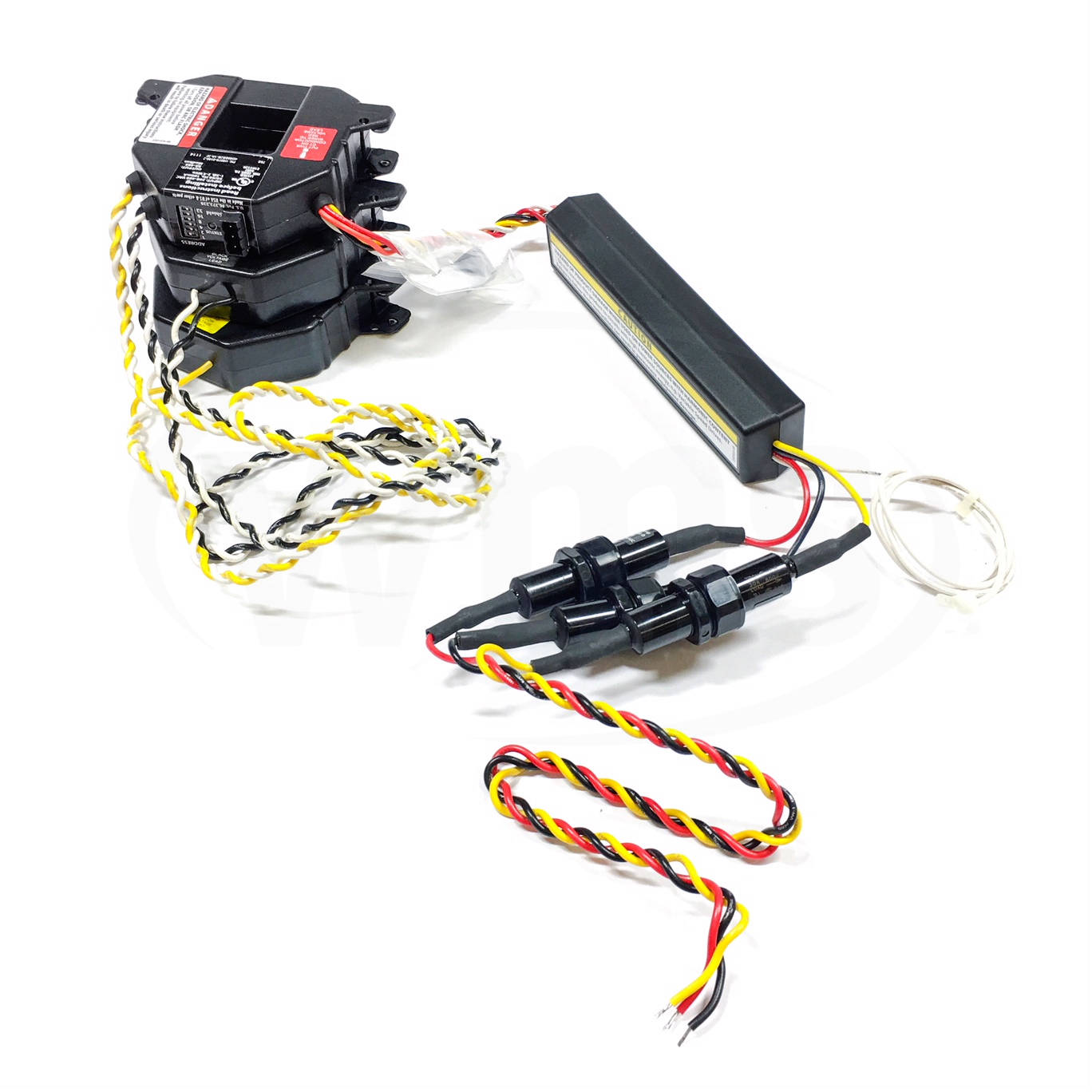

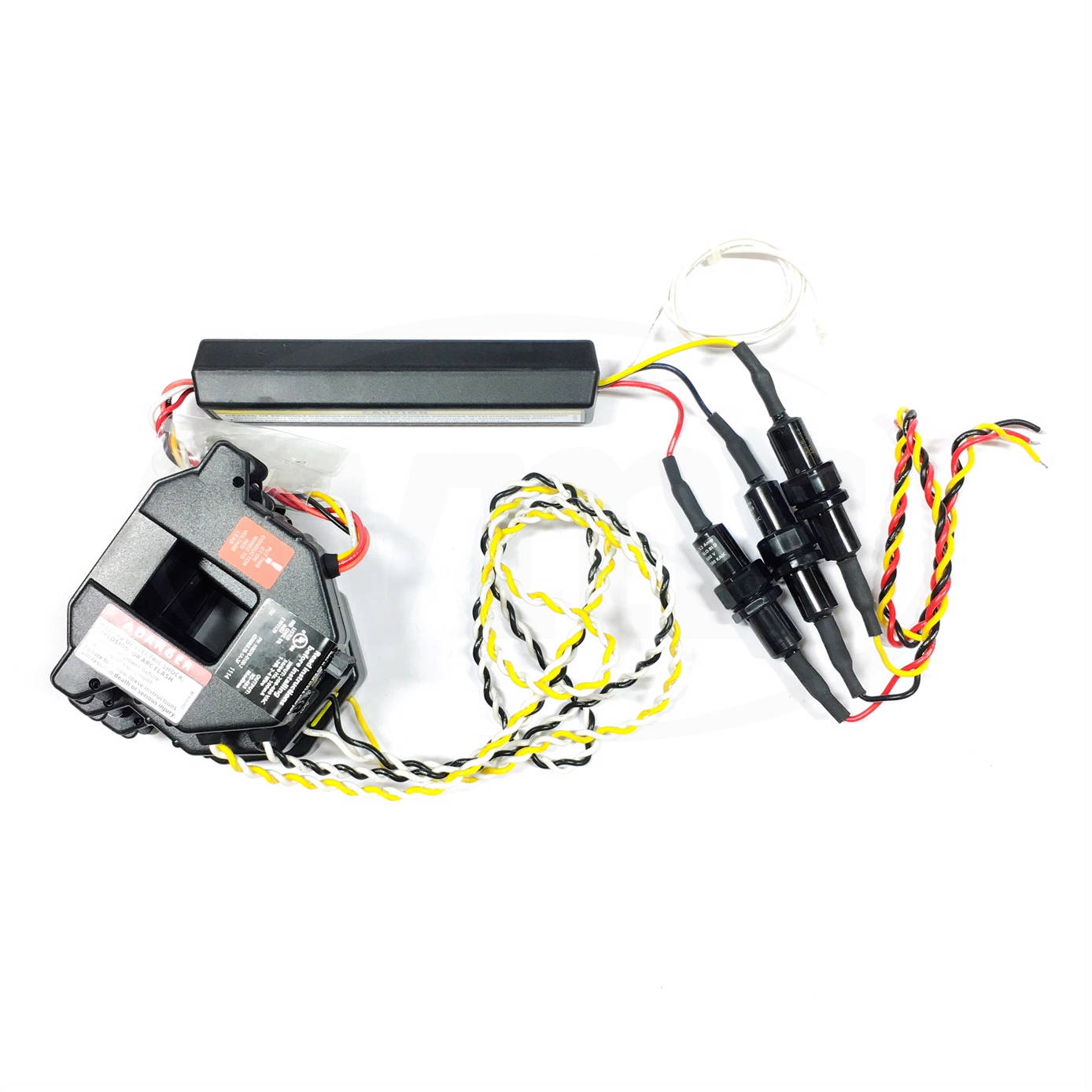

3020E012 Square D PowerLogic Enercept Meter

MFG: Schneider Electric (Square D)
MFG Part Number: 3020E012

Available Stock: 11
Selected accessories will also be added to cart
$1,499.97 / Each
Quantity:
New, Surplus Stock. uPM CT MOD 3PH FDS1 100A SM
Main
range
PowerLogic
product name
PowerLogic Enercept
device short name
Enercept
product or component type
Power meter
device application
Power monitoring
Sub billing
variant
Enhanced
power monitoring
Basic instrumentation
type of measurement
Current
Active power
Active energy
Reactive power
Apparent power
Power factor total
Voltage phase to phase (L-L)
Voltage phase to neutral (L-N)
Current per phase
Power factor per phase
[Us] rated supply voltage
208...480 V, AC, 50/60 Hz
network frequency
50 Hz
60 Hz
Complementary
current transformer type
Split core balance
analogue input type
Split core CT, 0…100 A
measurement voltage
208...480 V
measurement accuracy
+/- 1 % 10...100 %
communication port protocol
Modbus RTU
communication port support
RS485
communication network type
Modbus RTU
mounting mode
Direct
Environment
ambient air temperature for operation
32...140 °F (0...60 °C)
relative humidity
95 %
product certifications
UL
CUL
width
1.22 in (31 mm) (internal)
4.76 in (121 mm) (external)
depth
1.18 in (30 mm)
height
1.18 in (30 mm) (internal)
3.94 in (100 mm) (external)
product weight
2.2 lb(US) (1 kg)
Ordering and shipping details
Category
09791 - POWERLOGIC ENERCEPT POWER METER
Discount Schedule
PL1
GTIN
00785901380054
Nbr. of units in pkg.
1
Package weight(Lbs)
4
Returnability
N
Country of origin
US
