/Products/Pulleys & Sheaves/2BK-H Double Groove/2BK45H 4.25" "H" Style BK Double Groove V-Pulley
Click Image to Expand

Product ID: 2BK45H

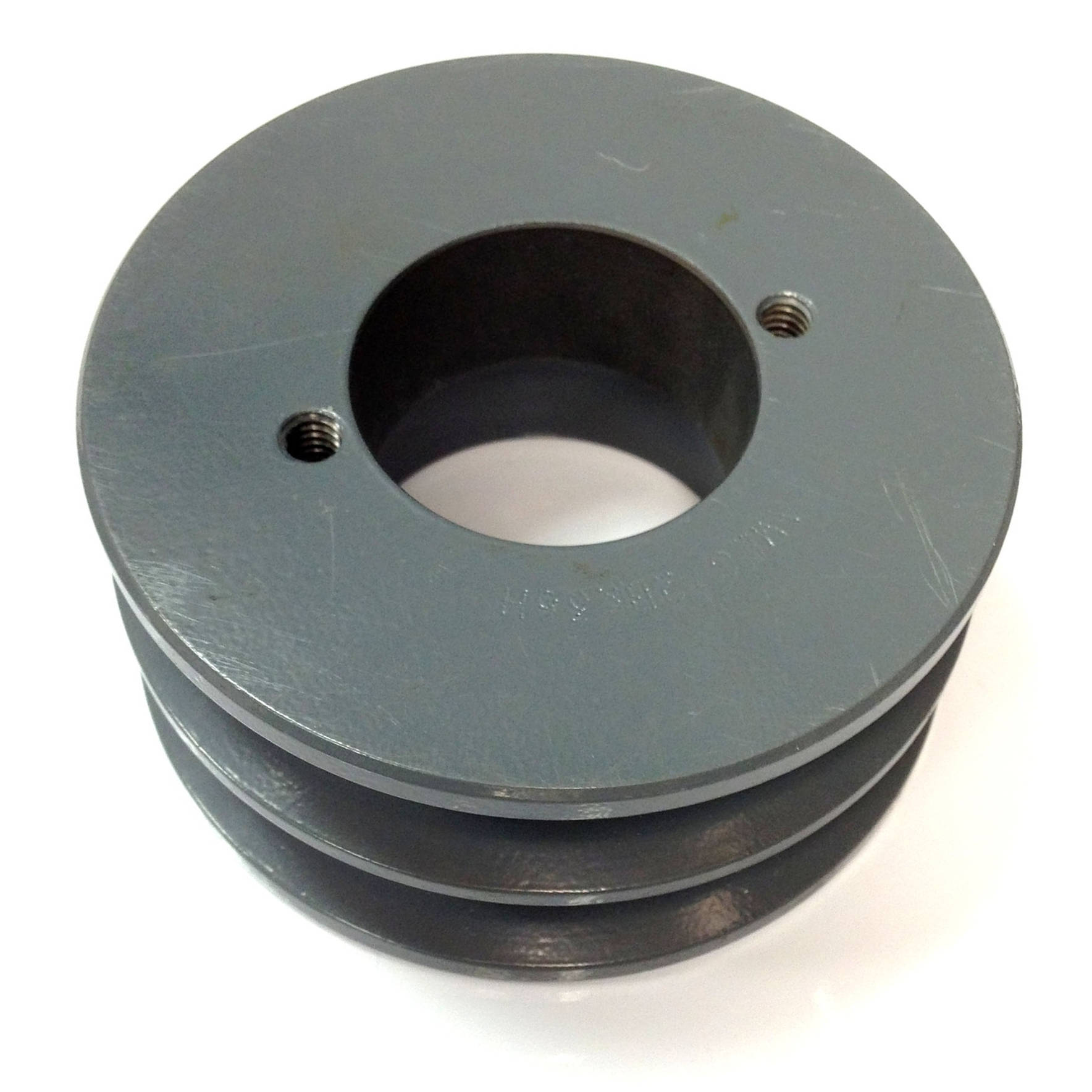

2BK45H 4.25" "H" Style BK Double Groove V-Pulley

Available Stock: 1
Selected accessories will also be added to cart
$33.58 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number 2BK45H

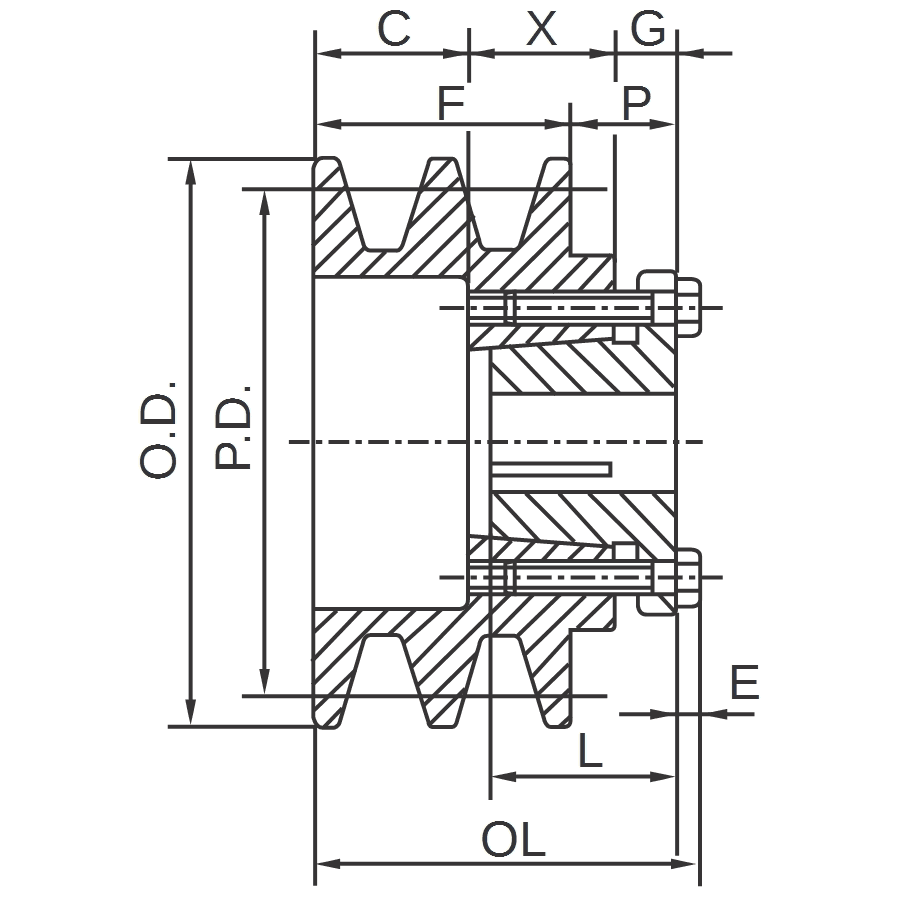

Outside Diameter 4.25"
Pulley Diameter "A" 3.50"
Pulley Diameter "3L" 3.90"
Type 1D
Dimension "OL" 2-3/8"
Dimension "F" 1-3/4"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 7/8"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 3.0 lbs
UPC
Country of Origin
