/Products/Pulleys & Sheaves/2BK-H Double Groove/2BK34H 3.55" "H" Style BK Double Groove V-Pulley
Click Image to Expand

Product ID: 2BK34H

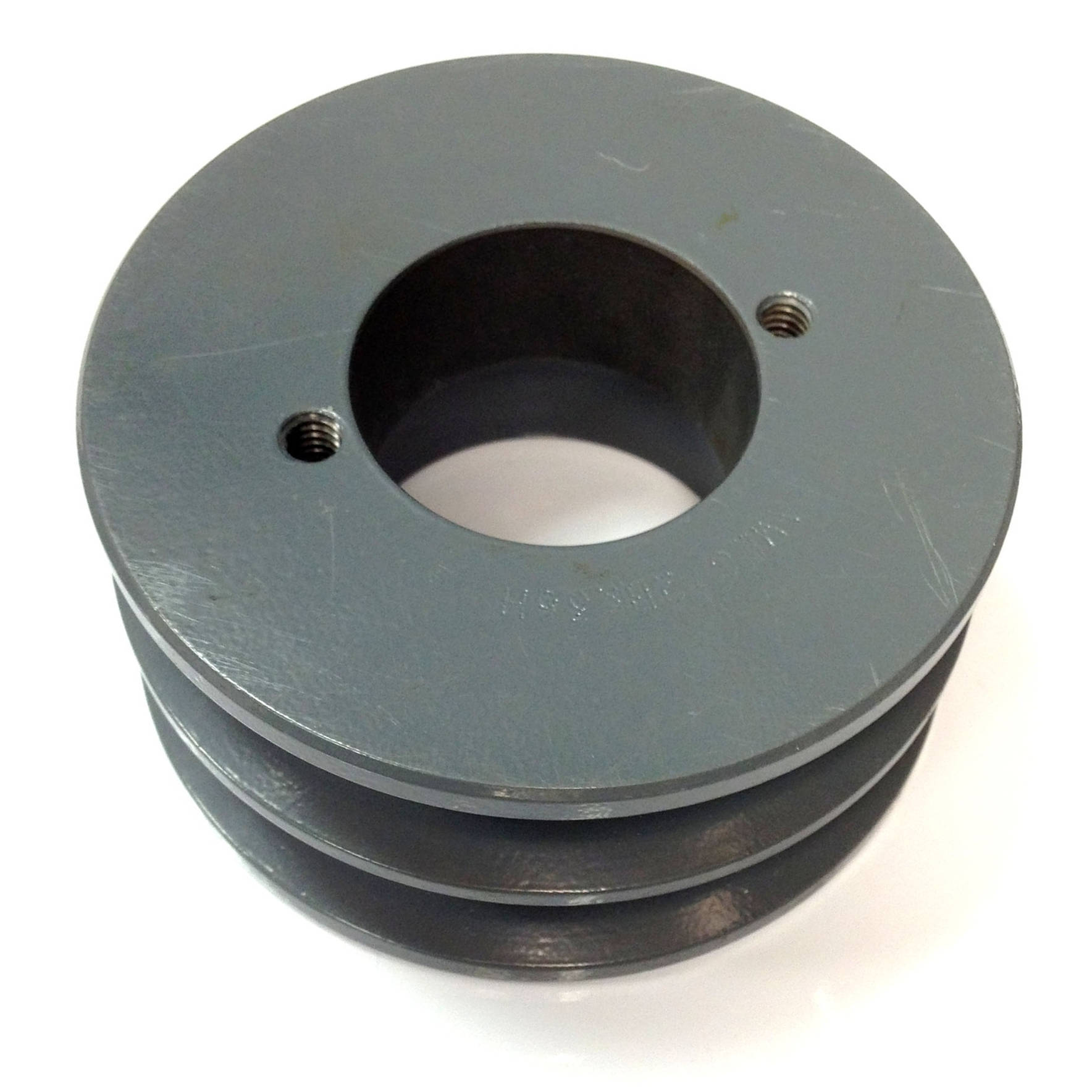

2BK34H 3.55" "H" Style BK Double Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: 2BK34H

Temporarily out of stock
Selected accessories will also be added to cart
$25.92 / Each

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
NSPT
Part Number 2BK34H

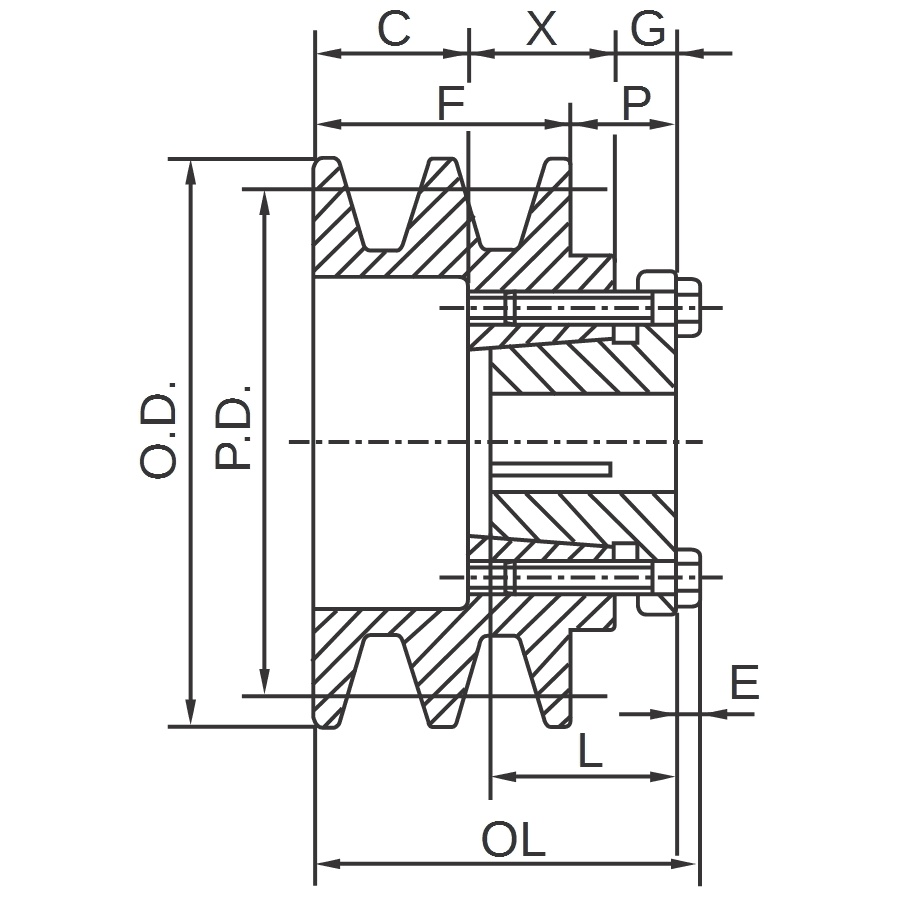

Outside Diameter 3.55"
Pulley Diameter "A" 2.80"
Pulley Diameter "3L" 3.20"
Type 1D
Dimension "OL" 2-13/16"
Dimension "F" 1-3/4"
Dimension "L" 1-1/4"
Dimension "P" 7/8"
Dimension "C" 1-5/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 2.4 lbs
UPC
Country of Origin
