/Products/Power Tools/Milwaukee/M18/Bare Tools/2916-20 Milwaukee M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™
Click Image to Expand

Product ID: 2916-20

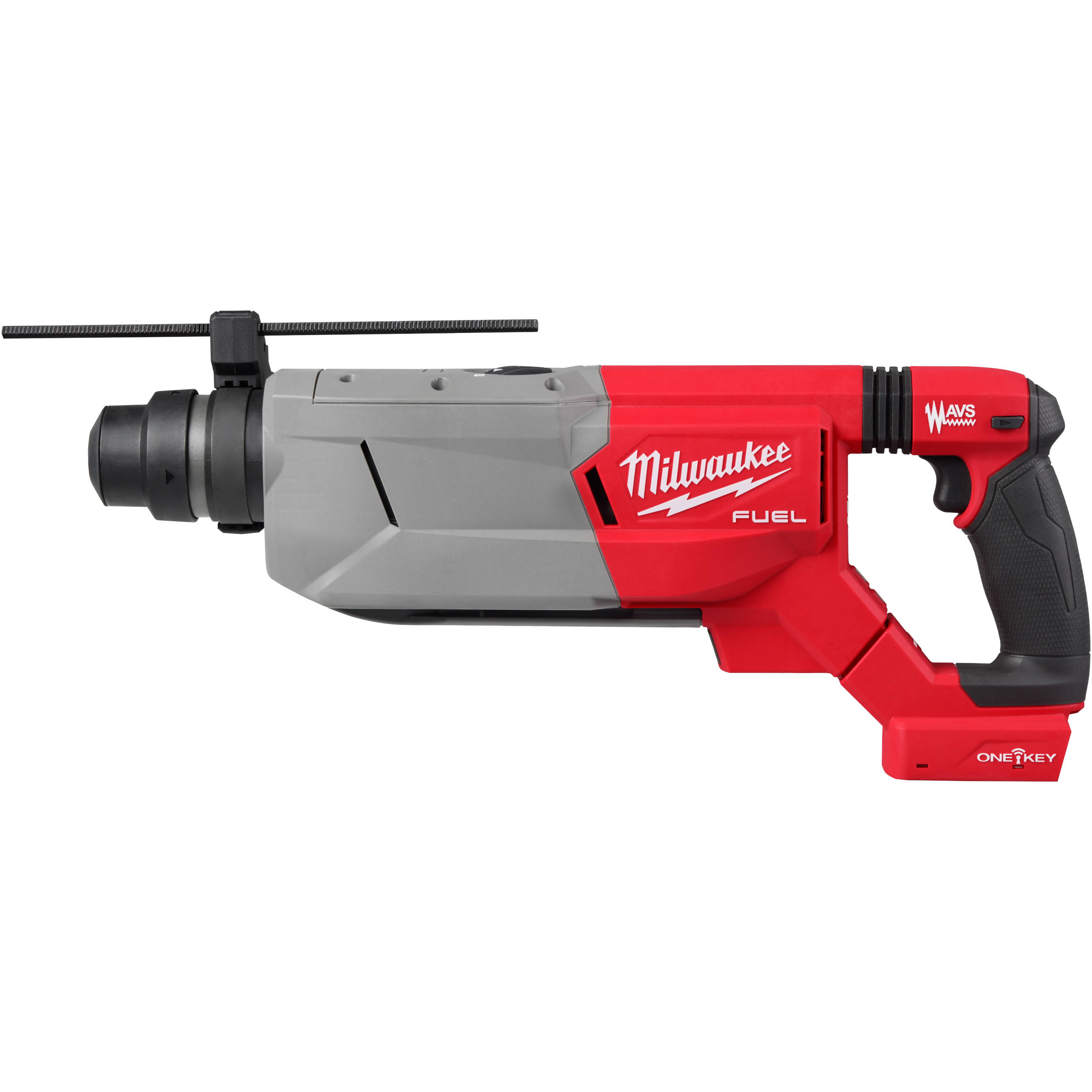

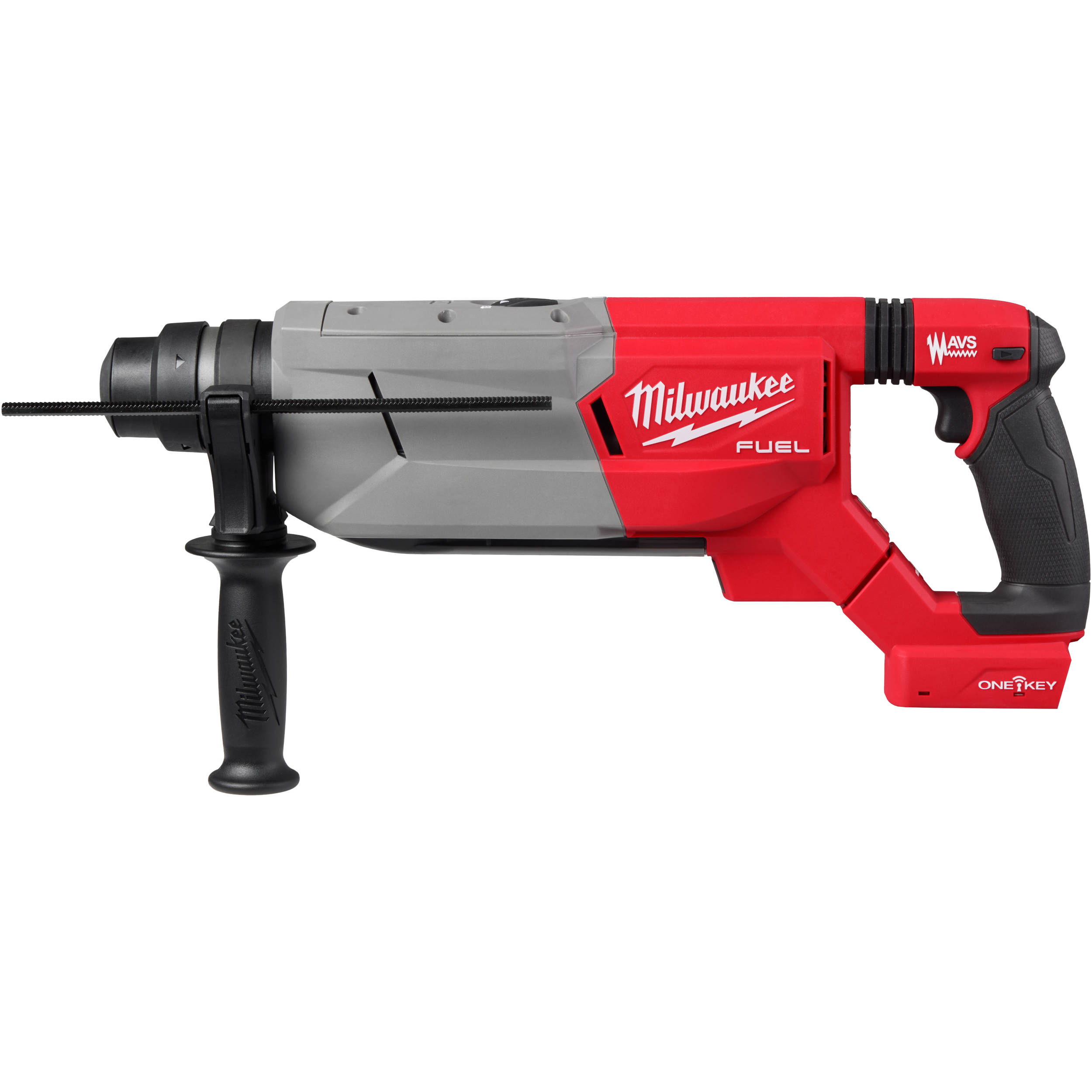

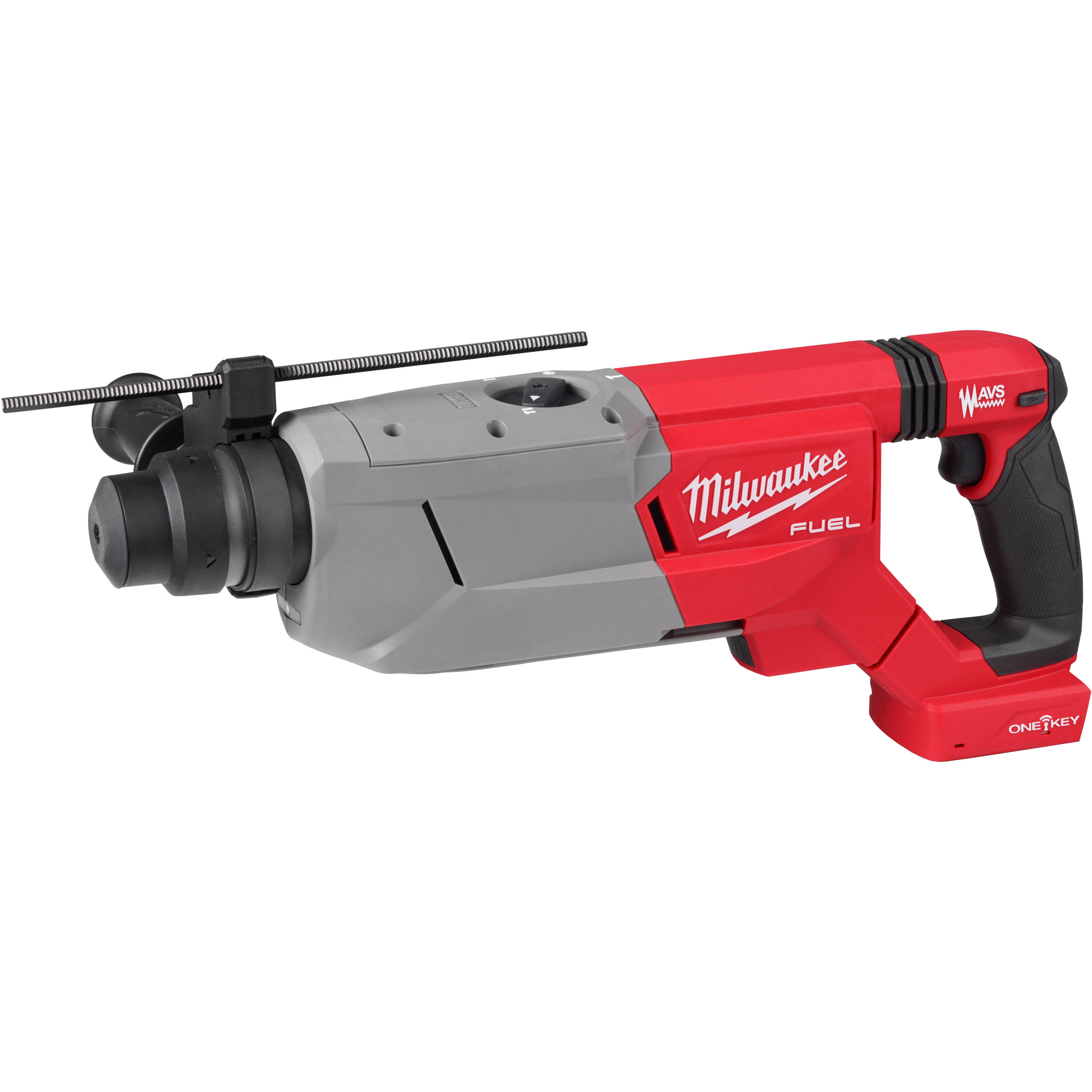

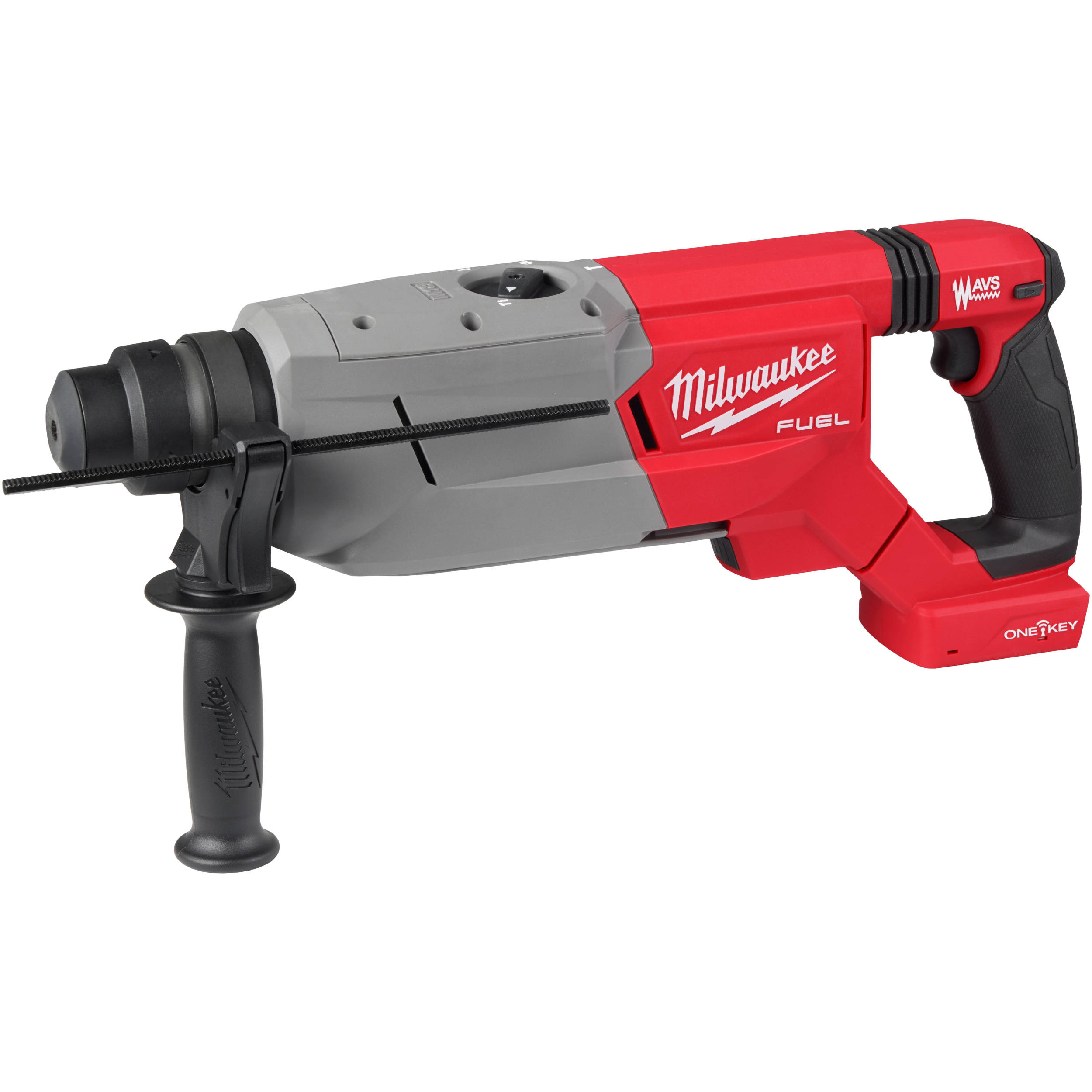

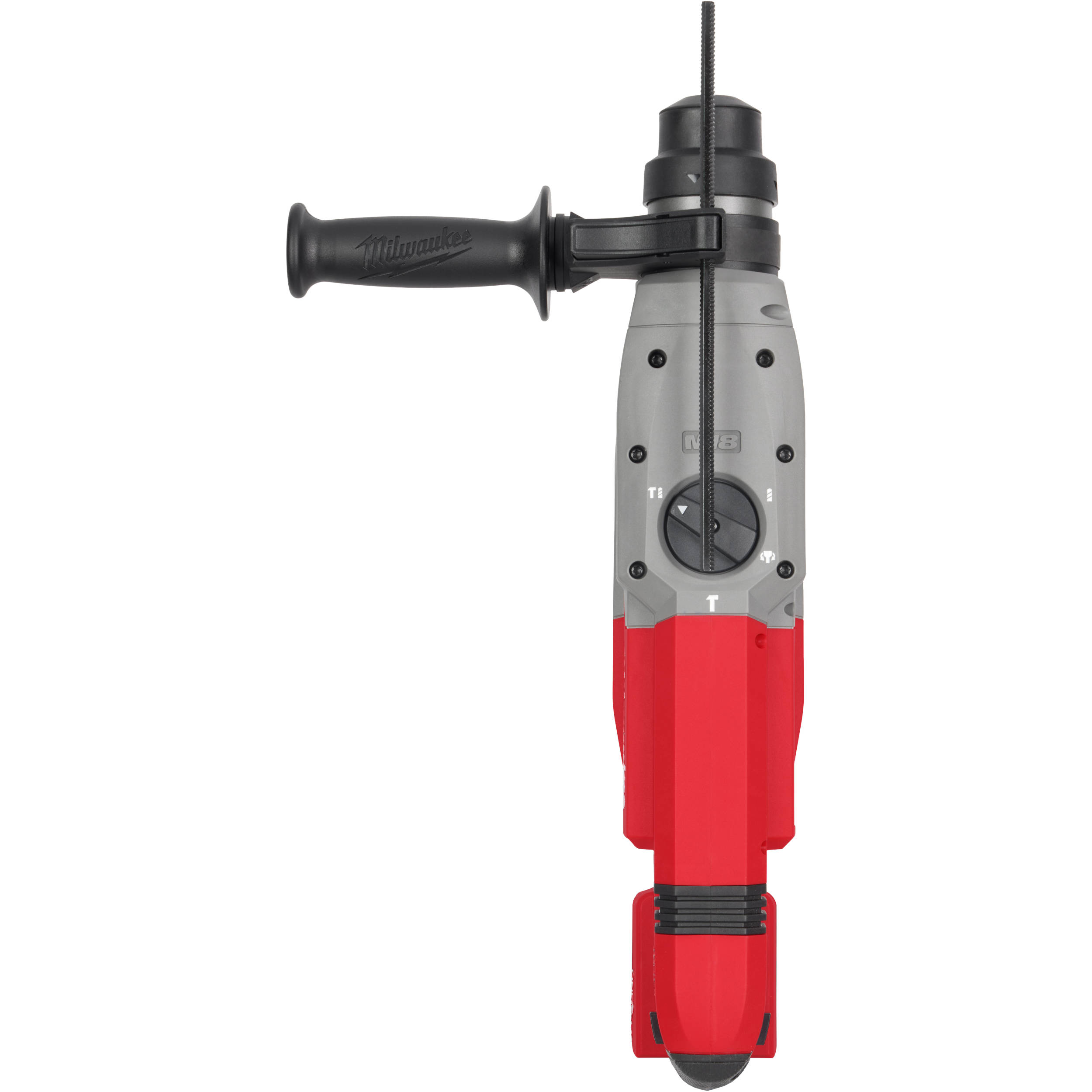

2916-20 Milwaukee M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

MFG: Milwaukee Tool
MFG Part Number: 2615-20

Available Stock: 2
Selected accessories will also be added to cart
$499.00 / Each
Quantity:

Description

The Milwaukee M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster 3/4" Holes and is Lighter Versus 1-9/16" SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) 3/4" x 4" Holes per Charge when paired with Milwaukee's M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The Milwaukee in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. Milwaukee's POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with Milwaukee's M18 FUEL™ HAMMERVAC™ 1-1/4" Dedicated Dust Extractor providing on-board OSHA Table One compliance. The Milwaukee AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects batteries from overload, overheating, and over-discharge.

Includes

(1) M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ (2916-20)

Product Features

  • POWERSTATE™ Brushless Motor delivers maximum power and long motor life
  • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
  • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
  • 3.65 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • 810 RPM
  • 4,650 BPM
  • 2916-20/2916-22 Pairs with M18 FUEL HAMMERVAC 1-1/4" Dedicated Dust Extractor (2916-DE)

Product Specifications

Rotary Hammer Size 1-1/4 in
Tool Warranty 5 Year
Power Source Cordless
Motor Type Brushless
Handle Type D-Handle
Length 18.3 in
Weight 11.5 lb
Height 7.3 in
Width 3.6 in
Max Capacity 1-1/4"
Impact Energy 3.65 ft-lbs
Kickback Prevention Yes
Anti-Vibration Yes
Length wBattery 19.6"
Weight wBattery 11.5 lbs
Solid Bit Capacity 1-1/4”
Thin Wall Core Bit Capacity 2-1/2”
Brushless Yes
Battery System M18
Chuck Type SDS Plus
BPM 4650 bpm
Maximum RPM 810 rpm
RPM Range 0-800
