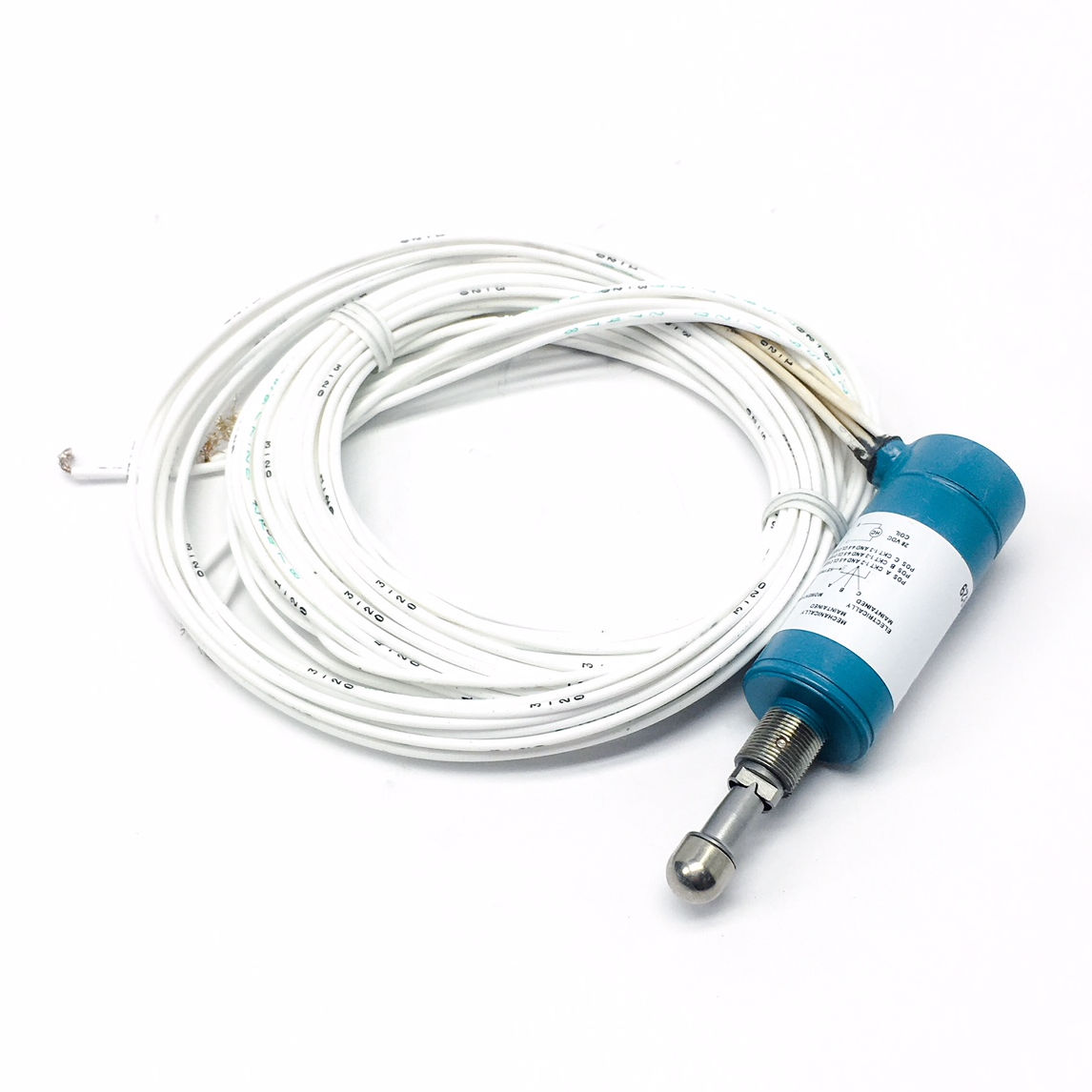

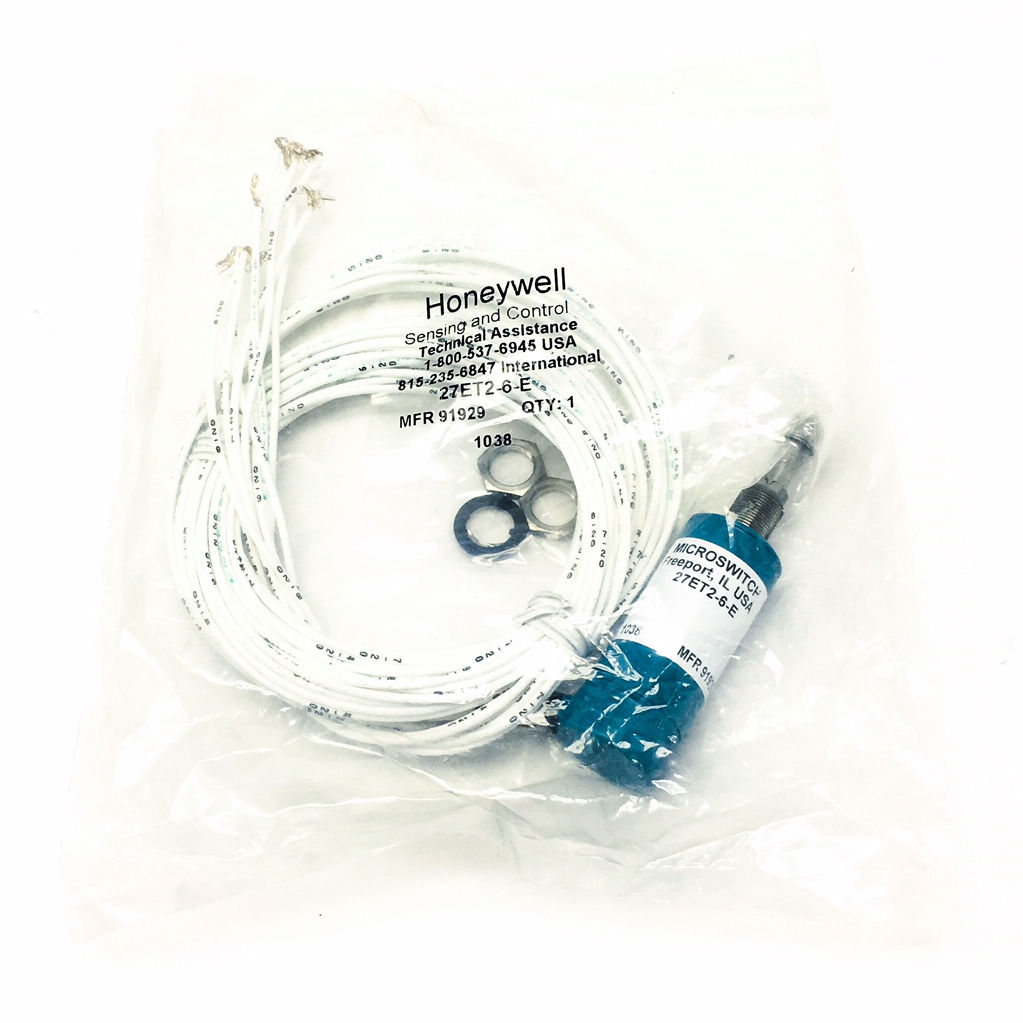

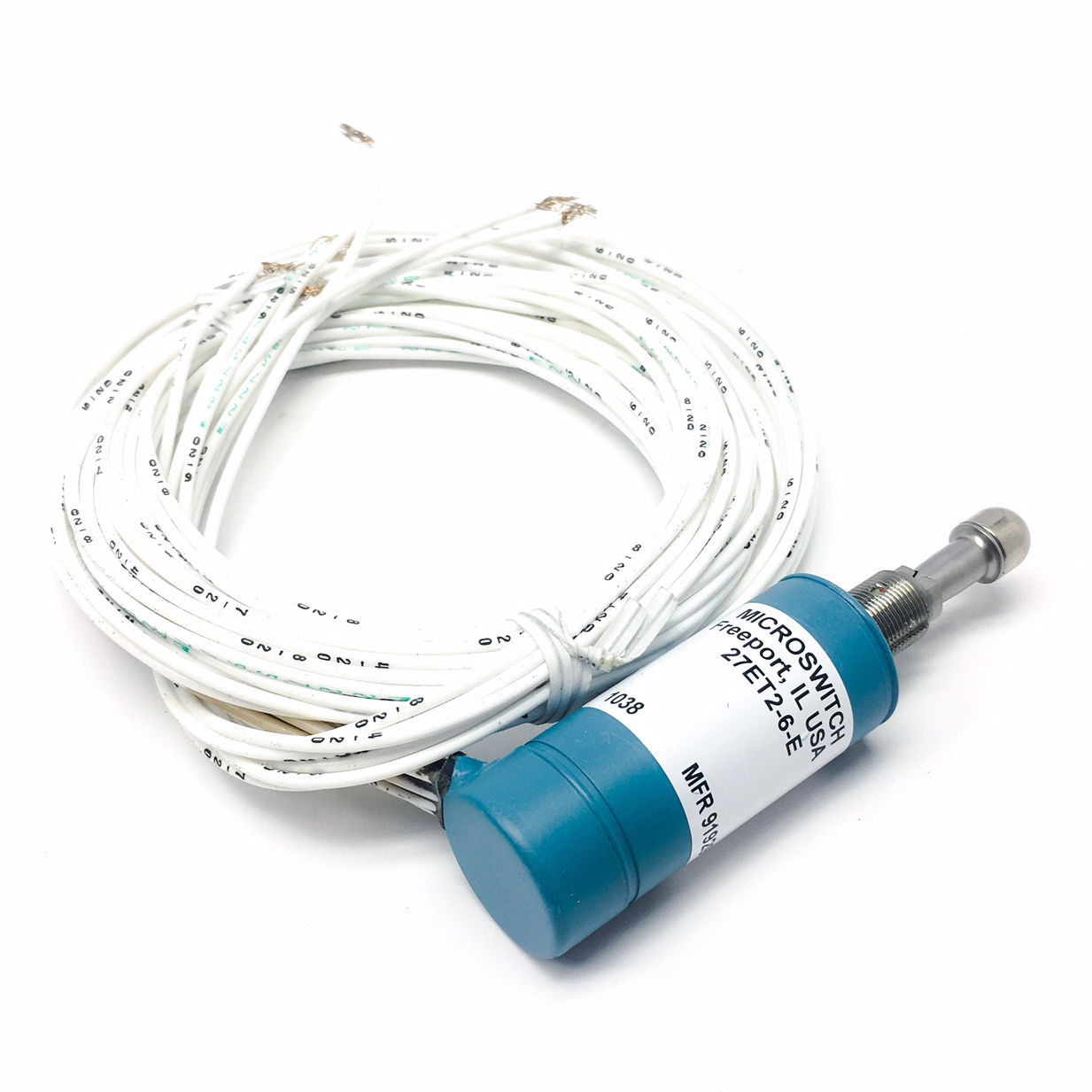

ET Series Toggle Switch, 2 pole, Electrically held- 3 position, Leadwire terminal, Locking Lever.
MICRO SWITCH ET toggle switches' holding coils maintain the toggle in operate position(s). The toggle is released by interrupting the coil circuit. With an open circuit, the ET functions as a momentary contact switch. ETs possess two and three position SPDT or DPDT circuits. ET Series switches are available in various lever versions. Turret, leadwire and screw terminations are available for easy installation.
Technical Specifications
| Series Name |
ET |
| Product Type |
MICRO SWITCH Toggle Switch |
| Ampere/Voltage Range (Resistive Load) |
0.1 A to 7.0 A at 0.5 Vdc to 28 Vdc |
| Circuitry |
DPDT |
| Action |
Electrically held, 3 position |
| Circuitry/Operating action |
|
| Mounting |
Bushing 15/32 in |
| Termination |
Leadwire |
| Lever Type |
|
| Lever Lock |
|
| UL/CSA |
Most catalog listings qualified to SAE AS55941 |
| UNSPSC Code |
39122211 |
| Availability |
Global |
| Comment |
Stainless steel lever |
| UNSPSC Commodity |
39122211 Toggle Switch |
| Series Name |
ET |
| Ampere/Voltage Range (Resistive Load) |
0.1 A to 7.0 A at 0.5 Vdc to 28 Vdc |
| Action |
Electrically held, 3 position |
| Mounting |
Bushing 15/32 in |
| Lever Type |
Locking |
| Product Type |
MICRO SWITCH Toggle Switch |
| Circuitry |
DPDT |
| Circuitry/Operating action |
|
| Termination |
Leadwire |
| Lever Lock |
|
Product Features
- Qualification to SAE AS55941 available
- Environment-proof sealing
- 2 and 3 position magnetically maintained toggle action
- Various lever styles available
- Turret, leadwire, and screw terminals
- Temperature range -65 °C to 71 °C [-85 °F to 160 °F]
Applications
- Industrial machinery and equipment
- Military and commercial aviation
- Construction equipment
- Test instruments
- Agricultural machinery
- Process control
- Medical instrumentation
